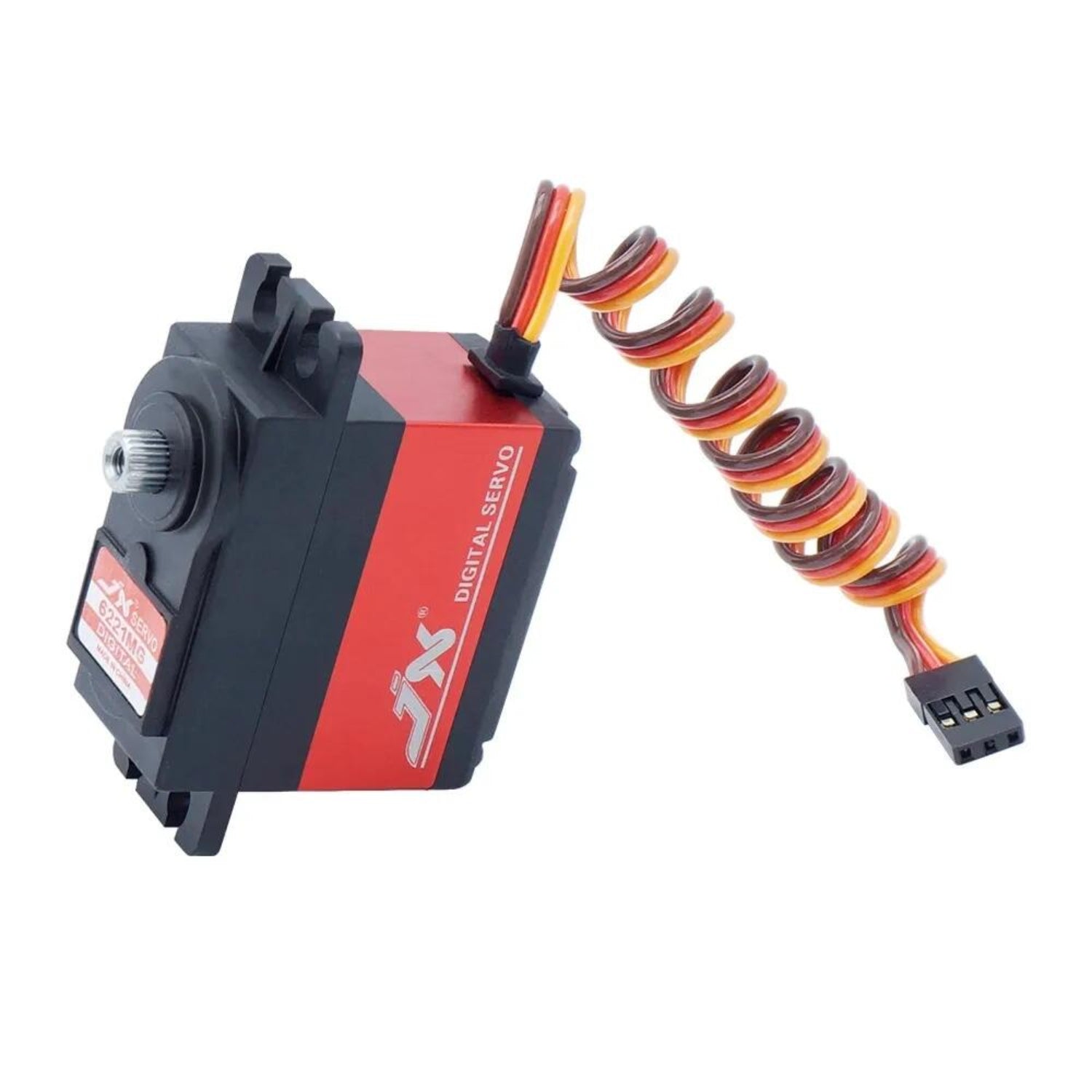

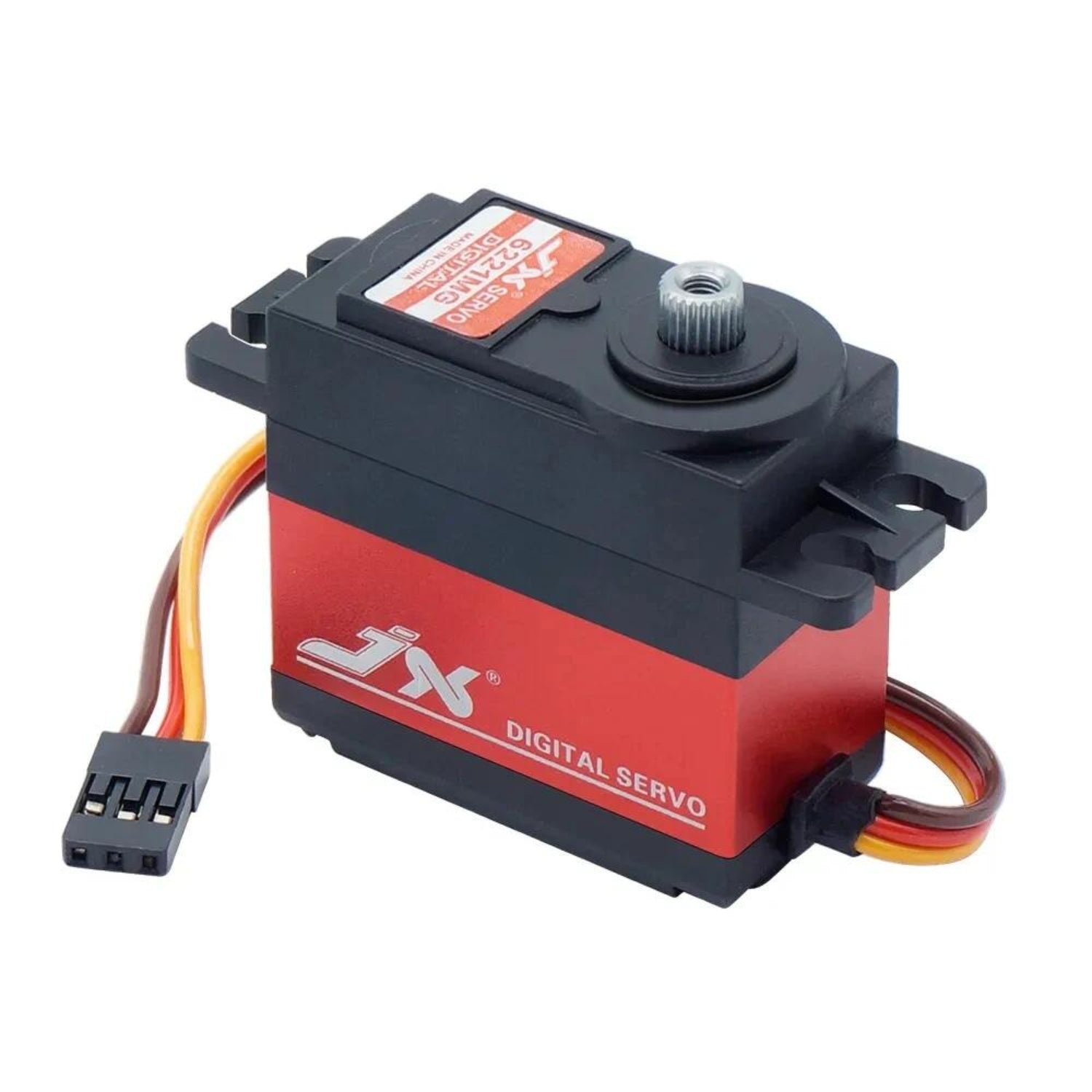

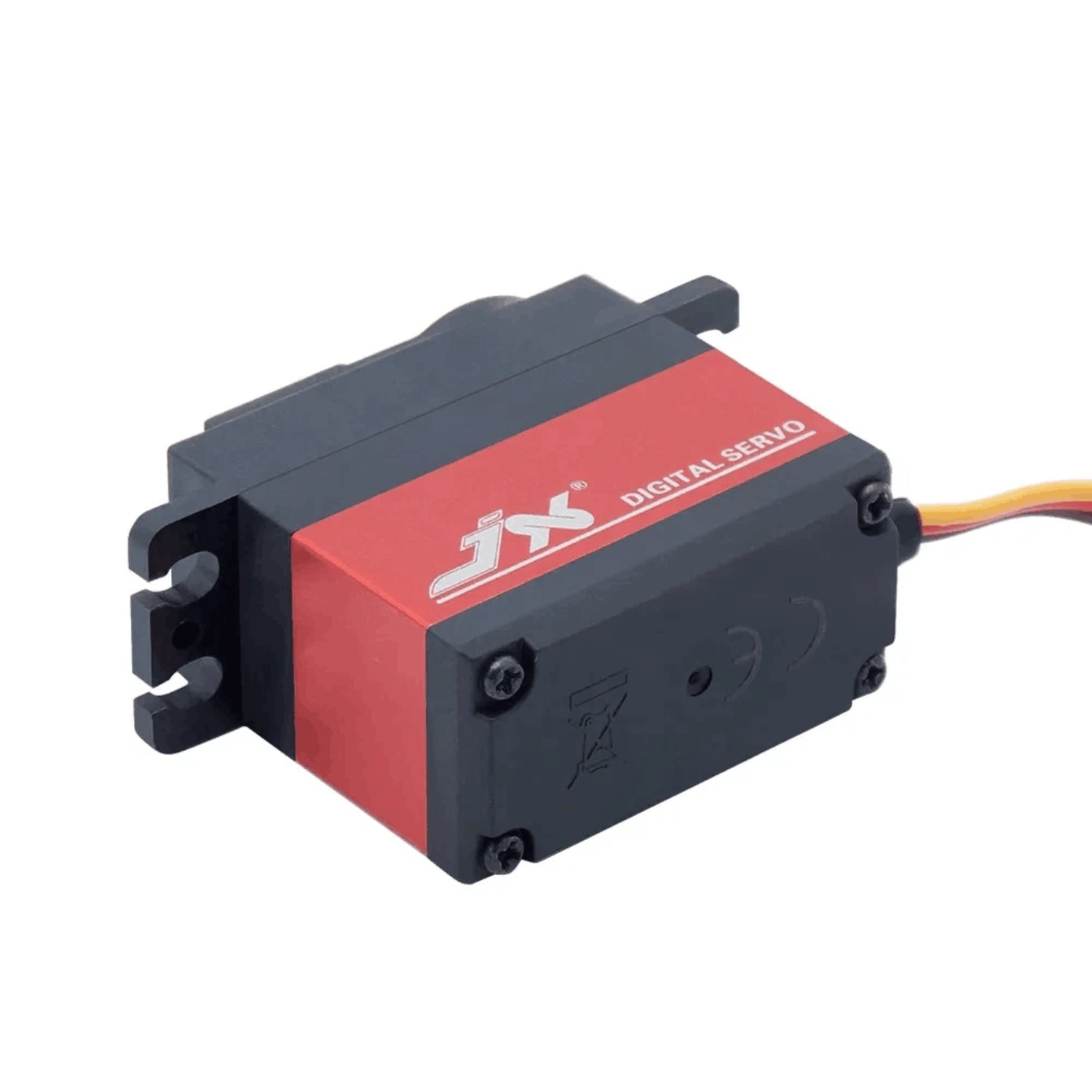

JX Servo PDI-6215MG Coreless Digital Servo 15KG High-Torque Metal Gear Servo For RC Vehicles

JX Servo PDI-6215MG Coreless Digital Servo 15KG High-Torque Metal Gear Servo For RC Vehicles

In stock

Rs. 899.00
Rs. 899.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo offers ultra-responsive control due to its exceptionally narrow 2μs dead band, which minimizes jitter and provides pinpoint accuracy. Operating at a pulse width of 1520μs with a rapid 330Hz refresh rate, it ensures smooth and stable performance. It boasts a quick operating speed of 0.18 seconds/60° at 4.8V and an even faster 0.16 seconds/60° at 6V, making it ideal for applications that demand swift movements.

Specifications:

  • Dead band: 2μ, 1520μs / 330hz
  • Operating Speed (4.8V): 0.18 sec/60°
  • Operating Speed (6V): 0.16 sec/60°
  • Stall Torque (4.8V): 14.25 kg-cm (197.93 oz/in)
  • Stall Torque (6V):  15.32 kg-cm (212.79 oz/in)
  • Connector Wire Length: JR  265 mm (10.43in)
  • Bearing: 2BB

Features:

  • High-performance digital standard servo
  • High-precision Taiwan-made aluminium gears with hard anodizing
  • CNC aluminium middle Shel
  • Dual ball bearings

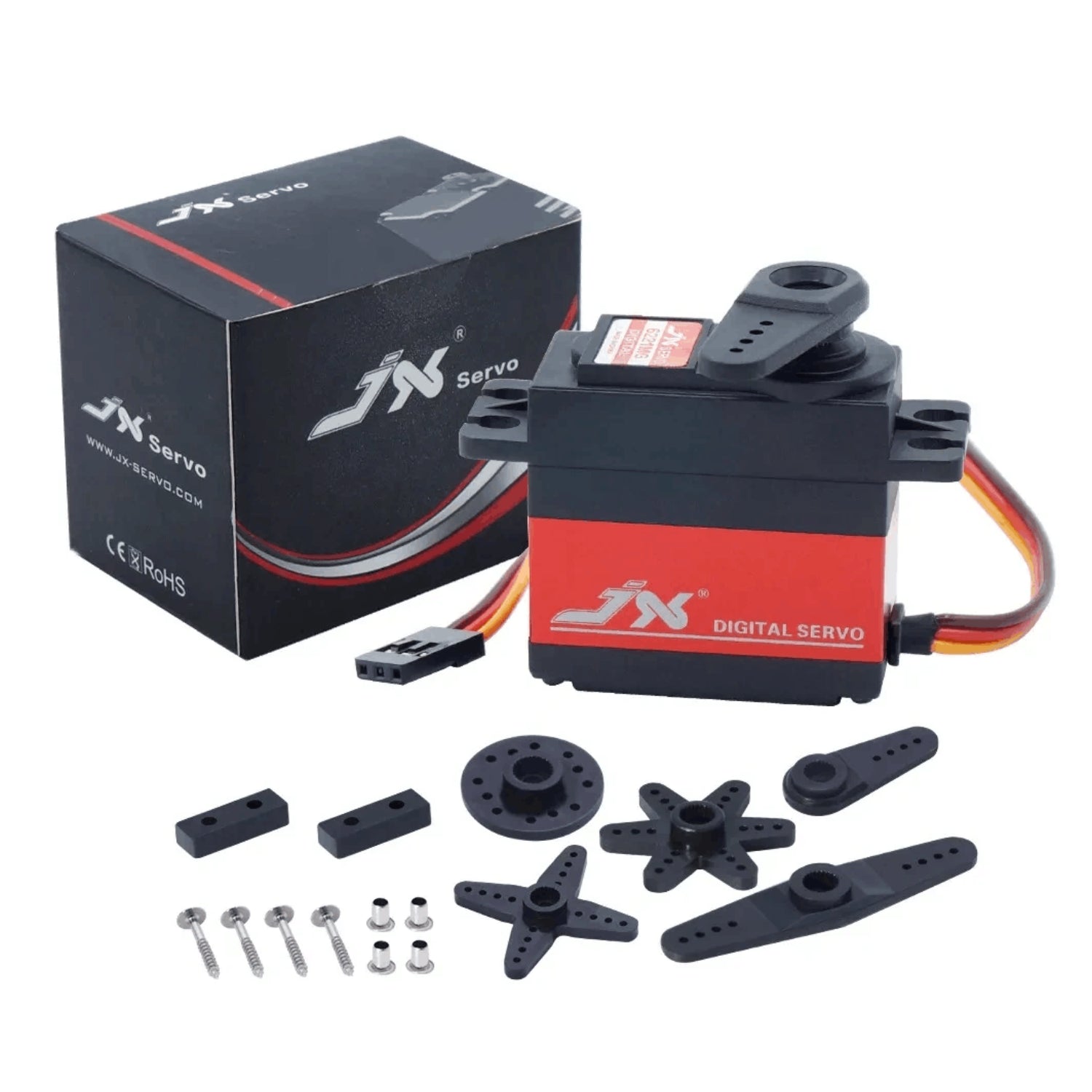

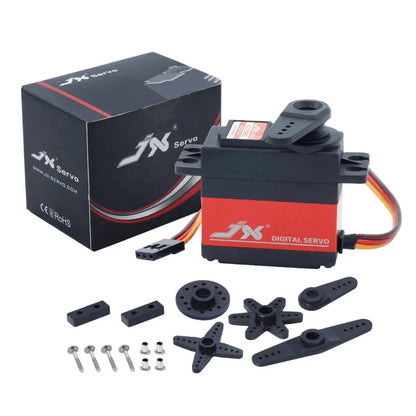

Package Included:

1 x JX Servo PDI-6215MG Metal Gear Coreless Digital Servo
