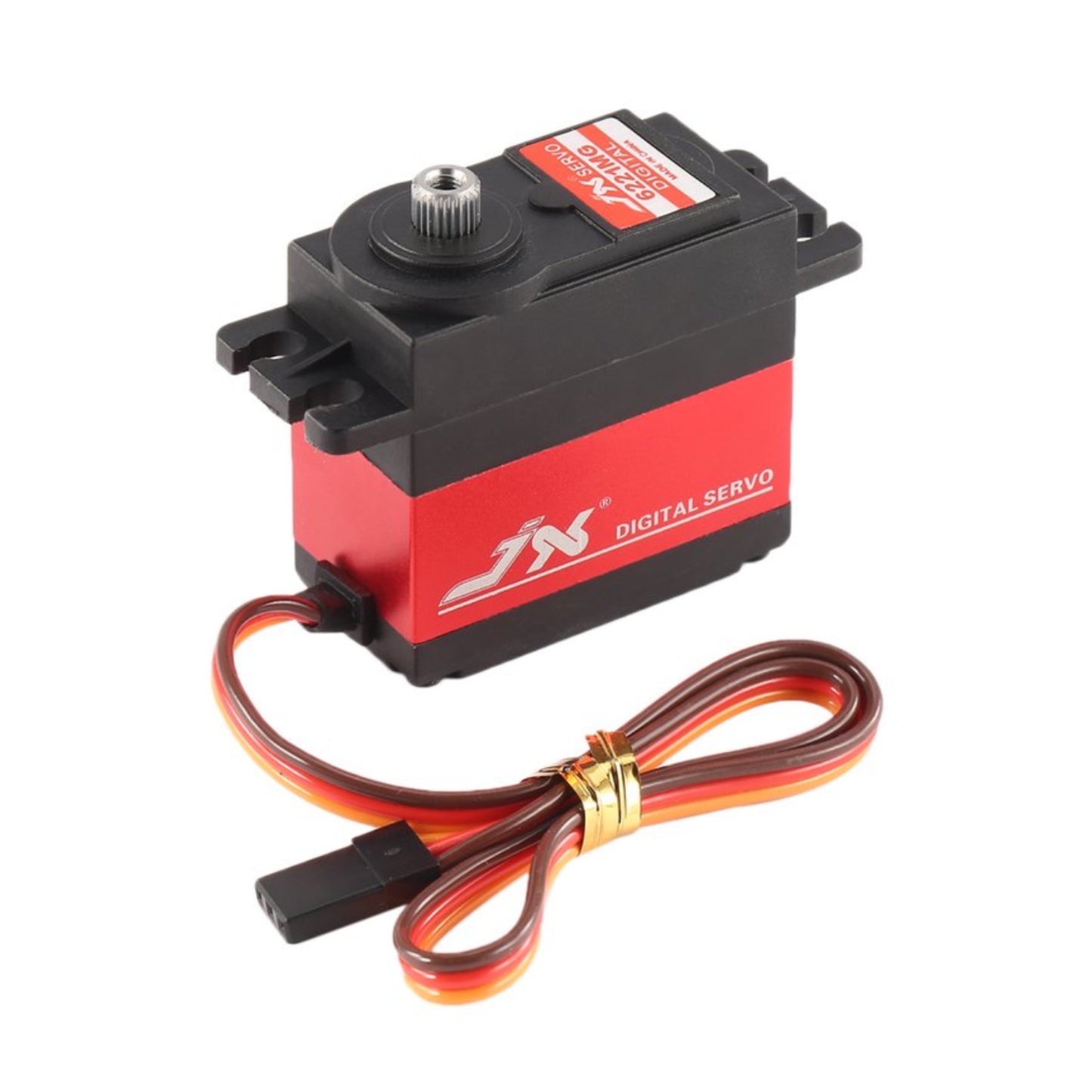

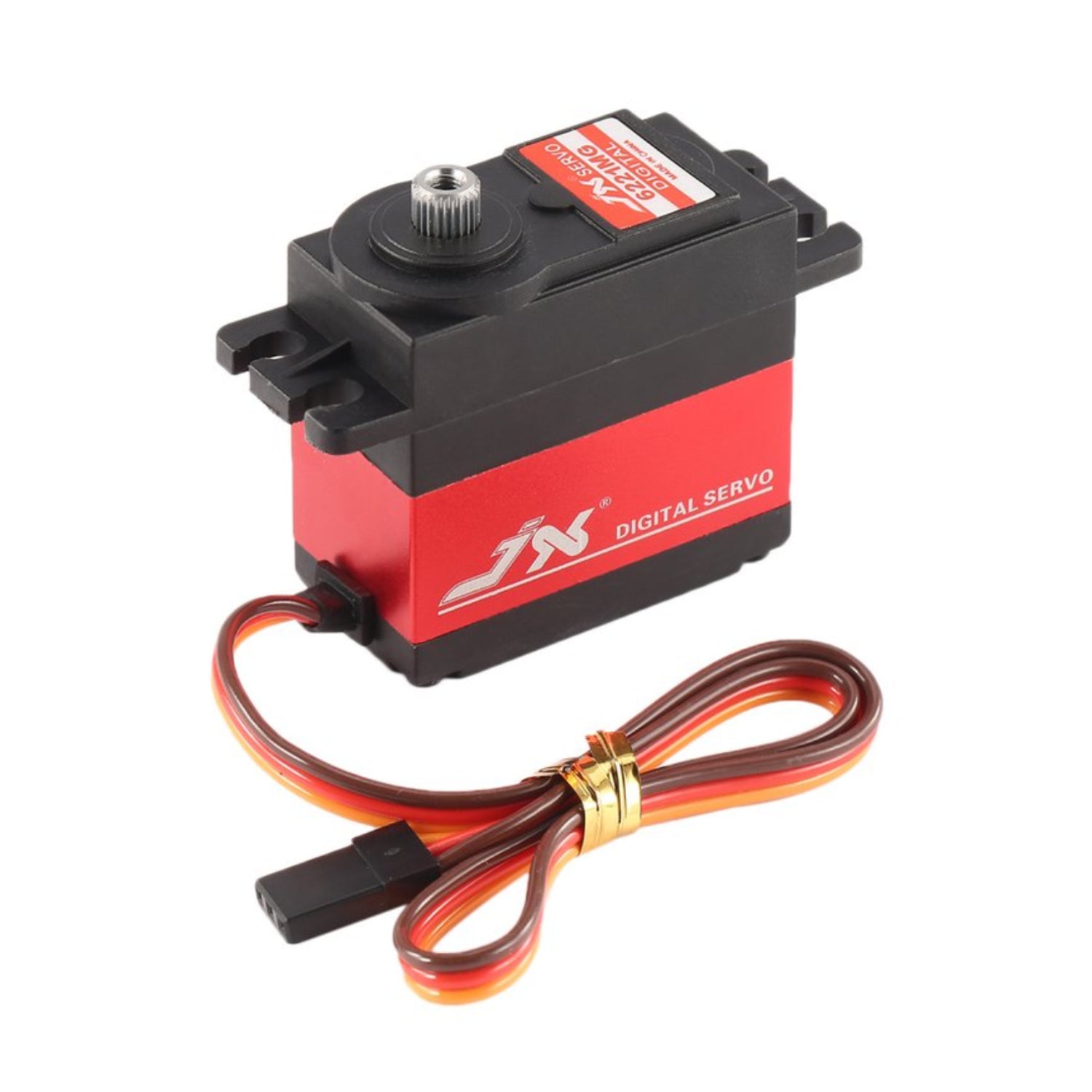

JX Servo PDI-6209MG Coreless Digital Servo 9KG High-Torque Metal Gear Digital Servo For RC Crawlers, Robots, and Aircraft

JX Servo PDI-6209MG Coreless Digital Servo 9KG High-Torque Metal Gear Digital Servo For RC Crawlers, Robots, and Aircraft

In stock

Rs. 819.00
Rs. 819.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo is built for high-level precision, featuring a high-quality core motor that delivers reliable and consistent performance. With an exceptionally narrow dead band of just 2 microseconds, it is incredibly responsive to small inputs, eliminating jitter and providing you with pinpoint control. It operates at a pulse width of 1520 with a refresh rate of 330 Hz for smooth and stable operation.

Specifications:

  • Dead band: 2μs 1520μs / 330hz
  • Motor: high-quality core motor
  • Operating Speed (4.8V): 0.15 sec/60°
  • Operating Speed (6V): 0.13 sec/60°
  • Stall Torque (4.8V): 8.65 kg-cm (120.15 oz/in)
  • Stall Torque (6V): 9.35 kg-cm (129.88 oz/in)
  • Connector Wire Length: JR 265 mm (10.43in)
  • Bearing: 2BB

Features:

  • Ultra-responsive: Highlights the 2μs dead band.
  • High-precision: Emphasizes the servo's accuracy.
  • Jitter-free control: Directly addresses the benefit of the narrow dead band.
  • Smooth stable operation: Describes the effect of the 1520μs / 330Hz refresh rate.
  • High-quality core motor: Focuses on the internal component that ensures reliability.
  • Reliable performance: A great general-purpose keyword for the servo's overall function.

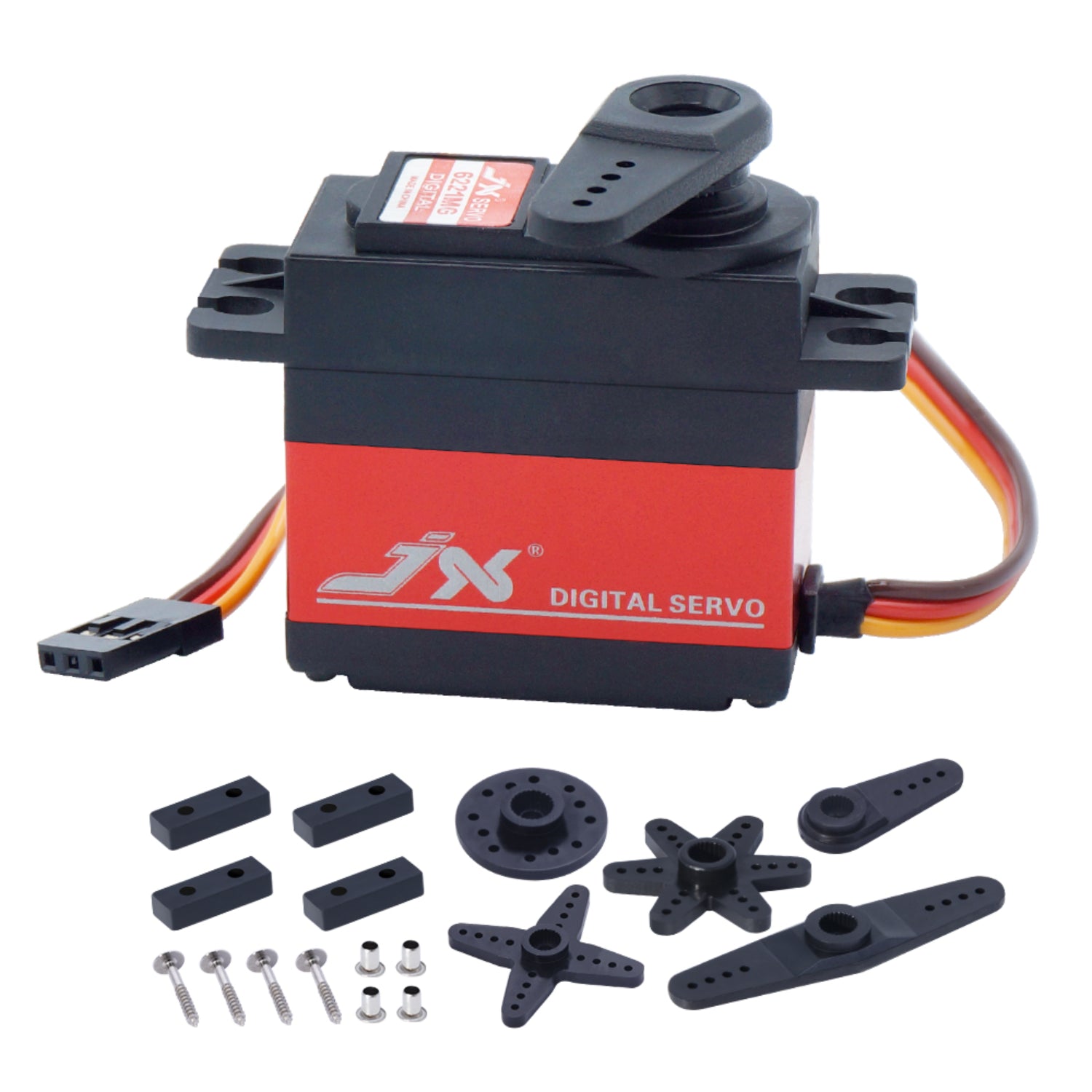

Package Included:

1 x JX Servo PDI-6209MG High-Precision 9KG Digital Servo
