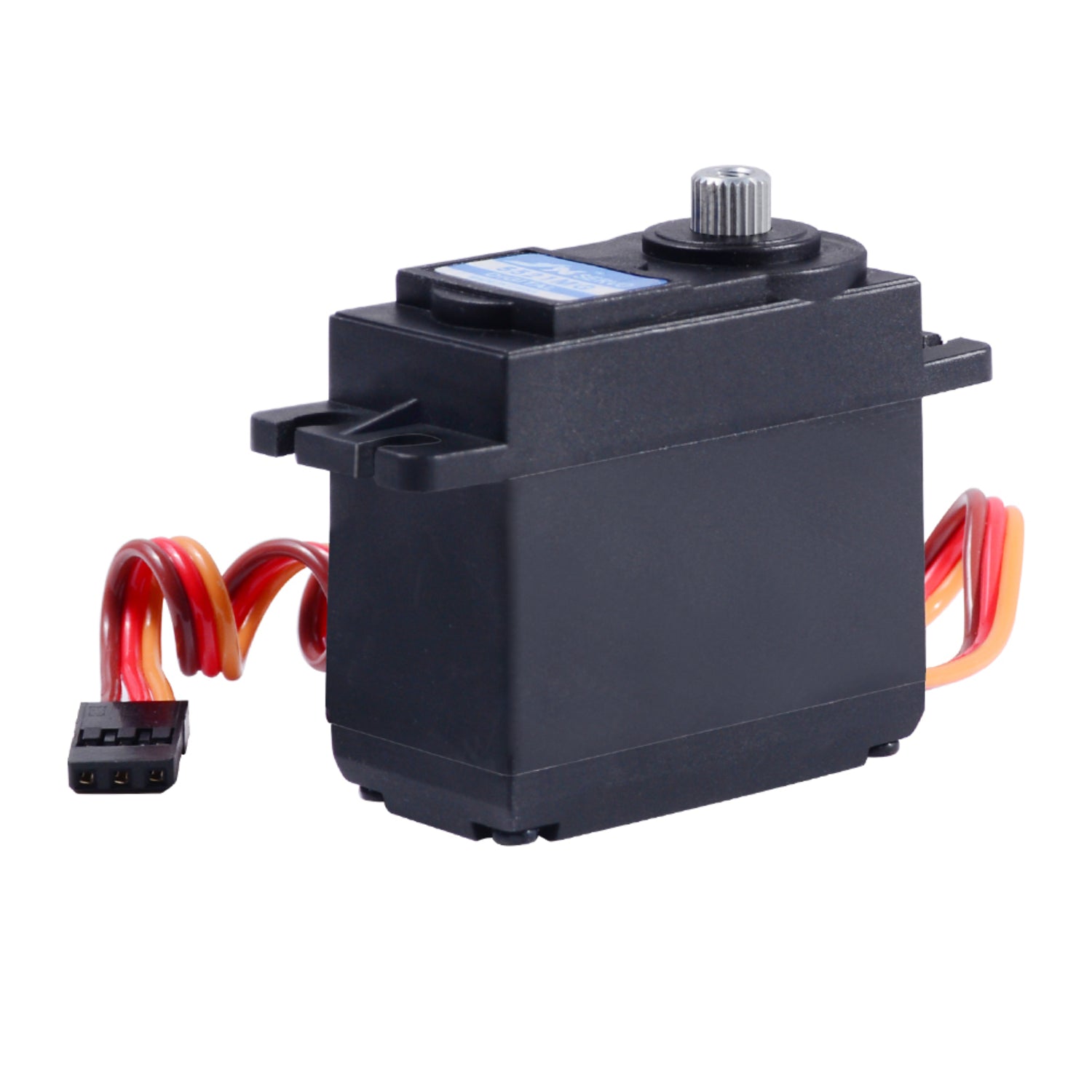

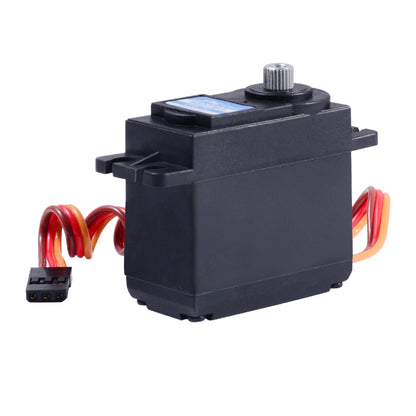

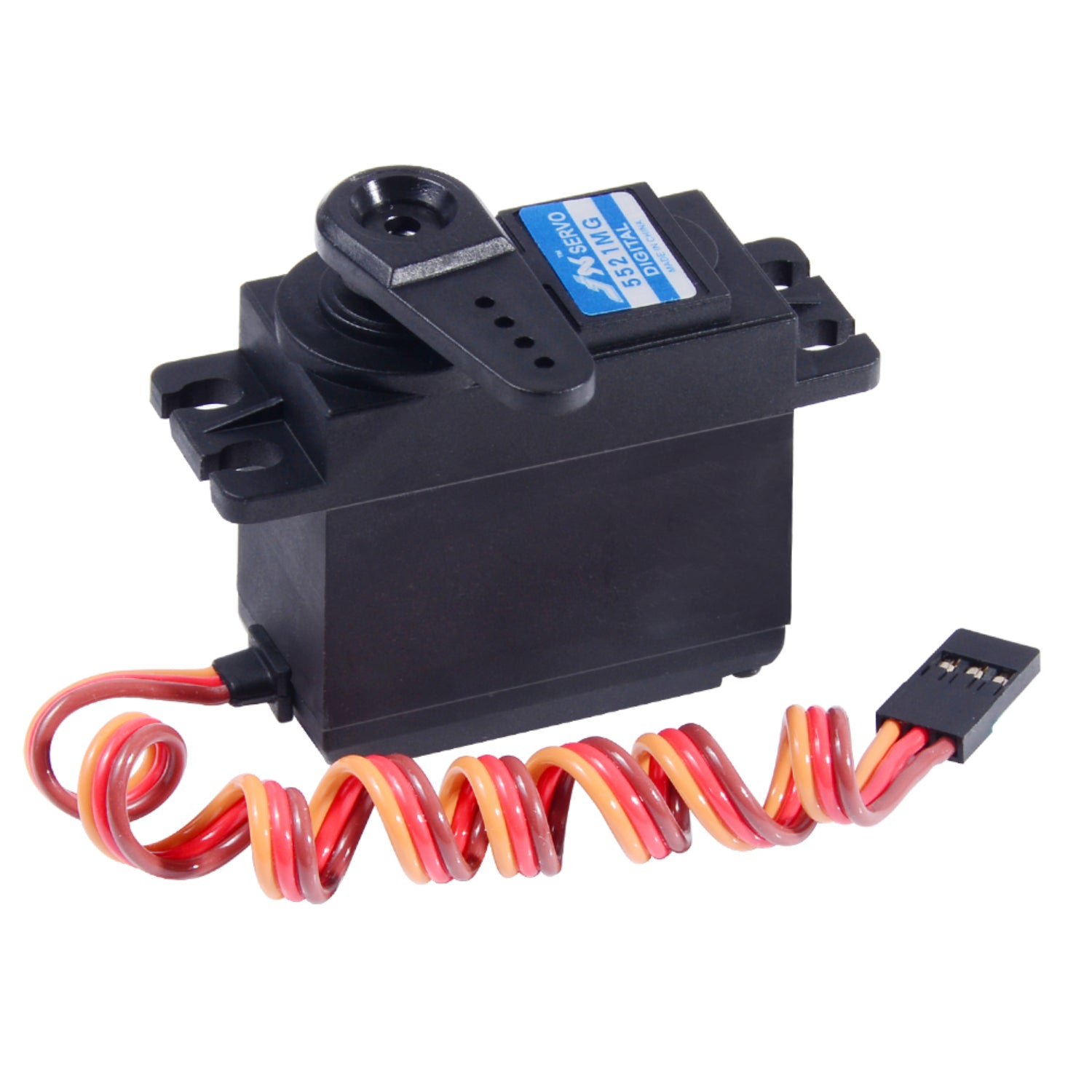

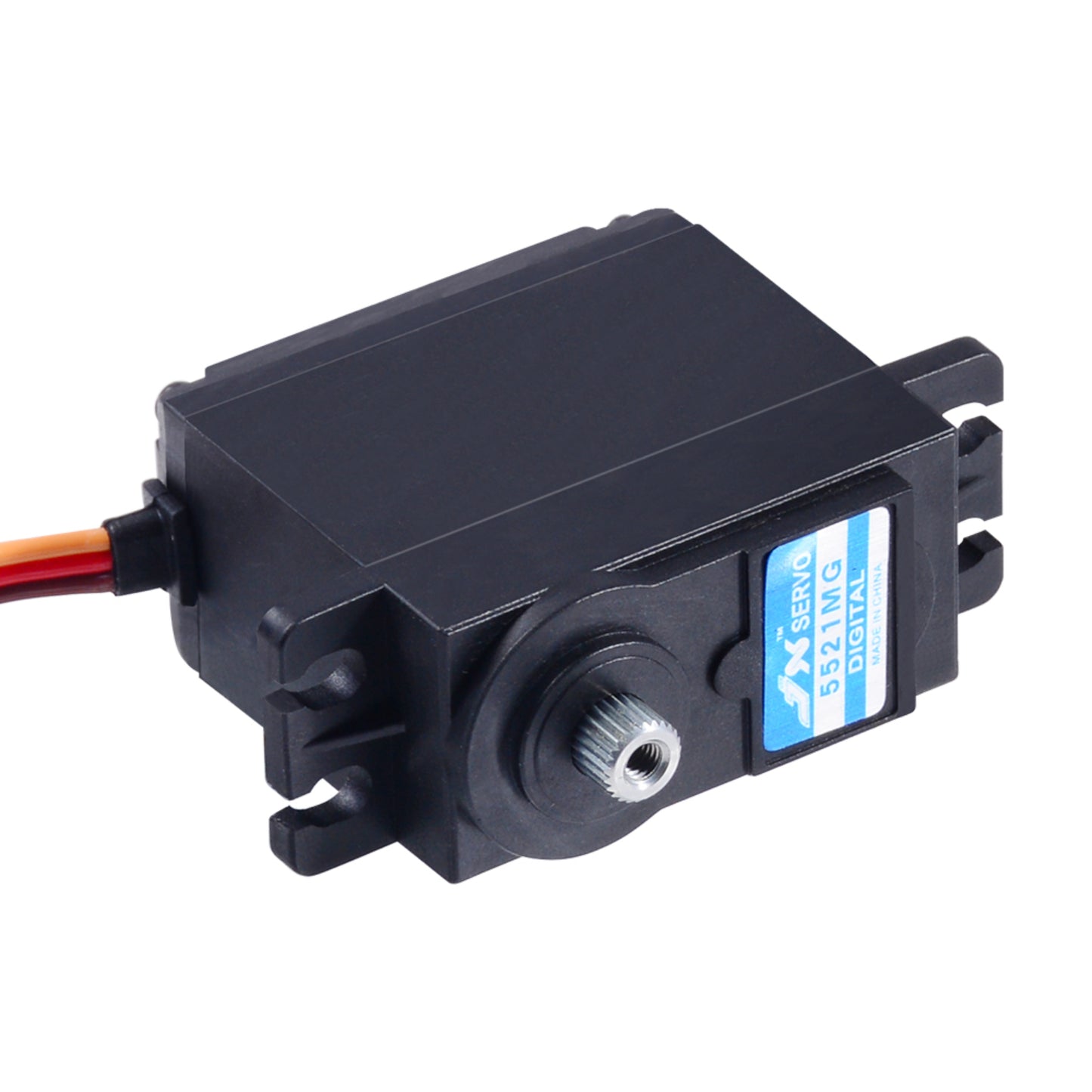

JX Servo PDI-5521MG Metal Gear Digital Servo 21.32kg-cm High Torque Servo Motor For 1/8 1/10 Scale RC Models

JX Servo PDI-5521MG Metal Gear Digital Servo 21.32kg-cm High Torque Servo Motor For 1/8 1/10 Scale RC Models

In stock

Rs. 879.00
Rs. 879.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The JX Servo PDI-5521MG is a high-performance digital servo engineered for precision and durability, commonly used in remote-controlled (RC) models like cars, boats, and airplanes. Its core feature is a metal gear train, which is significantly more robust and durable than nylon or plastic gears, enabling it to withstand high-stress applications and sudden impacts without stripping. This makes it ideal for steering systems in large-scale RC cars or for controlling ailerons and rudders in RC aircraft.

Specifications:

  • Dead band: 4μs 1520μs / 330hz
  • Operating Speed (4.8V): 0.18 sec/60°
  • Operating Speed (6V): 0.16 sec/60°
  • Stall Torque (4.8V): 17.25 kg-cm (239.55oz/in)
  • Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
  • Connector Wire Length: JR265 mm (10.43in)
  • Bearing: 2BB

Features:

  • High-performance digital standard servo
  • High-precision metal gears
  • High-quality brushed motor
  • Double ball bearings

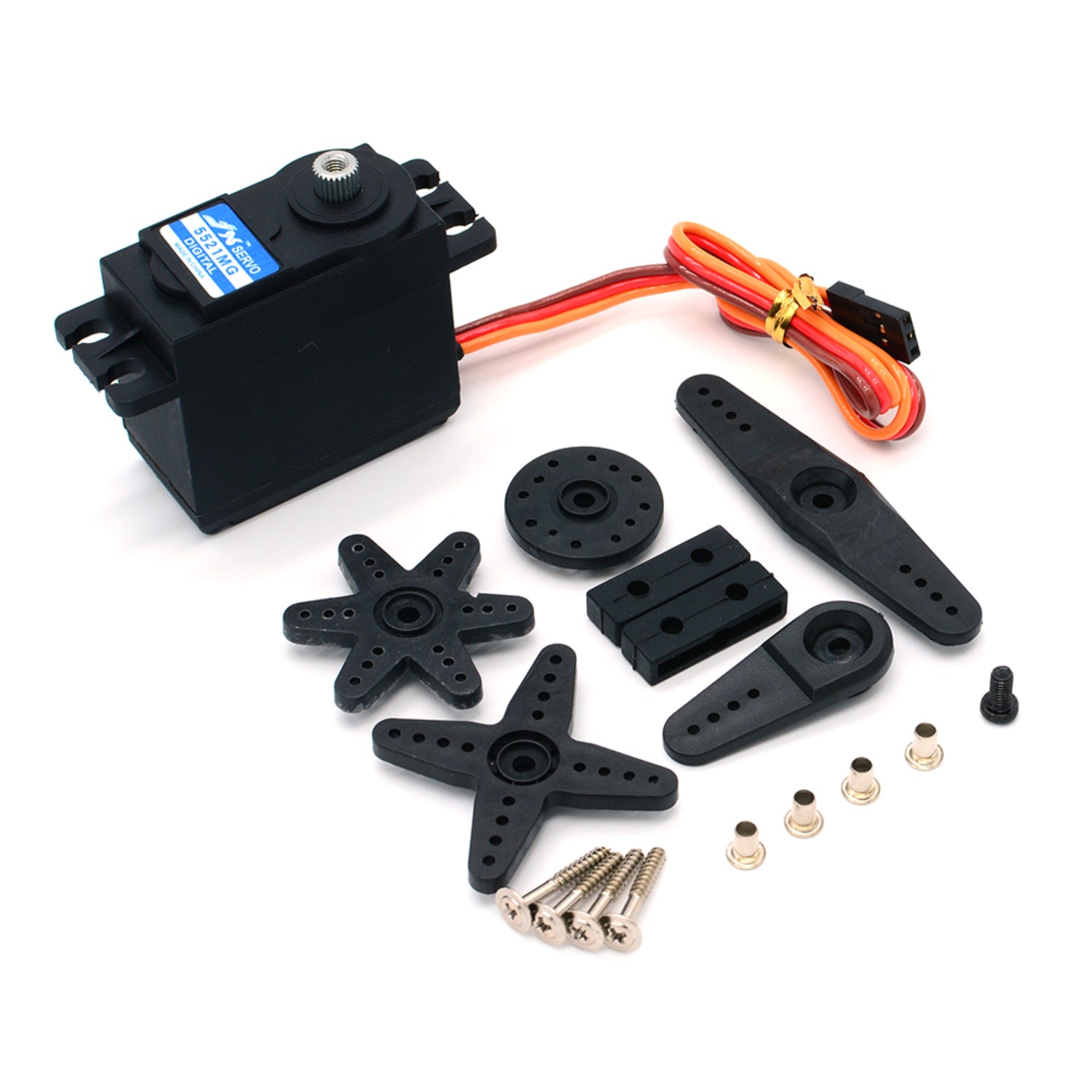

Package Included:

1 x JX Servo PDI-5521MG 21.32kg High Precision Metal Gear Digital Servo
