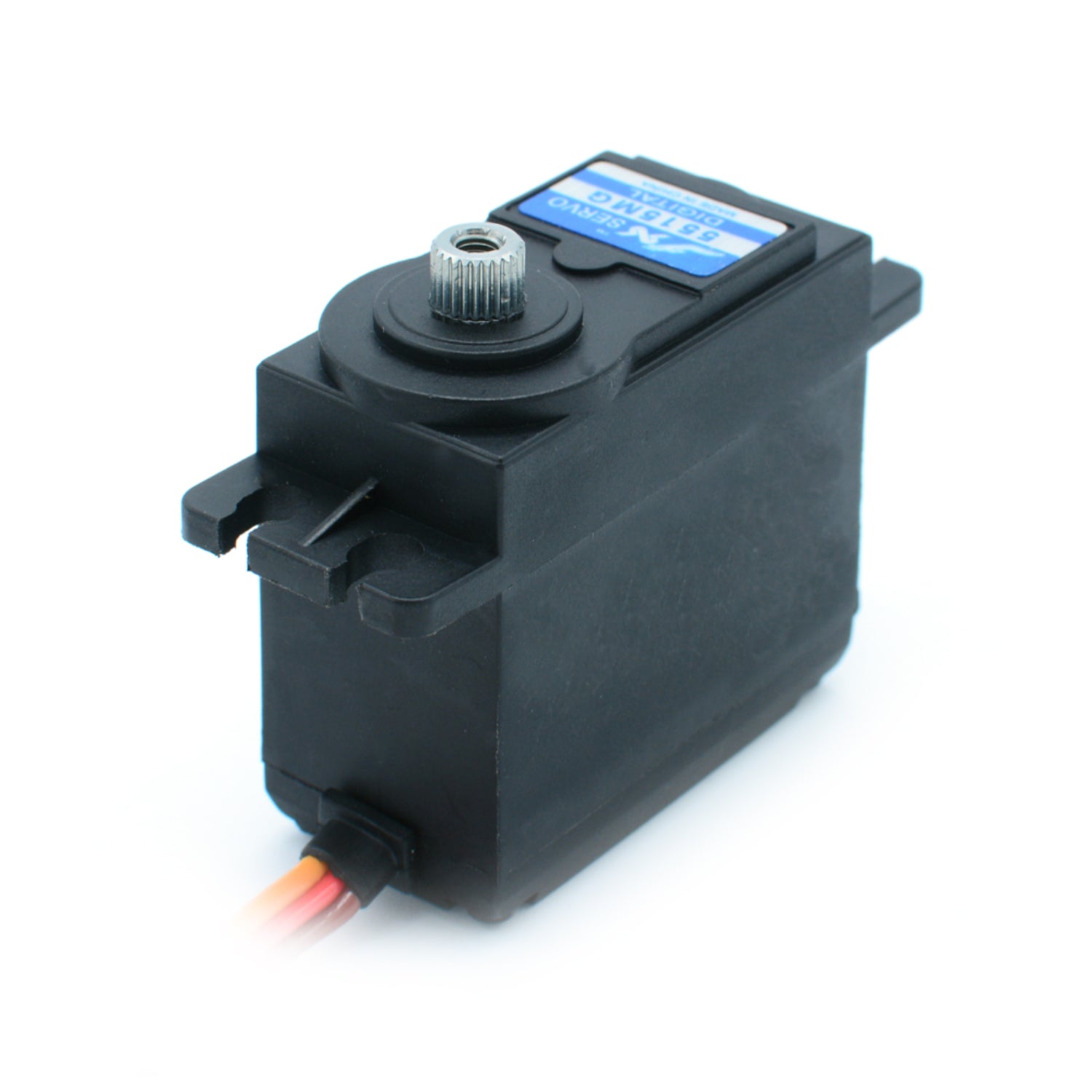

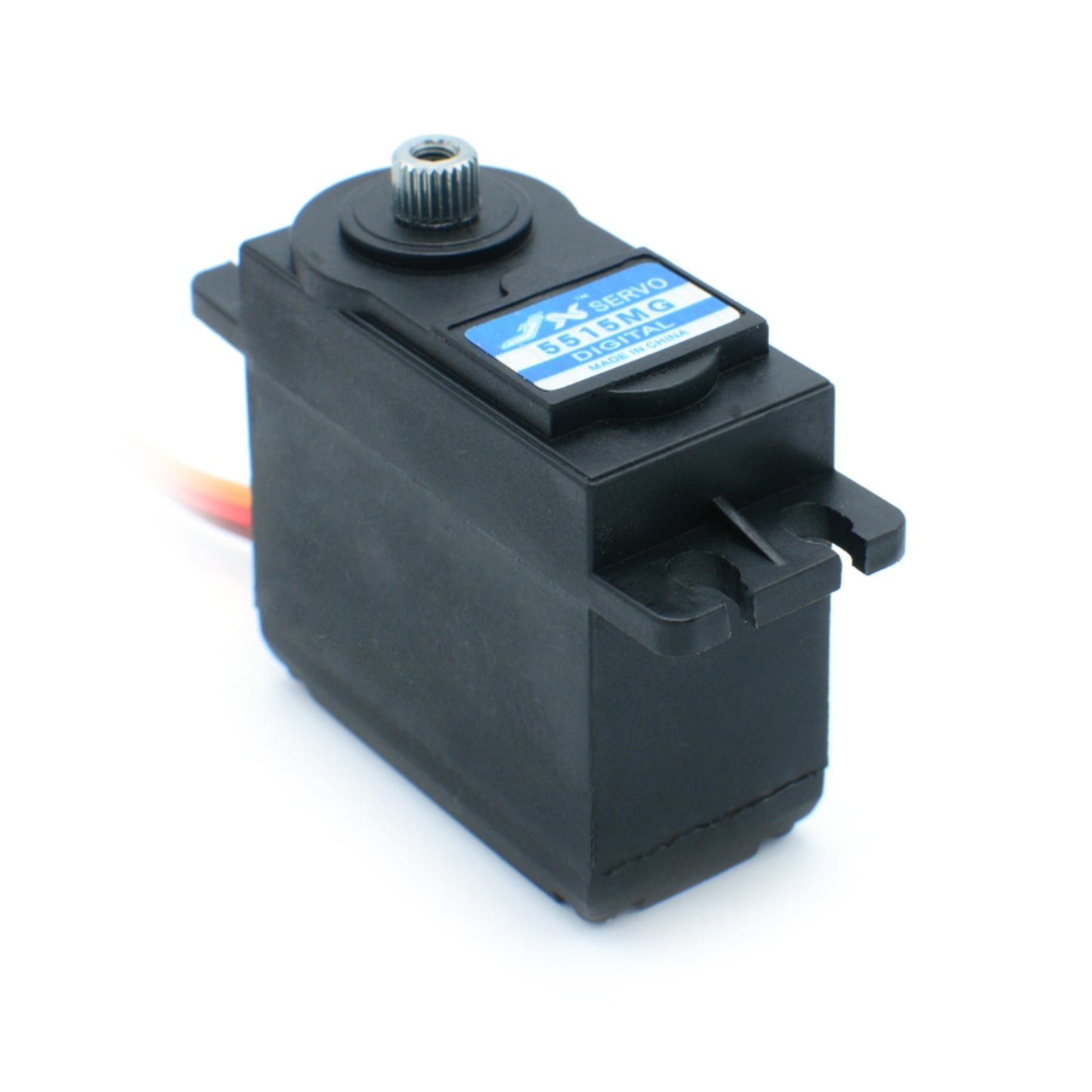

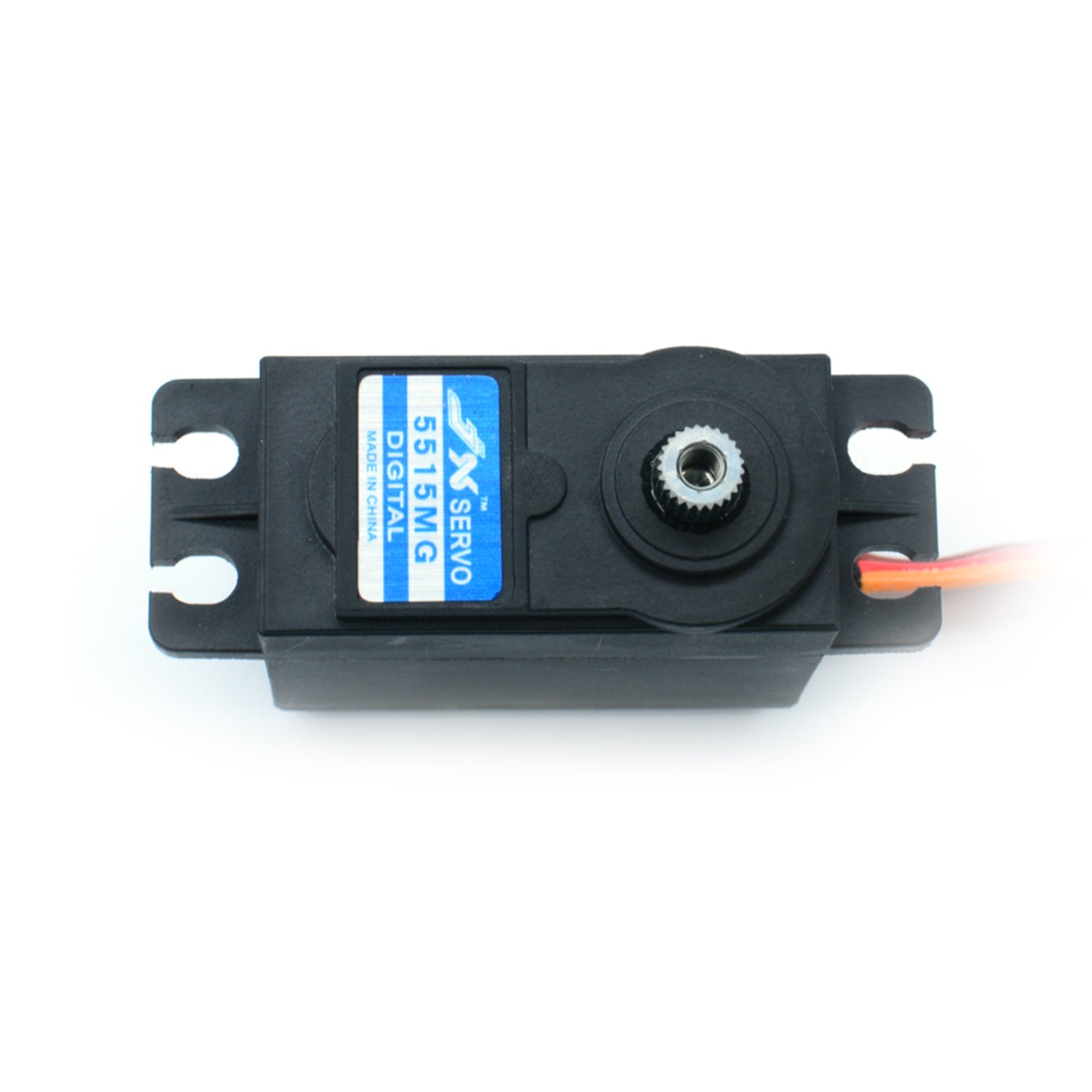

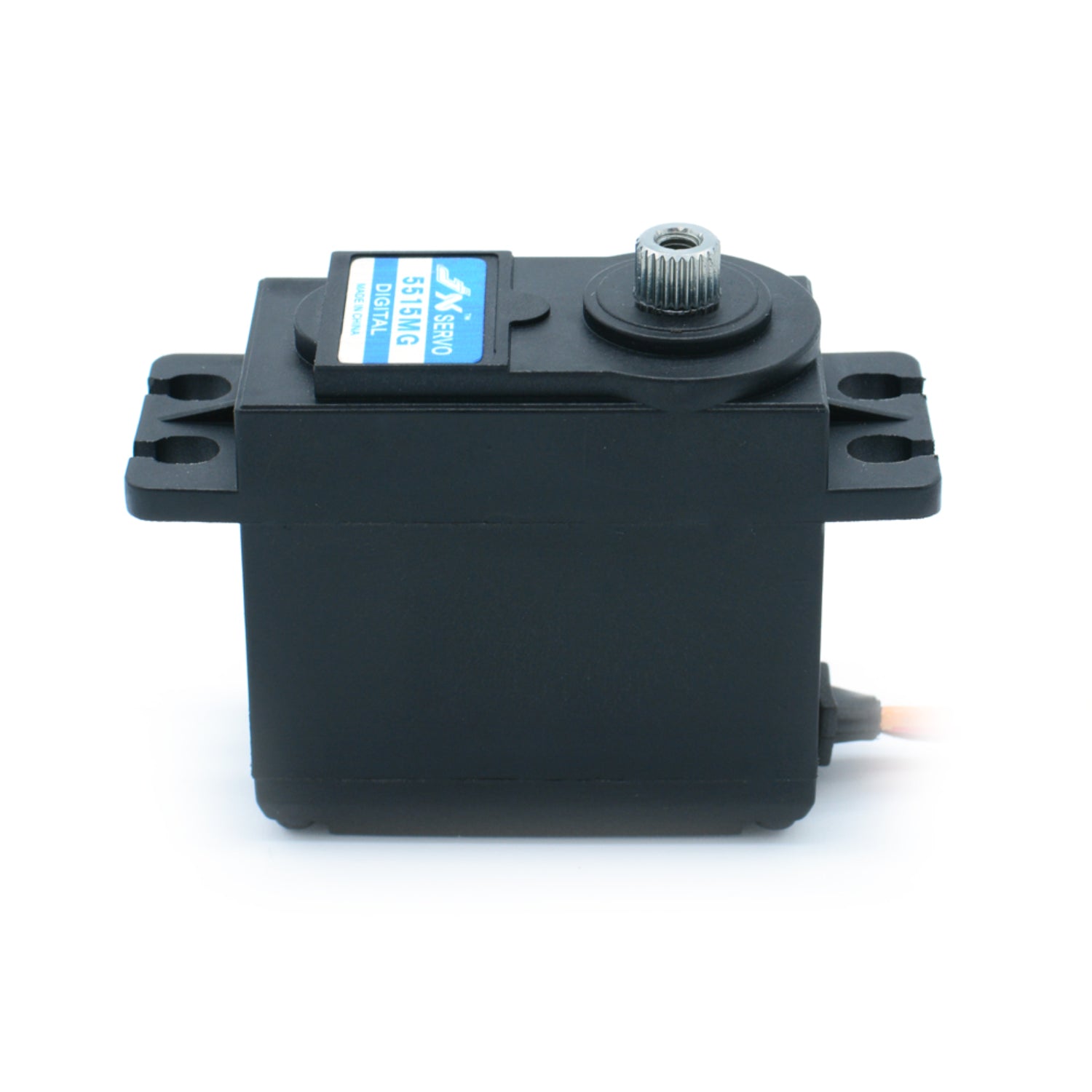

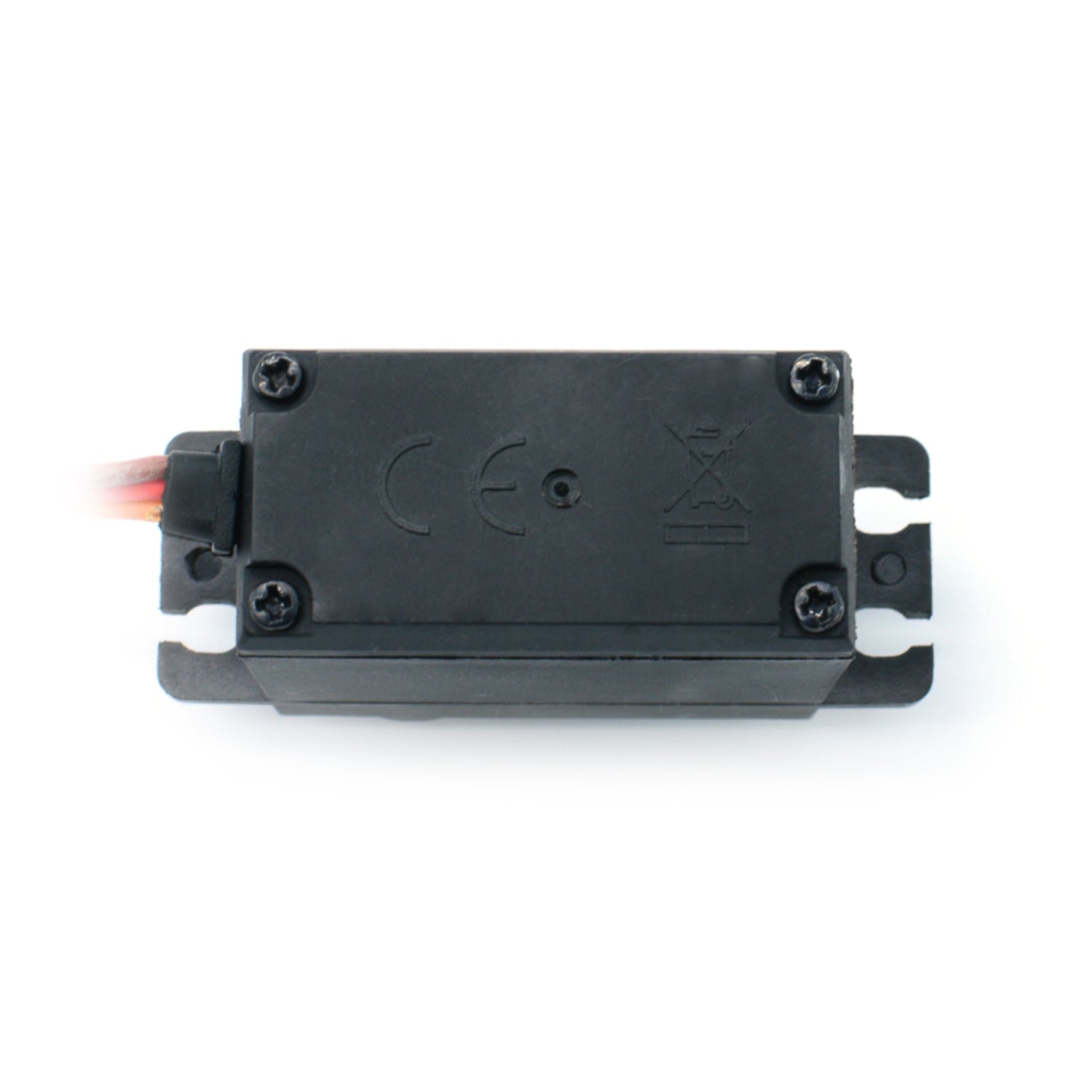

JX Servo PDI-5515MG 15kg High Torque Metal Gear Servo 0.14s Speed Digital Standard Servo For RC Cars, Drones, and Robotics
JX Servo PDI-5515MG 15kg High Torque Metal Gear Servo 0.14s Speed Digital Standard Servo For RC Cars, Drones, and Robotics
SKU:
In stock
Regular price
Rs. 779.00
Regular price
Sale price
Rs. 779.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The JX Servo PDI-5515MG is a high-performance digital standard servo designed for a wide range of demanding applications. Built with precision and durability in mind, this servo delivers an impressive 15KG of torque, making it the ideal choice for RC cars, aircraft, robotics, and other projects that require strong, reliable, and precise control.
Specifications:
- Dead band: 4μs, 1520μs / 330hz
- Operating Speed (4.8V): 0.18 sec/60°
- Operating Speed (6V): 0.16 sec/60°
- Stall Torque (4.8V): 14.25 kg-cm (197.93 oz/in)
- Stall Torque (6V): 15.32 kg-cm (212.79 oz/in)
- Connector Wire Length: JR 265 mm (10.43in)
- Bearing: 2BB
Features:
- High-performance digital standard servo
- High-precision Taiwan-made metal gears
- High-quality brushed motor
- Dual ball bearings

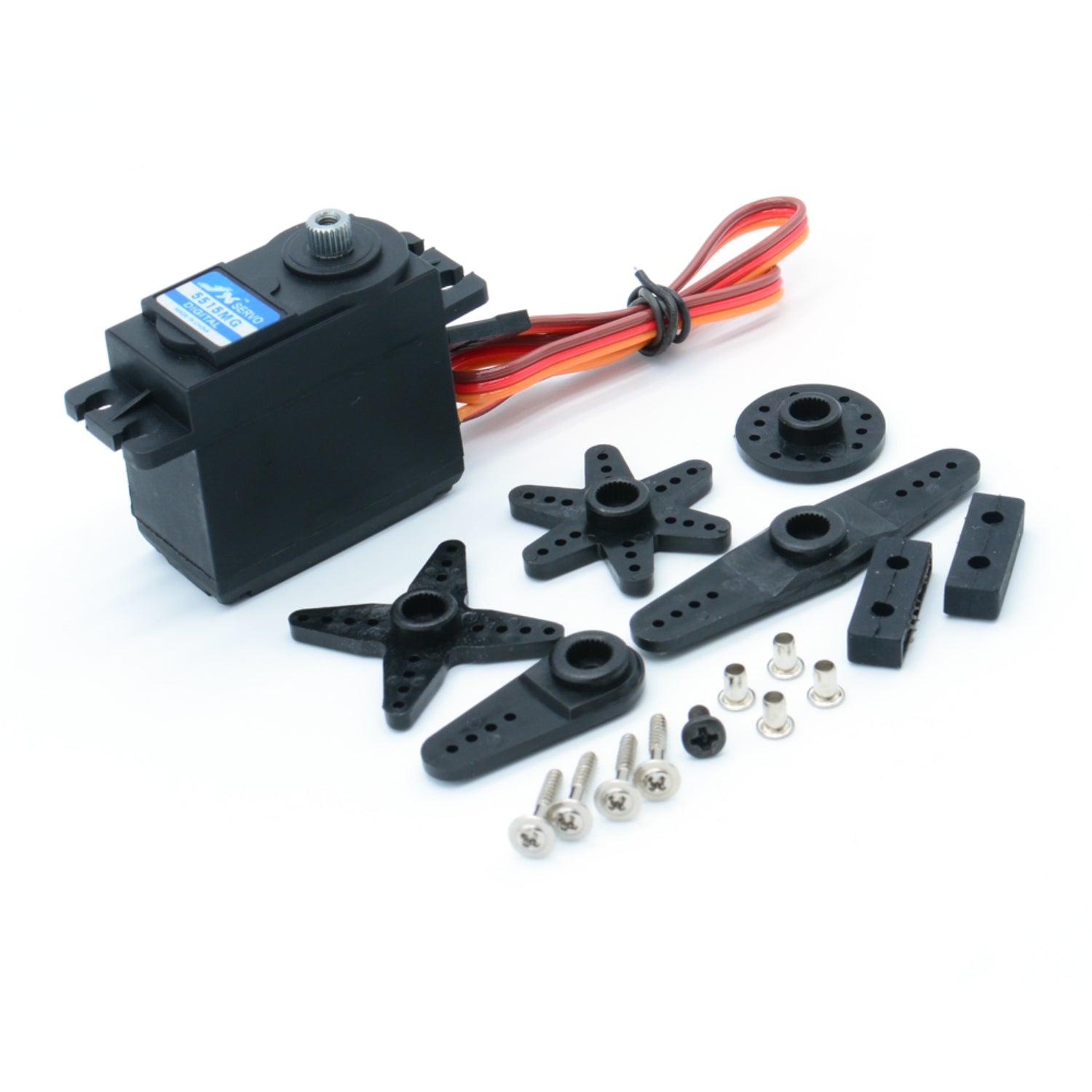

Package Included:
1 x JX Servo PDI-5515MG High Torque 15KG Metal Gear Digital Standard Servo
