JX Servo PDI-4409MG Coreless Digital Standard Servo 9KG High-Torque Servo For RC Models
JX Servo PDI-4409MG Coreless Digital Standard Servo 9KG High-Torque Servo For RC Models
SKU:
In stock
Regular price
Rs. 1,079.00
Regular price
Sale price
Rs. 1,079.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The JX Servo PDI-4409MG is a high-performance, high-torque digital servo designed for demanding RC applications. It delivers a formidable torque output of 9 kg-cm (kilogram-centimeters) at 6V, making it suitable for controlling large ailerons, flaps, rudders, and steering systems in RC cars, planes, and boats.
Specifications:
- Dead band: 2μs
- Working frequence:1520μs / 330hz
- Motor: high-quality core motor
- Operating Speed (4.8V): 0.13 sec/60°
- Operating Speed (6V): 0.11 sec/60°
- Stall Torque (4.8V):7.8 kgcm
- Stall Torque (6V):9.2 kg.-cm
- Connector Wire Length: JR 265 mm
- Bearing: 2BB
Features:
- High-performance standard digital servo
- High-precision metal gear
- High-quality brushed motor
-
Dual ball bearing

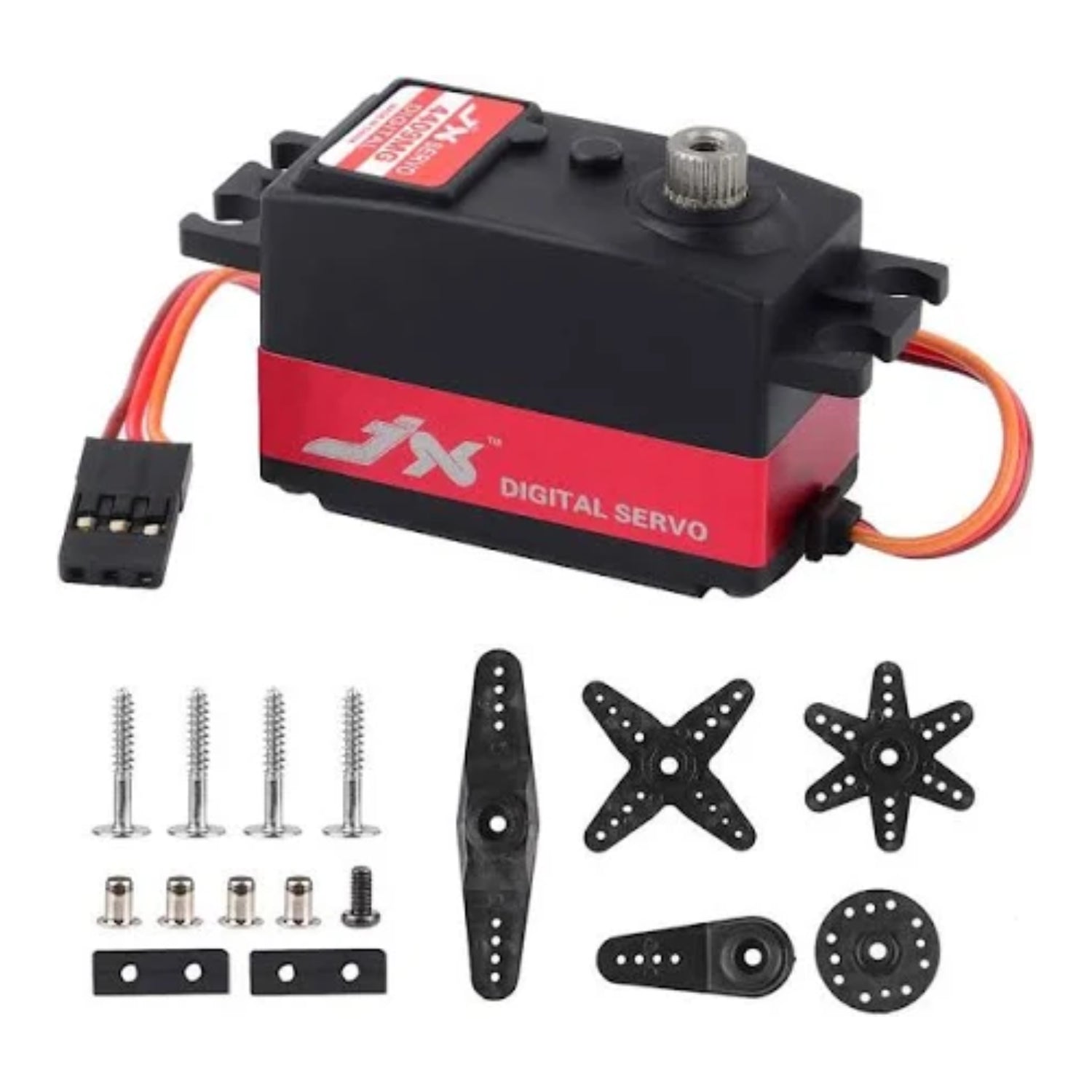

Package Included:
1 x JX Servo PDI-4409MG 9KG High-Torque Coreless Digital Servo
