JX Servo B40 40kg Brushless Servo High-Torque Waterproof Digital Servo For RC Cars & Boats

JX Servo B40 40kg Brushless Servo High-Torque Waterproof Digital Servo For RC Cars & Boats

In stock

Rs. 8,350.00
Rs. 8,350.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

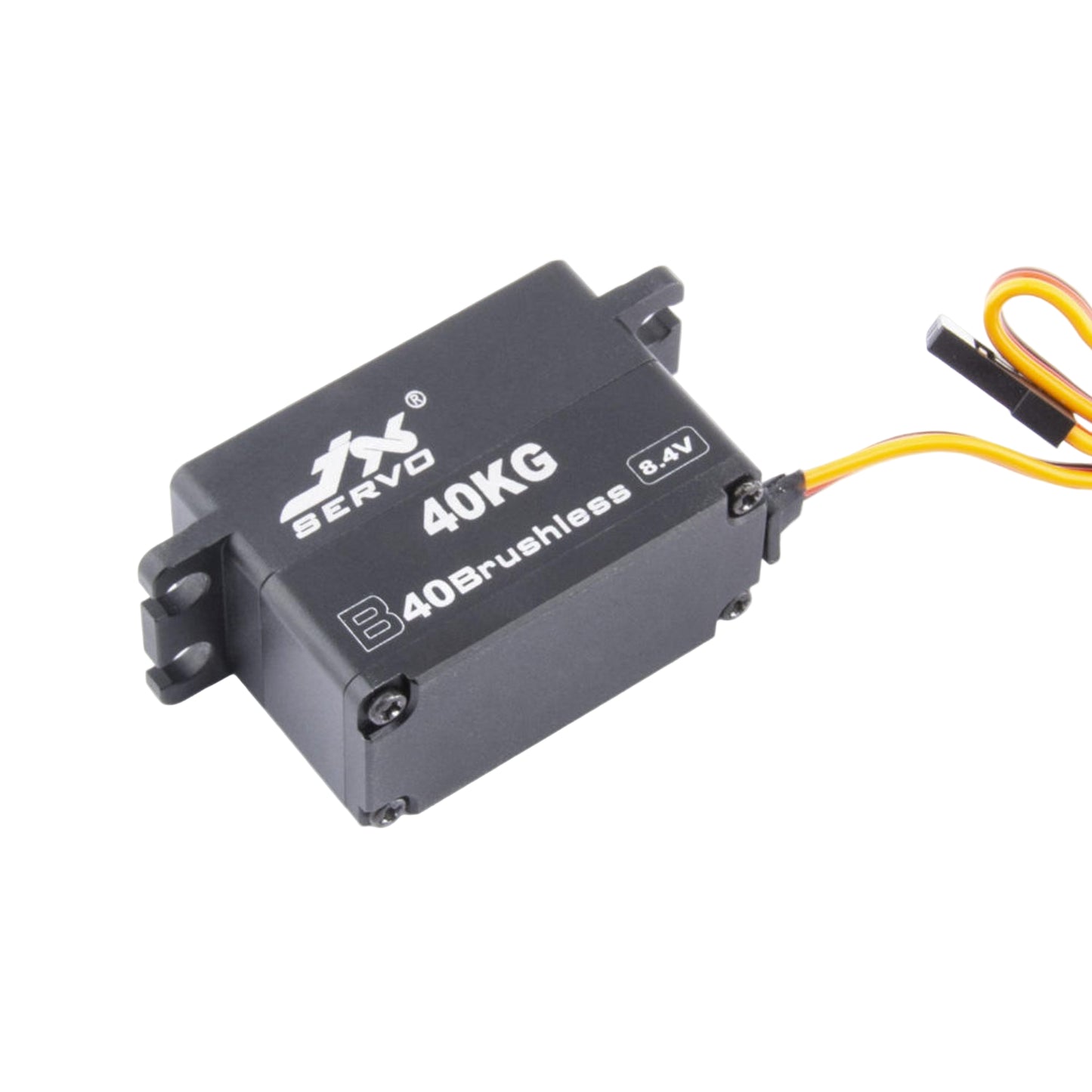

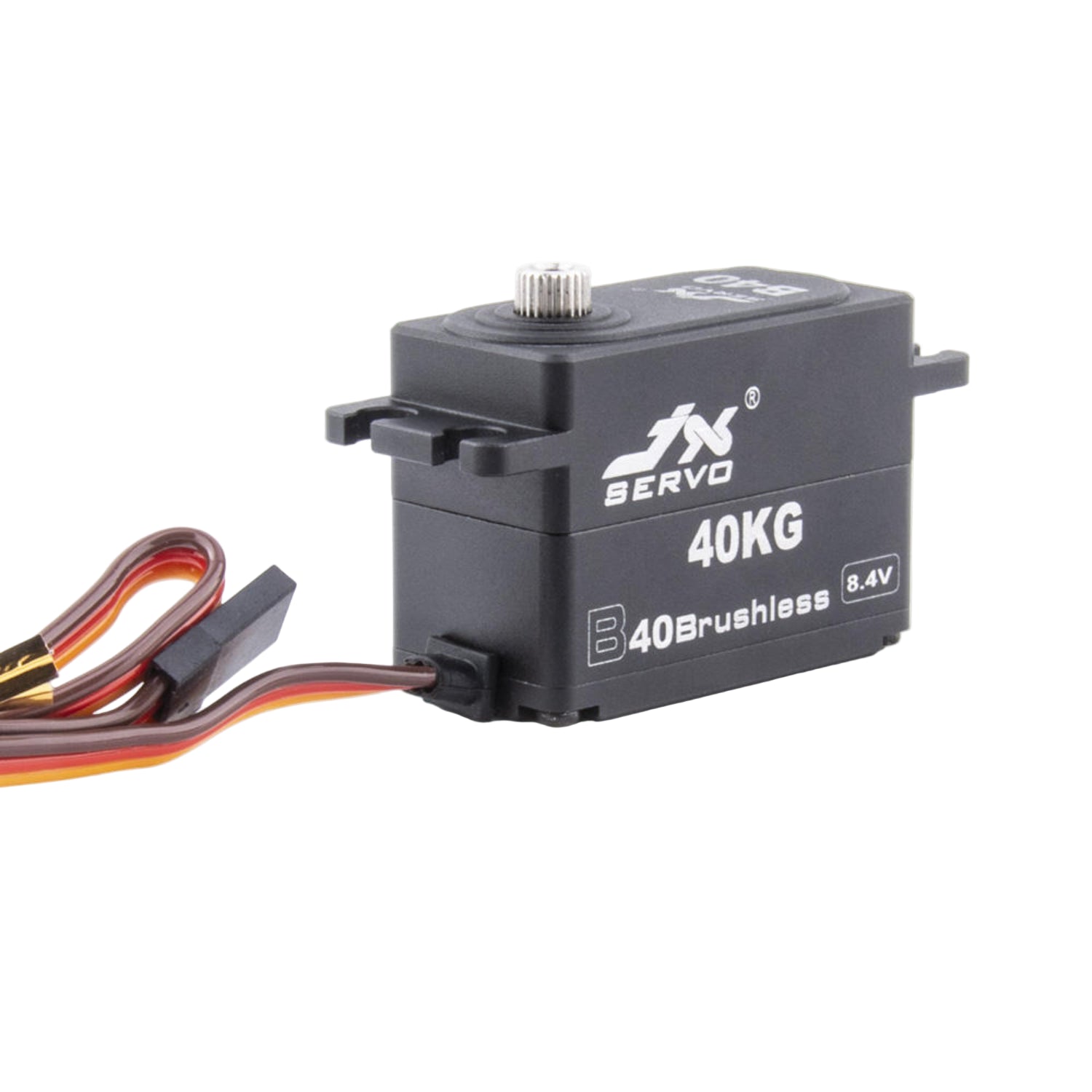

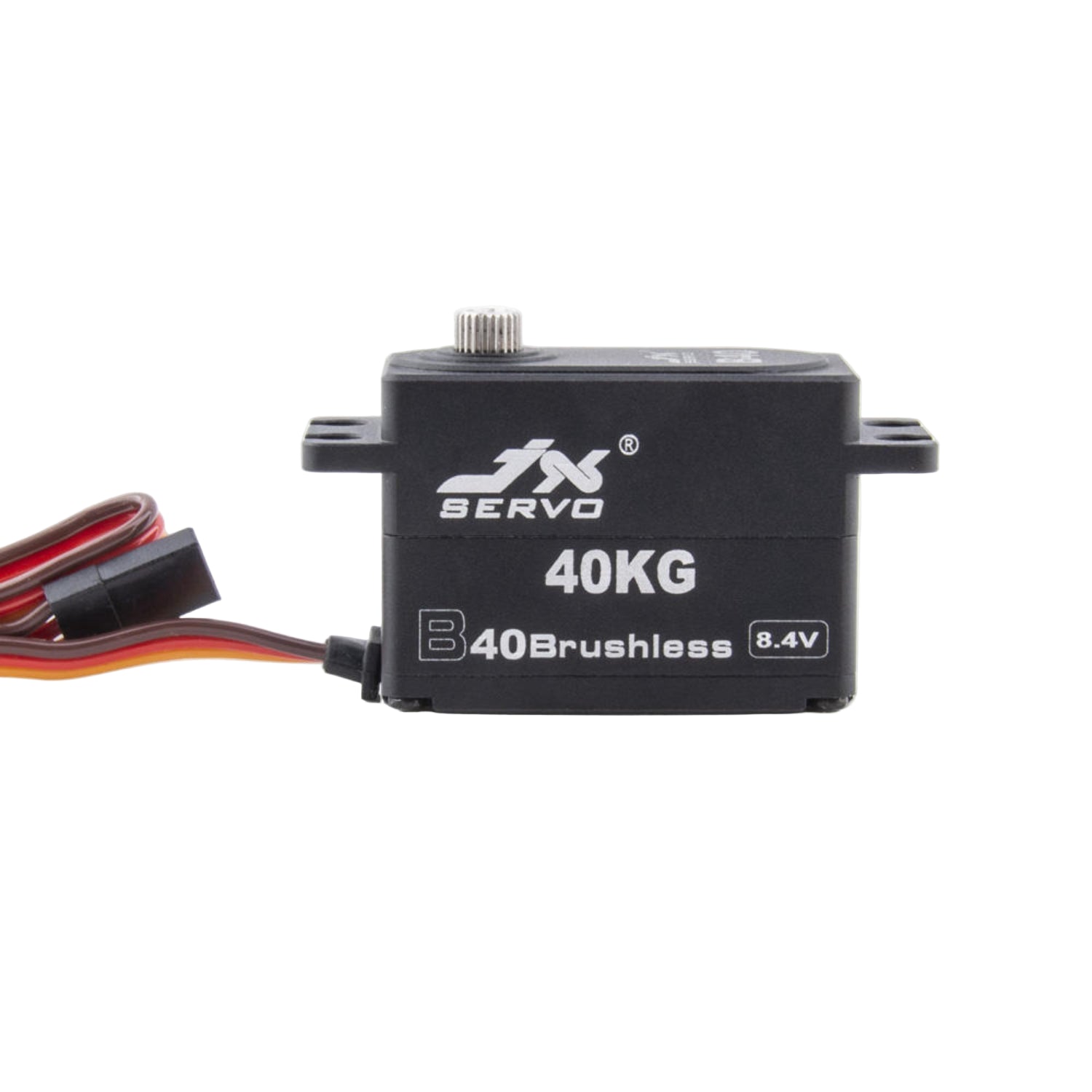

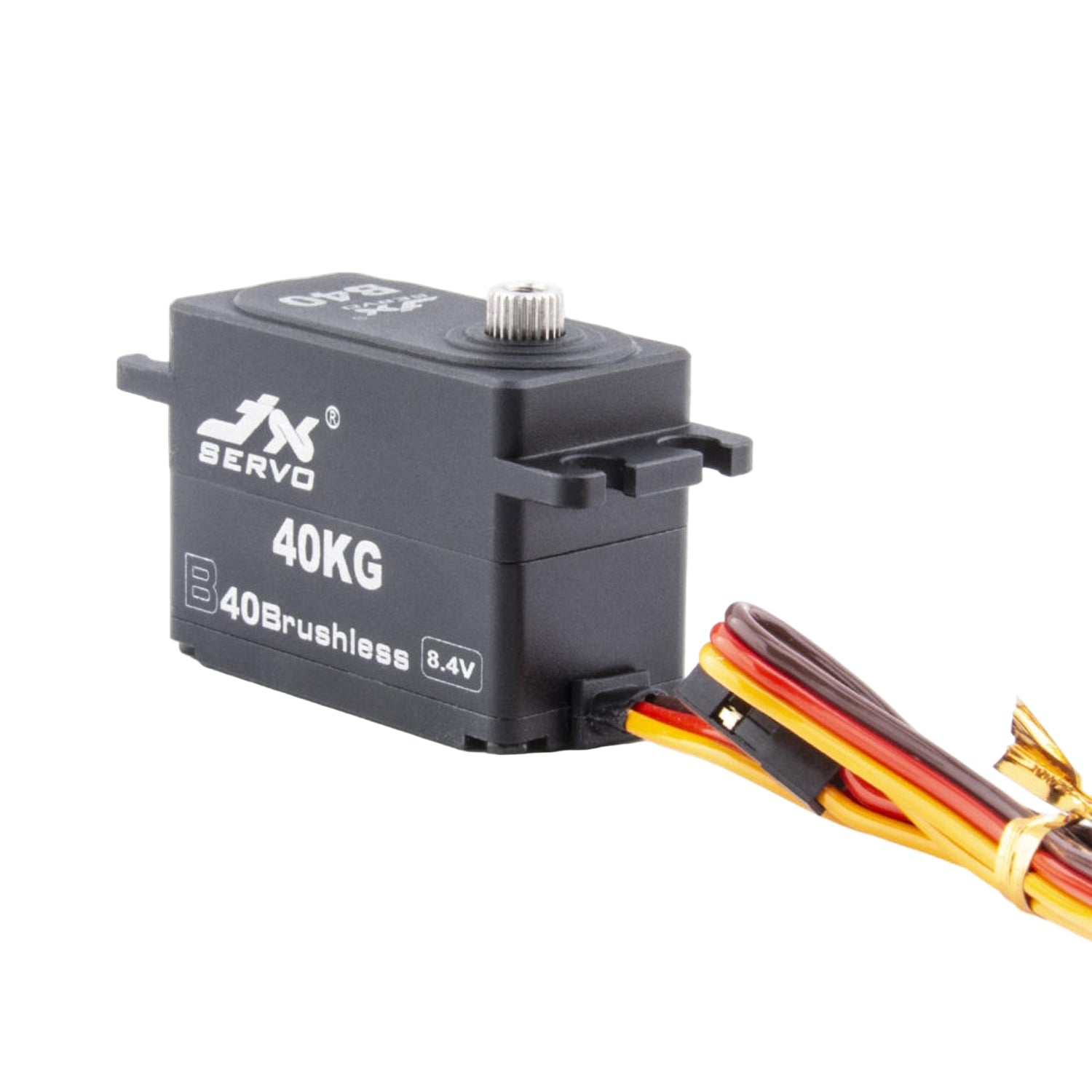

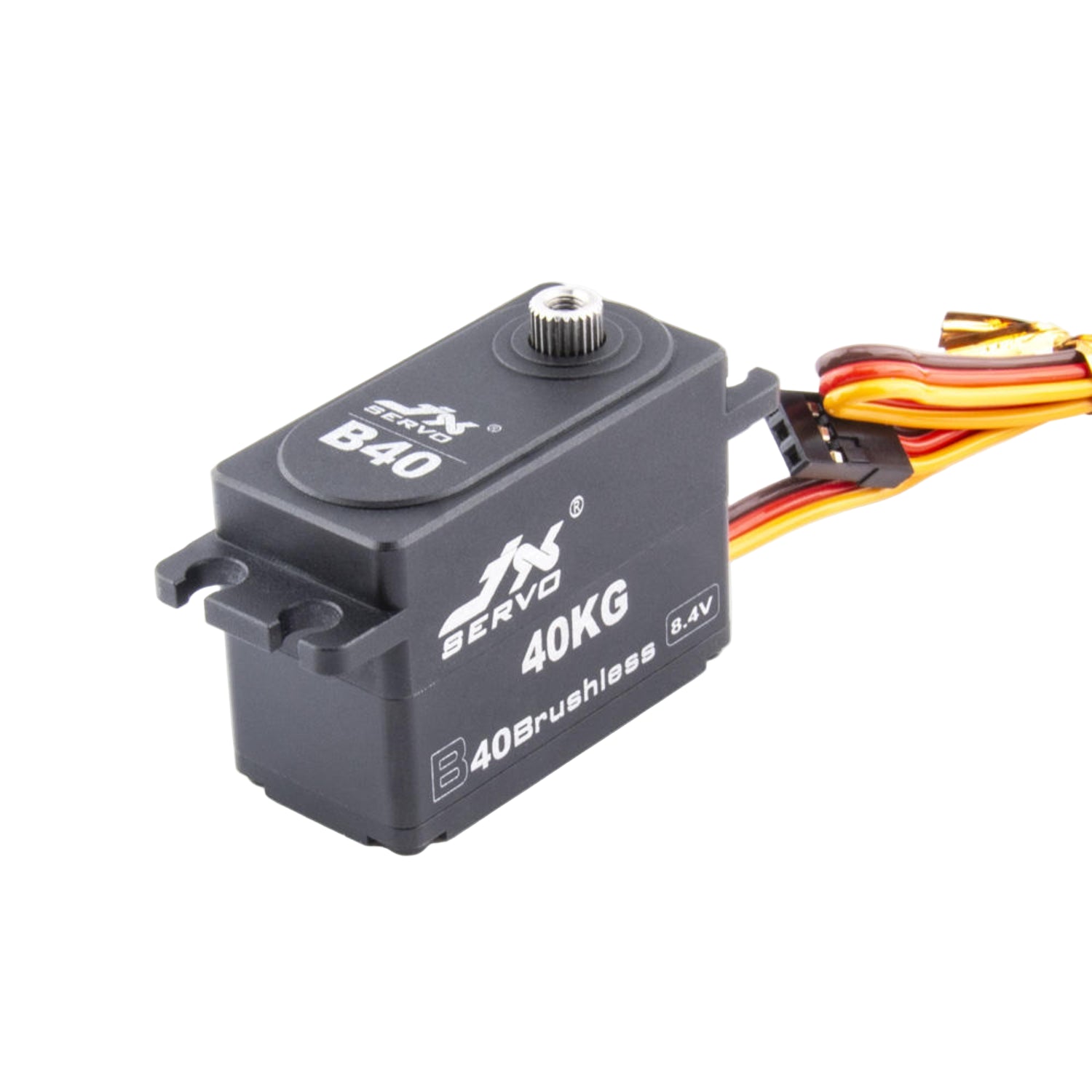

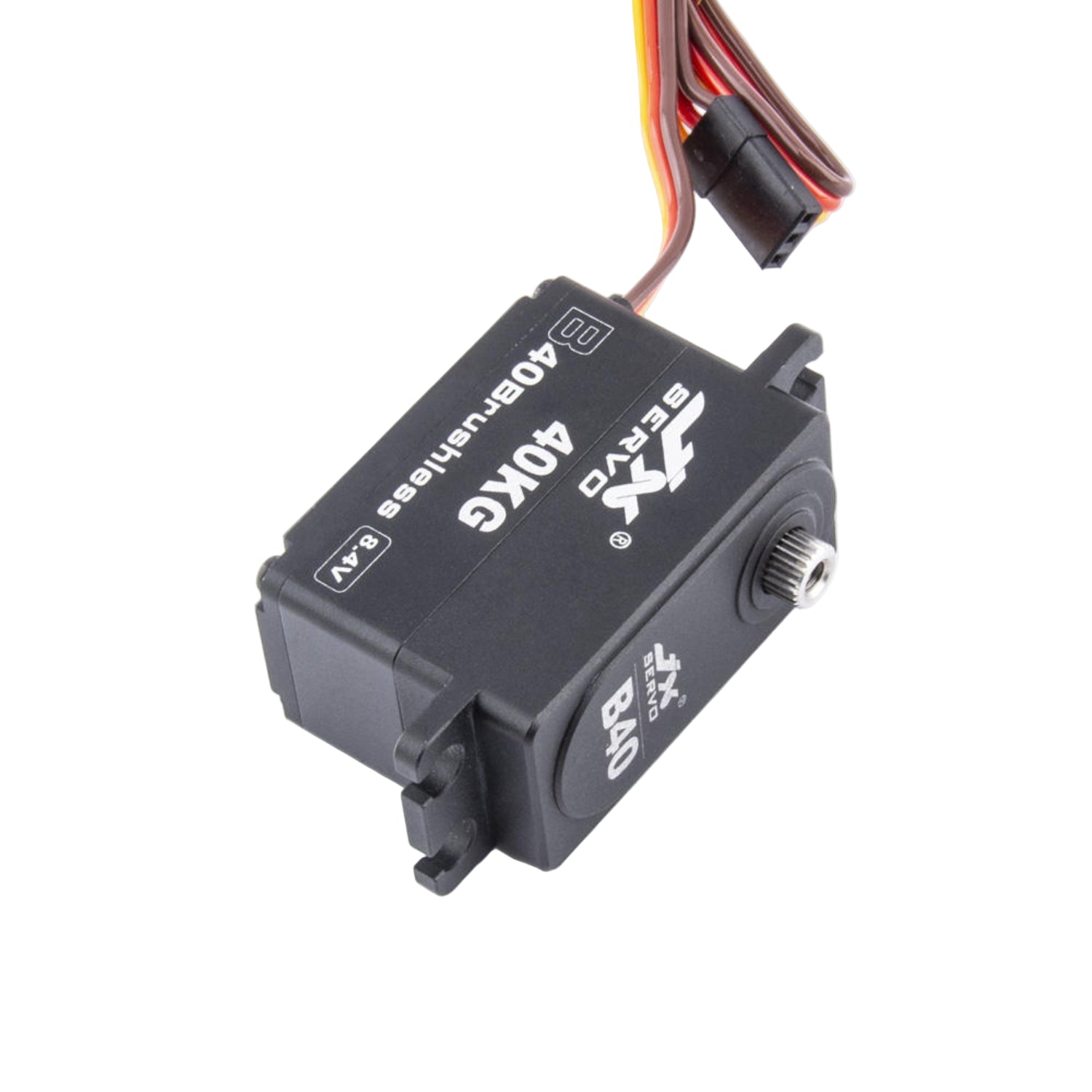

This servo is a high-performance model with an all-black, stealthy aesthetic. Its key features are clearly marked on the side: a powerful 40KG torque rating and "BRUSHLESS" motor technology. The label also confirms its 8.4V high-voltage compatibility, making it a reliable and powerful choice for applications that demand enhanced speed, efficiency, and durability.

Specifications:

  • Dead band: 2μs, 1520μs / 330hz
  • Motor: Brushless Motor
  • Operating Speed (6V): 0.11sec/60°
  • Operating Speed (7.4V): 0.09sec/60°
  • Operating Speed (8.4V): 0.07sec/60°
  • Stall Torque (6V): 22kg.cm
  • Stall Torque (7.4V): 30kg.cm
  • Stall Torque (8.4V): 40kg.cm
  • Connector Wire Length: JR  260 mm
  • Bearing: 2BB

Features:

  • Motor: Advanced brushless motor for higher efficiency, speed, and longevity.
  • Extreme Torque: Offers a powerful 40kg of torque, suitable for demanding RC and robotics projects.
  • High-Voltage (HV) Compatible: Supports high-voltage operation up to 8.4V.
  • Durable Gears: Equipped with full metal gears for maximum durability.

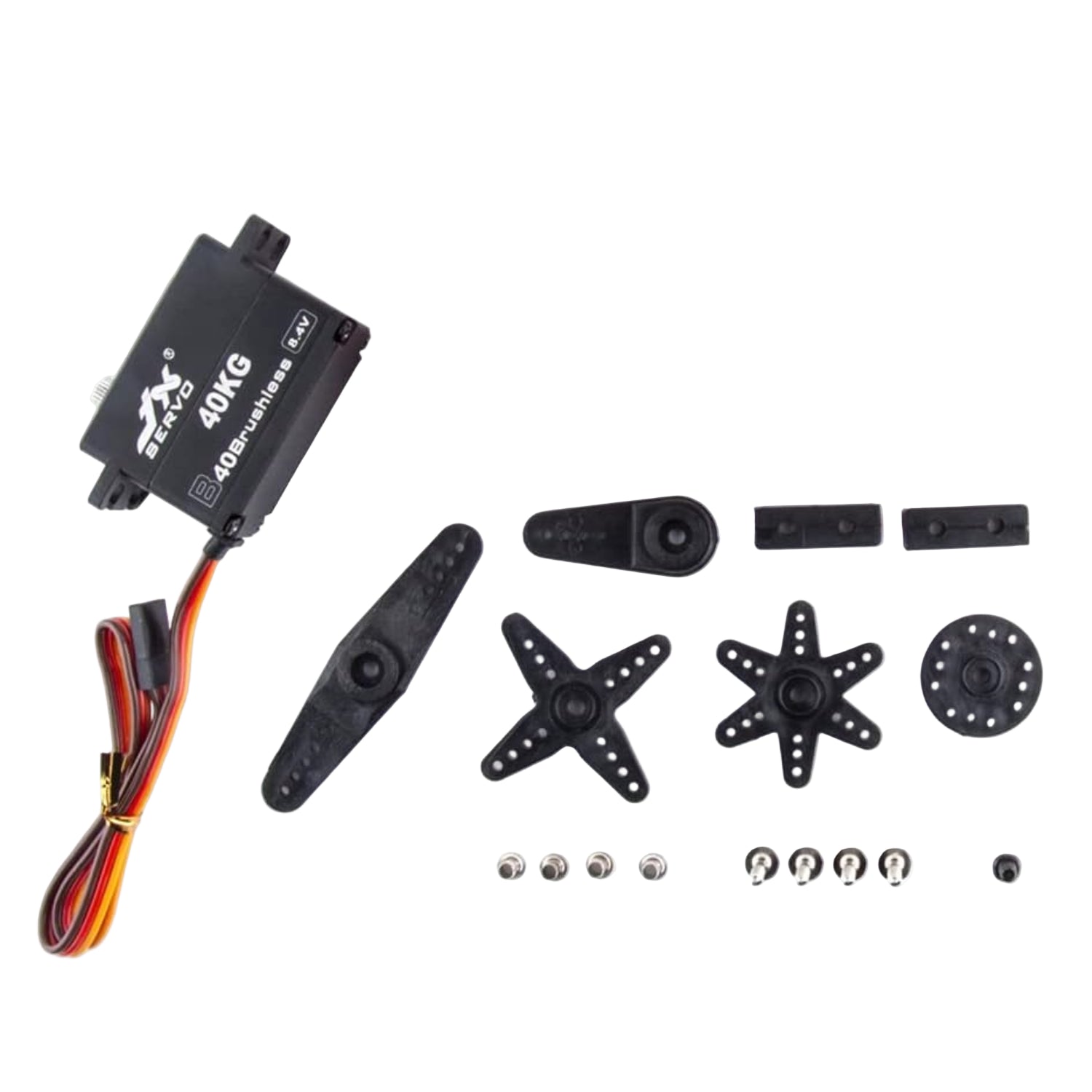

Package Included:

1 x JX Servo B40 40kg High-Torque Brushless Digital Servo
