JX Servo

JX PDI-5521MG-360 20KG High-Torque Digital Servo 360° Continuous Rotation Digital Servo with Metal Gears for Robotics & RC Projects

JX PDI-5521MG-360 20KG High-Torque Digital Servo 360° Continuous Rotation Digital Servo with Metal Gears for Robotics & RC Projects

In stock

Rs. 919.00
Rs. 919.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The JX PDI-5521MG-360 is a specialized digital servo engineered for continuous 360-degree rotation, making it distinct from standard servos with limited angular movement. This unique capability, combined with a powerful 20KG high-torque output and a durable metal gear train, makes it an ideal choice for robotics and automation projects that require continuous, motor-like motion.

Specifications:

  • Angle: 360°Continuous rotation
  • Pulse width: 500-2500μs
  • Dead band: 4μs    1520μs / 330hz
  • Operating Speed (4.8V): 53T/S
  • Operating Speed (6V):  65T/S
  • Stall Torque (4.8V): 17.25 kg-cm
  • Stall Torque (6V):  20.32 kg-cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB

Features:

  • 360° Continuous rotation 20kg digital servo
  • For robots, industrial machinery and equipment, etc.
  • High-performance digital standard servo
  • High-precision Taiwan-made aluminium gears with hard anodizing
  • Dual ball bearing

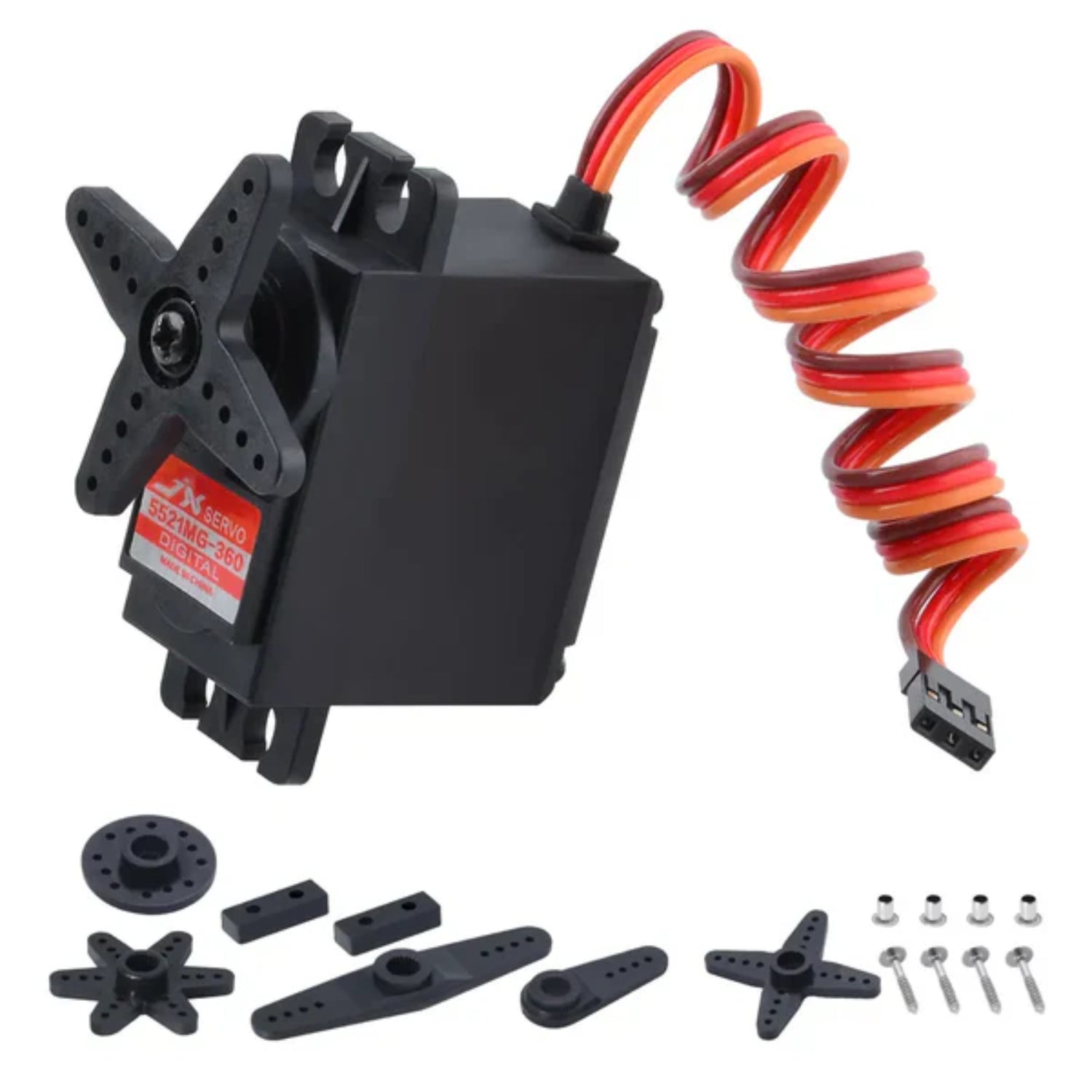

Package Included:

1 x JX PDI-5521MG-360 20KG Continuous Rotation Digital Servo
