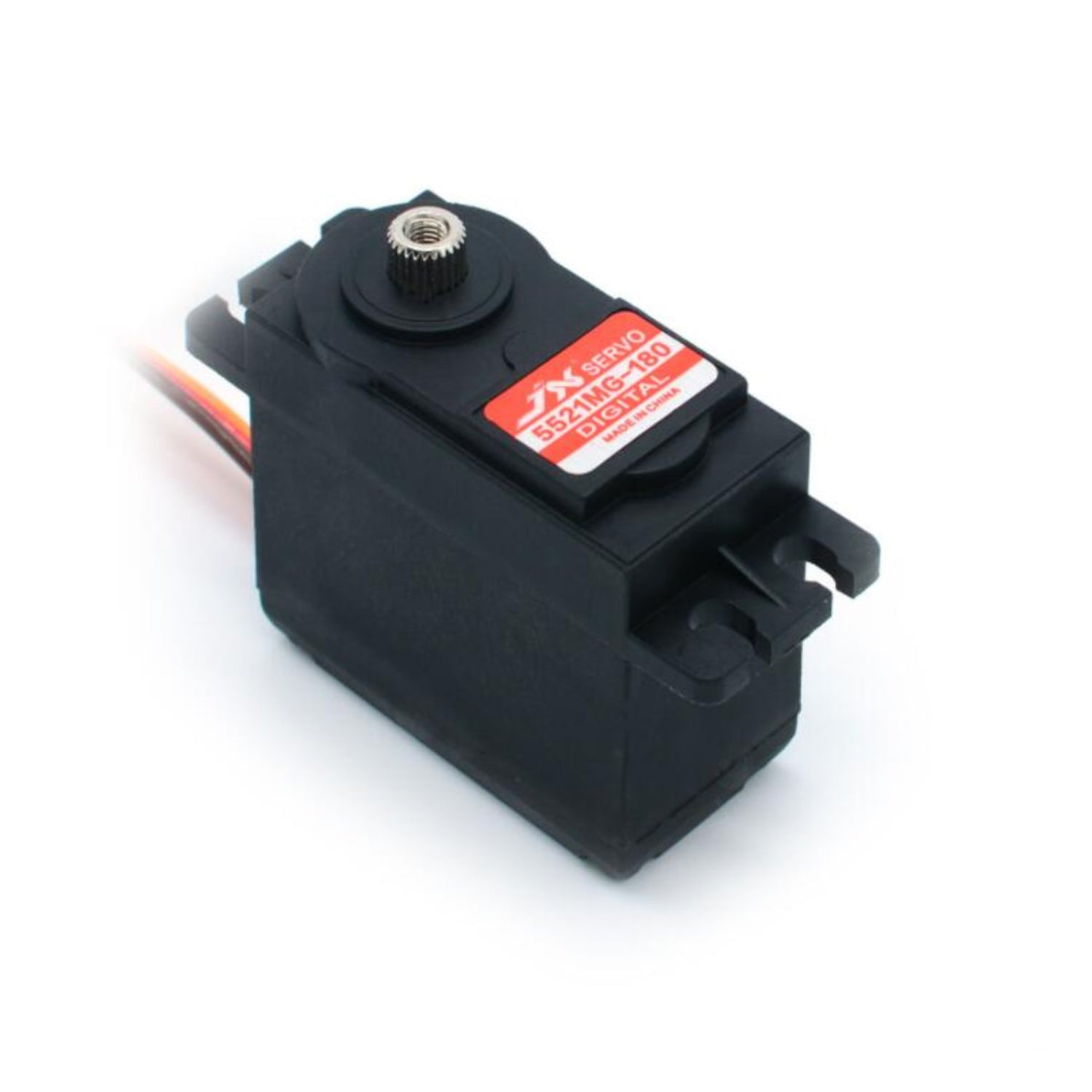

JX PDI-5521MG-180° Coreless Digital Servo 20KG High-Torque Standard Servo For RC Cars, Airplanes, and Robots
JX PDI-5521MG-180° Coreless Digital Servo 20KG High-Torque Standard Servo For RC Cars, Airplanes, and Robots
SKU:
In stock
Regular price
Rs. 919.00
Regular price
Sale price
Rs. 919.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The JX PDI-5521MG-180° is a high-performance, digital servo engineered to deliver exceptional power and precision for a wide range of RC applications, including cars, airplanes, and robotics. This servo is the ideal choice for hobbyists and professionals who demand a powerful, reliable, and durable component for their projects.
Specifications:
- Max Angle:180°
- Pulse width:1000-2000μs=90°
- Pulse width: 500-2500μs=180°
- Dead band: 4μs 1520μs / 330hz
- Operating Speed (4.8V): 0.18 sec/60°
- Operating Speed (6V): 0.16 sec/60°
- Stall Torque (4.8V): 17.25 kg-cm (239.55oz/in)
- Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
- Connector Wire Length: JR 265 mm (10.43in)
- Bearing: 2BB
Features:
- Dual ball bearings and Good angle range: The servo's maximum angle range is 180 degrees.
- Small size and light weight.
- High-precision Taiwan-made aluminium gears with hard anodizing.
- High-performance digital standard servo.
-
Suitable for RC car, boat, drone, and helicopter, etc.
Package Included:
1 x JX PDI-5521MG-180 A 20KG High-Torque Coreless Digital Standard Servo
