- Working frequency: 1520μs / 330Hz
- Operating voltage: DC4.8~6.0 V
- Operating speed (4.8V): 0.15sec/60°
- Operating speed (6V): 0.12 sec/60°
- Stall torque (4.8V): 3.25 kg.cm (45.14oz/in)
Description:
This is JX PDI-4503HB 3kg plastic gear digital standard servo motor. JX PDI-4503HB plastic gear digital standard servo is specially designed for RC car, boat, drone and helicopter. Small size and light weight is conducive to the flight/driving/sailing of RC models. Besides, its high quality dual ball bearing, large torque and high strength design will perfect for your RC models.
Specification:

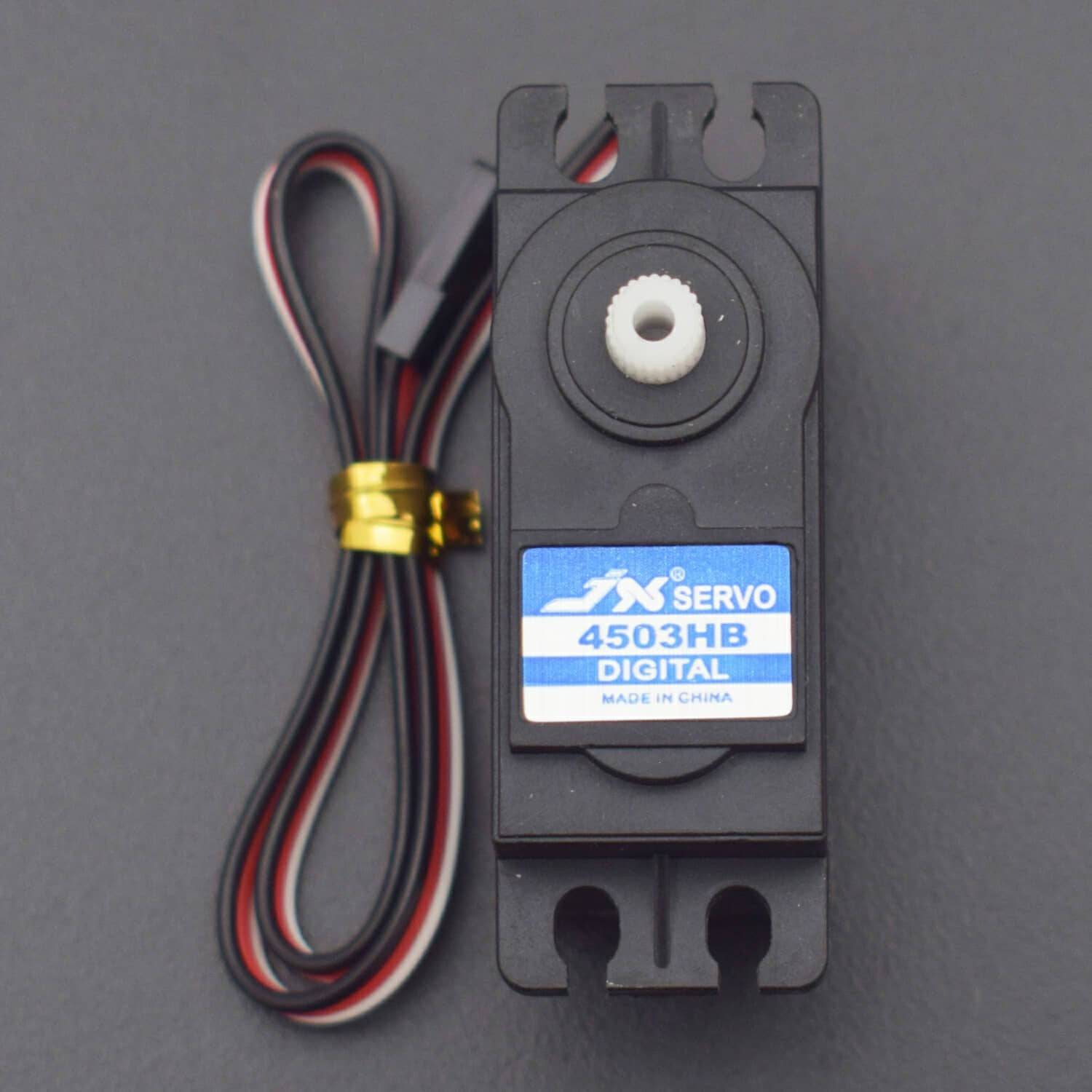

- Name: JX PDI-4503HB 3KG Digital Servo
- Gear: Plastic
- Voltage: 4.8V-6V
- Dead for band: 2μs 1520μs / 330hz
- Operating Speed (4.8V): 0.15sec/60°
- Operating Speed (6V): 0.12sec/60°
- Stall Torque (4.8V): 3.25kg.cm (45.14oz/in)
- Stall Torque (6V): 3.95 kg-cm (54.87 oz/in)
- dimensions : 40.5X20.3X38mm
- Net Weight : 45.5 g (1.61oz)
- Connector Wire Length : JR 265 mm
Features:
- Dual ball bearings
- High quality brushed motor
- Small size and light weight
- Large stall torque of 3.95Kg.cm
- High performance digital standard servo
- High strength design increase its durability
- Suitable for RC car, boat, drone and helicopter etc.

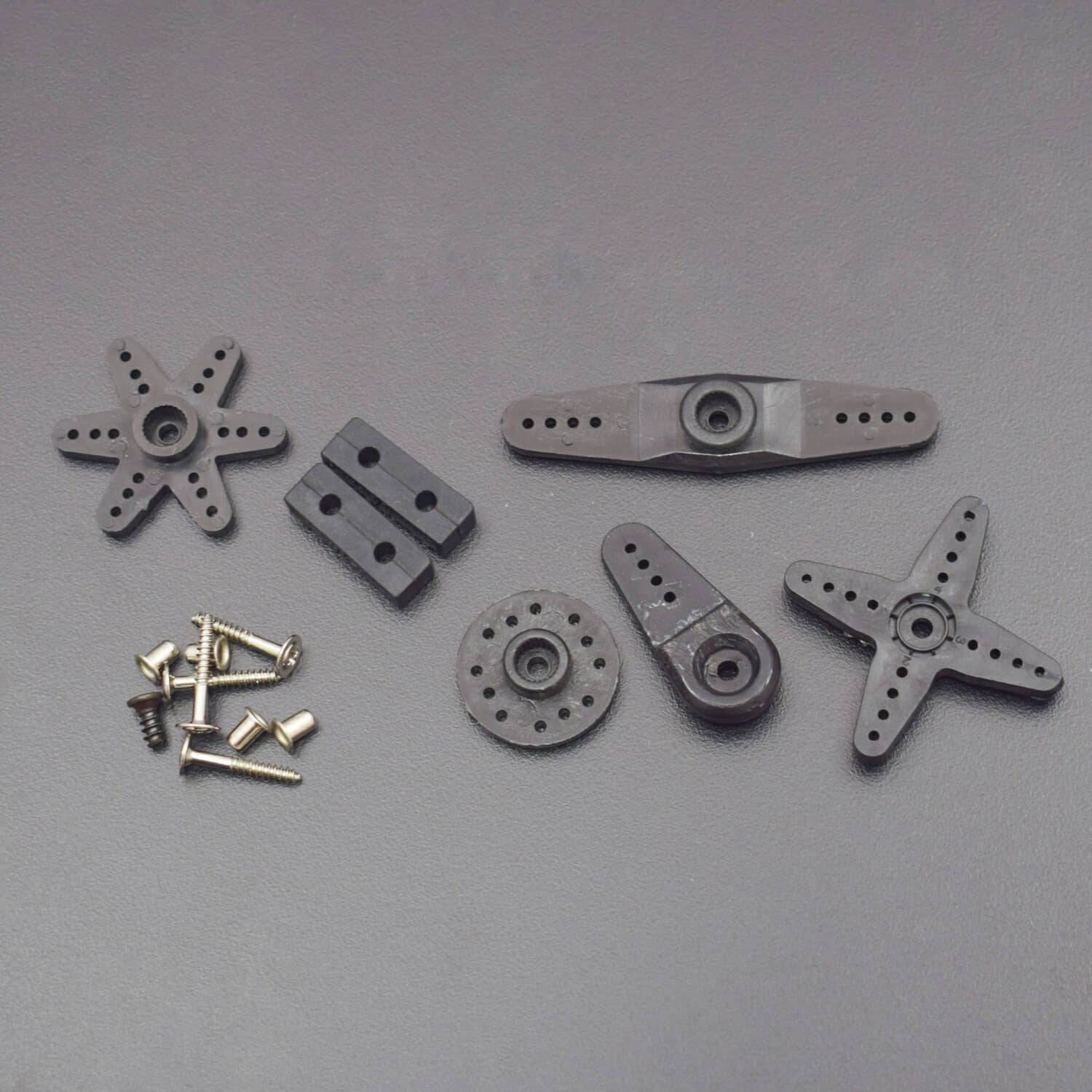

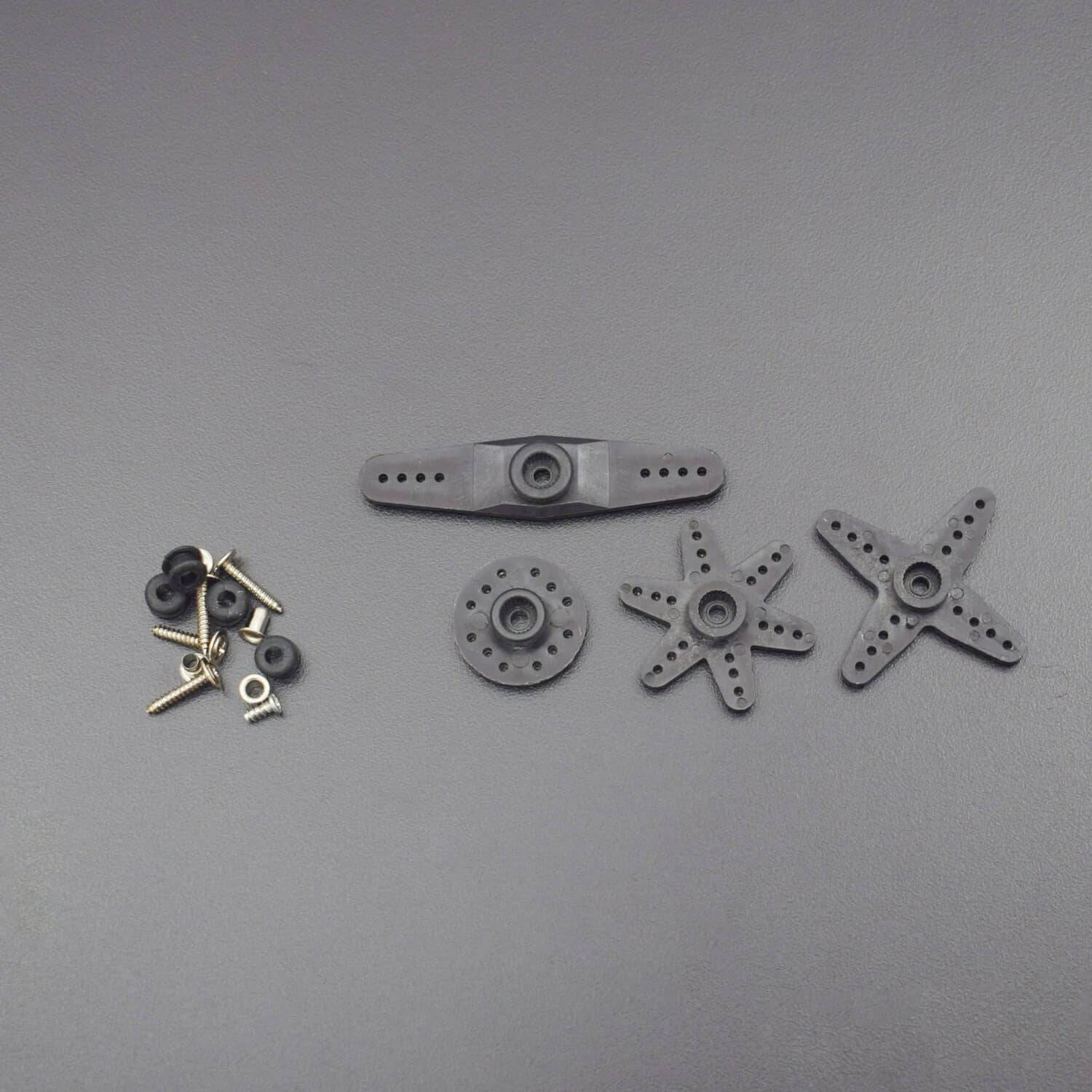

- With 5 sets of servo horns and fittings
Application:
- RC Planes
- Vehicles
- Remote Control Toys
Package Included:

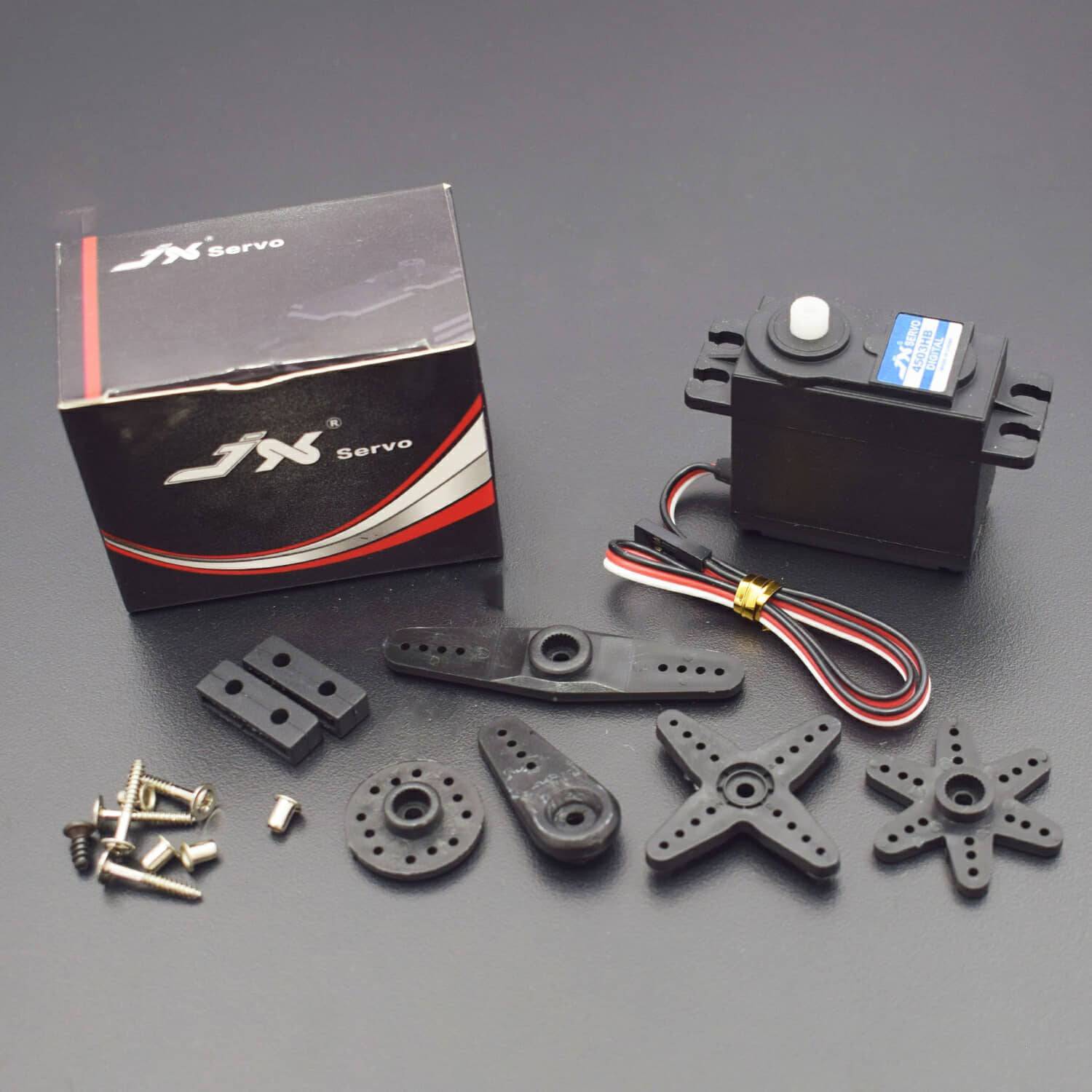

1 x JX PDI-4503HB 3KG Plastic Gear Digital Standard Servo for RC Car Boat Drone Helicopter Parts
