Description:
The Jumper T12 Max is a versatile and reliable classic-format transmitter, perfect for pilots of all skill levels. Running on EdgeTX firmware, it boasts an integrated 2.4GHz ExpressLRS (ELRS) module with up to 500mW output for superior long-range performance and high refresh rates (up to 1kHz). Enjoy precise control with hall-effect gimbals, 6 switches, and 2 potentiometers.
Designed for convenience, it features a foldable handle and antenna, a clear 1.7-inch monochrome LCD, and integrated memory for enhanced reliability (no more SD cards!). Power it with two 18650 Li-ion batteries (not included) and charge them easily via USB-C with 10W support. A standard JR bay allows for external modules, making the T12 Max a powerful and future-proof choice.
Specifications:
- MCU: STM32F407ZET6
- Screen size: 1.7" (resolution 128*64)
- Display method: OLED
- Rocker Stick Size: Standard
- Charging: USB-C
- Firmware: EdgeTX
- Hall Sensor gimbals: Hall sensor/ROCSO
- Built-in RF: ELRS (915MHz/2.4GHz)
- Transmission power: max 500mW
- External module interface: reserved (JR MODULE)
- TF card: built-in chip (officially recommended by EDGETX)
- Working voltage: 6-8.4v

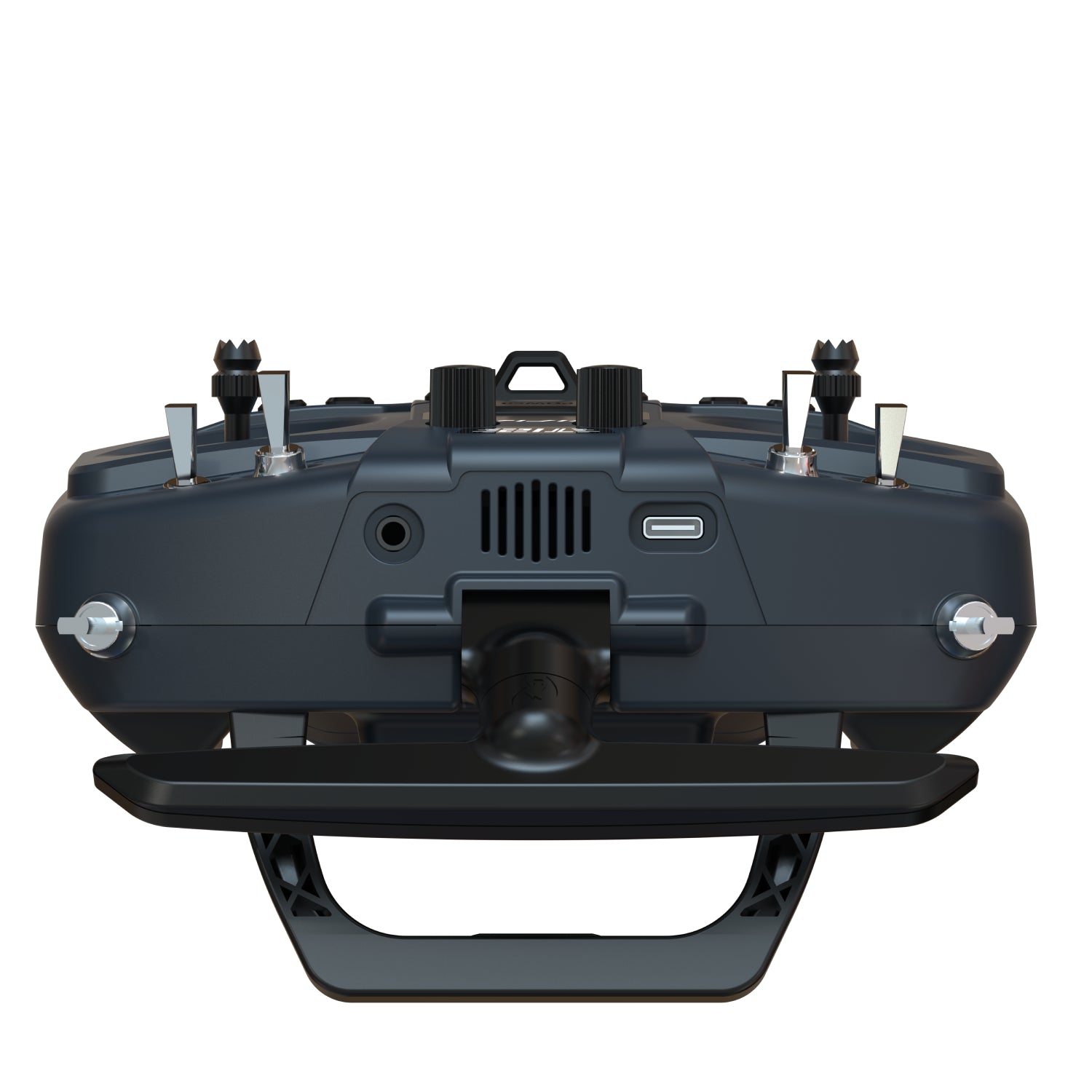

Product Interface:
Package Included:
1 x Jumper T12 Max Hall ELRS
