Description:

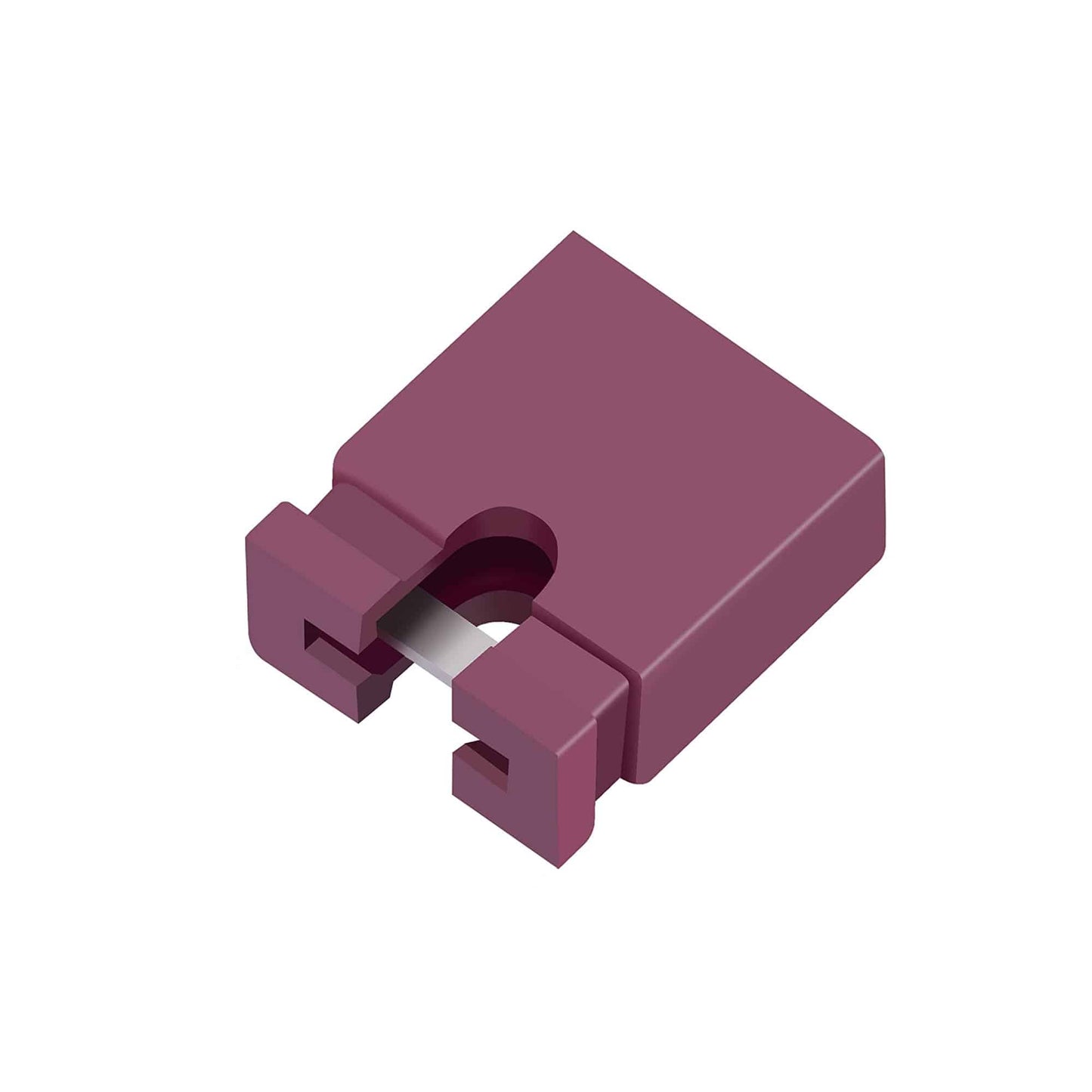

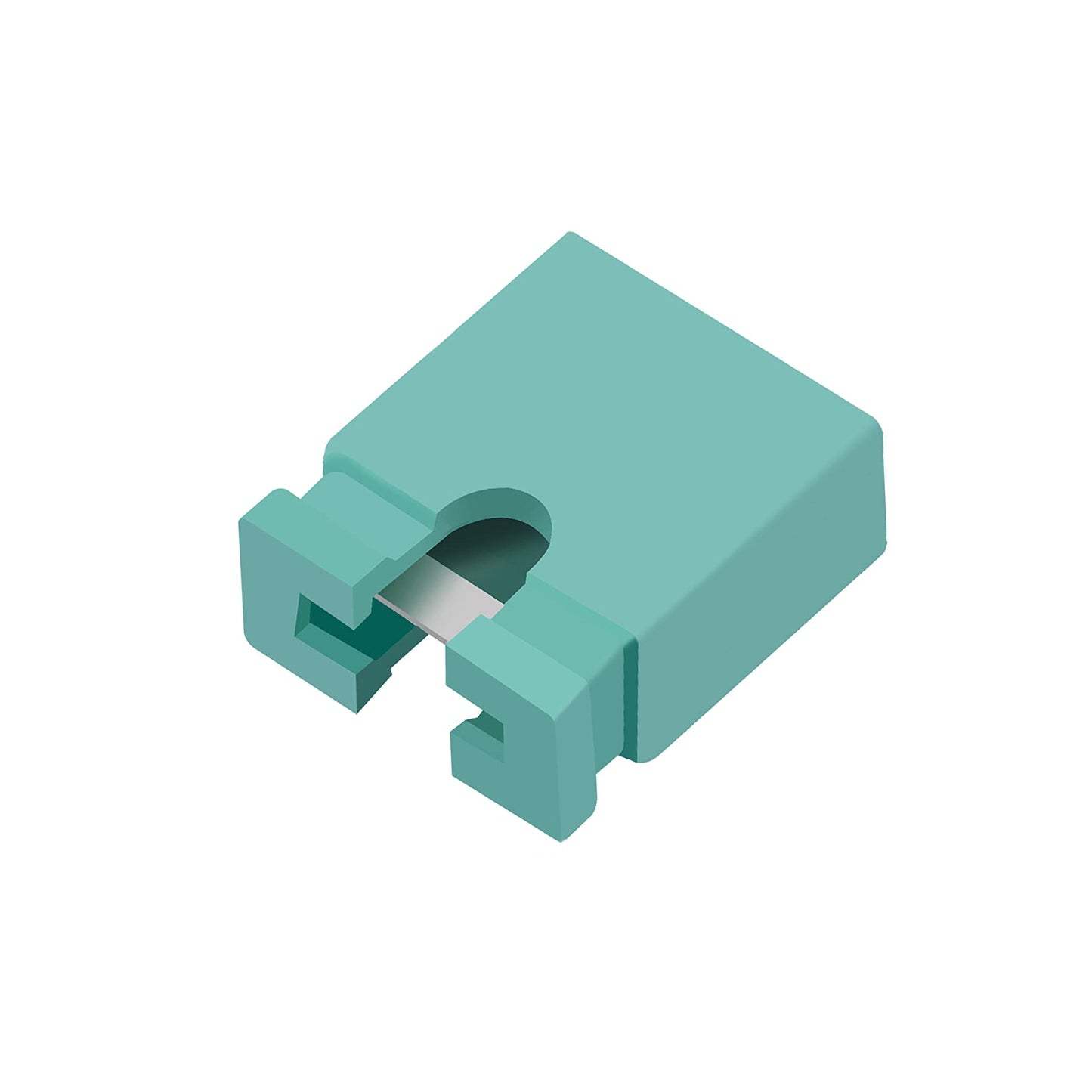

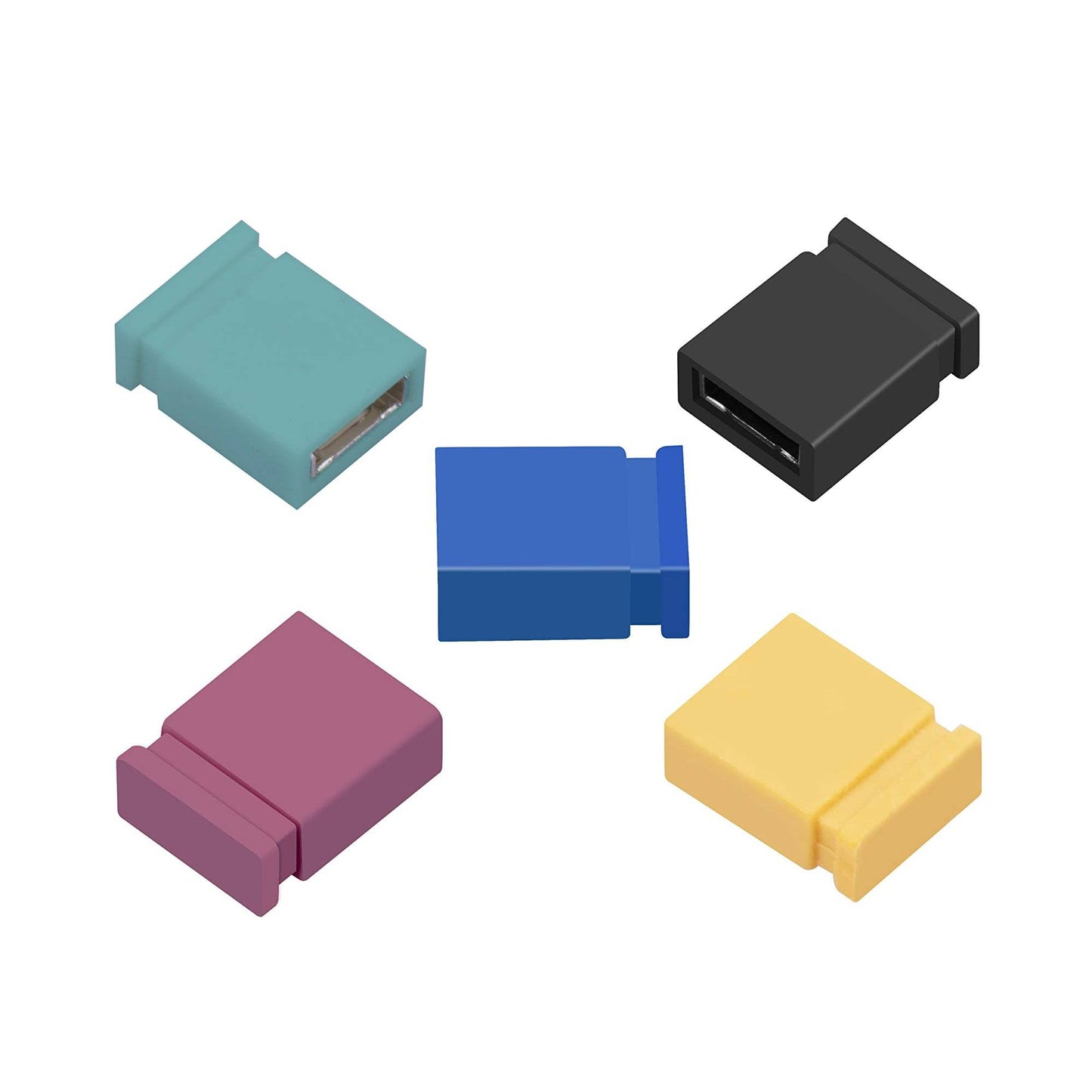

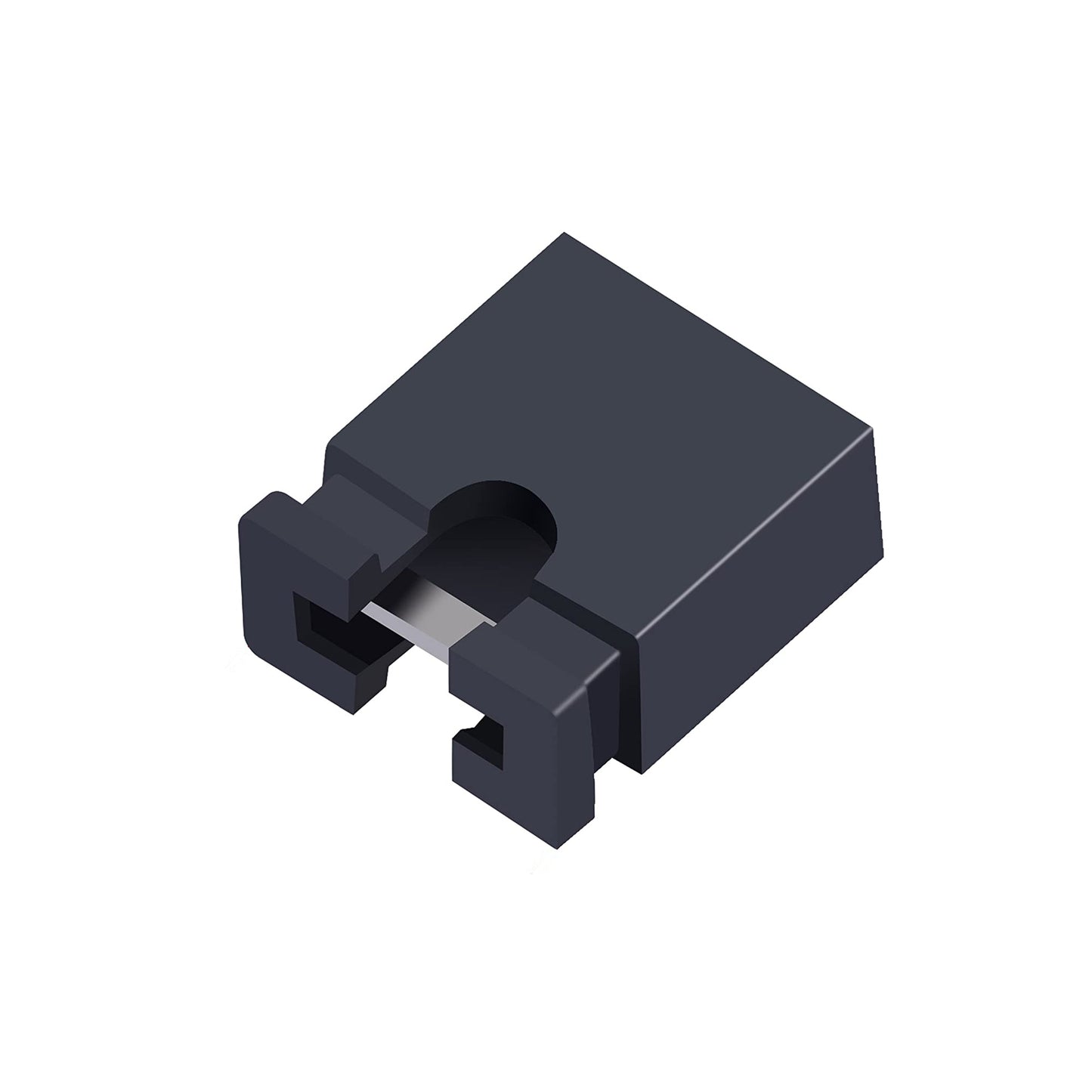

These are two-pin jumpers (also called shunts) that will create an electrical connection for the 2.54 mm (0.1 inch) male Pin headers. These are commonly used to modify settings on a board or device. The motherboard jumper is a manual switch on the motherboard, Through the jumper cap connected to a different jumper PIN, You can change the motherboard circuit. The most common motherboard Jumper Cap is mainly two, One is only two needles, and The other part is a jumper cap. Jumper cap, Which is an active part, The outer layer is insulated plastic, The inner conductive material can be inserted in the jumper pin above the two jumper pins connected.
Specification:
- Rated Current: 3.0AMP
- Contact Resistance: 20mΩ Max
- Withstand Voltage: 1000V AC/DC
- Insulation Resistance: 1000MΩ Min
- Operation Temperature: -40 Degree Celsius to 105 Degree Celsius
- Contact Material: Phosphor Bronze
- Contact Plating: Au Over Ni
- Insulator Material: Polyester(UL94V-0)
- Max.Processing Temp: 180 Degree Celsius for 30 - 60 Seconds(200 Degree Celsius for 10 Seconds)
Applications:
- PCB Motherboard Shorting
- PC Motherboard Shorting
- DVD Motherboard Shorting
- HDD Motherboard Shorting
Package Included:
1 x Jumper Cap Header Pin Shunt Short Circuit Connector Open Top 2.54mm
