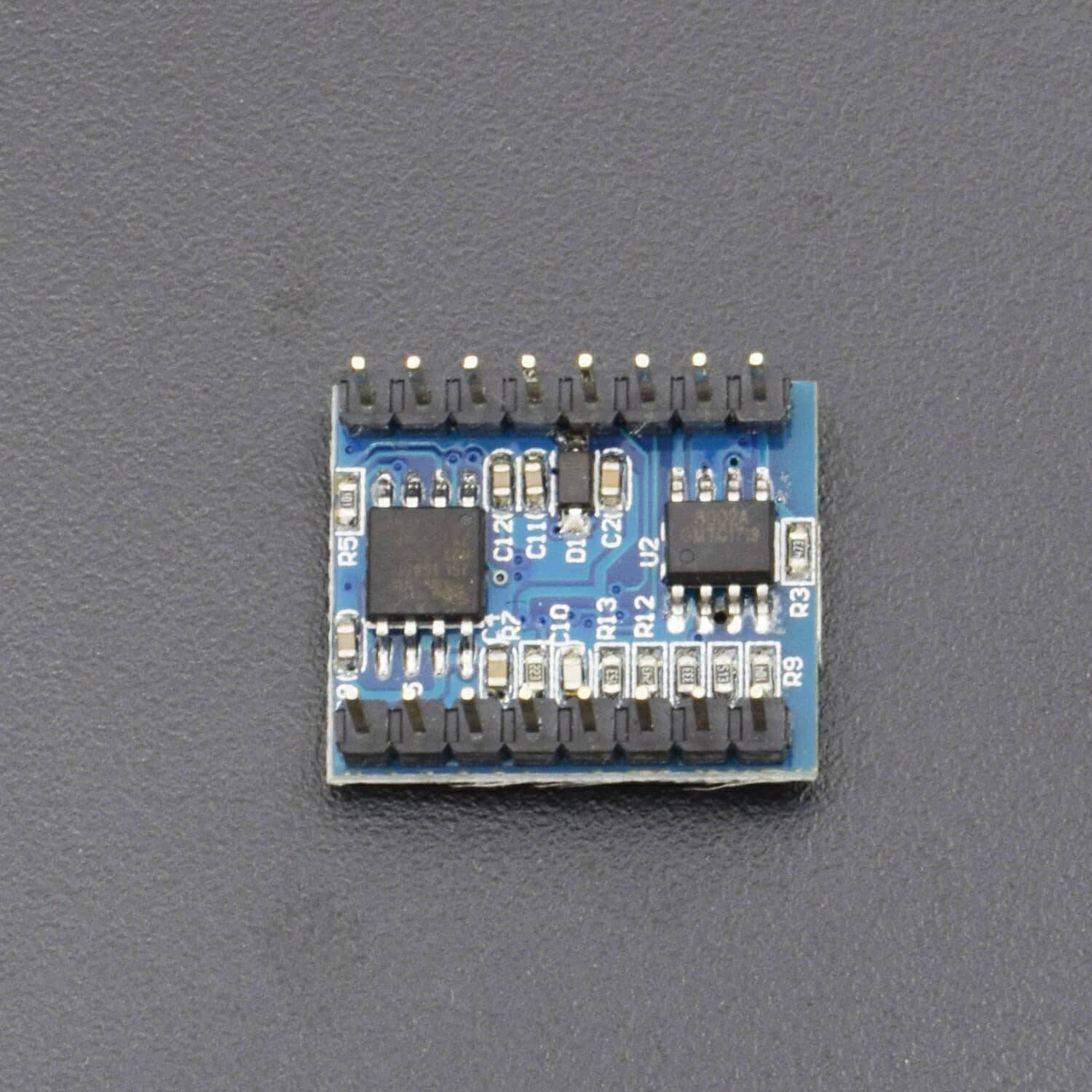

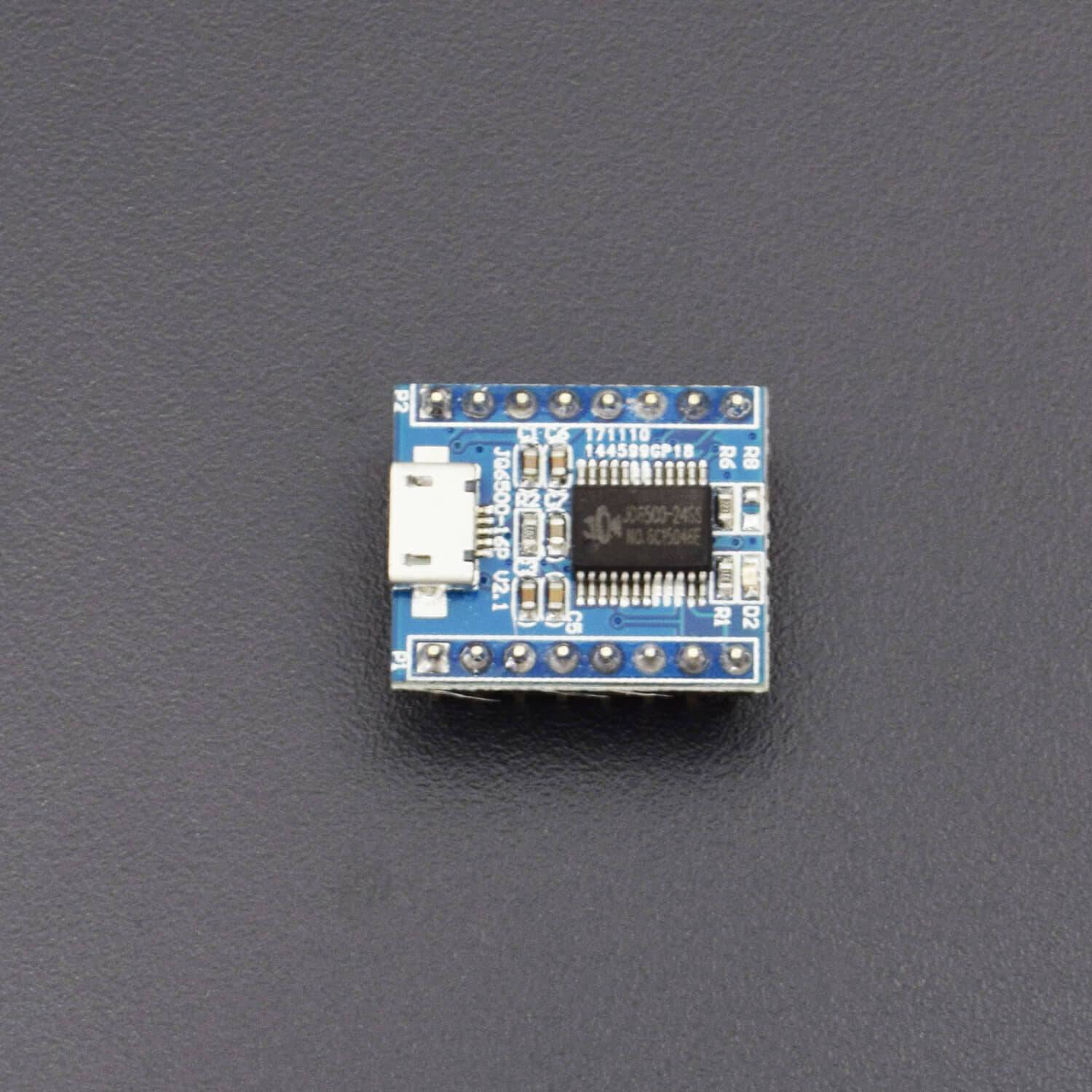

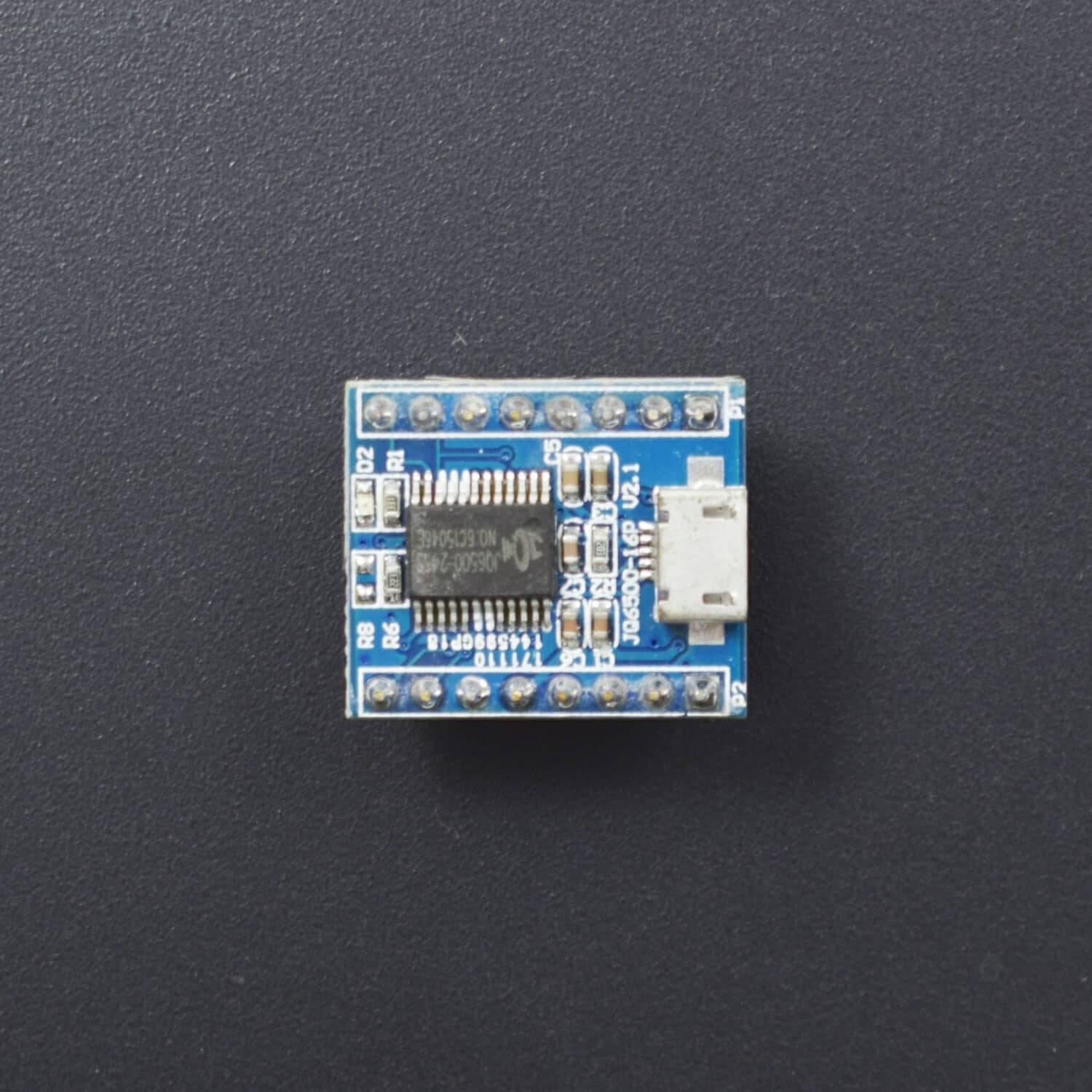

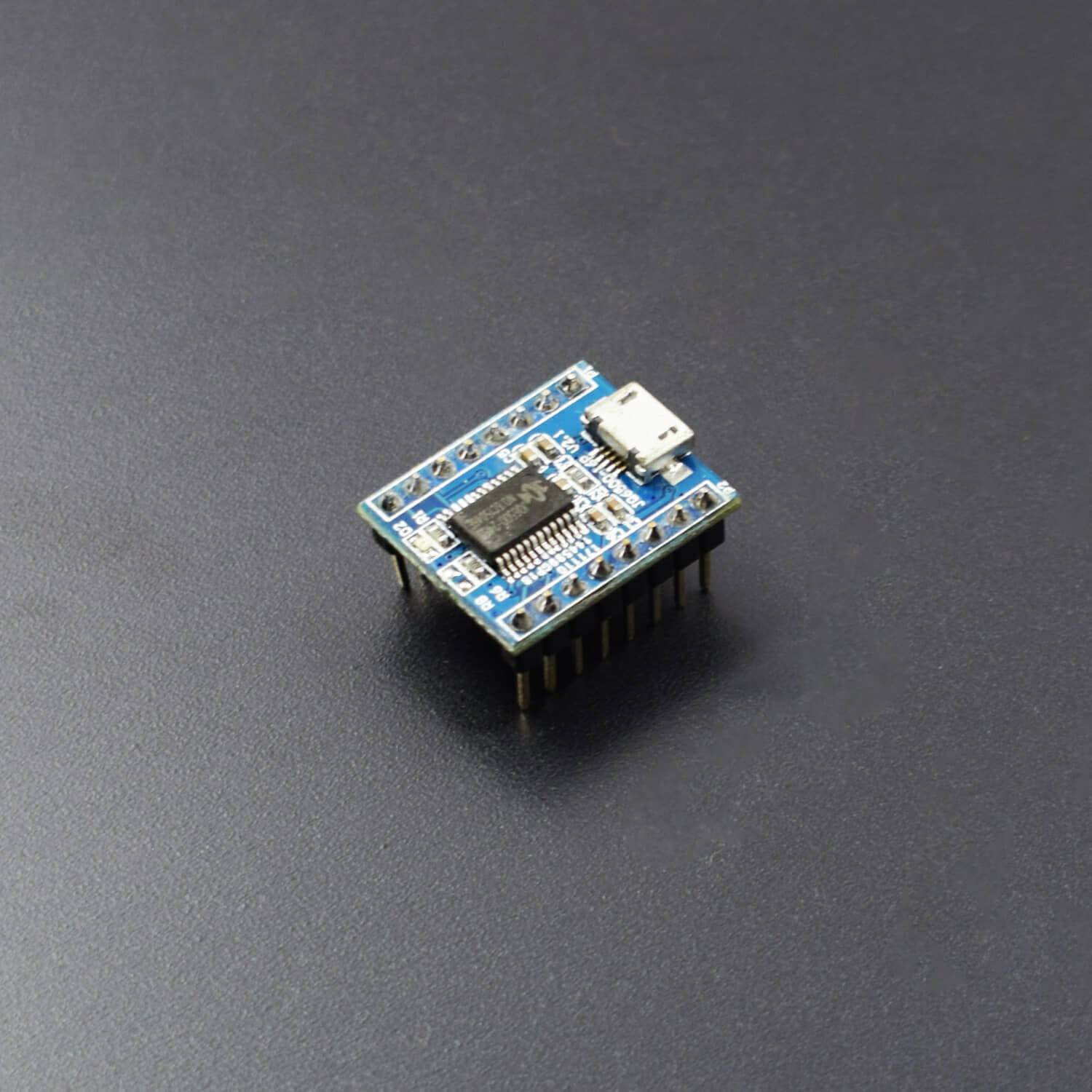

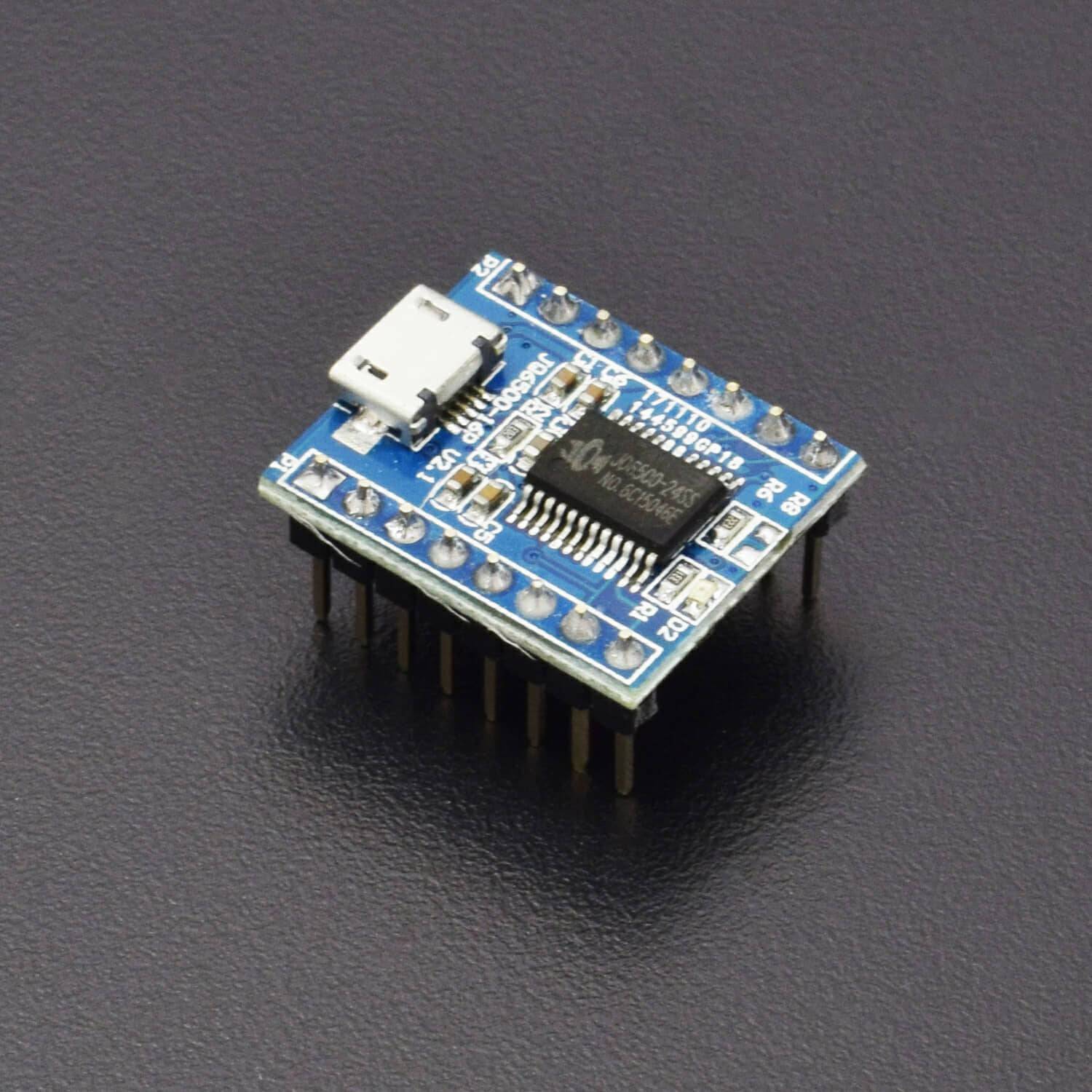

JQ6500 Mini MP3 Module for Arduino, based on JQ6500 IC - RS968

JQ6500 Mini MP3 Module for Arduino, based on JQ6500 IC - RS968

SKU:RS968

In stock

Regular price Rs. 380.00
Regular price Sale price Rs. 380.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supported Sampling Rates KHz: 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 bit DAC output
  • 90dB, 85dB SNR Support
  • Support FAT16, FAT32, TF Card or MicroSD
  • Flash memory size 2MB
  • Pause function
  • 30 Levels of Volume adjustment
  • 10 EQ Levels
  • Push Button Mode to select audio to play.

Description :

This Miniature device is used as a MP3 hardware decoder perfect for MP3 audio format! Create projects that have audio files that need to be played without the need of a microcontroller. Simply connect a Micro USB into the device with the other end to any computer.

This unit has 16 pins with an onboard 2MB Flash memory. If you are using windows operating system, you can simply upload music directly onto the unit with low bitrate. Alternatively you can also store larger files on any microSD card and load around 16gb or 999 mp3 files.

(not recommended for a music player, recommended for a little microcontroller to store small mp3 audio files that are triggered by a input ranging from k1 to k5)

Specifications:

  • Supported Sampling Rates KHz: 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 bit DAC output
  • 90dB, 85dB SNR Support
  • Support FAT16, FAT32, TF Card or MicroSD
  • Flash memory size 2MB
  • Pause function
  • 30 Levels of Volume adjustment
  • 10 EQ Levels
  • Push Button Mode to select audio to play.

Package Included:

1 x JQ6500 Mini MP3 Module
