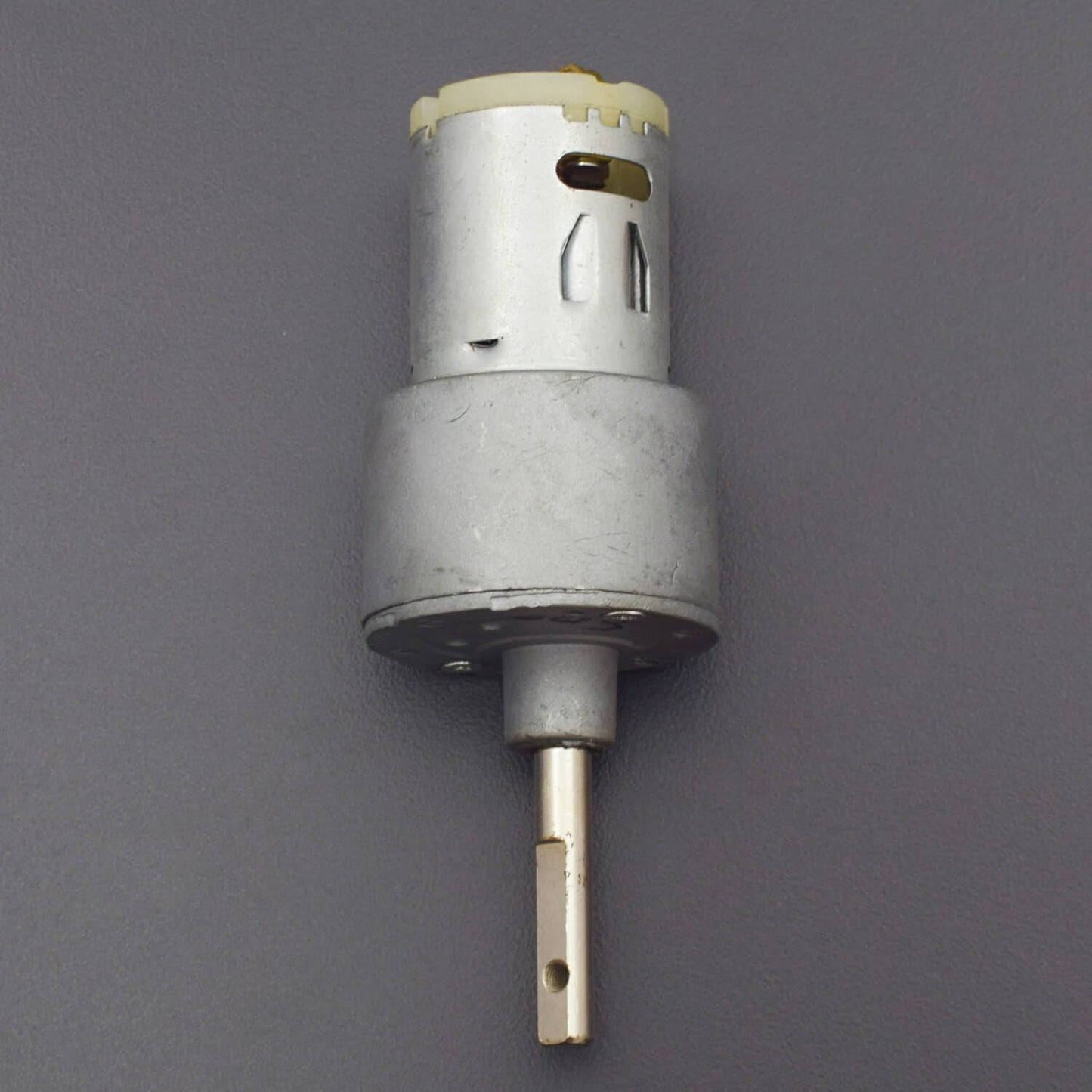

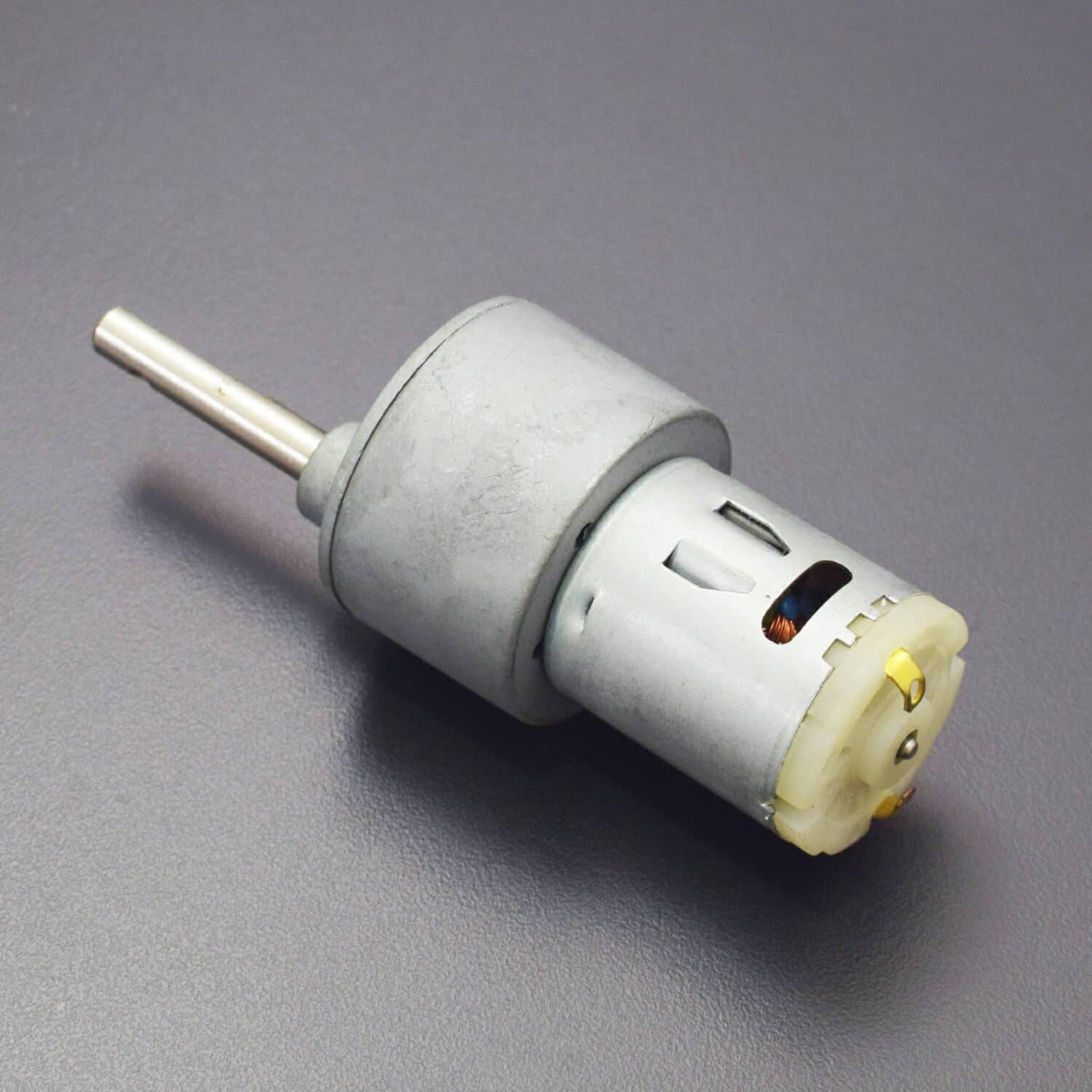

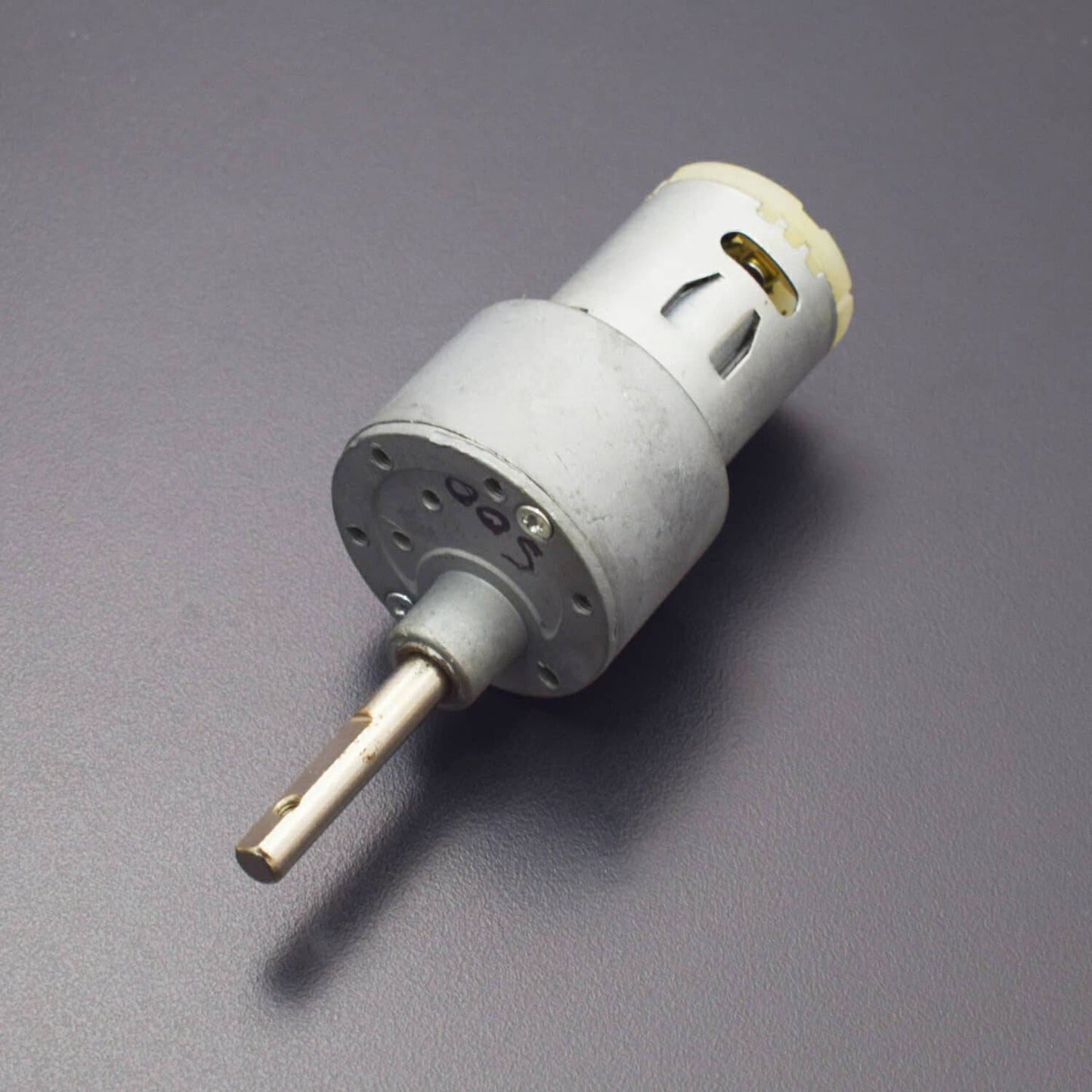

Johnson Geared Motor 500 RPM 12v DC Gear for Robotics - RS1646

Johnson Geared Motor 500 RPM 12v DC Gear for Robotics - RS1646

SKU:RS1646

In stock

Regular price Rs. 350.00
Regular price Sale price Rs. 350.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • 500RPM 12V DC motors with Metal Gearbox
  • 18000 RPM base motor
  • 6mm shaft diameter
  • Gearbox diameter 37 mm.
  • Motor Diameter 28.5 mm
  • Length 63 mm without shaft

Description:

The Johnsons DC Gear motor offers custom engineering solutions based on a wide range of low voltage DC and high voltage DC motor platforms. It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnsons Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

Specification:

  • 500RPM 12V DC motors with Metal Gearbox
  • 18000 RPM base motor
  • 6mm shaft diameter
  • Gearbox diameter 37 mm.
  • Motor Diameter 28.5 mm
  • Length 63 mm without shaft
  • Shaft length 15mm
  • 300gm weight, 10kgcm torque
  • No-load current = 800 mA(Max), Load current = upto 9.5 A(Max)

Features:

  • The motor has sturdy construction.
  • Shaft equips metal bushes for long life.
  • It comes with High-Quality gears.
  • The shaft has a hole for better coupling.

Package Included:

1 x Johnson Geared Motor 500 RPM 12v DC Gear for Robotics
