Description:
The Jiyi K++ V2 Flight Controller Kit is a professional-grade flight control system engineered for demanding industrial applications. Designed by Jiyi for superior stability and reliability, it seamlessly integrates into critical operations like plant protection, mapping, and aerial photography. Always remove propellers when using assistant software, and ensure correct wiring, normal power supply, and clear surroundings (away from crowds, vulnerable items, and hazards) during flight.
Specifications:
- Item Type: Kit
- Supported: I4 , X4 four rotor ,iy6 , y6 , 16 , v6 six rotor v8 i8 x8 ix8 8 rotor
- Battery Type: 3s -12s lithium polymer battery
- Receiver Type: Sbus receiver
- OS: windows 7,8,10( 32 bit and 64 bit)
- Accuracy: Horizontal direction: ±1.5m vertical direction ±0.5m
- Step Angle(Degree): 30 degrees Tilt angle
- Maximum Yaw Speed: 150 degrees
- Maximum Vertical Speed: 6m/s
- Maximum Wind Resistance: Wind 4 gust 5
- Power Consumption: 5W
- Voltage Range of FC: 4.8V – 5.3V
- PMU: 11.1V –
- PMU 2 (UPS): 11.1 – 50v (3s – 12s lipo recommended) maximum output current 3A at 5V
- GPS: 5v
- LED Voltage: 5V
- Voltage: 3s – 12sV
Features:
- Terrain Following
- Breakpoint Continuous Spray
- One-Key Return
- Precise Spraying
- Dual Water Pump Mode
- Water Pump Switch Control
- Water Pump Linkage Control
K++ V2 FC diagram:

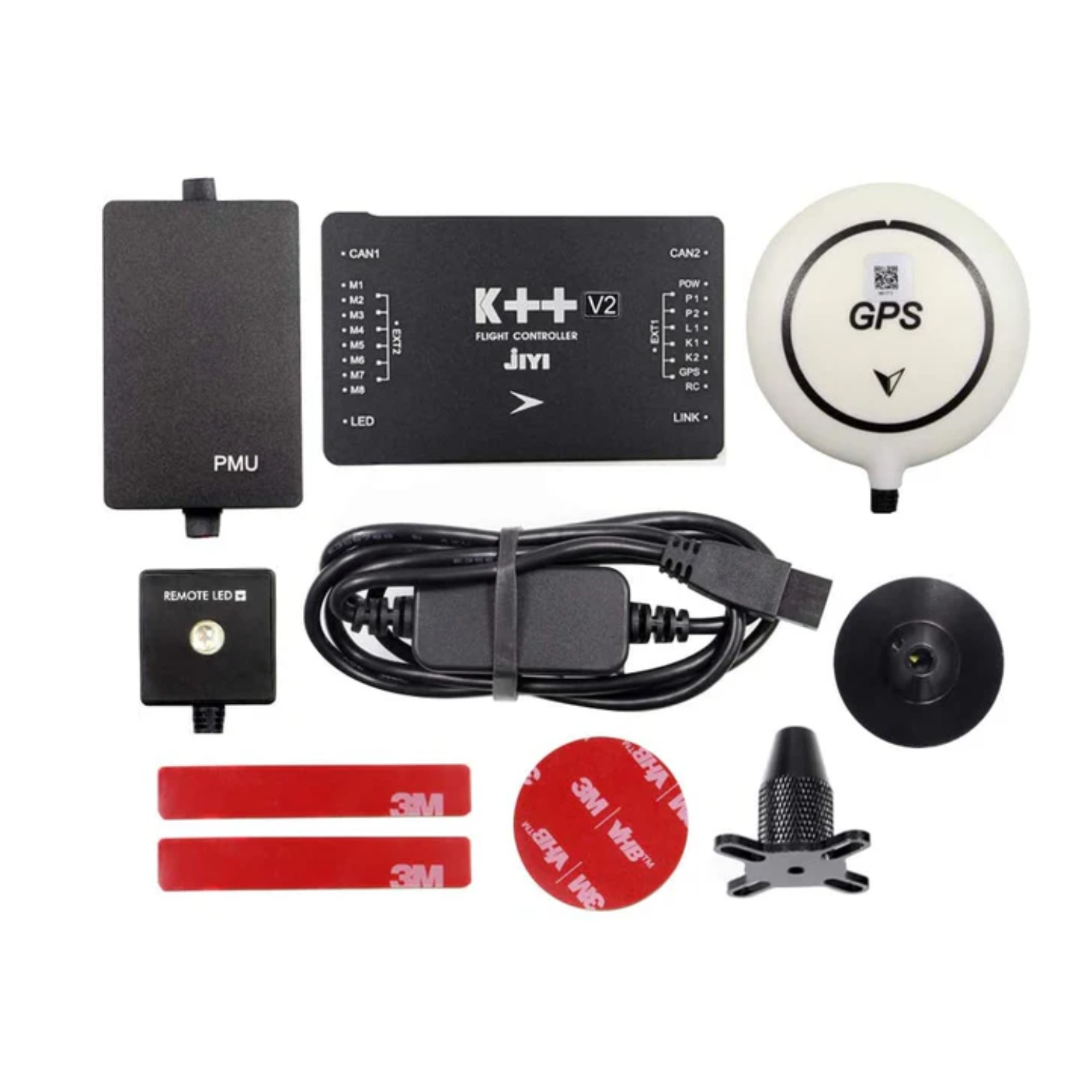

Package Included:
1 x Jiyi K++ V2 Flight Controller Kit
