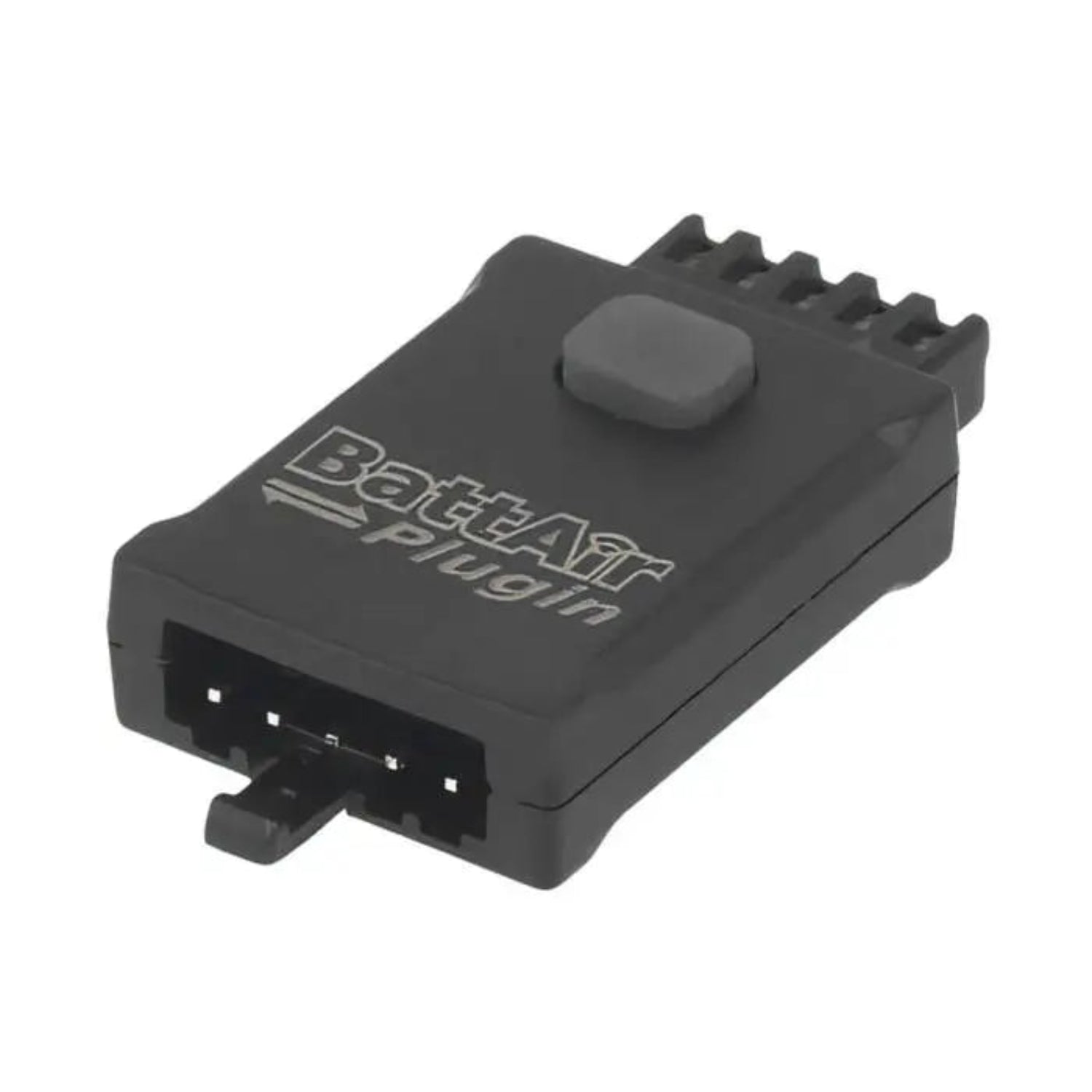

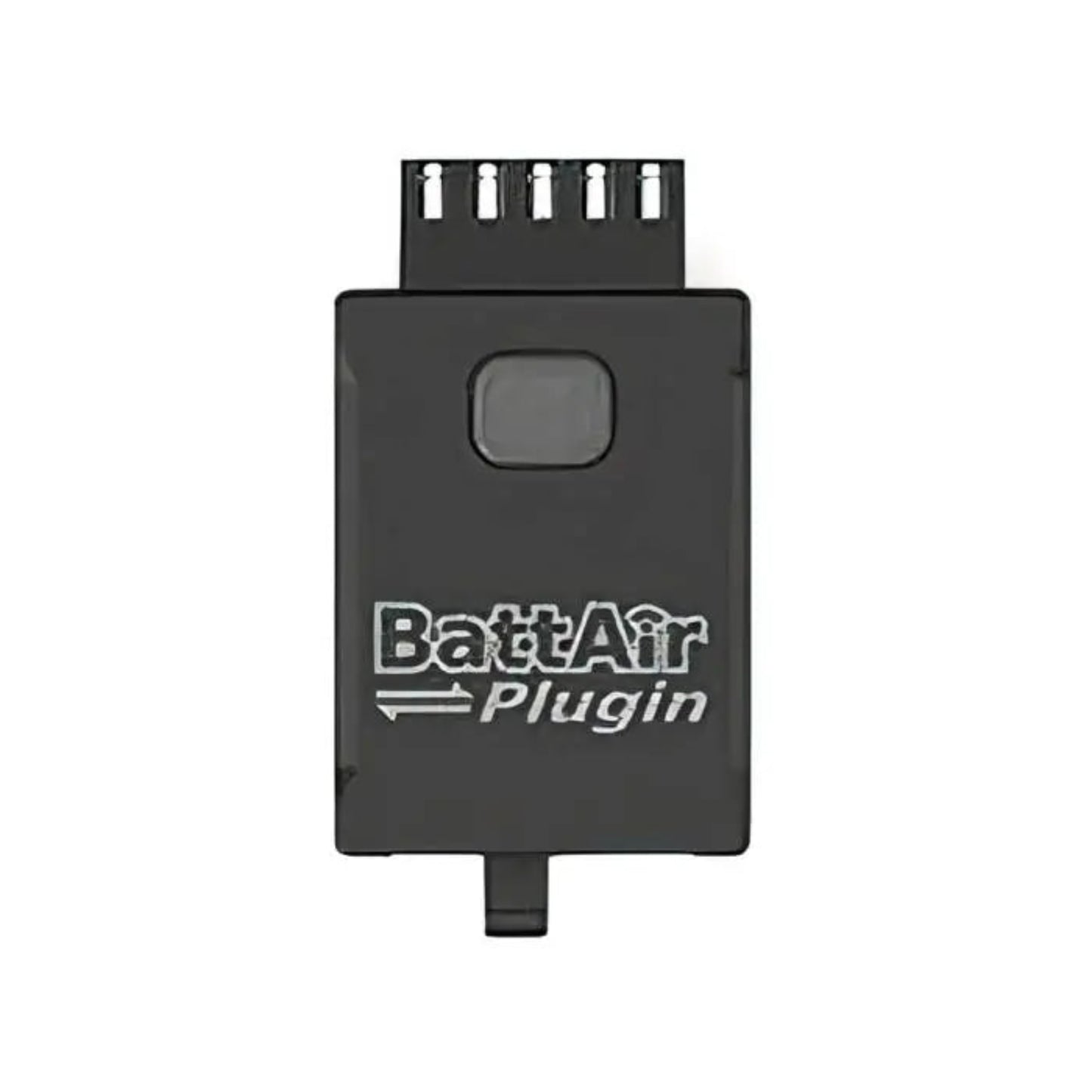

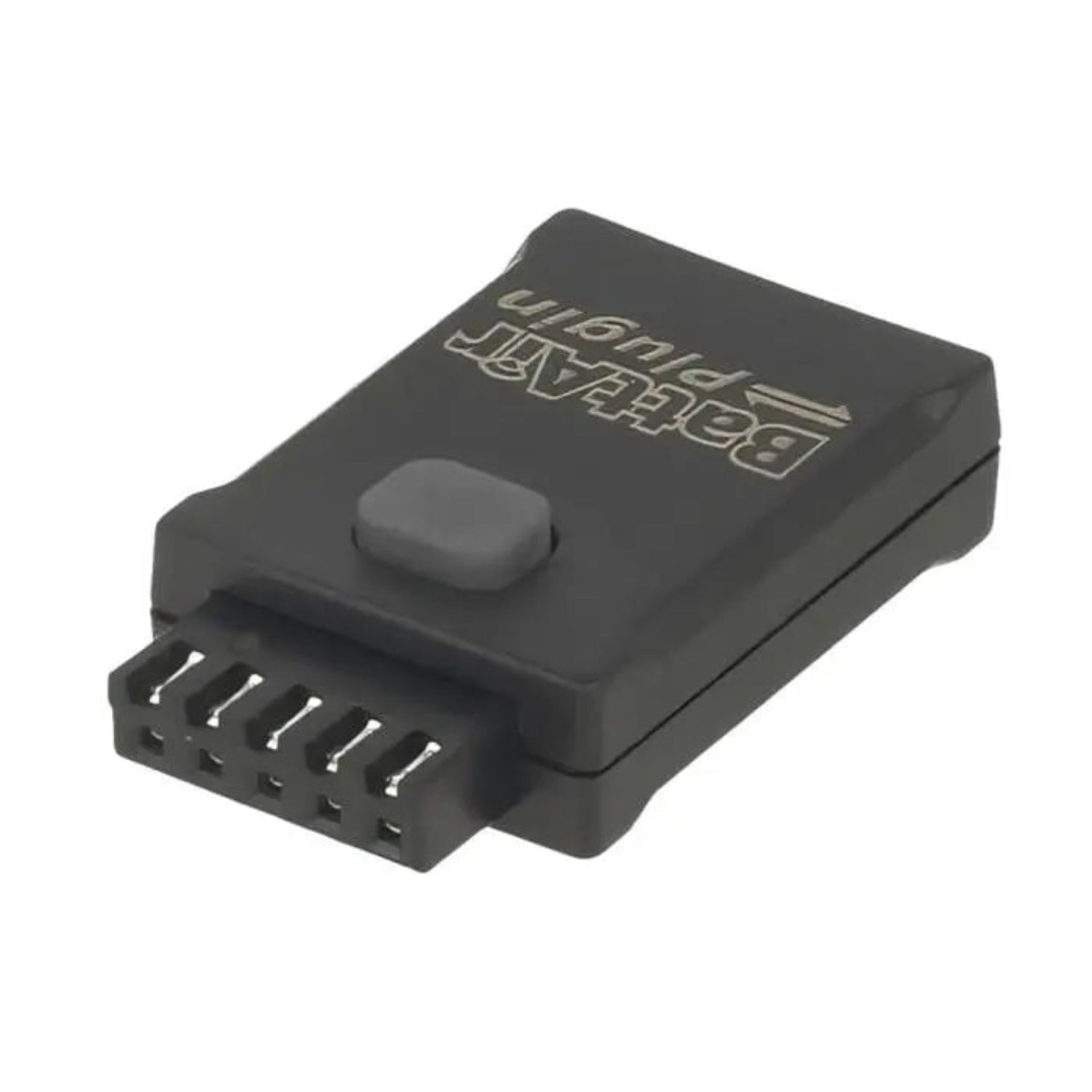

ISDT BAP4 BattAir Plugin 3-4S RC Batteries Real-Time Monitoring via App For Smart Battery Management - RS8465

ISDT BAP4 BattAir Plugin 3-4S RC Batteries Real-Time Monitoring via App For Smart Battery Management - RS8465

SKU:RS8465

Low stock: 1 left

Regular price Rs. 255.00
Regular price Sale price Rs. 255.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Introducing the ISDT BAP4 BattAir Plugin, a revolutionary accessory designed for intelligent battery management in your 3-4S RC models. This innovative plugin seamlessly integrates with BattAir-supported chargers, enabling automatic recognition of your battery's parameters and providing real-time monitoring of the charging process.

Unlock a new level of control with the dedicated BattAir App, where you can effortlessly view the precise power level, customize and manage crucial battery settings, and access comprehensive battery usage records to stay informed about your battery's health.

Furthermore, enjoy the convenience of over-the-air (OTA) firmware upgrades, ensuring your BAP4 Plugin always benefits from the latest features and enhancements. Experience smarter power management with the ISDT BAP4 BattAir Plugin.

Specifications:

  • Quiescent Current: 50uA
  • Battery Type: LiFe, LiPo, LiHv, ULiHv
  • No. of Cells: 3 to 4S

Safety Precautions:

  1. Never use the charger without supervision. Refer to the manual for reasons if any functional abnormality.
  2. Read the instruction manual carefully to be familiar with the features of the charger and set proper charging parameters before operating. Setting the parameters incorrectly will result in damage to the product, personal property and cause serious injury as well.

How To Use:

  • HOW DOES BATTAIR PLUGIN WORK?
    – Through the external balance port, the ordinary LiPo battery can be upgraded to a smart battery at a minimum cost.
  • HOW TO SET WHEN CHANGING BATTAIR PLUGIN TO A NEW BATTERY?
    – Initialize the BattAir Plugin settings, and then connect to the next battery. Click “Reset All Settings” in BattAir APP and enter the password to complete the initial settings. The data needs to be re-entered when the next battery is connected.
  • CAN I QUICKLY FIND THE SPECIFIC BATTERY FROM THE BATTERY INFORMATION LIST ON THE BATTAIR APP?
    – Yes. Click a certain battery information in the battery information list on BattAir APP, and the corresponding Plugin flashes a blue light.

LED Functions:

  • Red Light Flashing Continuously: Indicates an error or that the BattAir Plugin is not calibrated.
  • White Light Flashing: The plugin is initiating a connection with the app.
  • Green Light Flashes 3 Times: Battery charge is above 90%.
  • Orange Light Flashes 2 Times: Battery charge is between 20% and 90%.
  • Red Light Steady On: Battery charge is below 20%.
  • Flashing During Firmware Upgrade: Indicates that a firmware update is in progress.
  • Solid Light When Connected to App: Confirms successful connection to the BattAir App.
  • Flashing During Discharge: Shows that the battery is currently discharging.

Package Included:

1 x ISDT BAP4 BattAir Plugin
