Description:

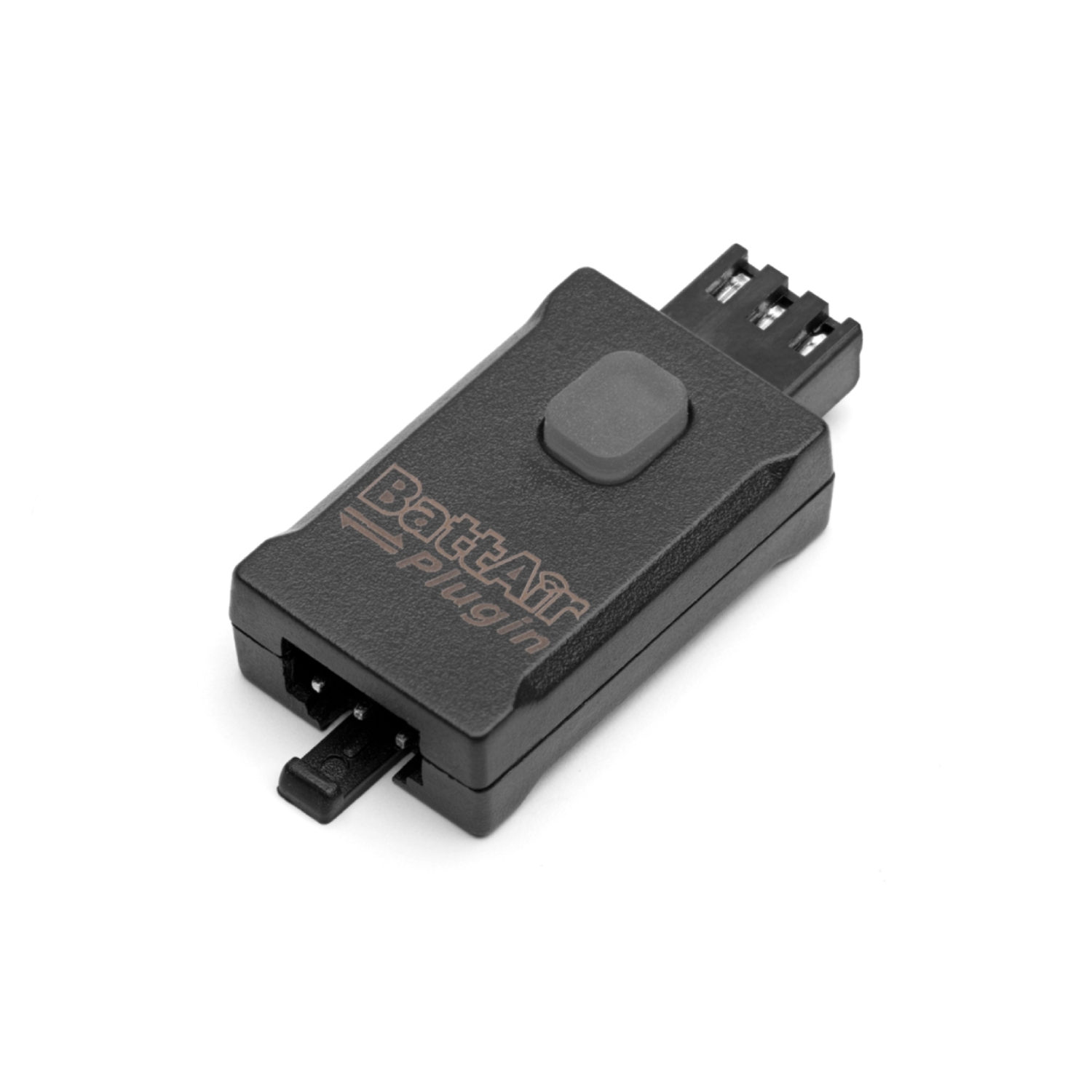

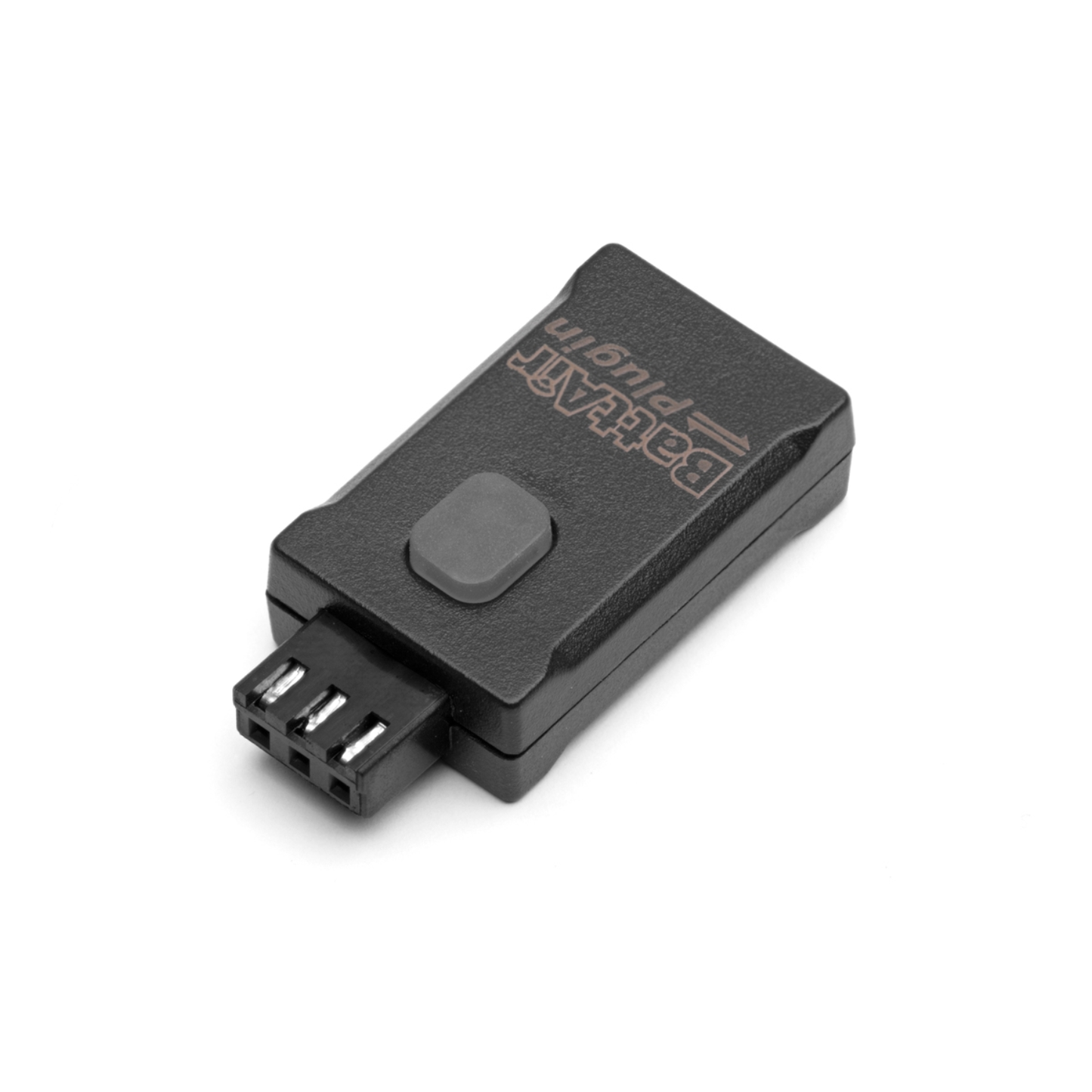

The ISDT BattAir Plugin BAP2 allows chargers to monitor battery charging status in real time and recognize power levels, battery parameters, and usage records.
Specifications:
- Supported Battery Type: LiFe, LiPo, LiHv, ULiHv
- Supported Battery Cells: 2S
- Quiescent Current: 50uA
Features:
- Fully compatible with the existing balance port structure, just plug it in.
- Upgrade your Battery to a Smart Battery
- View details on your phone
- Discharge
- Buckle structure design
- XH2.54 Universal port
- Press and Show
How To Use:
-
HOW DOES BATTAIR PLUGIN WORK？
– Through the external balance port, the ordinary LiPo battery can be upgraded to a smart battery at a minimum cost.
-
HOW TO SET WHEN CHANGING THE BATTAIR PLUGIN TO A NEW BATTERY?
– Initialize the BattAir Plugin settings, and then connect to the next battery. Click “Reset All Settings” in the BattAir APP and enter the password to complete the initial settings. The data needs to be re-entered when the next battery is connected.
-
CAN I QUICKLY FIND THE SPECIFIC BATTERY FROM THE BATTERY INFORMATION LIST ON THE Battrair app?
– Yes. Click a certain battery information in the battery information list on BattAir APP, and the corresponding Plugin flashes a blue light.
LED Functions:
- Red Light Flashing Continuously: Indicates an error or that the BattAir Plugin is not calibrated.
- White Light Flashing: The plugin is initiating a connection with the app.
- Green Light Flashes 3 Times: Battery charge is above 90%.
- Orange Light Flashes 2 Times: Battery charge is between 20% and 90%.
- Red Light Steady On: Battery charge is below 20%.
- Flashing During Firmware Upgrade: Indicates that a firmware update is in progress.
- Solid Light When Connected to App: Confirms successful connection to the BattAir App.
- Flashing During Discharge: Shows that the battery is currently discharging.
Safety Precautions:
- Never use the charger without supervision. Refer to the manual for reasons of any functional abnormality.
- Read the instruction manual carefully to be familiar with the features of the charger and set proper charging parameters before operating. Setting the parameters incorrectly will result in damage to the product, personal property and cause serious injury as well.
Package Included:
1 x ISDT BAP2 BattAir Plugin
