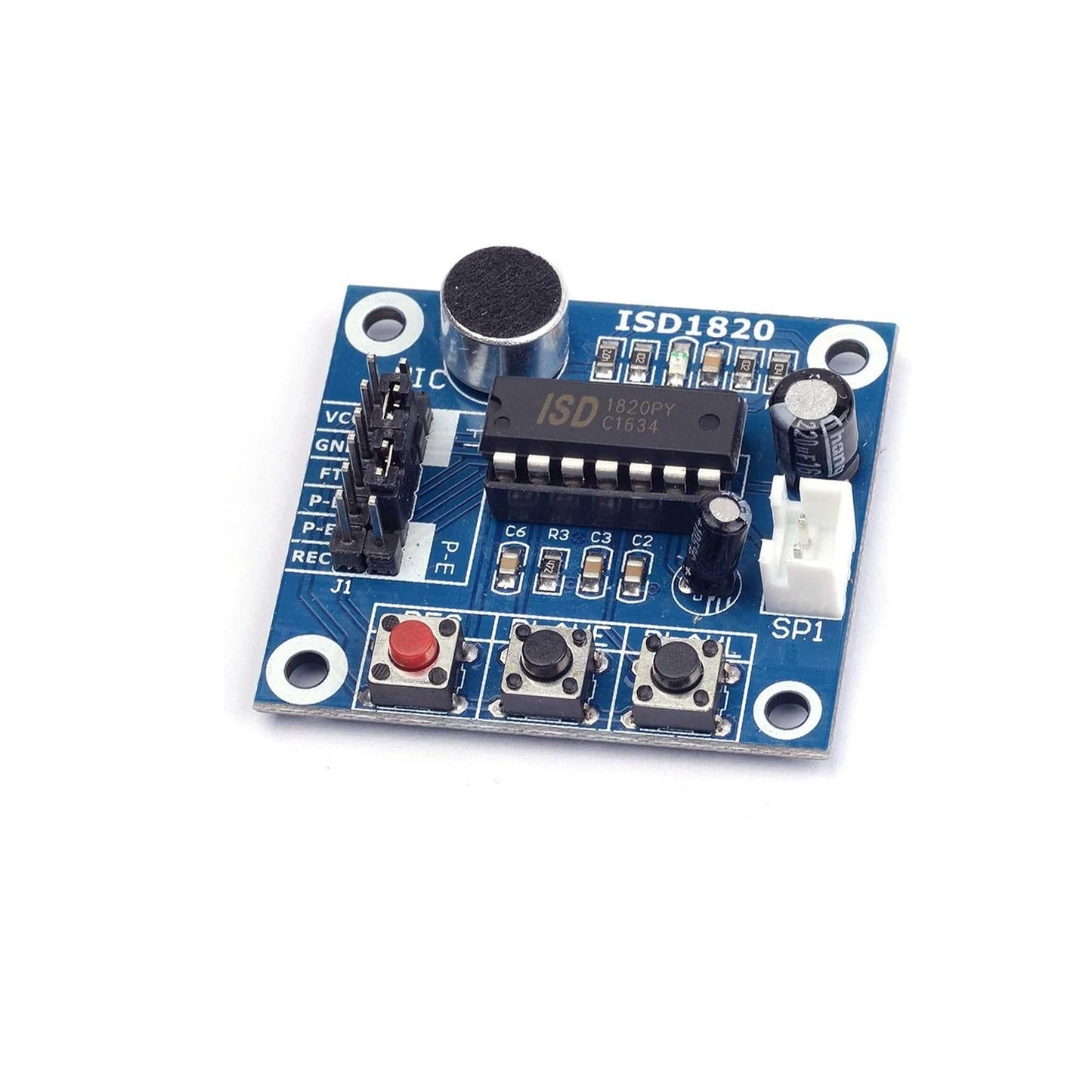

The ISD1820 Audio Module is a really easy way to add Voice Recording (and Playback) to your project. The Module can be operated directly by using the 3 Push-Buttons or with every microcontroller (ex. Arduino). A microphone is implemented directly on the board, and you can connect any 8 Ohm Speaker. Your recordings are saved even without power due to the non-volatile storage on the ISD1820.

This ISD1820 Audio Module uses the ISD1820 voice record and playback IC to record a single voice message of up to 10 seconds in length. The recorded message is stored in its specialized analogue flash memory that will keep the message stored even when power is removed. The ISD1820 Audio Module includes an electret microphone to record your message and push buttons to allow for the recording, partial playback, or full playback of the message. Header pins allow for an easy interface to a microcontroller and playback can be controlled with just one digital pin.


  • Supply Voltage: 3~5V
  • Chip: ISD1820
  • Loudspeaker: 8Ω, 0.5W


  • An easy to use 10 seconds voice recording
  • High-quality, natural voice restored
  • ISD1820 Audio Module can be used as a propaganda module
  • With looping, jog playback, and single-pass play function
  • Available single-chip control
  • ISD1820 Audio Module can directly drive a small speaker 8 ohms 0.5W

Operation Method:

  • REC button: record button, you can press and hold the recording, release the button to stop recording
  • RLAYE key: trigger mode playback, the press will play this whole speech
  • PLAYL key: jog mode playback, press and hold until playback, release to stop playback
  • RPL Jumper: loop mode control, loop playback
  • FT Jumper: direct control, microphone voice through the speaker can playback

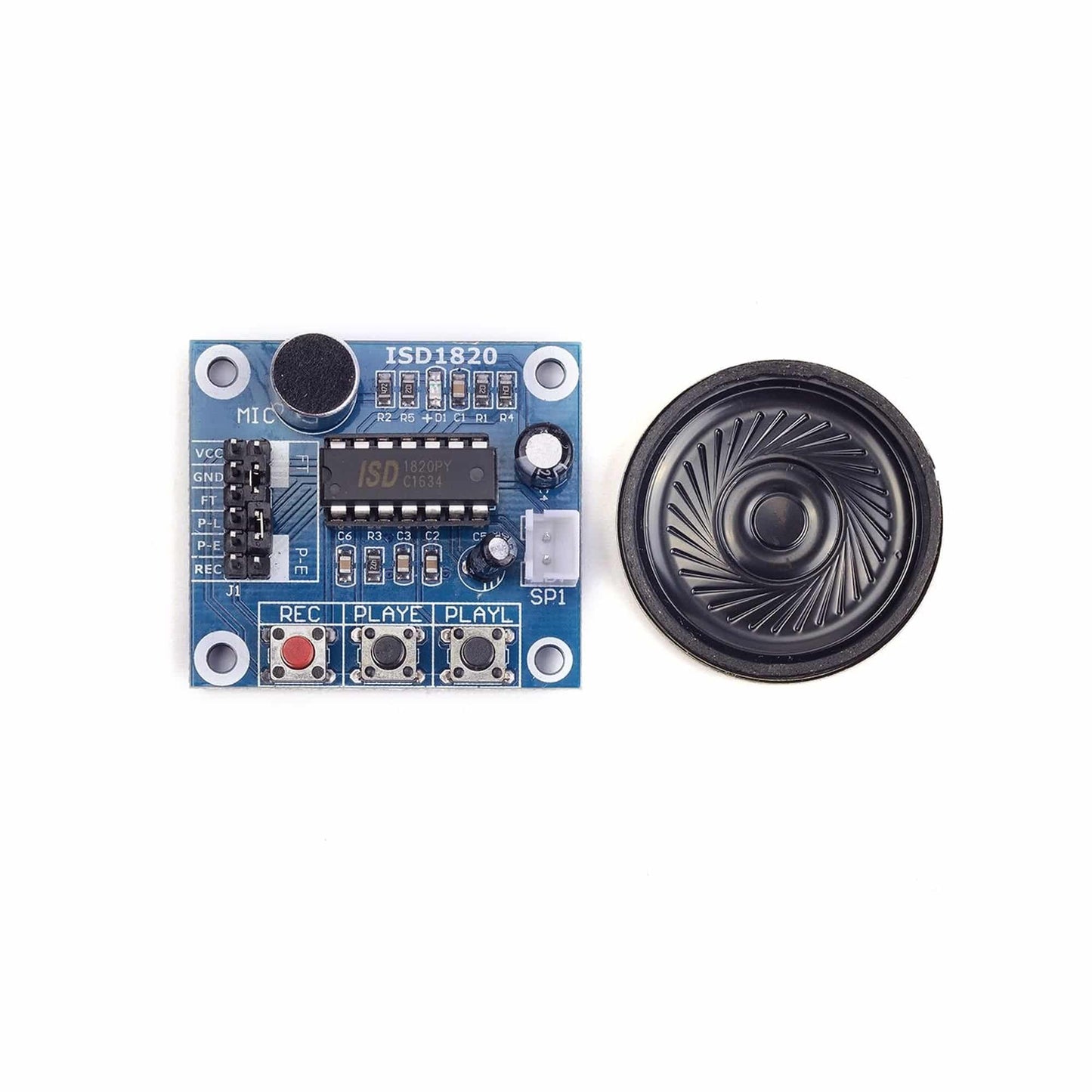

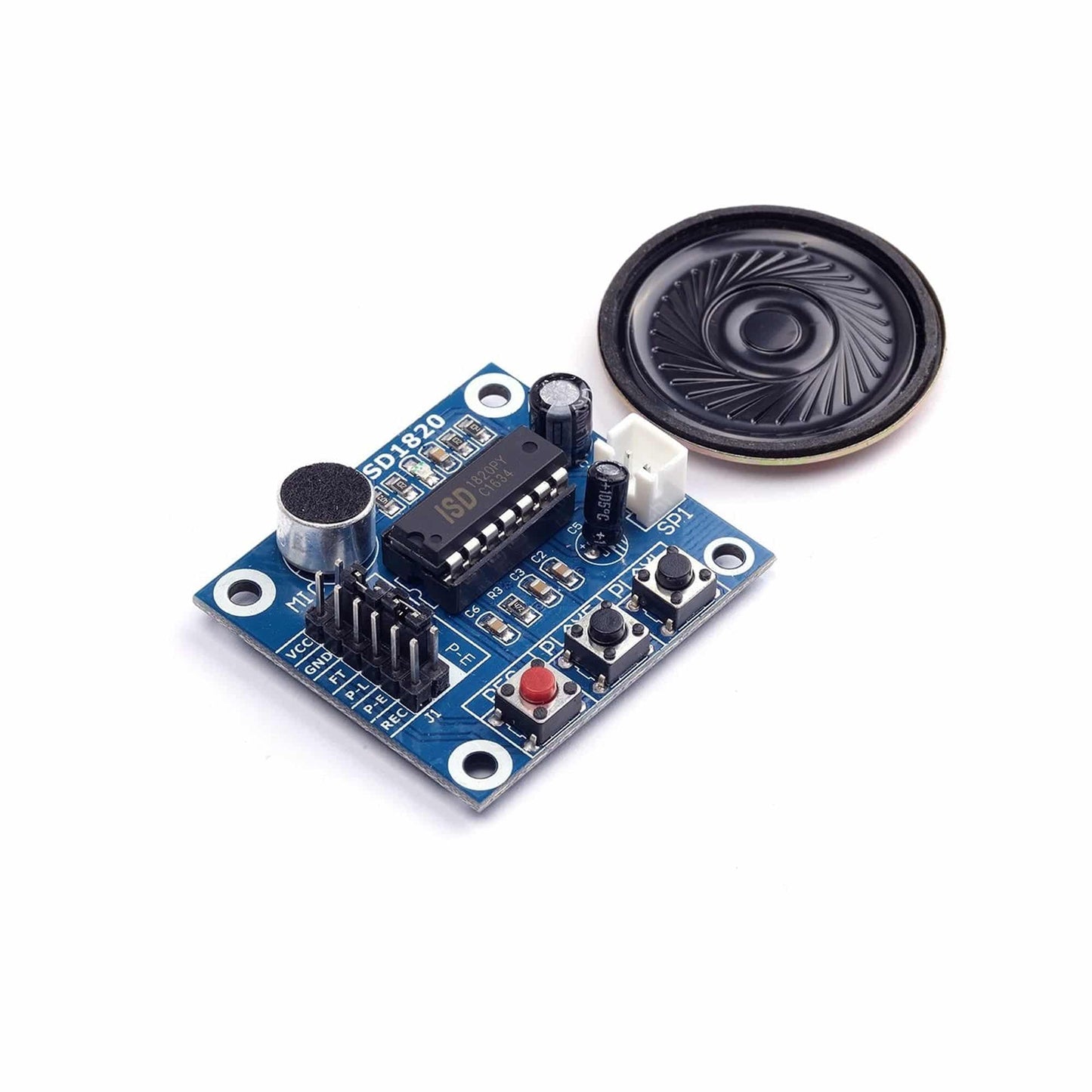

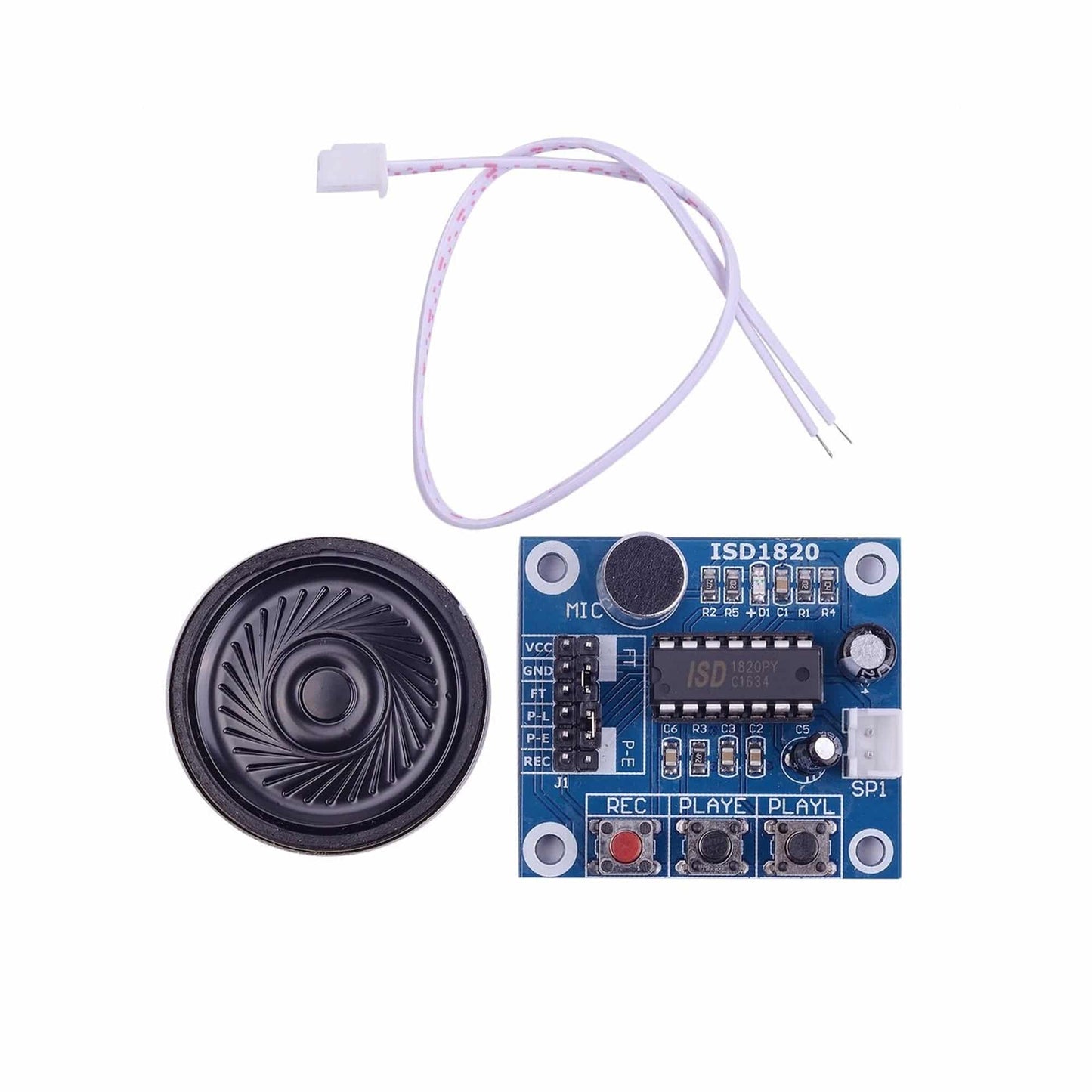

Package Included:

  • 1 x ISD1820 Audio Module

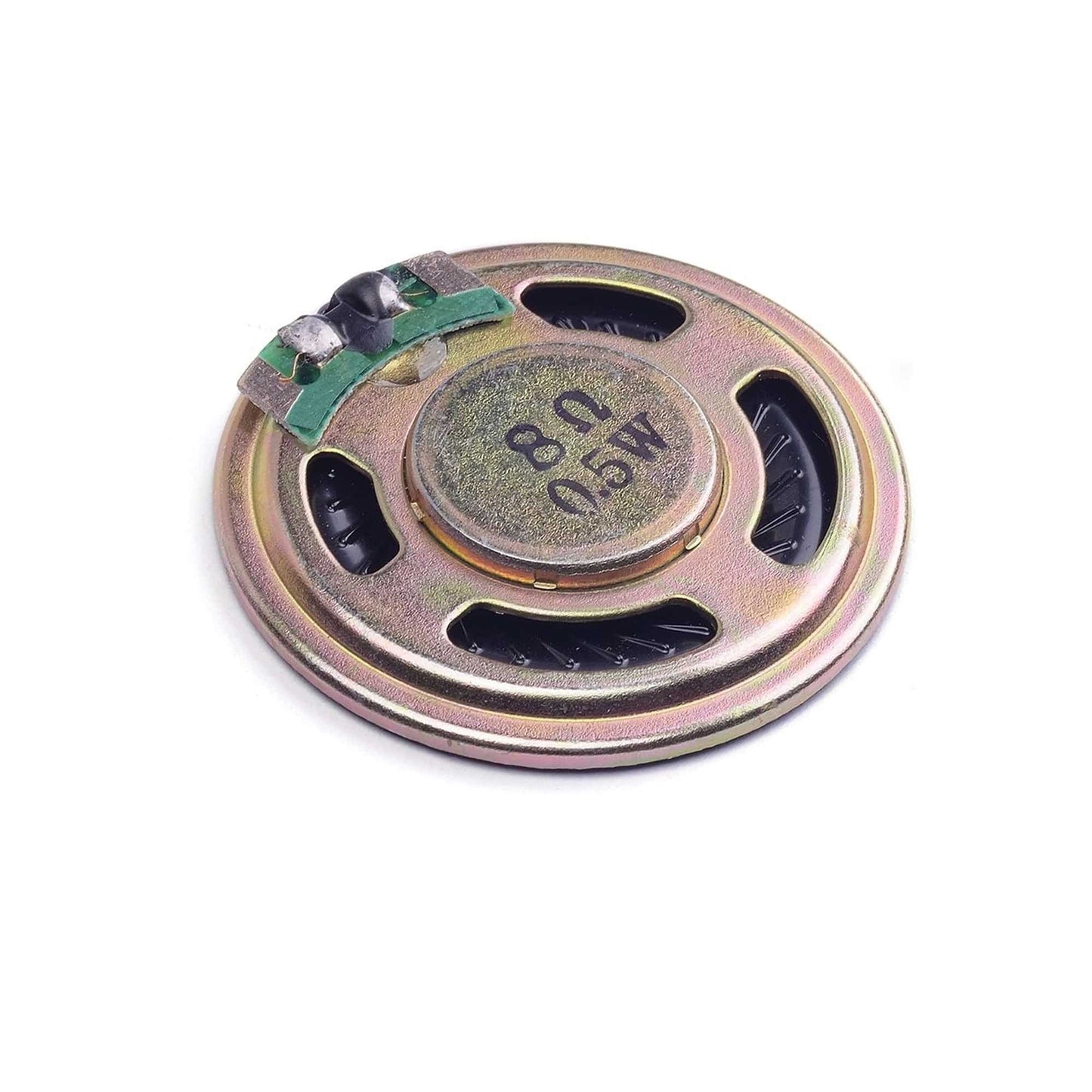

  • 1 x Loudspeaker
  • 1 x Free Cables
