Description:
As everyone at some point will recognize the Raspberry Pi doesn't include any kind of shutdown button. So the only way to power it off is by unplugging it from the power supply. To make sure you get no corruption of your data files on the SD card you should shut down the Raspberry before powering it off.
So the whole procedure can be a bit annoying especially if you want to use the Raspberry as some kind of embedded PC. e.g. a media server or an internet radio.
Features:
- Sending a shutdown signal to the Raspberry if the Shutdown Button is pressed
- Powering off the Raspberry after save shutdown
- Powering on the Raspberry after the Button is pressed again
- LED light indicating the current state: On / Shutdown / Off
- Easy to setup
- Dimension: 65mm x 30 mm x 20mm
Parameters:

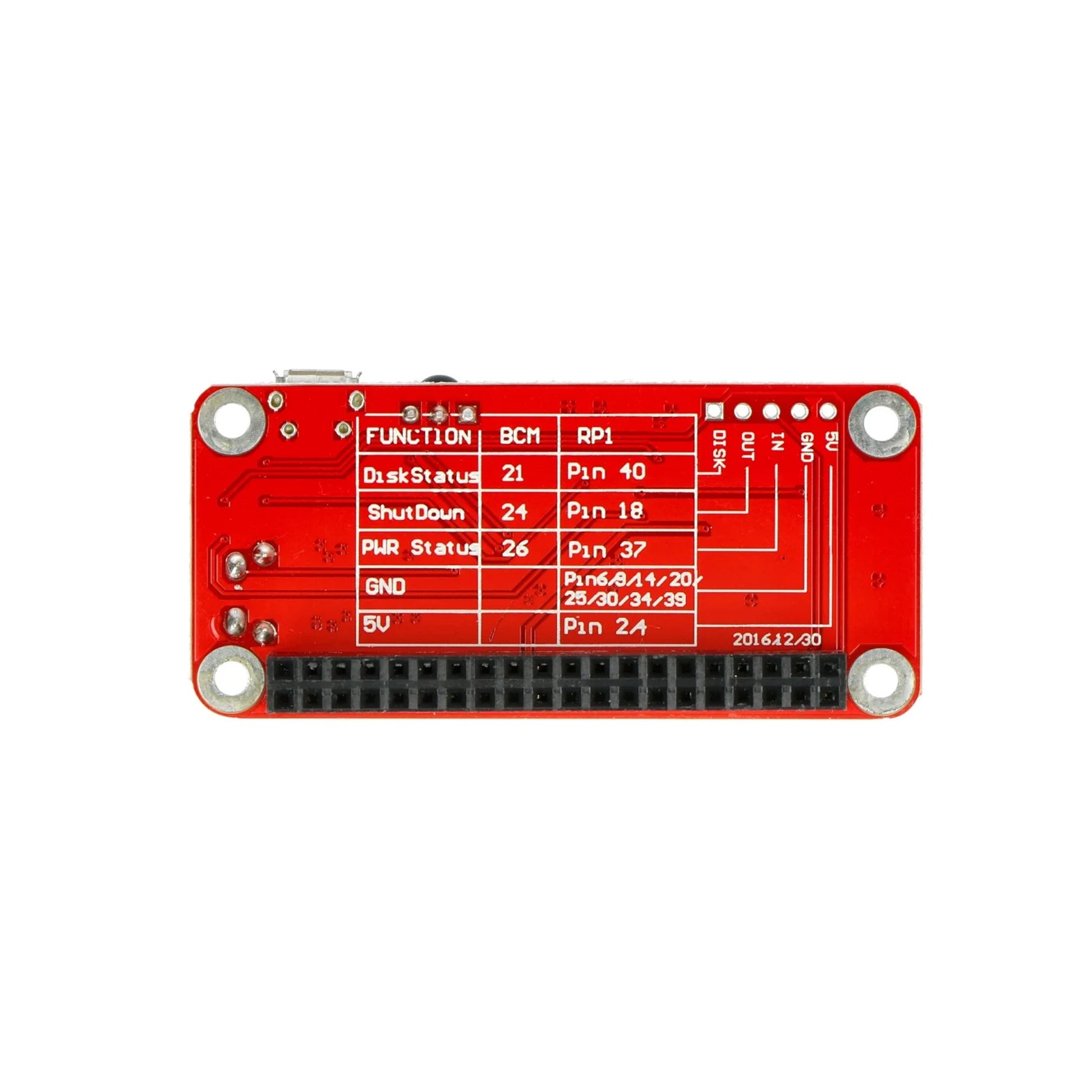

| Function | BCM | RPi |
| Disk Status | 21 | Pin 40 |
| Shut Down | 24 | Pin 18 |
| PWR Status | 26 | Pin 37 |
| GND | N/A | Pin 6/9/14/20/25/30/34/39 |
| 5V | 5V | Pin 2/4 |
Note: The Raspberry Pi main board, connecting cable and battery are not included.

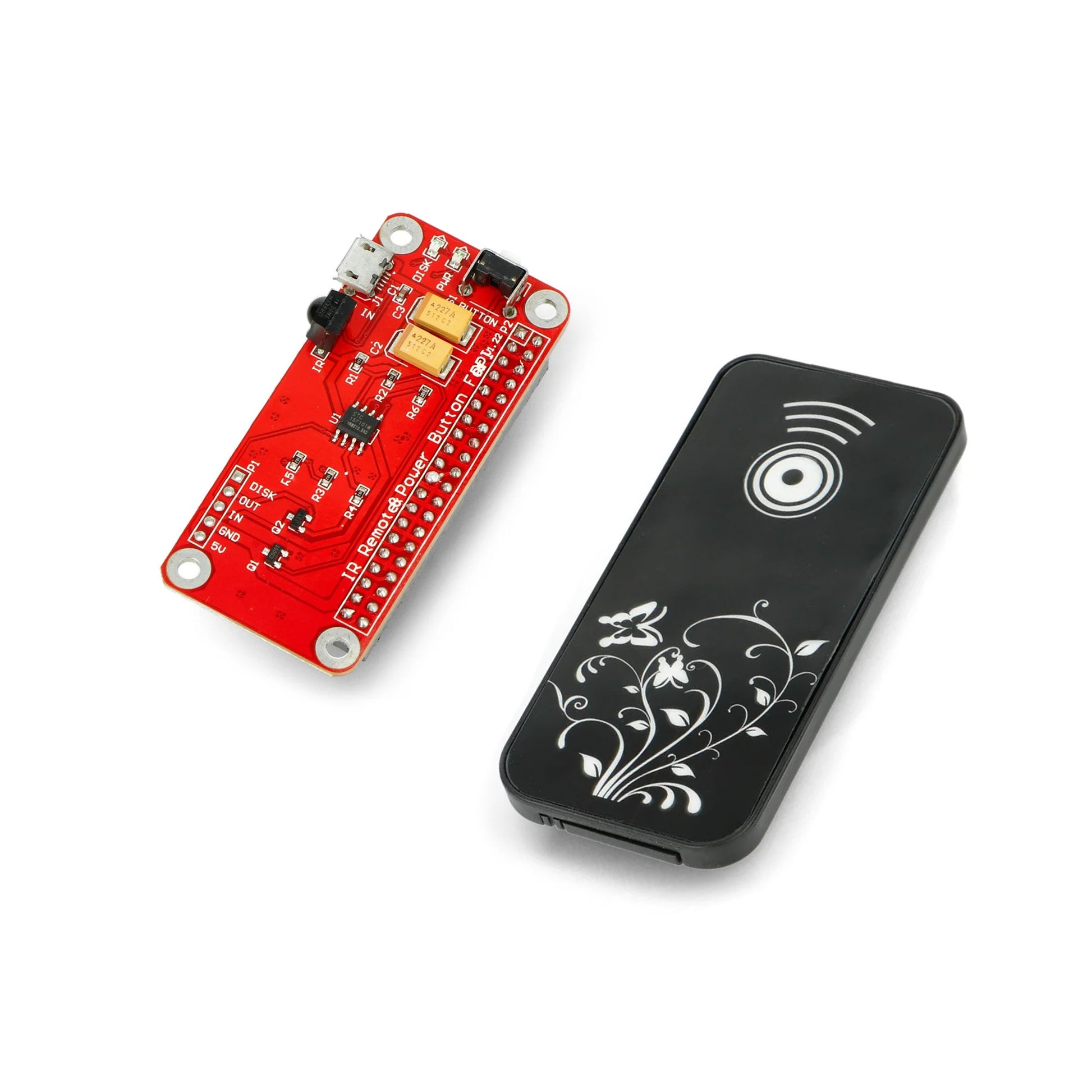

Package Included:
- 1 x Power Button Module

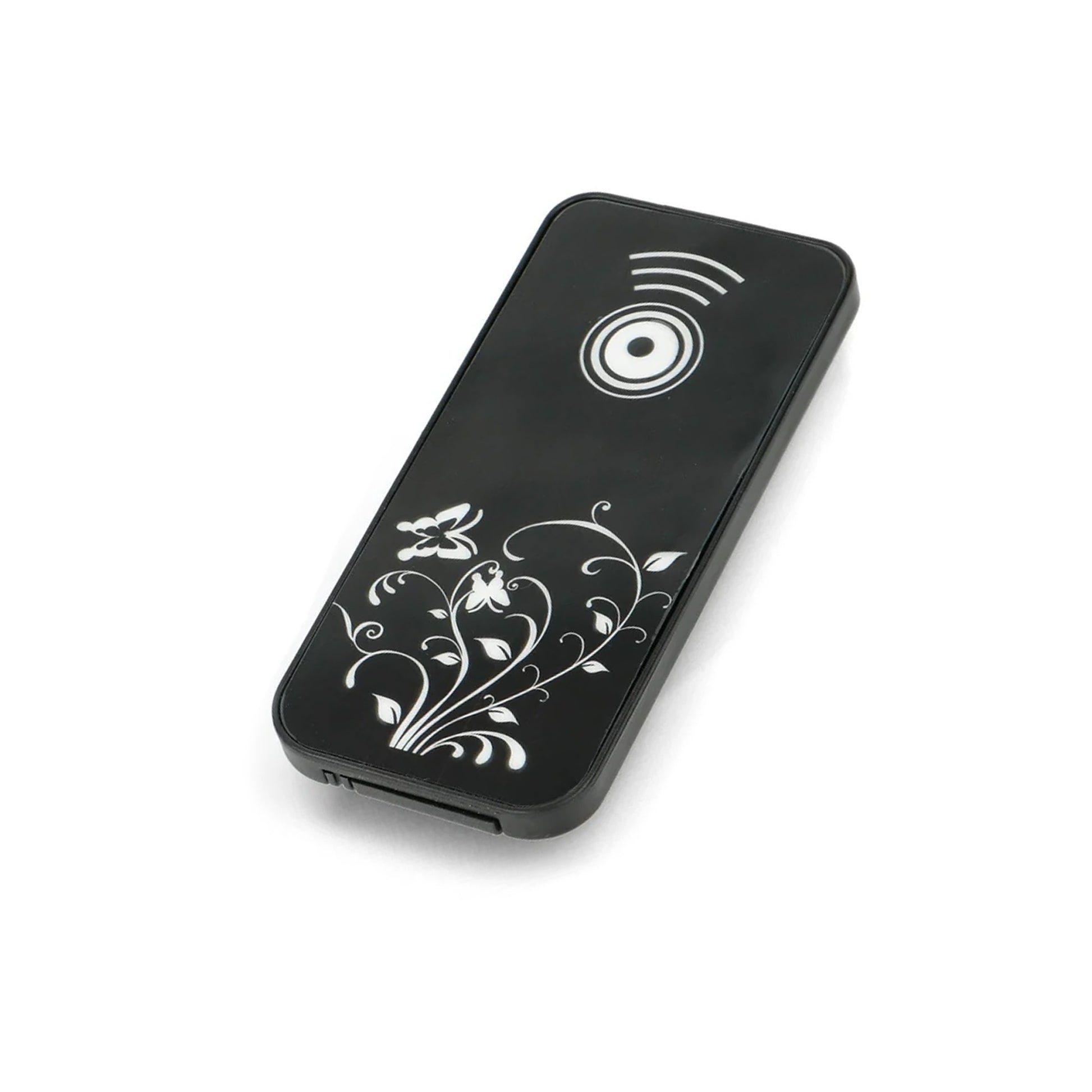

- 1 x IR Remote Control
