- Working voltage: DC 3.3V-5V
- Working current: 20mA
- Working temperature: -10degree+50degree
- Detection distance : 2-40cm
- IO interface: 4 line (-/+/S/EN)
- Output signal: TTL Level
- Adjusting mode: Multi resistance regulation
- Effective angle: 35°
- Size: 4.5x1.1cm(approx)
Description
- An object is sensed output 0, output 1 is not sensitive to the time, directly with 3V and 5V microcontroller IO port connected.
- Sensing distance 2-40 cm, distance, good anti-jamming capability. (Note: The infrared sensor cannot detect all objects get the same distance, objects of different colors of light reflectance of different objects closer darker black shorter distance detected, the sensor 2-40 cm is measured against the white wall of) Speed, suitable for smart car obstacle avoidance, black and white line tracking, anti-drop, product counters, cutting lines, liquid level detection.
- This sensor is made with black and white lines tracing the car ran without a black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional moves so that environmental layout easier.
- The sensor 3 to 6V supply, wide range, suitable for 3V and 5V MCU system.
- With Enable, EN terminal is equal to "1" when the sensor does not work, equal to "0" when working. Jump on the sensor end cap long after the EN grounding plug (EN long as "0"). To use the EN pin when the jumper cap is removed.
- Frequency adjustment potentiometer is used to adjust the carrier frequency of the infrared emission tube because the integration receiver 38KHZ in particular when the carrier frequency is the most sensitive.
- The 502 resistor clockwise transferred do (that is, the launch tube at maximum brightness), and then at a white wall tone 103 resistance, has been transferred to the sensing distance is the farthest so far so that the sensor will work in the best state
How To Use:
Move Robotic head using Obstacle Avoidance Module
Package Included:

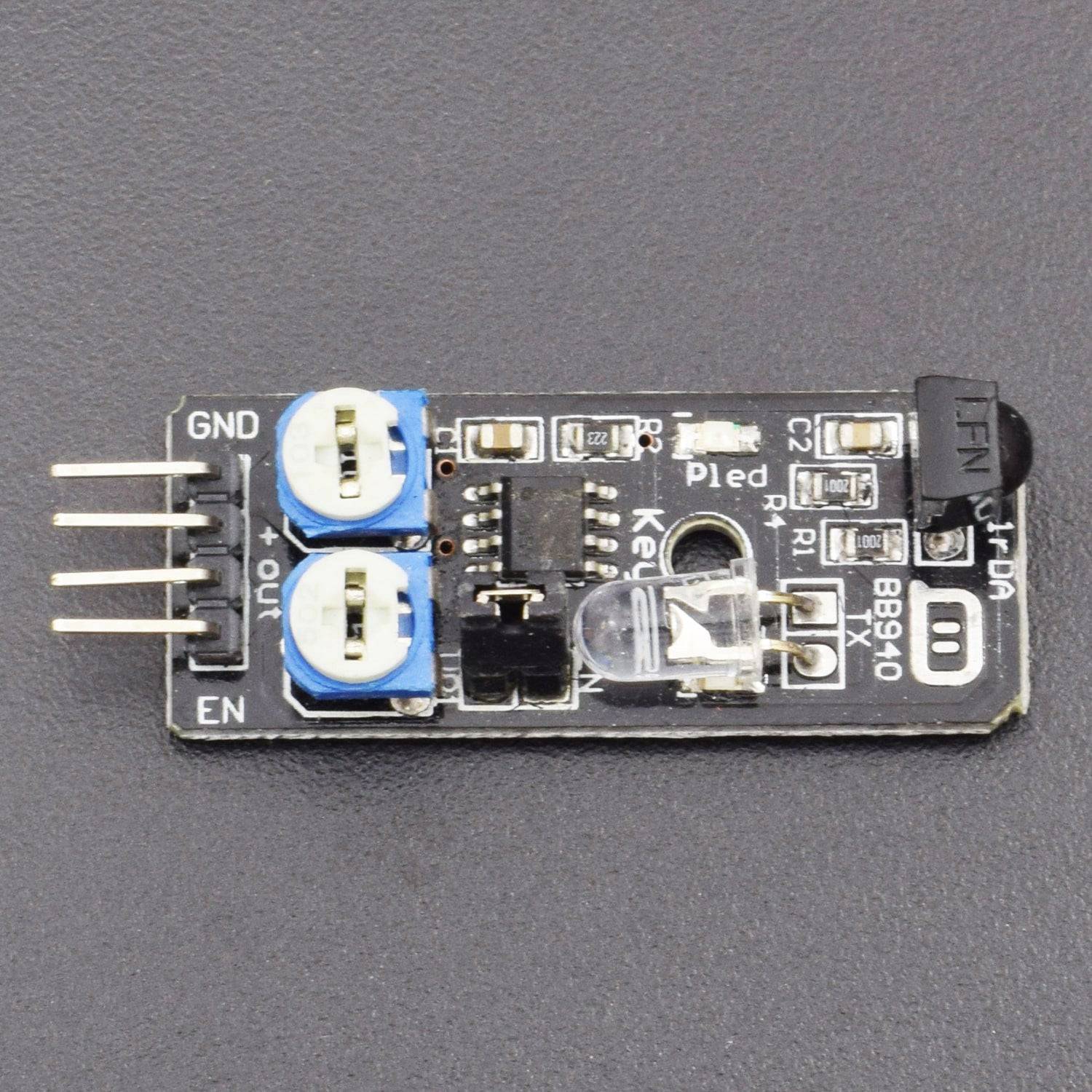

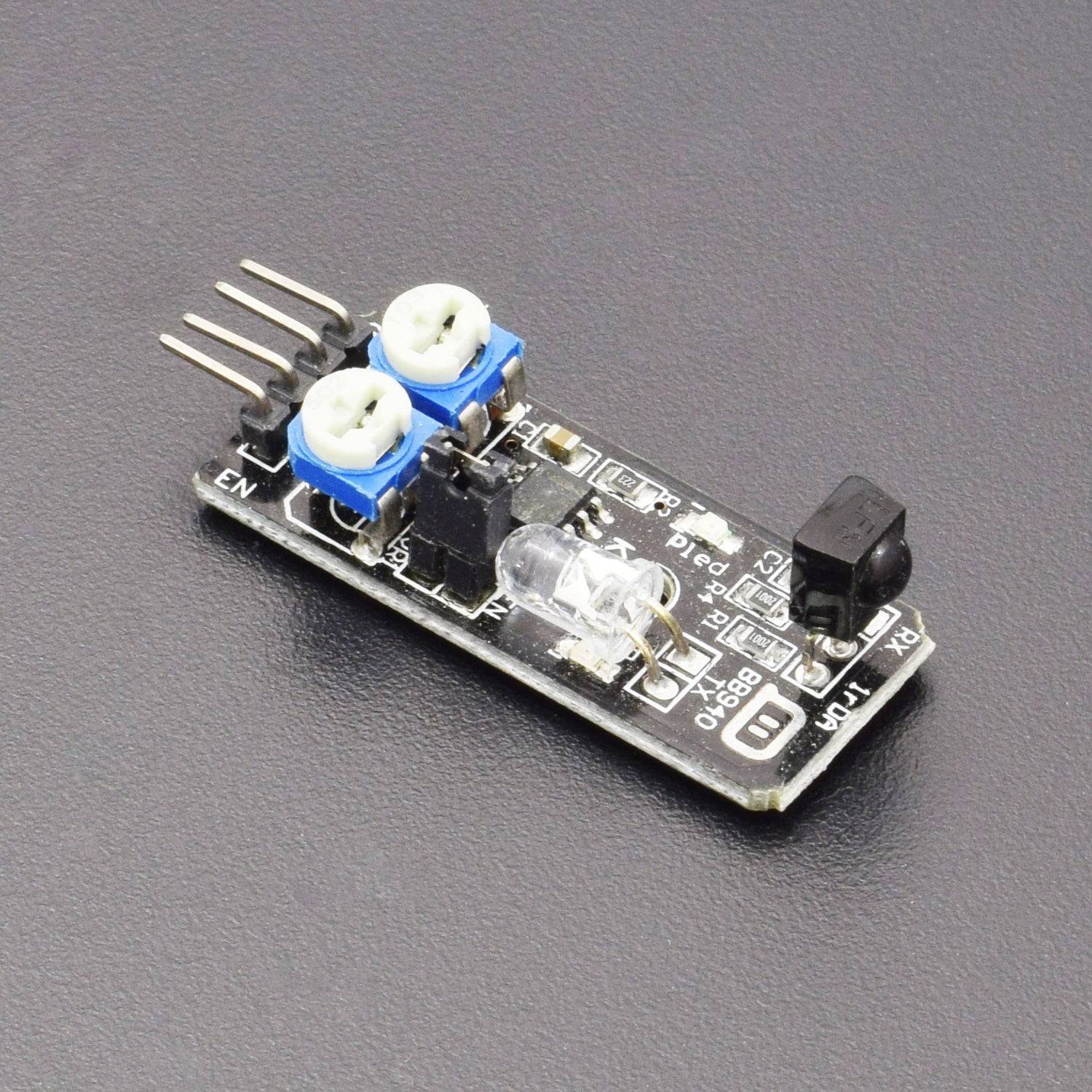

1 x IR Infrared Obstacle Avoidance Sensor Module for Arduino
