Description:

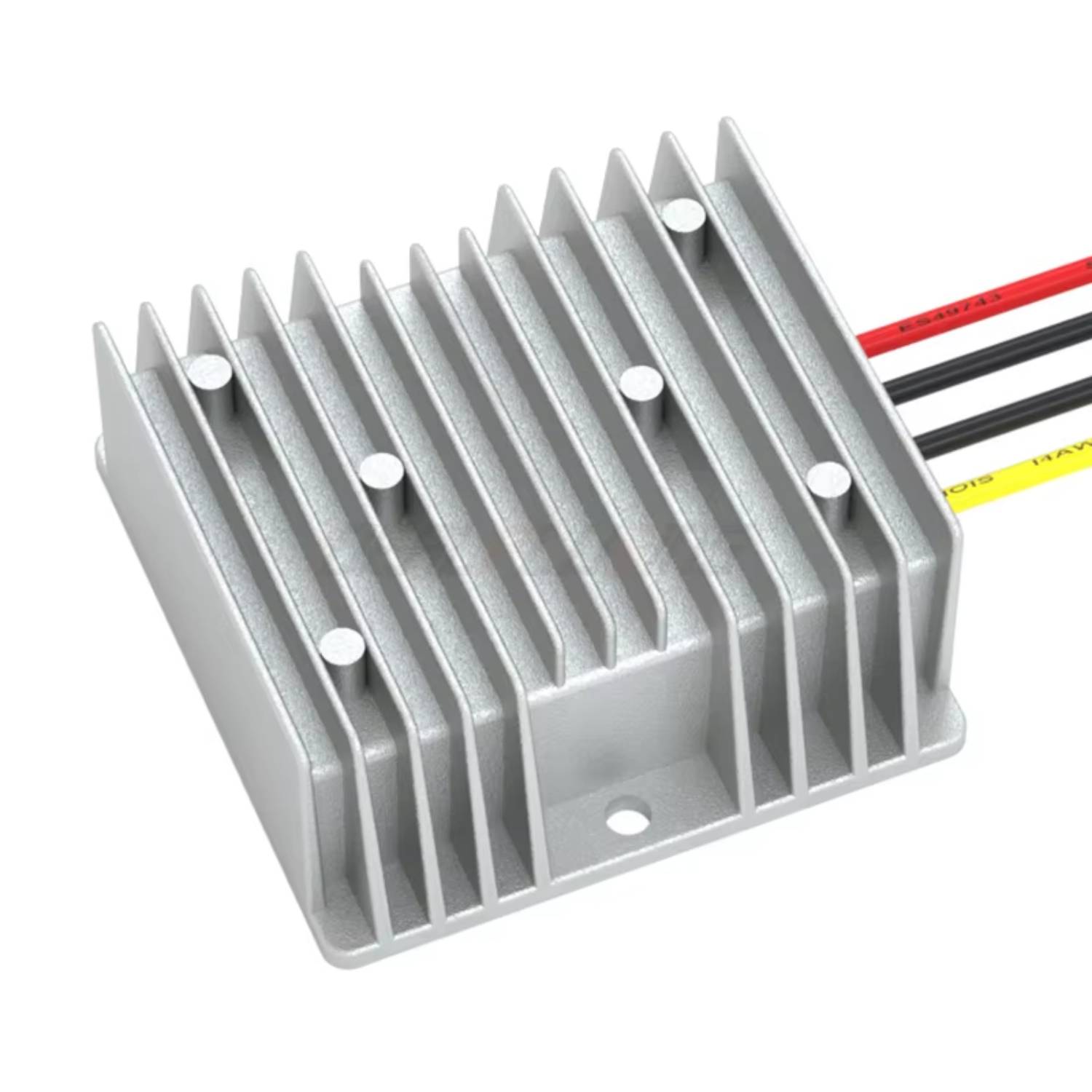

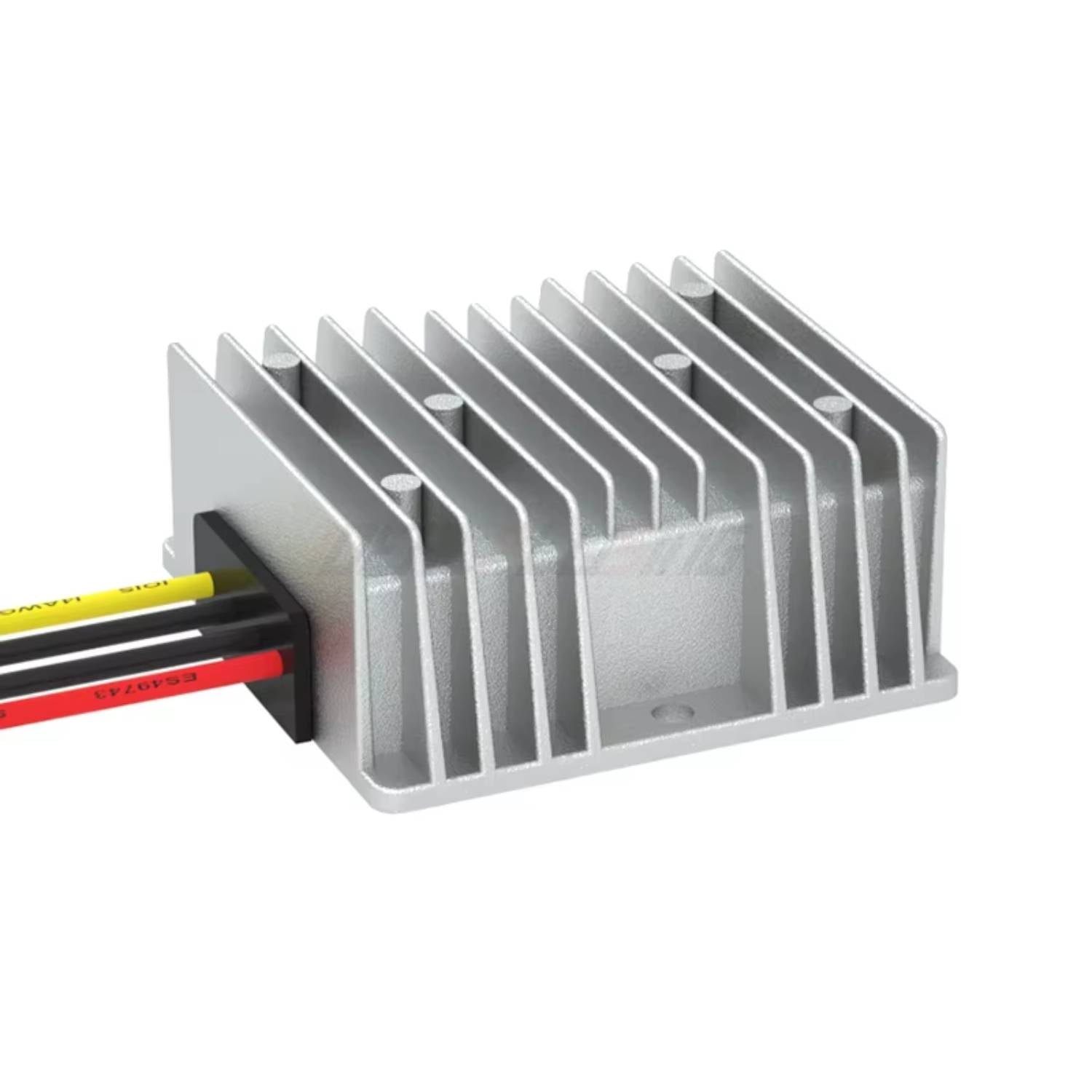

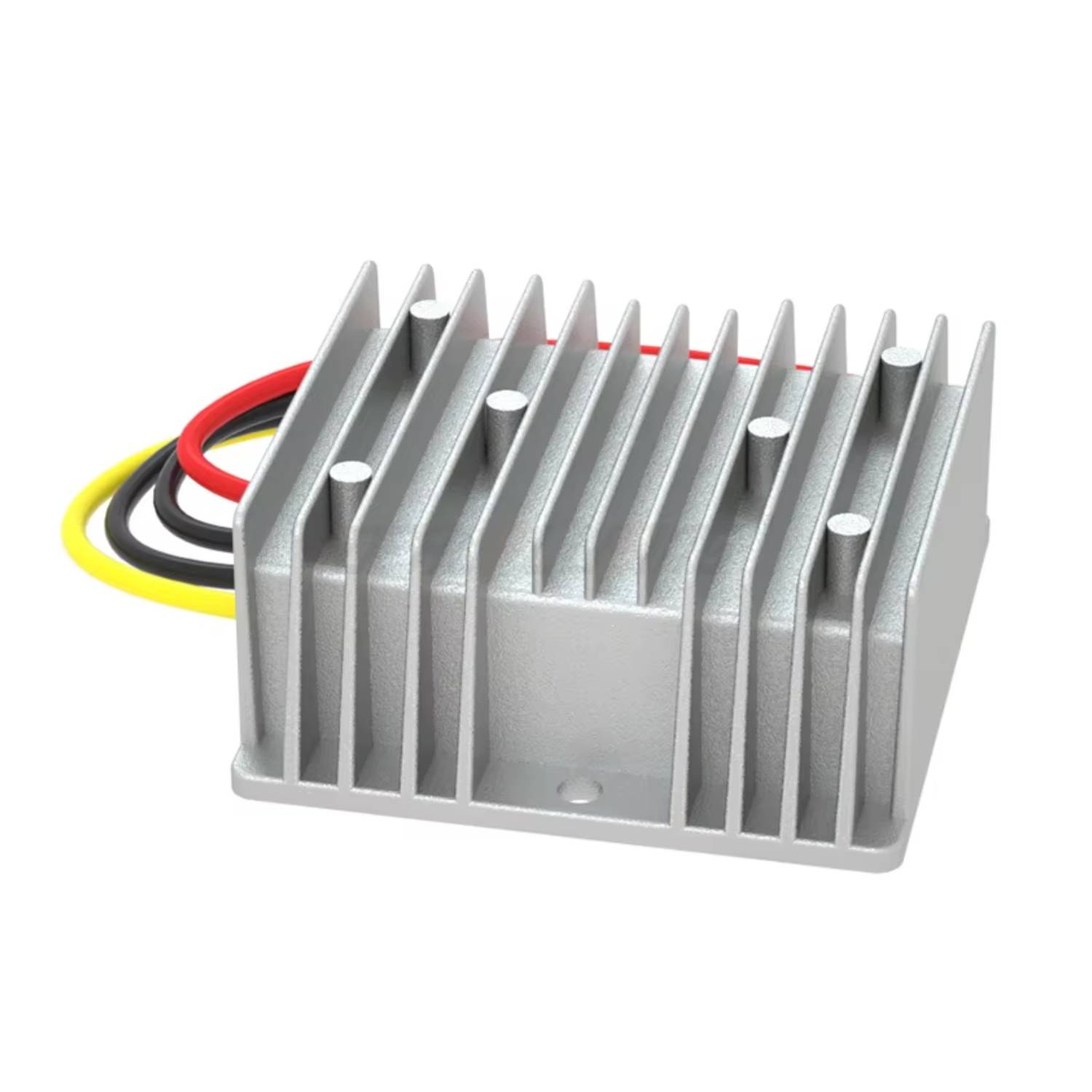

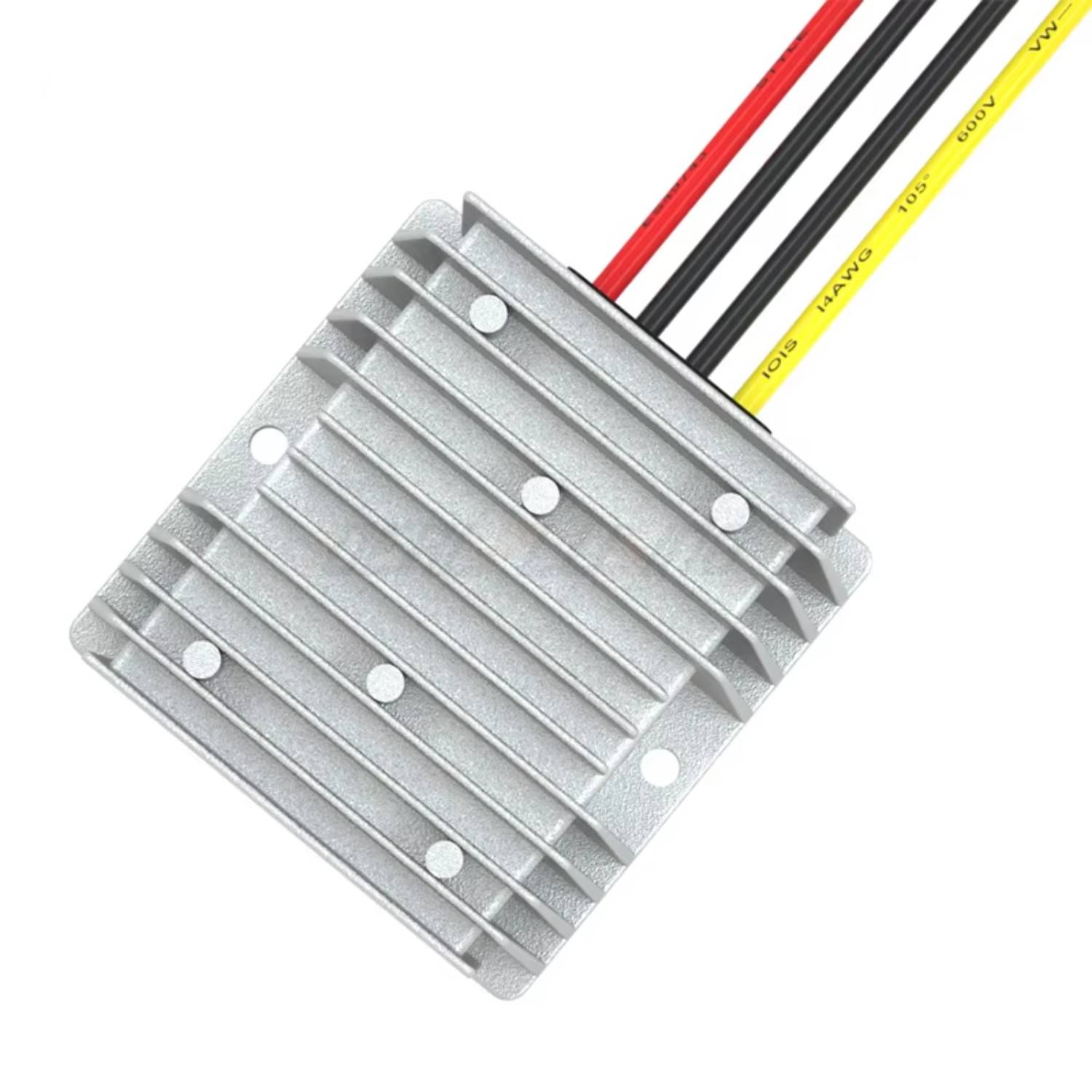

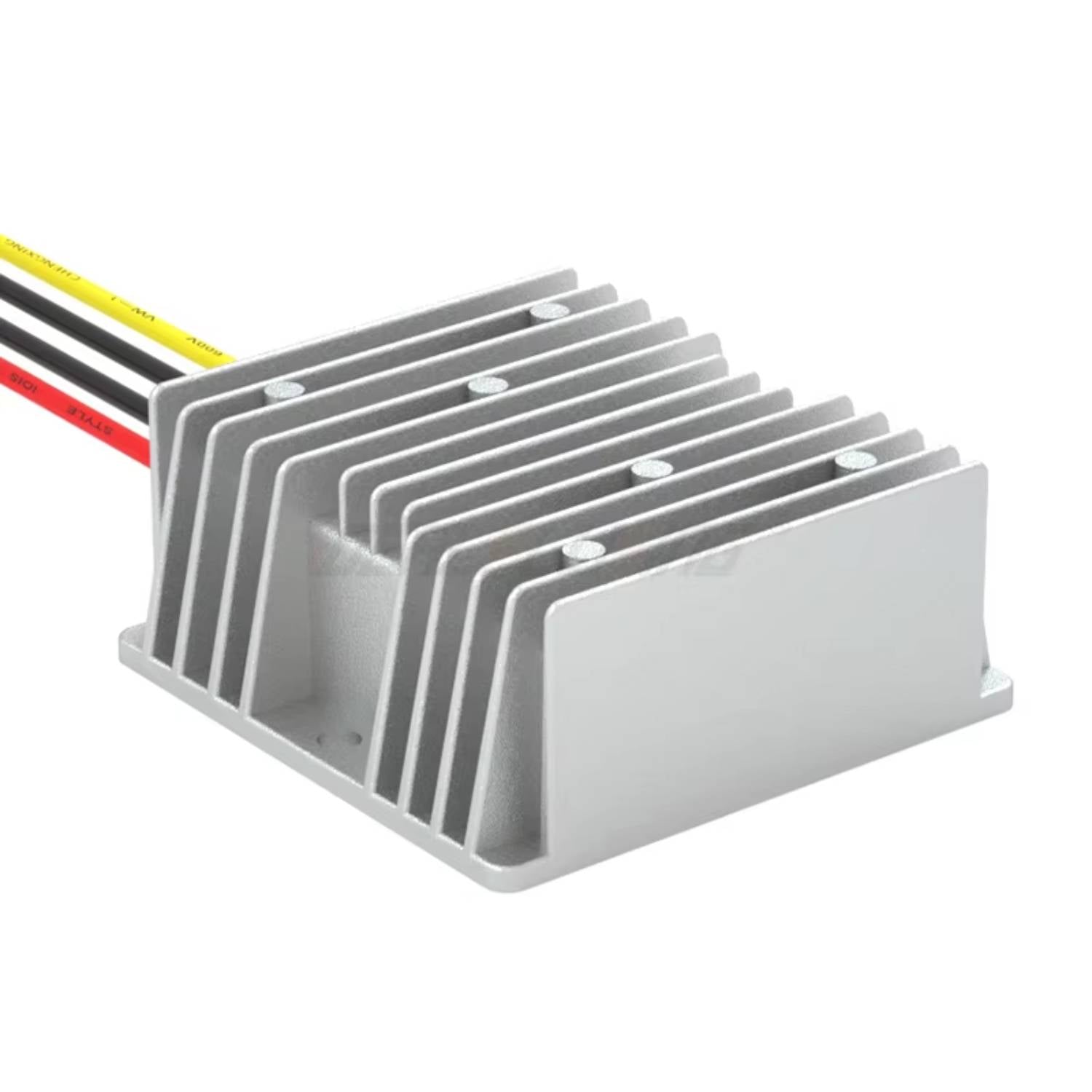

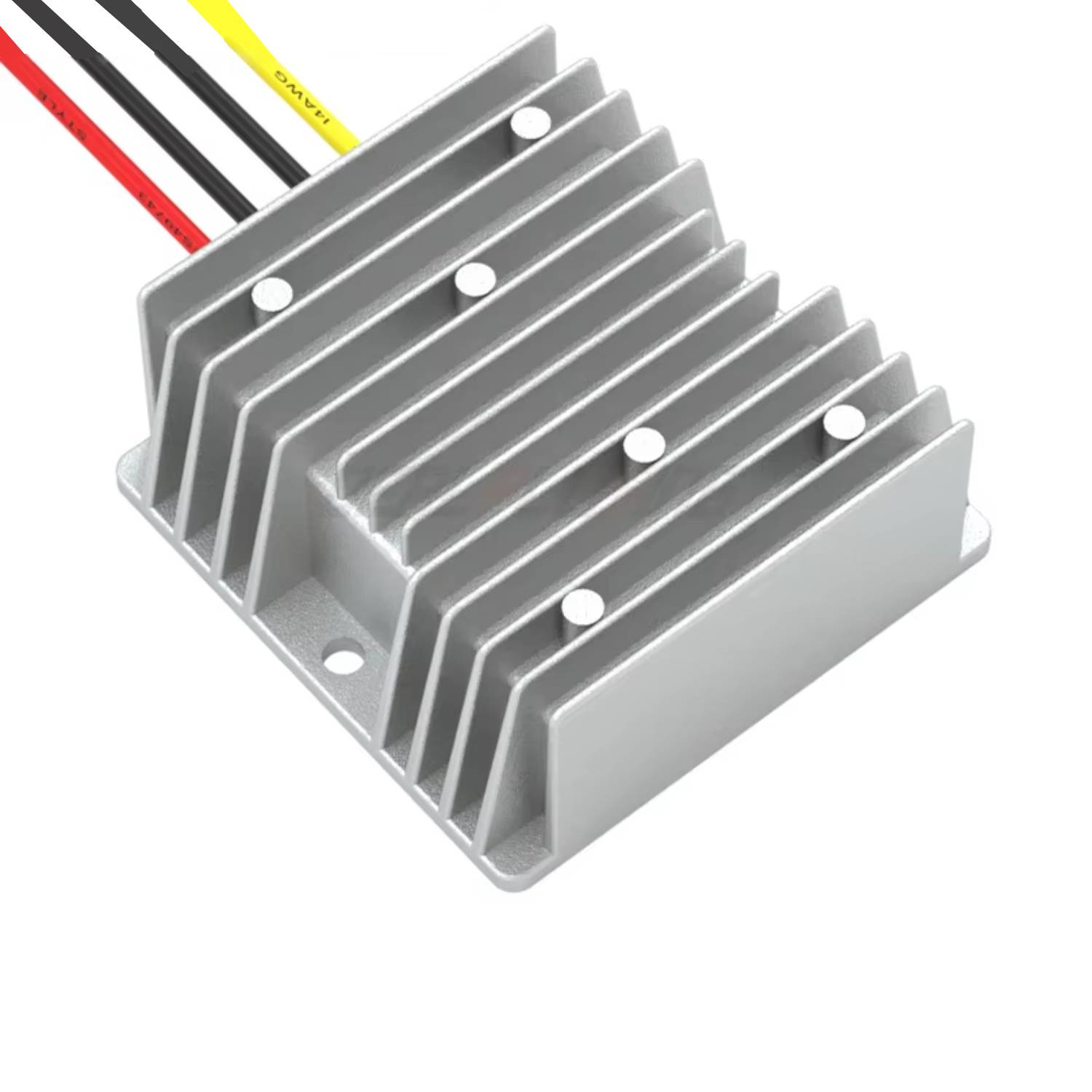

This IPS-DTD48S2420 Buck Converter Module is designed to efficiently step down voltages ranging from 30V to 60V, making it ideal for various applications. With its 48V nominal input and 24V output, it delivers reliable power for a wide range of devices.
Specification:
- Model: IPS-DTD48S2420
- Type: DC/DC Converters
- Input Voltage Range: 30-60VDC
- Input Voltage Rate: 48VDC
- Output Voltage Rate: 24VDC
- Output Current: 10A/15A/20A
- Output Rate Power: 240W/360W/480W
- Material of shell: Aluminum Case
- Working Temp: -20~80℃
- Waterproof Level: IP67
- Efficiency: 93%
Features:
- Accommodates input voltages from 30V to 60V, ensuring compatibility with diverse power sources.
- Offers three output current options (10A, 15A, and 20A) and corresponding power ratings (240W, 360W, and 480W) to meet various power demands.
- Achieves up to 93% efficiency, minimizing power losses and maximizing energy utilization, resulting in reduced operating costs and lower heat dissipation.
- IP67 waterproof rating ensures reliable operation in harsh conditions.
Package Included:
- 1 X IPS-DTD48S2420 Buck Converter Module
