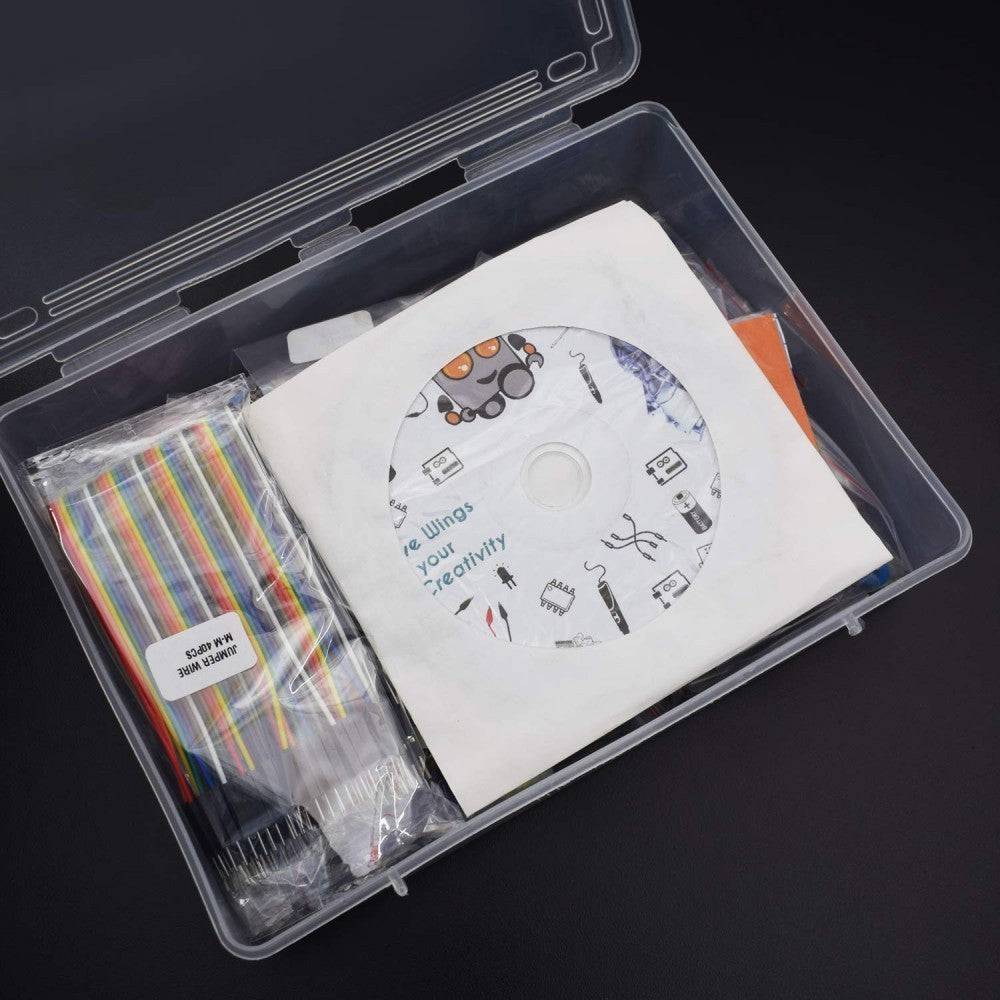

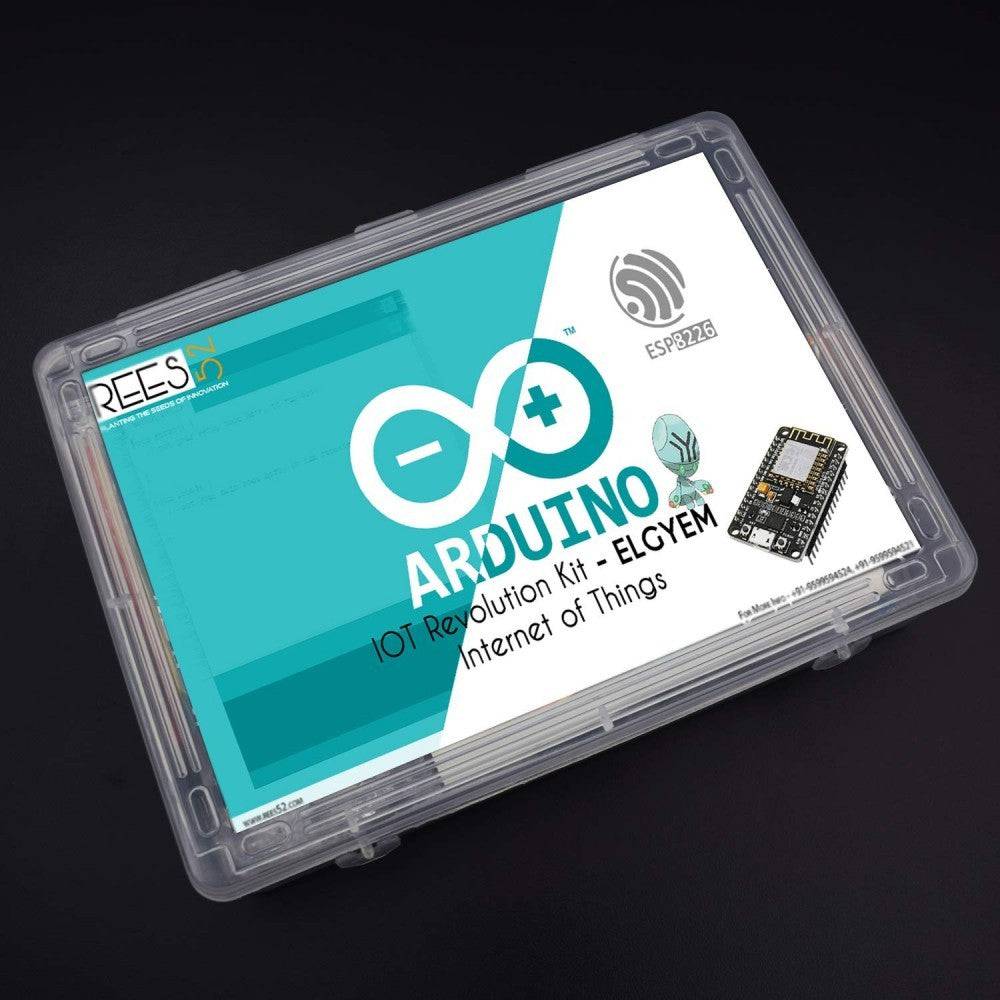

IoT Revolution Kit - ELGYEM By REES52 Complete Introduction Tutorial (2nd) - KT560-N

IoT Revolution Kit - ELGYEM By REES52 Complete Introduction Tutorial (2nd) - KT560-N

SKU:KT560-N

Regular price Rs. 939.00
Regular price Sale price Rs. 939.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Welcome to Our Channel REES52 In this video, we are introducing our new kit "IoT Revolution kit - ELGYEM". Complete description for all the components available in this video (Link - https://www.youtube.com/watch?v=Nm2Fsi7lLsg). You can learn how to use all the kit components with a diagram.

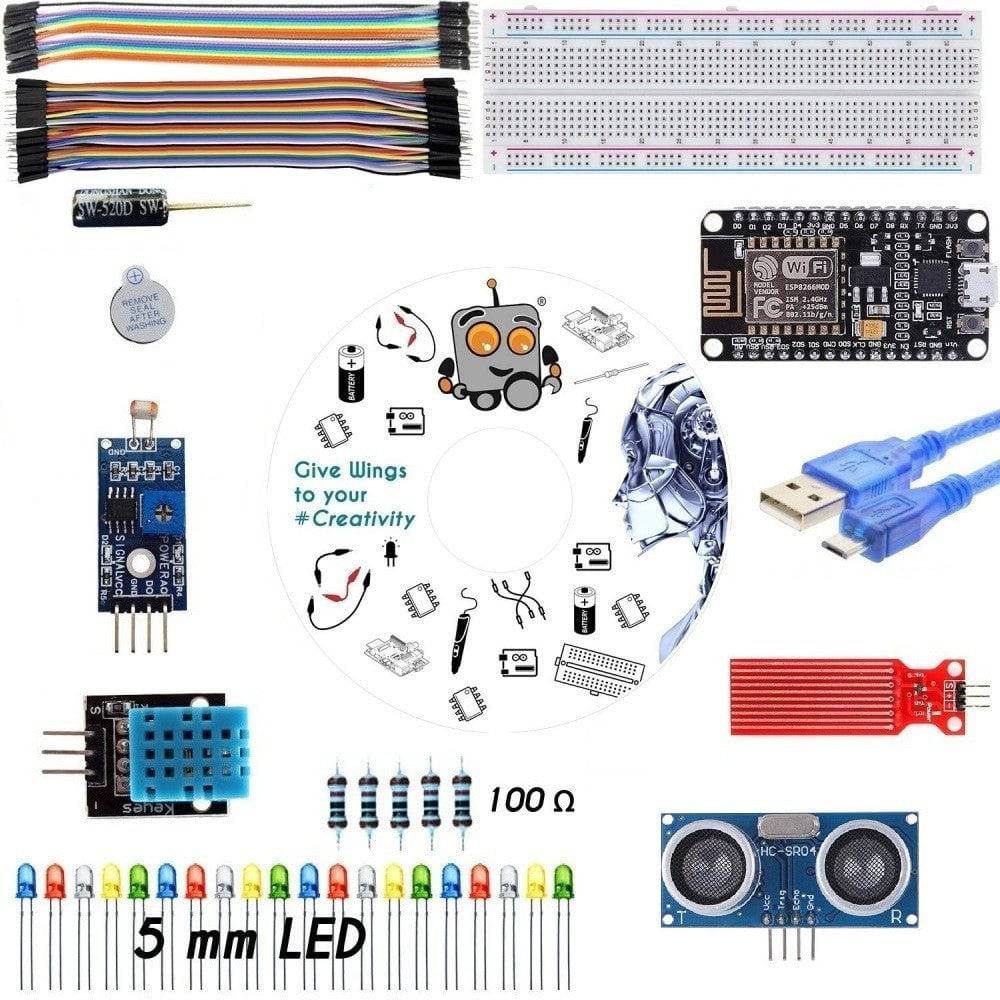

PACKAGE INCLUDED

Product name Qty
NodeMCU ESP8266-12e Wi-fi V1 board 1
B-10 Buzzer 1
DHT11 Module 1
Resistor ( 100R - 5 )
Breadboard 830 pt 1
Arduino Due Cable 1
LDR Module 1
Jumper wire (Male to Male) - 40 pcs 1
Jumper Wire (male to female)- 20 pcs 1
Tilt Switch 1
Led (each colour) 10
Water Level Sensor 1
Ultrasonic Sensor 1

PROJECT LIST

S.No. Project Name
1 Make a Led Chaser Circuit using LEDs with NodeMCU ESP8266-12E Wi-Fi Board
2 Make an IoT based Gas level controlling system using the MQ-2 Gas Sensor module and led with NodeMCU ESP8266-12e Board
3 Make an IoT based Tilt Switch Alarm using Tilt switch and Buzzer with NodeMCU ESP8266-12e Wi-Fi Board
4 Make an IoT Based Soil Moisture Monitoring System using Soil Moisture Sensor with ESP8266-12e Board
5 Make an IoT based Temperature level indicator using Leds and DHT11 Module with ESP8266-12e Wi-Fi board
6 Make an IoT based Led Control System using MQTT Box Web Application using Led and ESP8266-12e Wi-Fi board
7 Make an IoT LDR Alarm circuit using LDR module and NodeMCU ESP8266-12E Wi-Fi Module
8 Make a Gas Level Monitoring System using MQ-2 Gas Sensor Module with NodeMCU ESP8266-12E Board
9 Measure Temperature and Humidity using DHT11 & ESP8266-12E using Blynk IOT application
10 Turn On/Off led via web Server using NodeMCU ESP8266-12E Board

SOFTWARE REQUIRED

Arduino IDE 1.8.10 (programmable platform for Arduino)

Click To Download: https://www.arduino.cc/en/Main/Software

PRODUCT DESCRIPTION

LED

NodeMCU ESP8266 CP2102 NodeMCU WIFI Serial Wireless Module

  • ESP8266 CP2102 NodeMCU LUA ESP-12E WIFI Serial Wireless Module
  • Built-in Micro-USB, with flash and reset switches, easy to program
  • Full I/O port and Wireless 802.11 supported, direct download no need to reset
  • Arduino compatible works great with the latest Arduino IDE/Mongoose IoT/Micro python


  • Operating Voltage: 2.5V to 3.6V
  • On-board 3.3V 600mA regulator
  • 80mA Operating Current
  • 20 µA during Sleep Mode

WARNING

The ESP8266 requires a 3.3V power supply and 3.3V logic levels for communication. The GPIO pins are not 5V-tolerant! If you want to interface the board with 5V (or higher) components, you’ll need to do some level shifting.

DHT11 Module

  • Operating Voltage: 3.5V to 5.5V
  • Operating current: 0.3mA (measuring) 60uA (standby)
  • Output: Serial data
  • Temperature Range: 0°C to 50°C
  • Humidity Range: 20% to 90%
  • Resolution: Temperature and Humidity both are 16-bit
  • Accuracy: ±1°C and ±1%

1

Vcc

Power supply 3.5V to 5.5V

2

Data

Outputs both Temperature and Humidity through serial Data

3

Ground

Connected to the ground of the circuit

Tilt Switch Sensor

A Tilt Sensor switch is an electronic device that detects the orientation of an object and gives its output High or Low accordingly. Basically, it has a mercury ball inside it that moves and makes the circuit. So the tilt sensor can turn on or off the circuit based on the orientation.

The tilt sensor is cylindrical and contains a free conductive rolling ball inside with two conductive elements (poles) beneath.

Here’s how it works:

  • When the sensor is completely upright, the ball falls to the bottom of the sensor and connects the poles, allowing the current to flow.
  • When the sensor is tilted, the ball doesn’t touch the poles, the circuit is open, and the current doesn’t flow.

MQ-2 GAS SENSOR MODULE

Pin No:

Pin Name:

Description

1

Vcc

This pin powers the module, typically the operating voltage is +5V

2

Ground

Used to connect the module to system ground

3

Digital Out

You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer

4

Analog Out

This pin outputs 0-5V analog voltage based on the intensity of the gas

  • Operating Voltage is +5V
  • can be used to Measure or detect LPG, Alcohol, Propane, Hydrogen, CO and even methane
  • Analog output voltage: 0V to 5V
  • Digital Output Voltage: 0V or 5V (TTL Logic)
  • Preheat duration 20 seconds
  • Can be used as a Digital or analog sensor
  • The Sensitivity of Digital pin can be varied using the potentiometer

SOIL MOISTURE SENSOR MODULE

The specifications of the soil moisture sensor FC-28 are as follows

Input Voltage

3.3 – 5V

Output Voltage

0 – 4.2V

Input Current

35mA

Output Signal

Both Analog and Digital

The soil Moisture sensor FC-28 has four pins

  • VCC: For power
  • A0: Analog output
  • D0: Digital output
  • GND: Ground

The Module also contains a potentiometer that will set the threshold value and then this threshold value will be compared by the LM393 comparator. The output LED will light up and down according to this threshold value.

LDR MODULE

The Light Dependent Resistor (LDR) is just another special type of Resistor and hence has no polarity

  • Operating Voltage: 3.3V to 5V DC
  • Operating Current: 15ma
  • output Digital - 0V to 5V, Adjustable trigger level from preset
  • Output Analog - 0V to 5V based on light falling on the LDR

Pin details

  • VCC = 3.3V to 5V DC
  • GND = Ground
  • S = Output

BUZZER

APPLICATION REQUIRED

BLYNK

Download from Google play store and Apple Store

MQTT BOX

URL - http://workswithweb.com/mqttbox.html

THINGSPEAK

URL- https://thingspeak.com/
