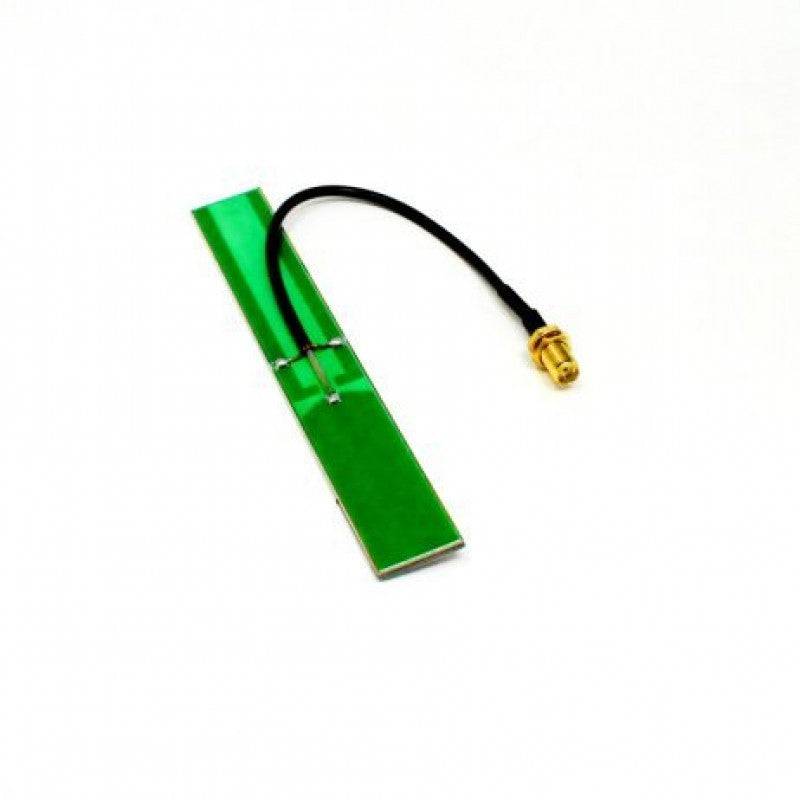

Internal PCB Antenna for 2G / 3G / 4G Applications - RS3218

Internal PCB Antenna for 2G / 3G / 4G Applications - RS3218

RS3218

16 in stock

Rs. 80.00
Rs. 80.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Model: LWC-4G-PCB-03
  • Frequency Range: 698 ~ 960MHz & 1710 ~ 2690MHz
  • Gain: ~ 0/1.5dBi
  • Impedance: 50

Description:

This is a PCB Antenna having a frequency of 698-960MHz & 1710-2690MHz with 1.5dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.

Specification:

Model

LWC-4G-PCB-03
Frequency Range

698 ~ 960MHz & 1710 ~ 2690MHz
Gain

~ 0/1.5dBi
Impedance ()

50
VSWR

< 2.5
Polarization

Linear
Power Handling (W)

5
HPBW

H: 3600 V: 300 /400
Cable

Mini Coax 1.13mm/0.81mm/ RG178/ RG316
Cable Length

As required (suggested up to 20cm)
Connector

SMA Female
Operating Temperature (C)

-30 to 60
Humidity

5 75%

Features:

  • Compact Size
  • High quality
  • Low cost
  • 3M high-quality adhesive
  • Masking for corrosion-free

Package Included:

1 x Internal PCB Antenna for 2G / 3G / 4G Applications
