Infrared Detection Tracking Sensor Module 8 Channel Infrared Detector Board For Arduino - RS2189

Infrared Detection Tracking Sensor Module 8 Channel Infrared Detector Board For Arduino - RS2189

SKU:RS2189

In stock

Regular price Rs. 500.00
Regular price Sale price Rs. 500.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Operating voltage: 3.3-5.0 V
  • Supply current: 100 mA
  • Output format: 8 digital I/O-compatible signals that can be read as a timed high pulse
  • Optimal sensing distance: 0.125″ (3?mm)
  • Maximum recommended sensing distance: 0.375″ (9.5?mm)

Description:

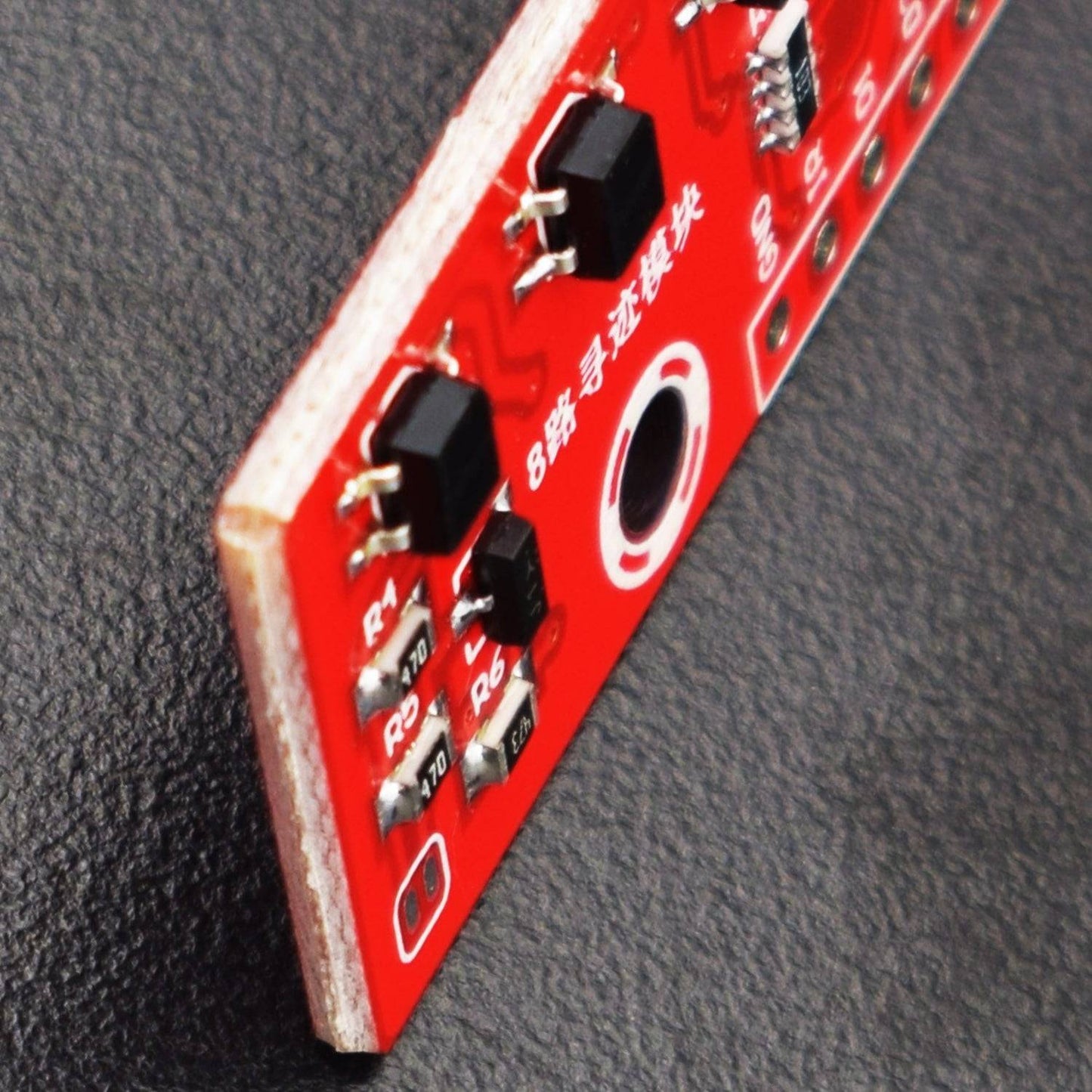

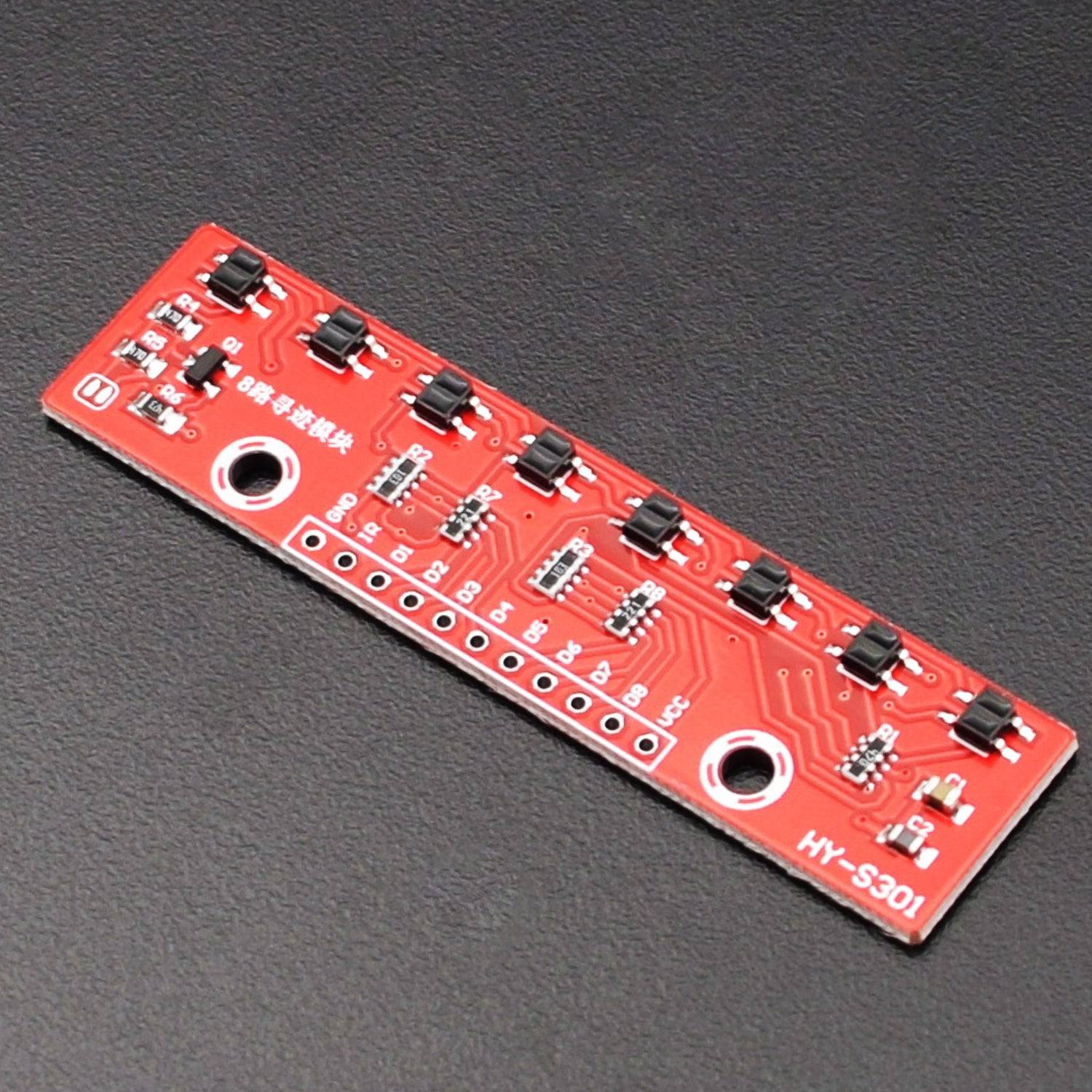

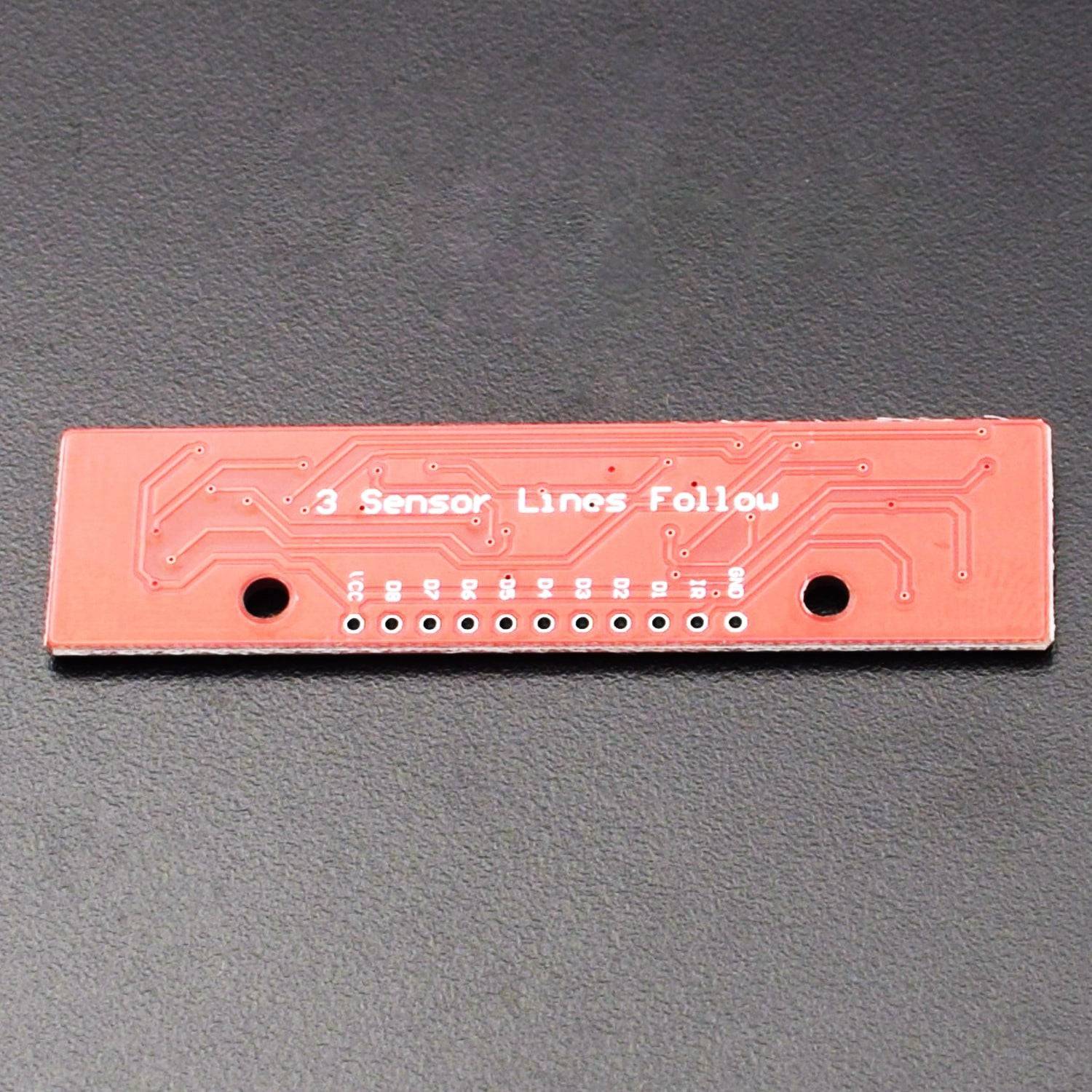

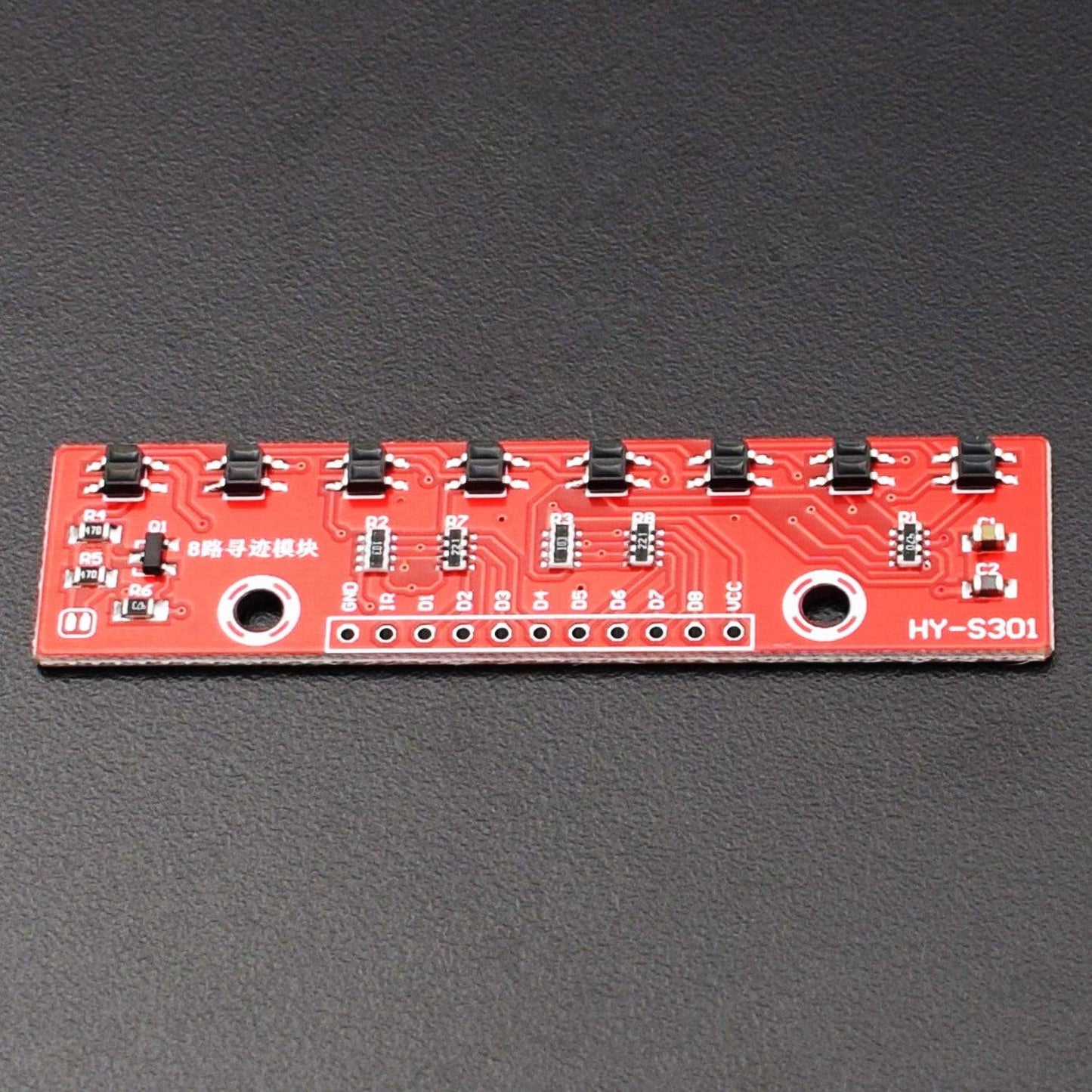

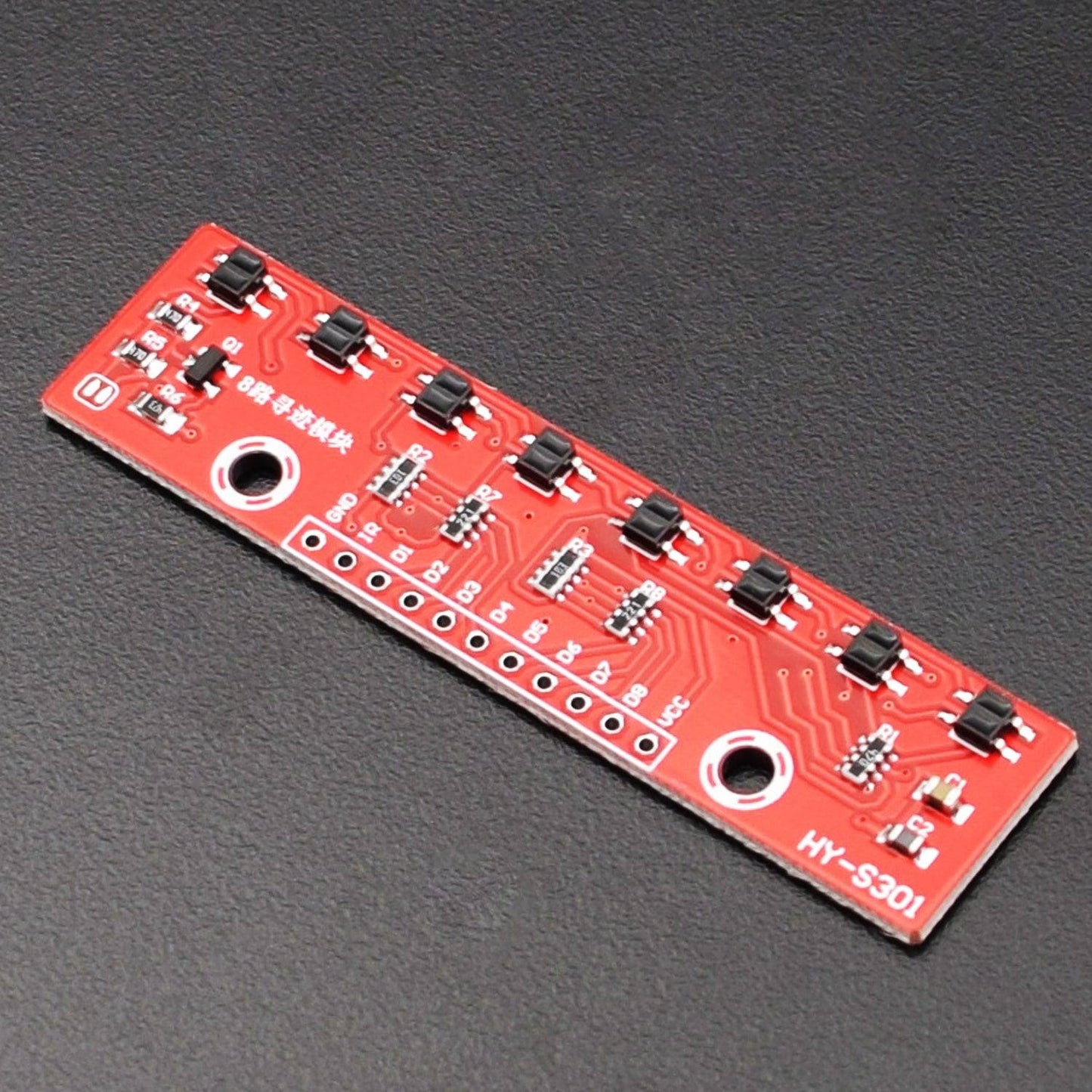

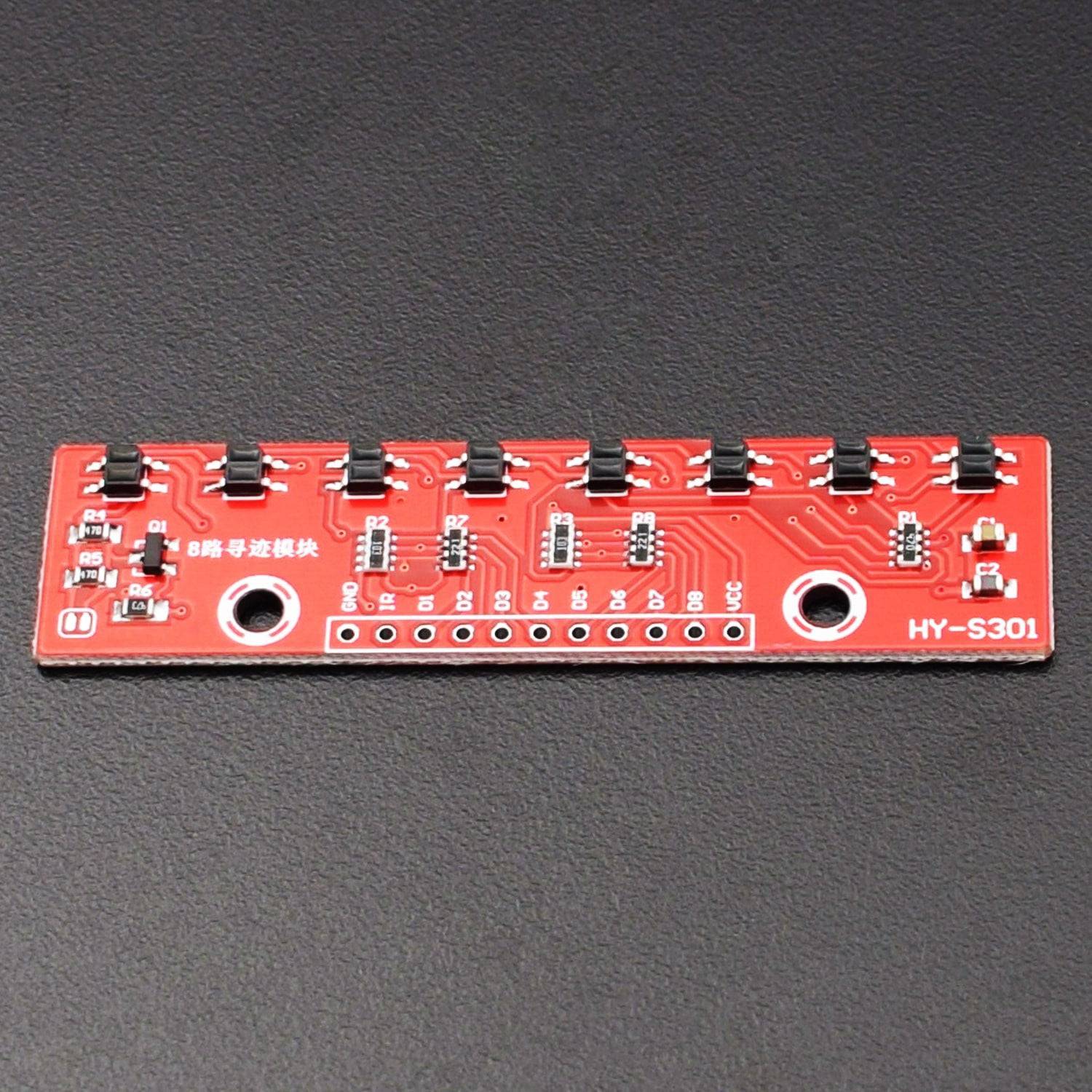

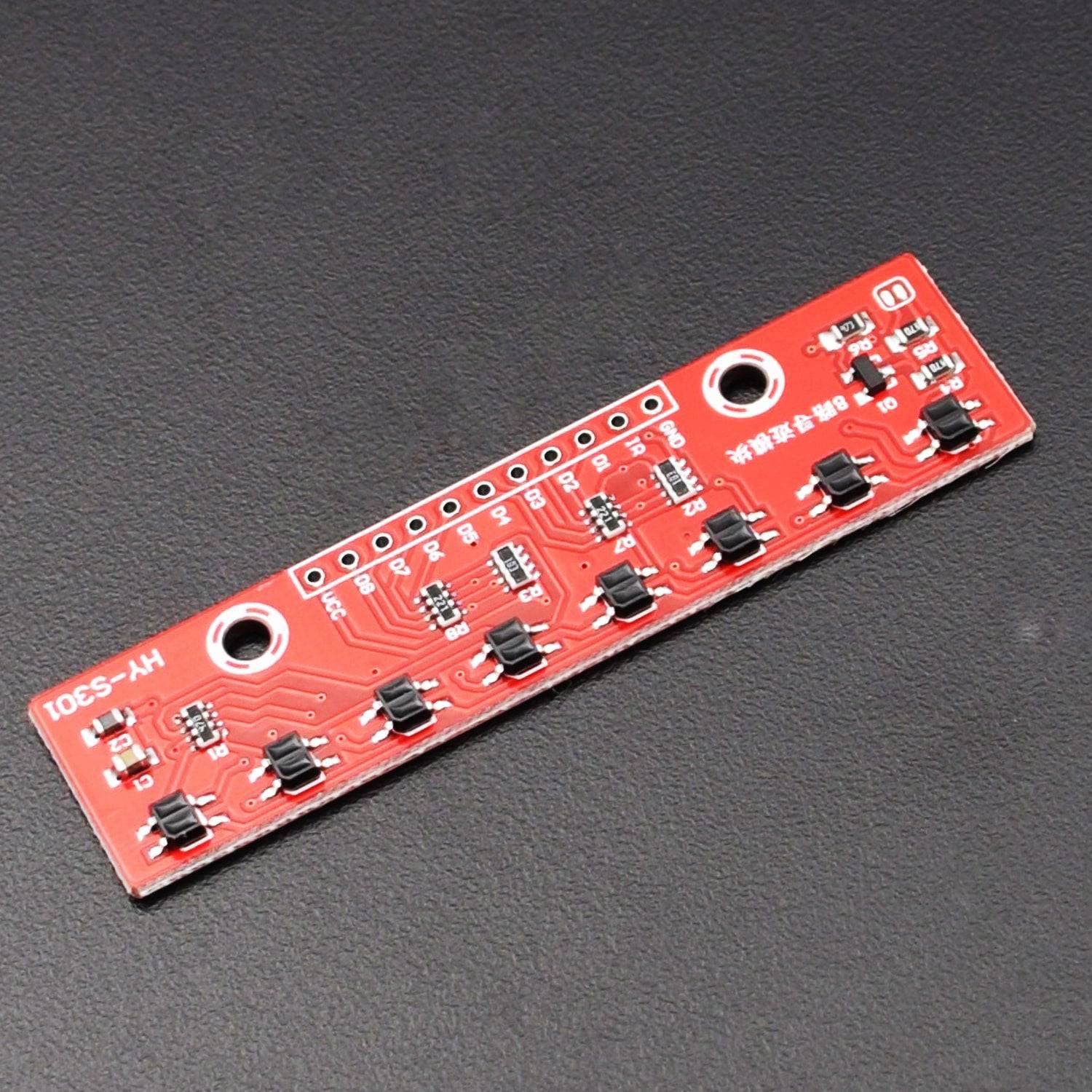

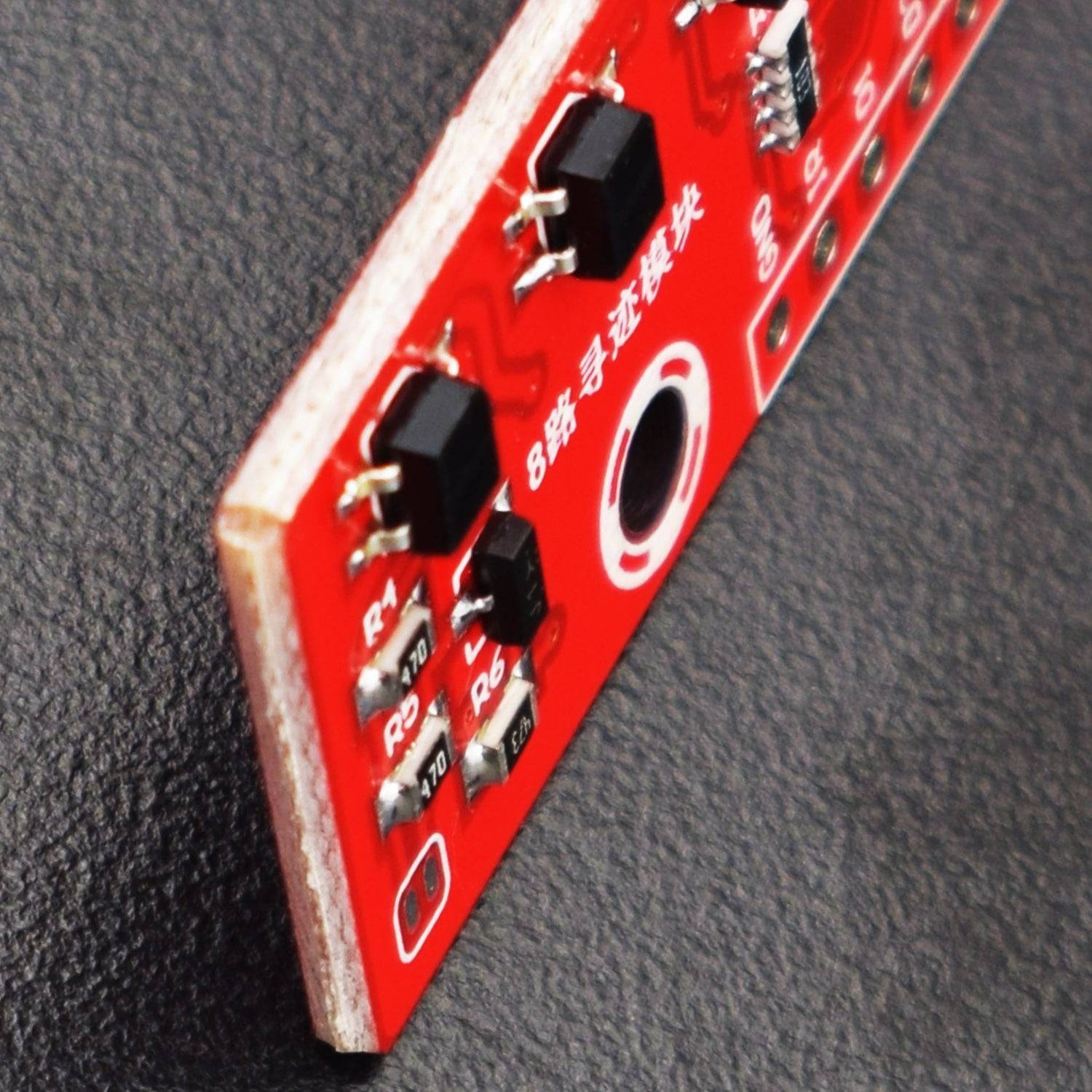

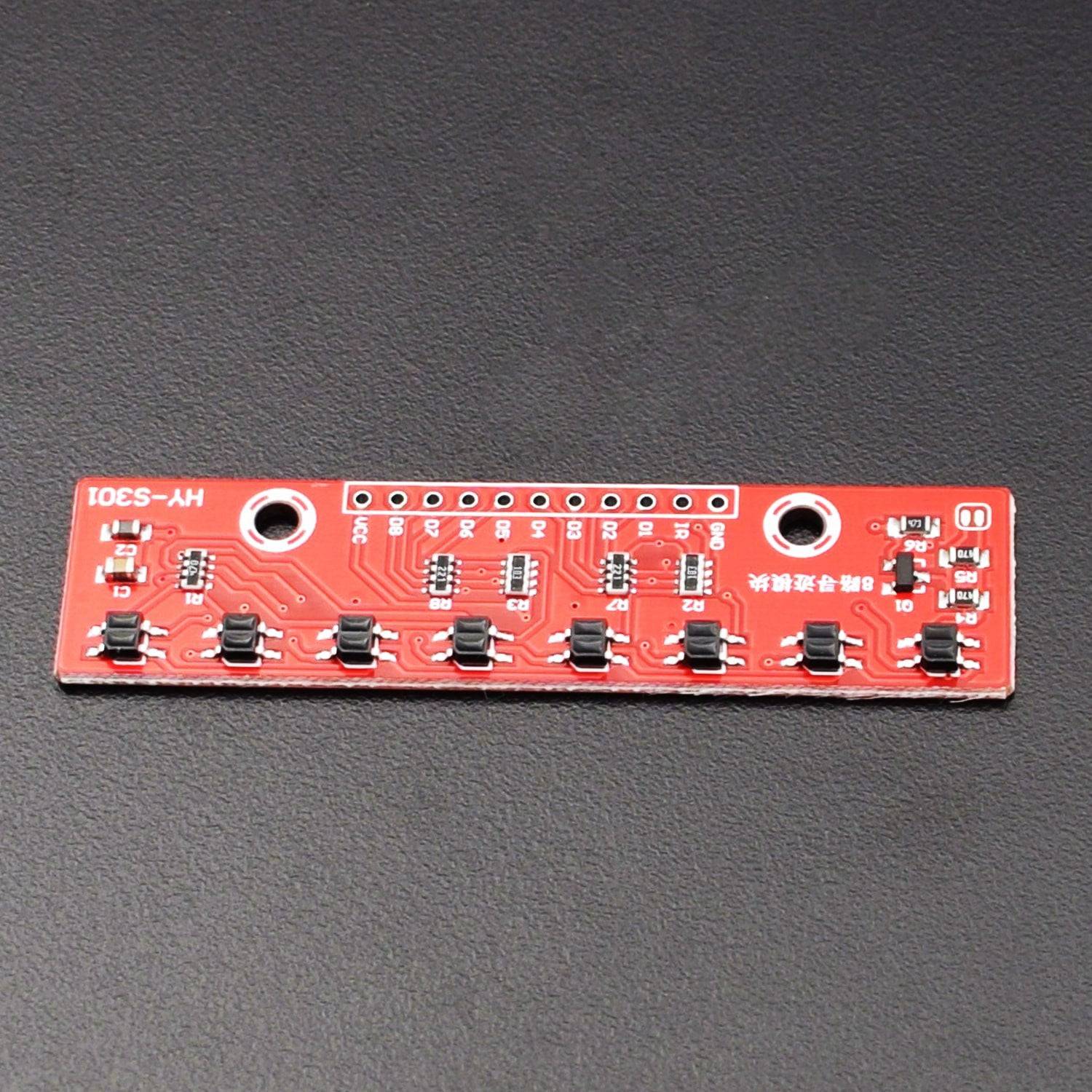

This sensor module has 8 IR LED/phototransistor pairs mounted on a 0.375" pitch, making it a great detector for a line-following robot. Pairs of leds are arranged in series to halve current consumption, and a MOSFET allows the LEDs to be turned off for additional sensing or power-savings options. Each sensor provides a separate digital I/O-measurable output. This reflection sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflection sensor. The module is a convenient carrier for eight IR emitter and receiver (photo-transistor) pairs evenly spaced at intervals of 0.375″ (9.525?mm). Each photo transistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0?V and VIN (which is typically 5?V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.

Specification:

  • Operating voltage: 3.3-5.0 V
  • Supply current: 100 mA
  • Output format: 8 digital I/O-compatible signals that can be read as a timed high pulse
  • Optimal sensing distance: 0.125″ (3?mm)
  • Maximum recommended sensing distance: 0.375″ (9.5?mm)

Application:

  • Robot
  • Smart Car
  • Laboratory
  • DIY

Package Included:

1 x Infrared Detection Tracking Sensor Module 8 Channel Infrared Detector Board For Arduino
