Description:

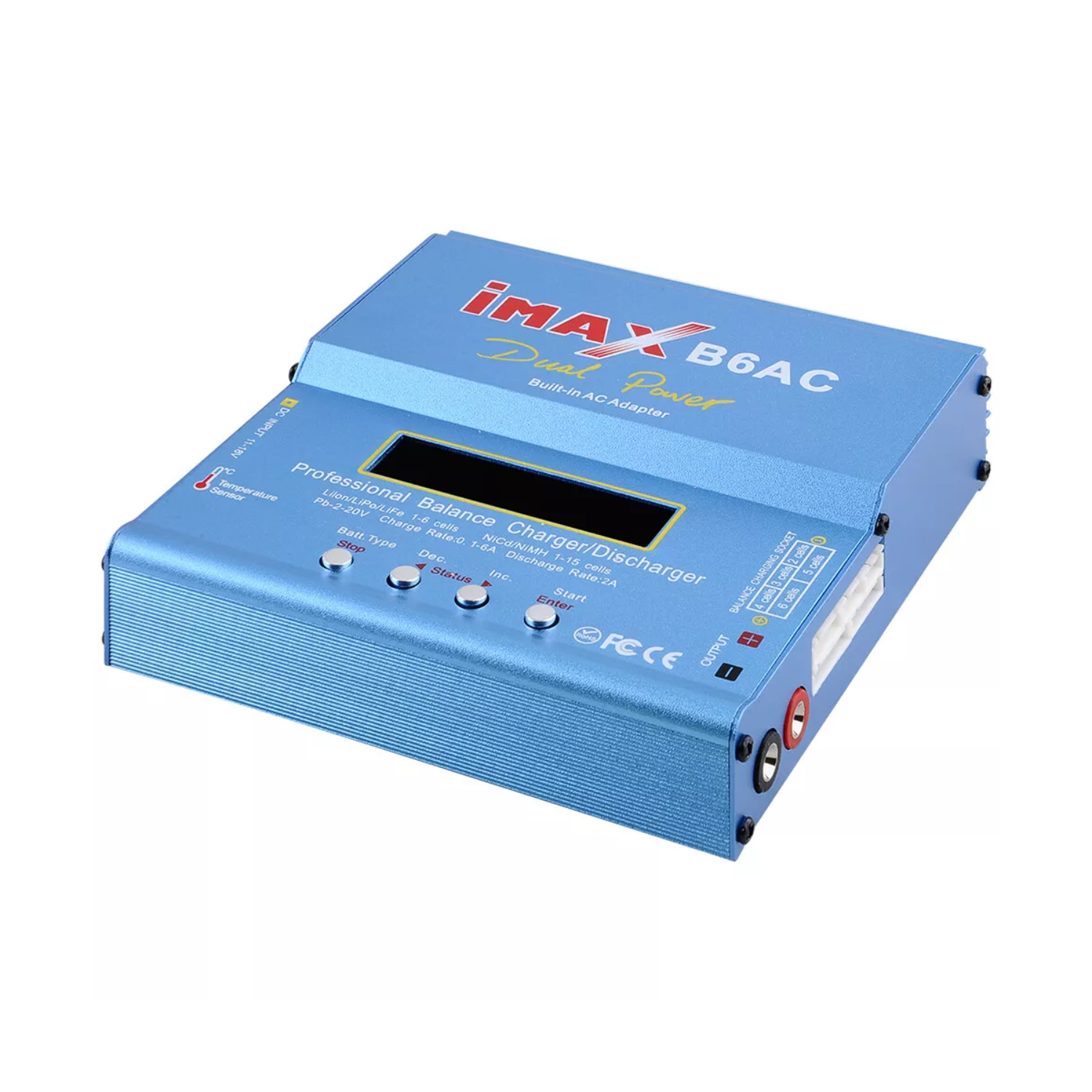

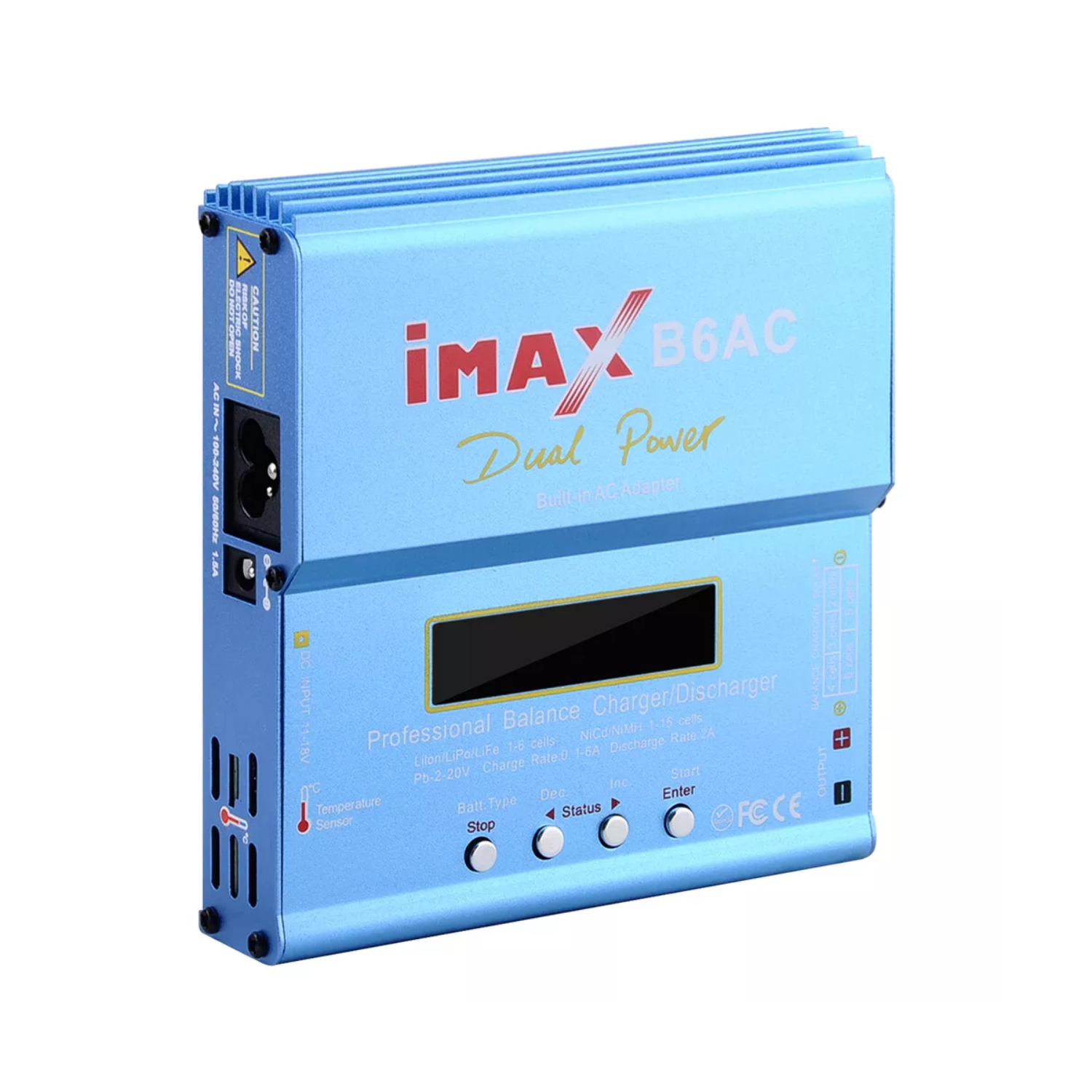

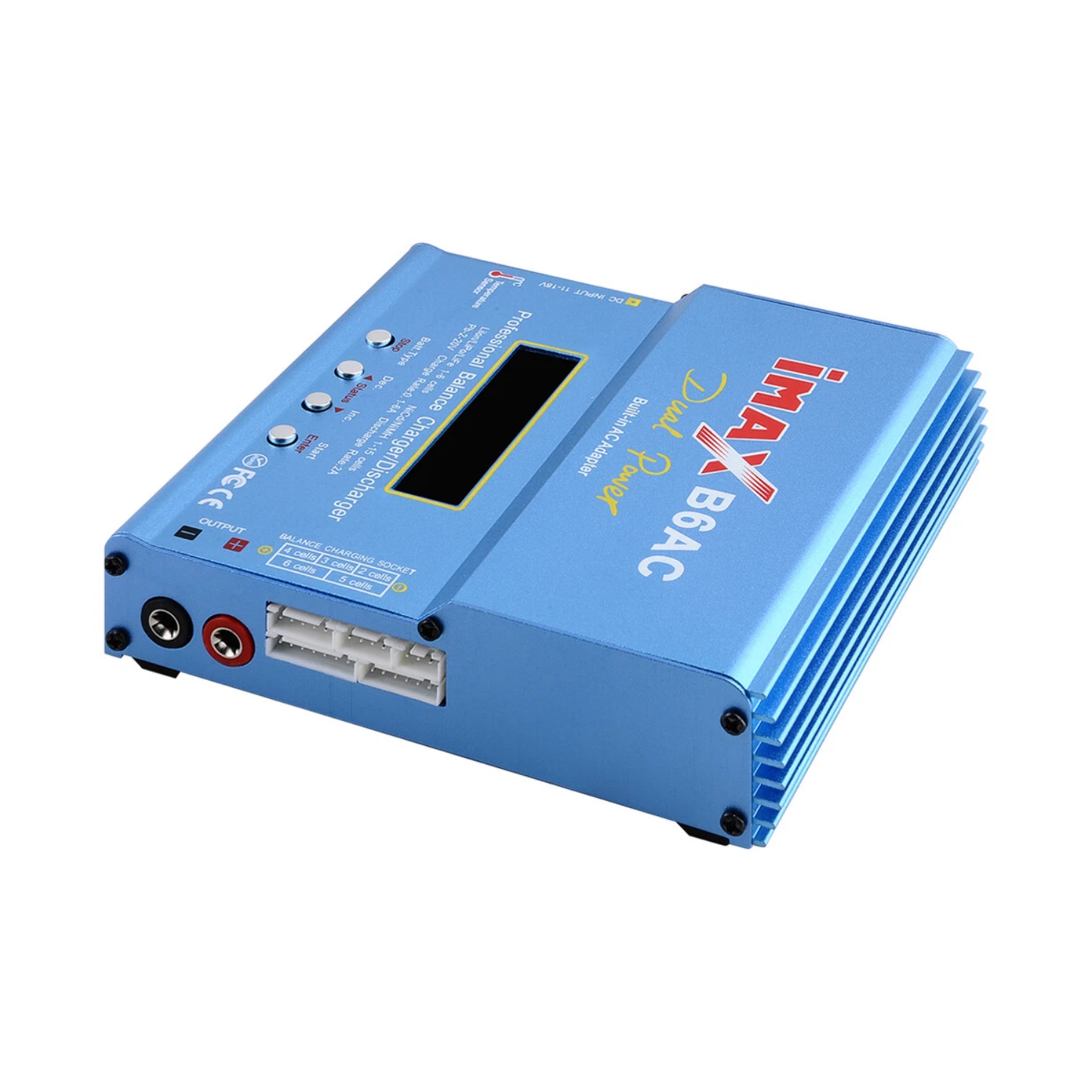

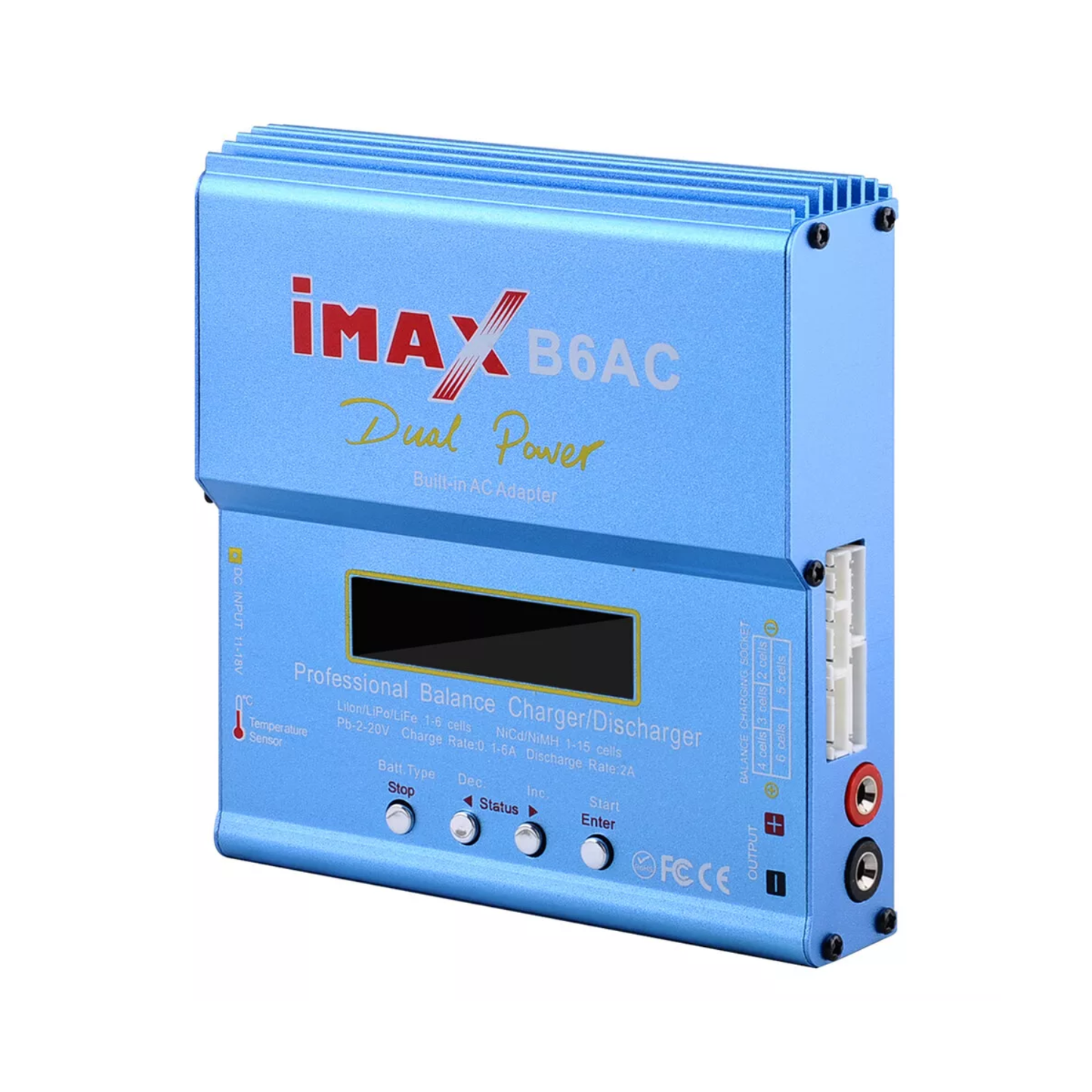

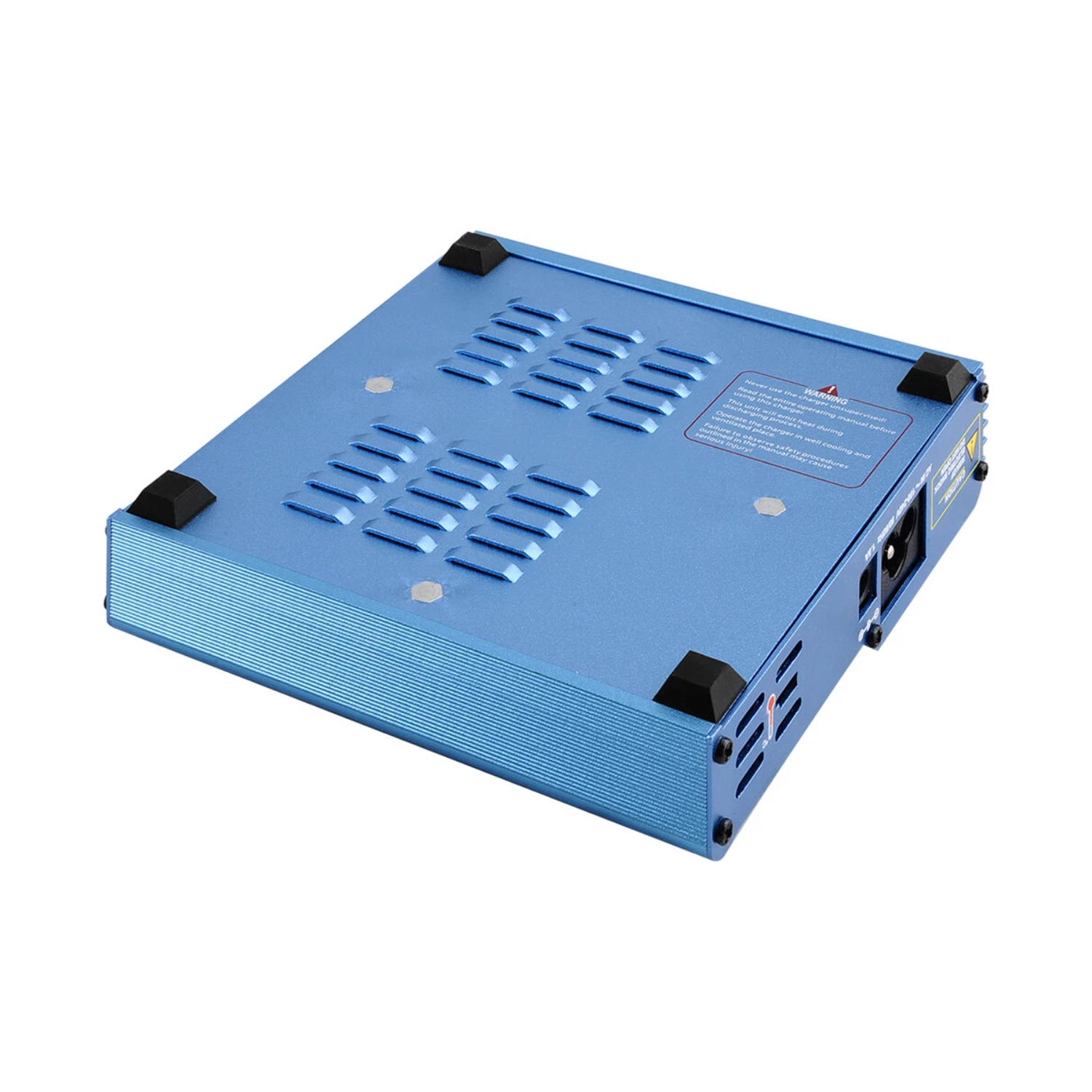

The iMAX B6AC Charger is a highly advanced, microprocessor-controlled charger designed for various battery chemistries. It precisely charges, balances, and discharges LiIon, LiPo, LiFe (A123), NiCd, and NiMH cells, including individual cell balancing for Li-XX batteries.
Capable of charging packs up to 6S at 0.1-6.0A, this 80W charger is highly adaptable. It includes input voltage protection and a storage charge mode, and can be powered by any 11-18V DC source, providing ultimate flexibility for your RC battery needs.
Its JST-XH charge plug makes this charger compatible with a variety of batteries, including those from Zippy, HXT, Loong Max, and any other pack with a JST adapter.
Specifications:
- Charge Current Range: 0.1 to 5A
- Discharge Current Range: 0.1 to 1.0A
- No. of Cells: 1 to 6
- Input Voltage: 110 ~ 240V AC
- Output Power: 80W
- Drain Current for Balancing Li-Po’s: 300mA/cell
- NiCd/NiMH Cell Count: 1-15
- Pb Battery Voltage: 2-20V

Features:
- Versatile Power Input: Accepts both standard AC 100-240V and 12V DC inputs.
- Built-in Safety: Comes with fitted fuses for enhanced protection.
- Precision Control: Microprocessor-controlled for accurate and reliable charging.
- Multi-Chemistry Compatible: Supports Li-ion, LiPo, and LiFe battery types.
- Input Voltage Monitoring: Protects connected power sources (like car batteries) by monitoring input voltage.
- Advanced Battery Management: Features battery break-in and cycling functionalities for optimal battery health.
- Data Storage: Save up to 5 battery pack profiles in memory for quick recall.
- Internal Resistance Checker: Easily assess battery pack health.
- Adjustable Delta-Peak Sensitivity: Fine-tune charging for NiCd/NiMH batteries.
- Individual Cell Balancing: Ensures even charging for balanced and extended battery life.
- Convenient Power Cable: Includes an EU Plug to IEC C13 cable, compatible with many common devices like AC adapters, cameras, monitors, and printers.

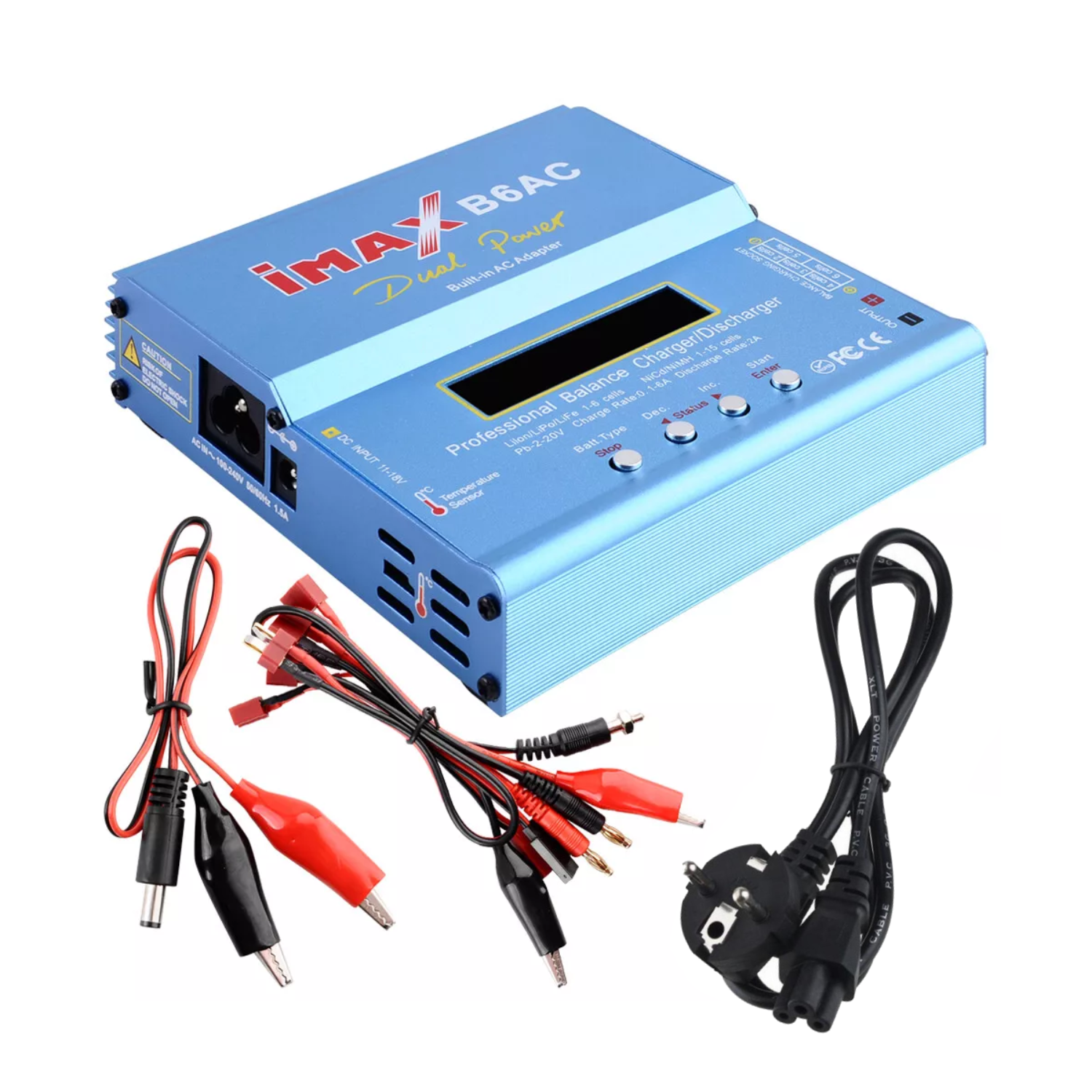

Package Included:
- 1 x iMAX B6AC Charger
- 1 x 100 – 250V Power Supply Cord
- 1 x T Plug with Banana Connector Cable
- 1 x DC Cable with Alligator Clip
- 1 x T Plug with Alligator Clip
- 1 x T Plug with Futaba Connector Cable
- 1 x T Plug with JST Connector Cable
- 1 x User Manual
