Description:

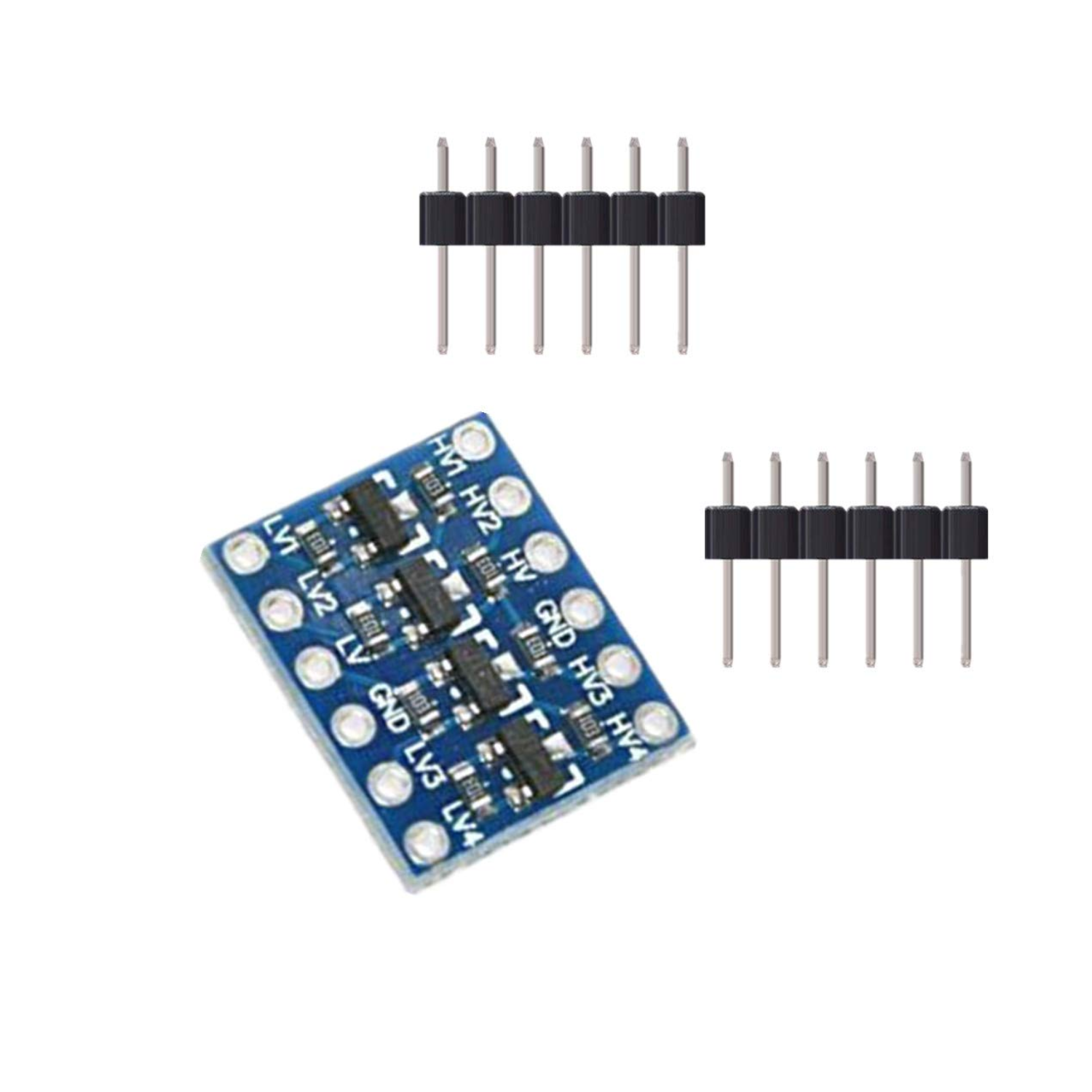

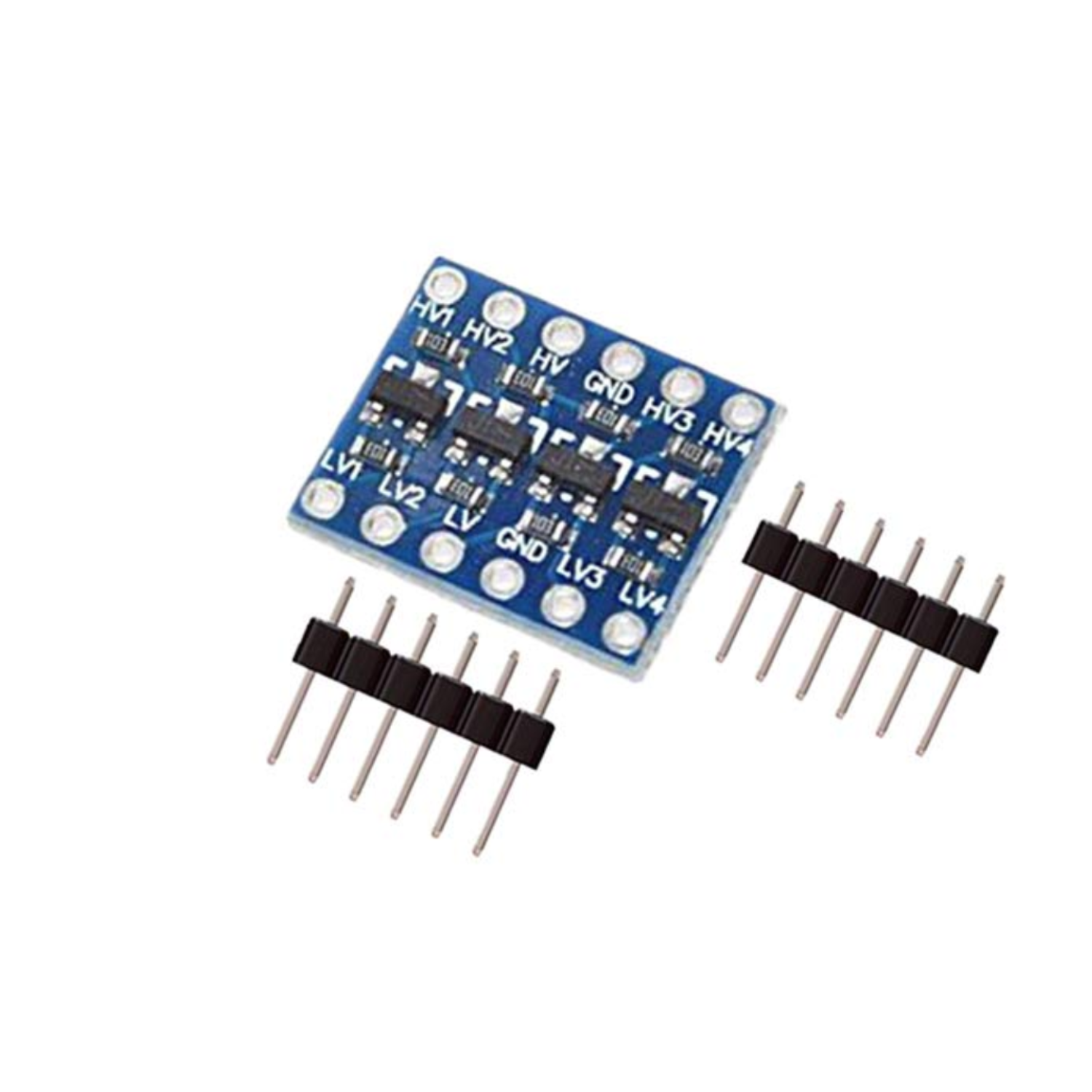

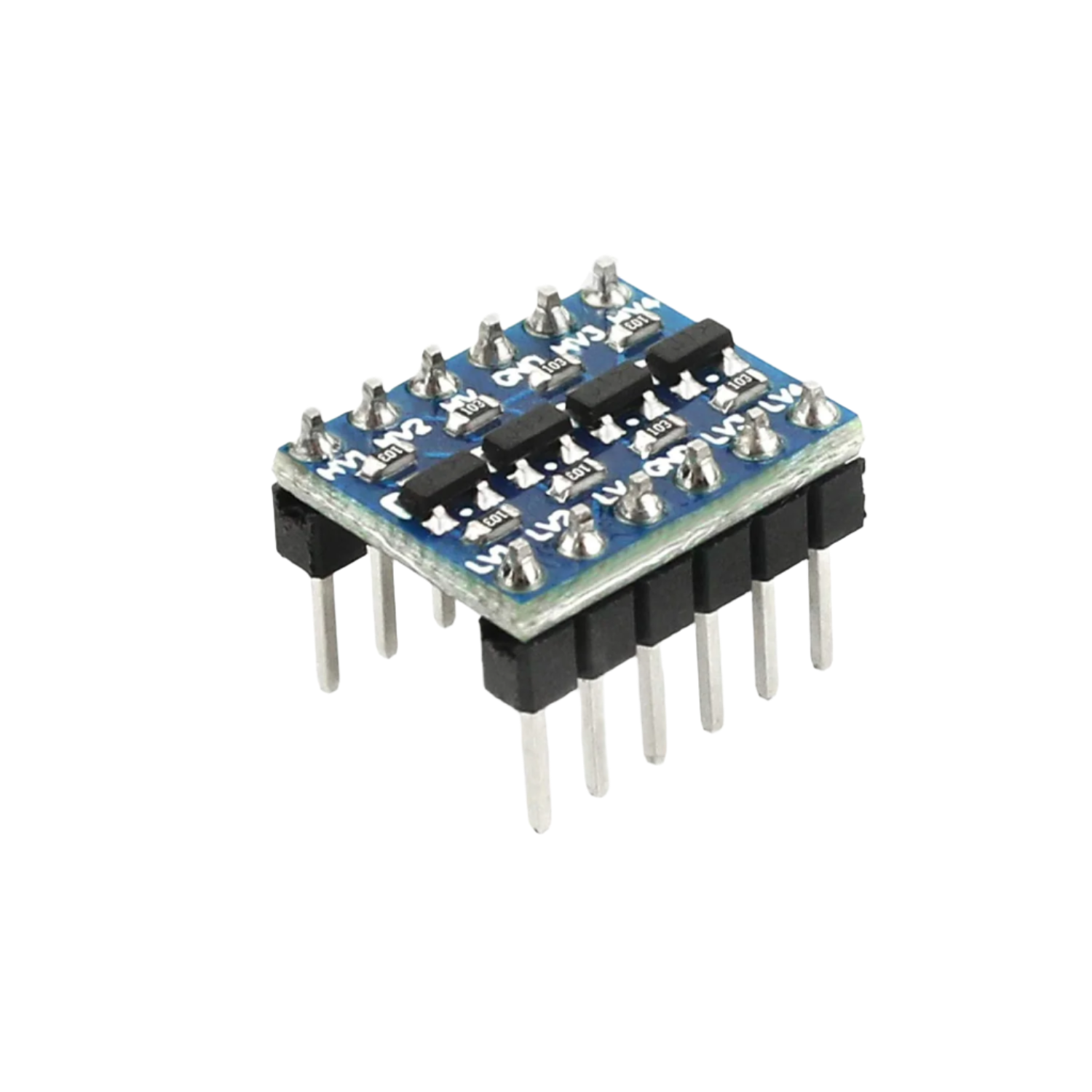

IIC I2C Logic Level Converter Module Seamlessly Bridge Logic Levels with the High-Speed 4-Channel Bi-Directional Converter Tired of the headaches of connecting devices with incompatible voltage standards? This compact and user-friendly level converter provides four high-speed, bi-directional channels, effortlessly translating logic signals between different voltage domains. Whether you're interfacing a 1.8V sensor with a 5V microcontroller or vice versa, this versatile module ensures safe and reliable communication.
Its 4 Channel Bi-Directional 5V to 3.3V Shifter intuitive design requires simple connections to your high-voltage (HV) and low-voltage (LV) power supplies, along with a common ground, making it an indispensable tool for integrating diverse digital systems. Supporting popular bidirectional and unidirectional protocols like I²C, SPI, and asynchronous TTL serial, this 4-channel converter simplifies your projects and eliminates the risk of damaging sensitive components.
Specifications:
- Number of Channels: 4
- The voltage on Lx Side: 1.8V-5V
- Voltage on Hx Side: 2.8V-6V
- Power: 2.8V – 6V
Features:
- Mutual transform between 5V TTL and 3.3V TTL
- Four channels of logic and high voltage low voltage logic can two-way transform
- Portable and light, with 2 rows 6 pin contact pins
- Level Converter- 4 ChannelCompatible with the bread plate, can be used directly on the breadboard
- 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
Package Included:
1 x IIC I2C Logic Level Converter Module
