ICL8038 High Precision Signal Generator DIY Kit Sine/Triangle/Square/Sawtooth Adjustable Frequency Amplitude- RS1775
ICL8038 High Precision Signal Generator DIY Kit Sine/Triangle/Square/Sawtooth Adjustable Frequency Amplitude- RS1775
SKU:RS1775
Low stock: 5 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Supply Voltage: 12V~15V
- Frequency Range: 5Hz~400KHz(Adjustable)
- Duty Cycle Range: 2~95%(Adjustable)
- Low Distortion Sine Wave: 1%
- Low Temperature Drift: 50ppm / °C

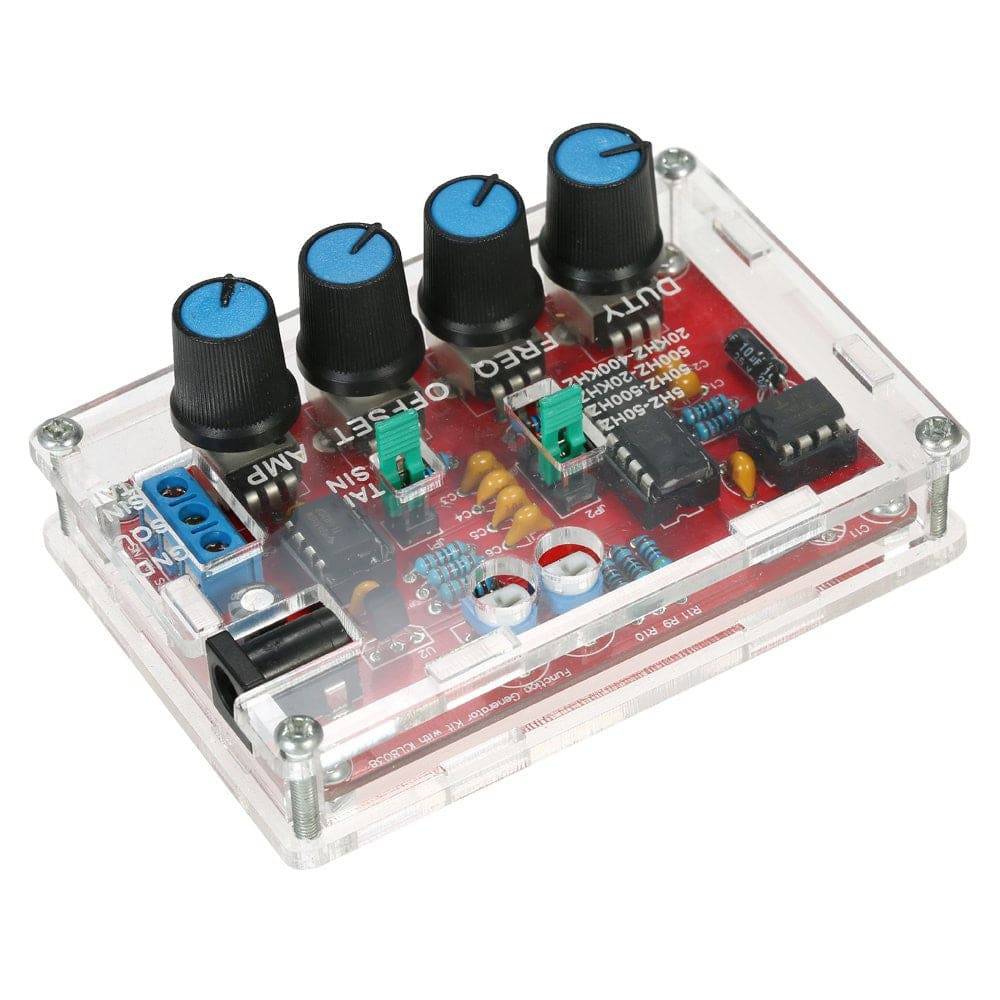

Description:
This signal generator DIY kit is professional product to generate sine/triangle/square/forward and reverse sawtooth wave. It's a DIY kit for you to weld and install. It can output sine/triangle/square/forward and reverse sawtooth waveforms. It supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion.
Specification:
- Supply Voltage: 12V~15V
- Frequency Range: 5Hz~400KHz(Adjustable)
- Duty Cycle Range: 2~95%(Adjustable)
- Low Distortion Sine Wave: 1%
- Low Temperature Drift: 50ppm / °C
- Output Triangular Wave Linearity: 0.1%
- DC Bias Range: -7.5V~7.5V
- Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)
Features:
- Uses ICL8038 and high-speed op amp, higher accuracy.
- Can output sine/triangle/square/forward and reverse sawtooth waveforms..
- Adjustable frequency and amplitude.
- Frequency adjustment features coarse tuning and fine tuning.
- All are through hole components, easy to install.

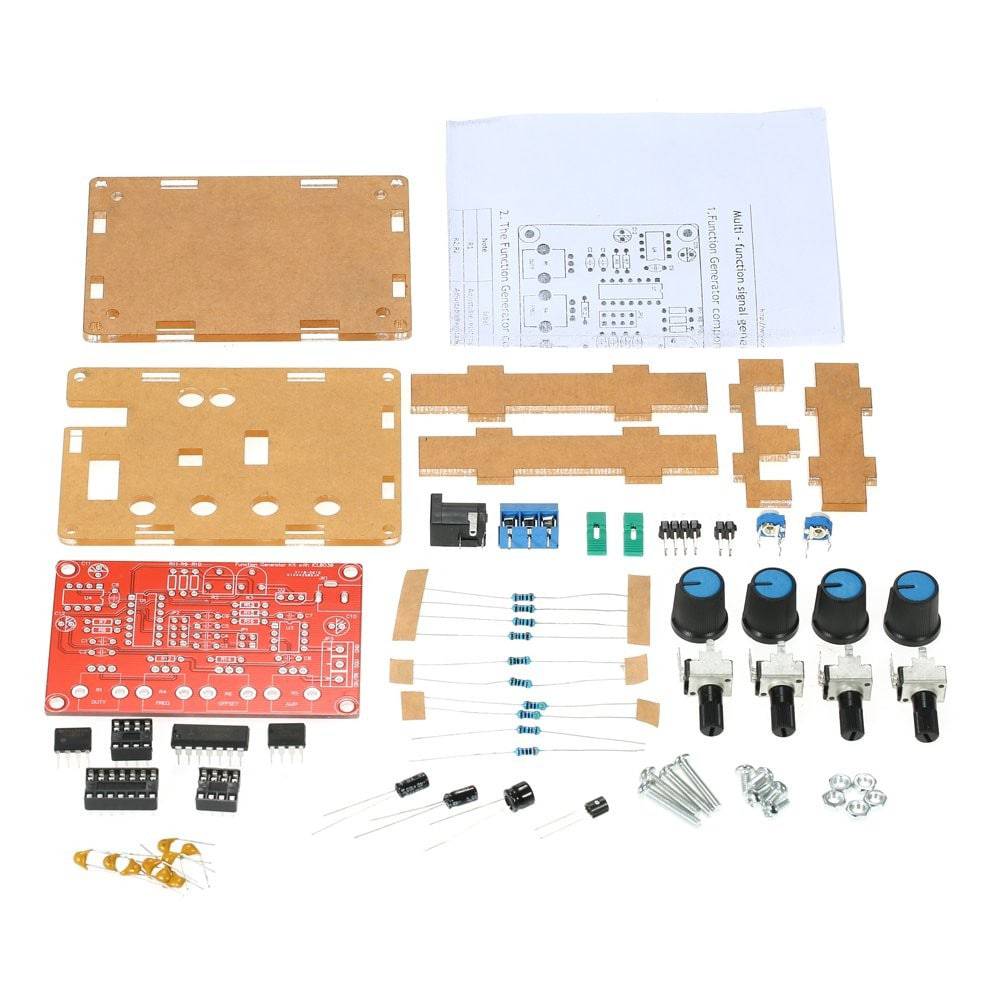

Package Included:
1 x ICL8038 High Precision Signal Generator DIY Kit Sine/Triangle/Square/Sawtooth Adjustable Frequency Amplitude
