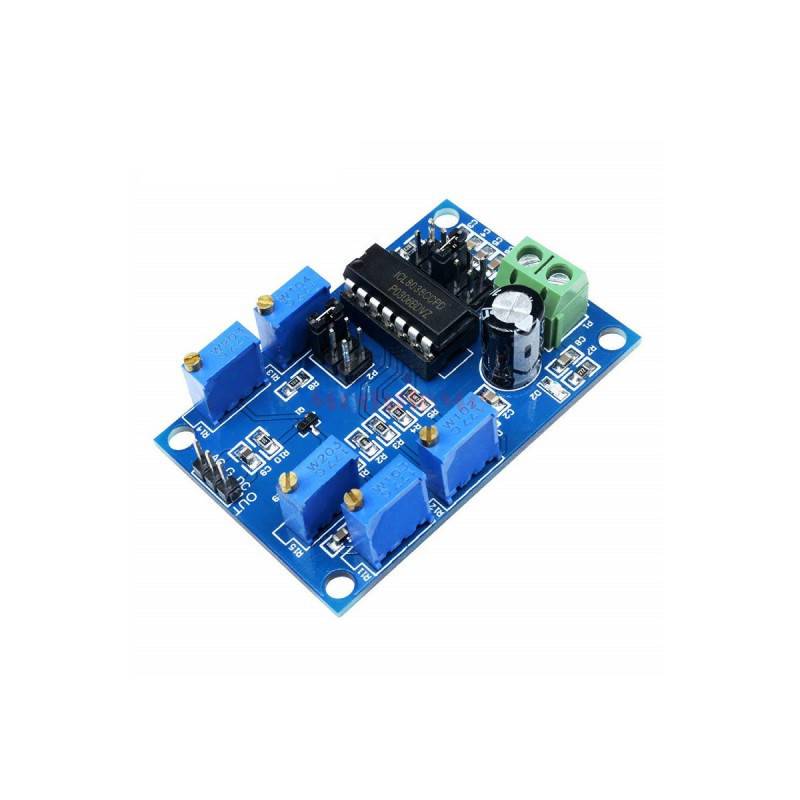

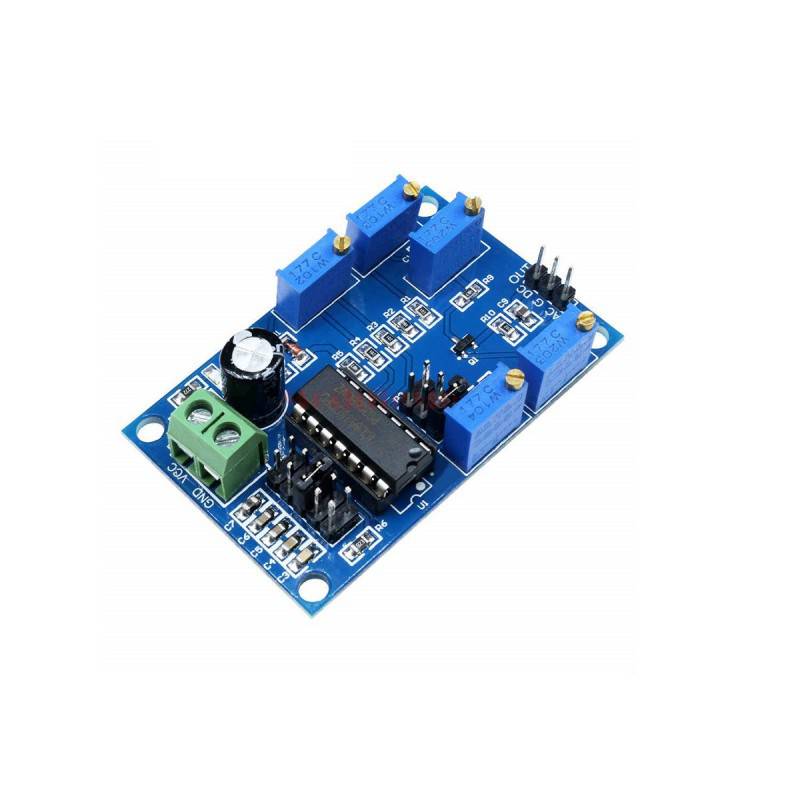

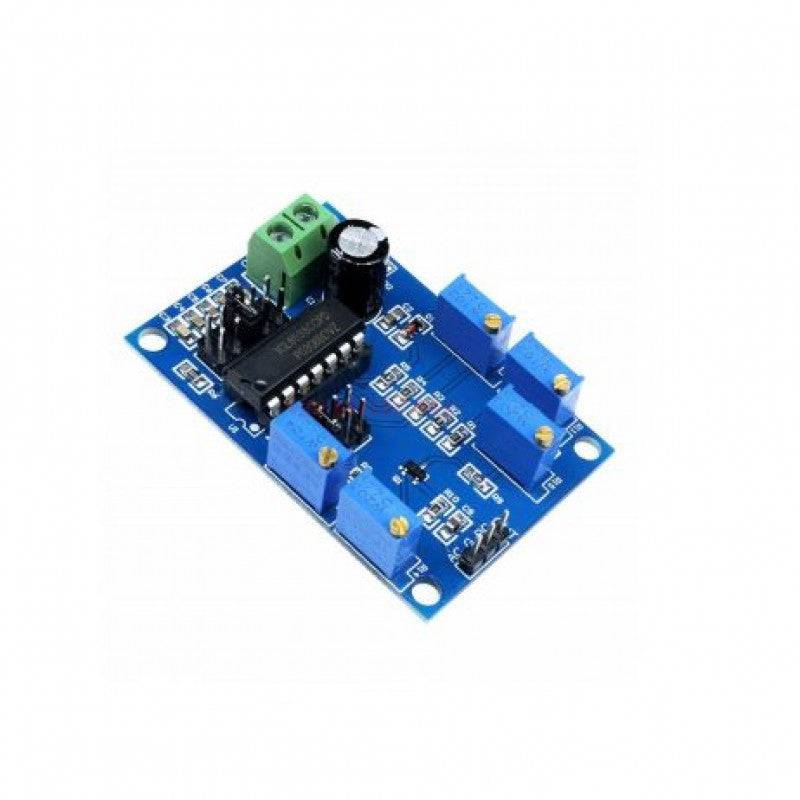

ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module - RS3412

ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module - RS3412

SKU:RS3412

Regular price Rs. 290.00
Regular price Sale price Rs. 290.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • The LC ICL8038 module is designed for common frequency ranges.
  • It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
  • Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
  • A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
  • Portable design, easy to operate.

Description :

The LC ICL8038 module is designed for common frequency ranges. It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 10Hz to 450KHz. A sine wave can be used for test signals, drive signals, carrier frequency signals, etc; a square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.

Function:

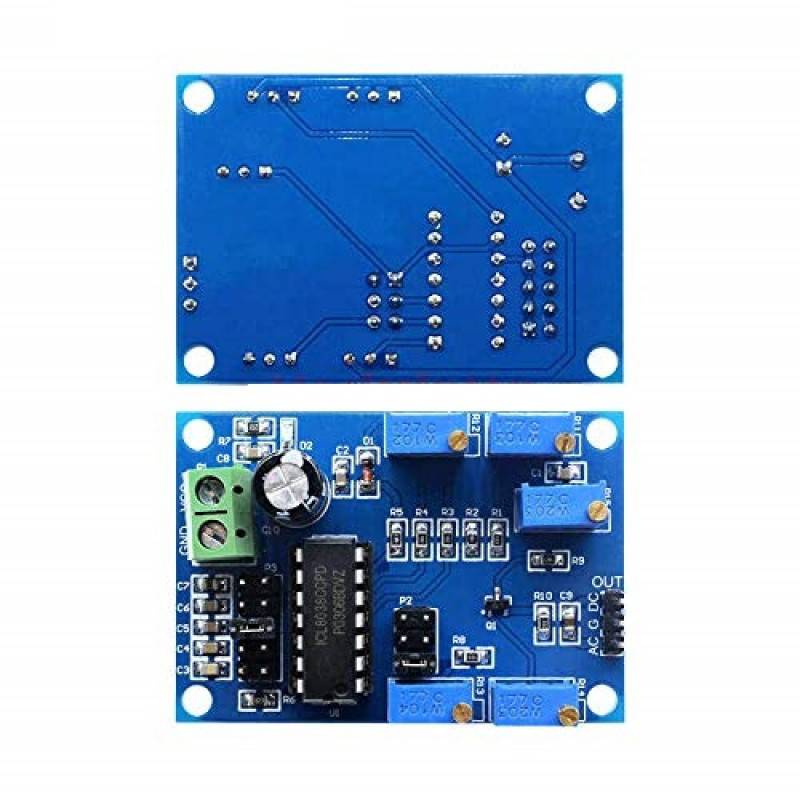

  • VCC, GND: working voltage
  • AC: with DC bias output
  • G: ground
  • DC: pure signal output
  • R11: Frequency adjustment
  • R12: Square wave duty cycle adjustment
  • R13: Sine wave linear adjustment
  • R14: Amplitude adjustment
  • R15: Square wave linear adjustment
  • Jumper P2: select different wave-forms(triangular, square or sine waves)
  • Jumper P3: select different frequency ranges
    10Hz-450Hz,90Hz-1.5KHz,940Hz-15KHz,6KHz-120KHz,20KHz-450KHz

Features:

  • The LC ICL8038 module is designed for common frequency ranges.
  • It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
  • Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
  • A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
  • Portable design, easy to operate.

Package Included :

1 x ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module
