- Driver IC: SSD1306
- Operating Voltage: 3.3-5V
- Size: 0.91 inch OLED
- Resolution: 128 x 32
- Interface Type: IIC interface
Description:
OLEDs are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCDs and leds. The most attractive thing about using OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy-saving displays ever!!!

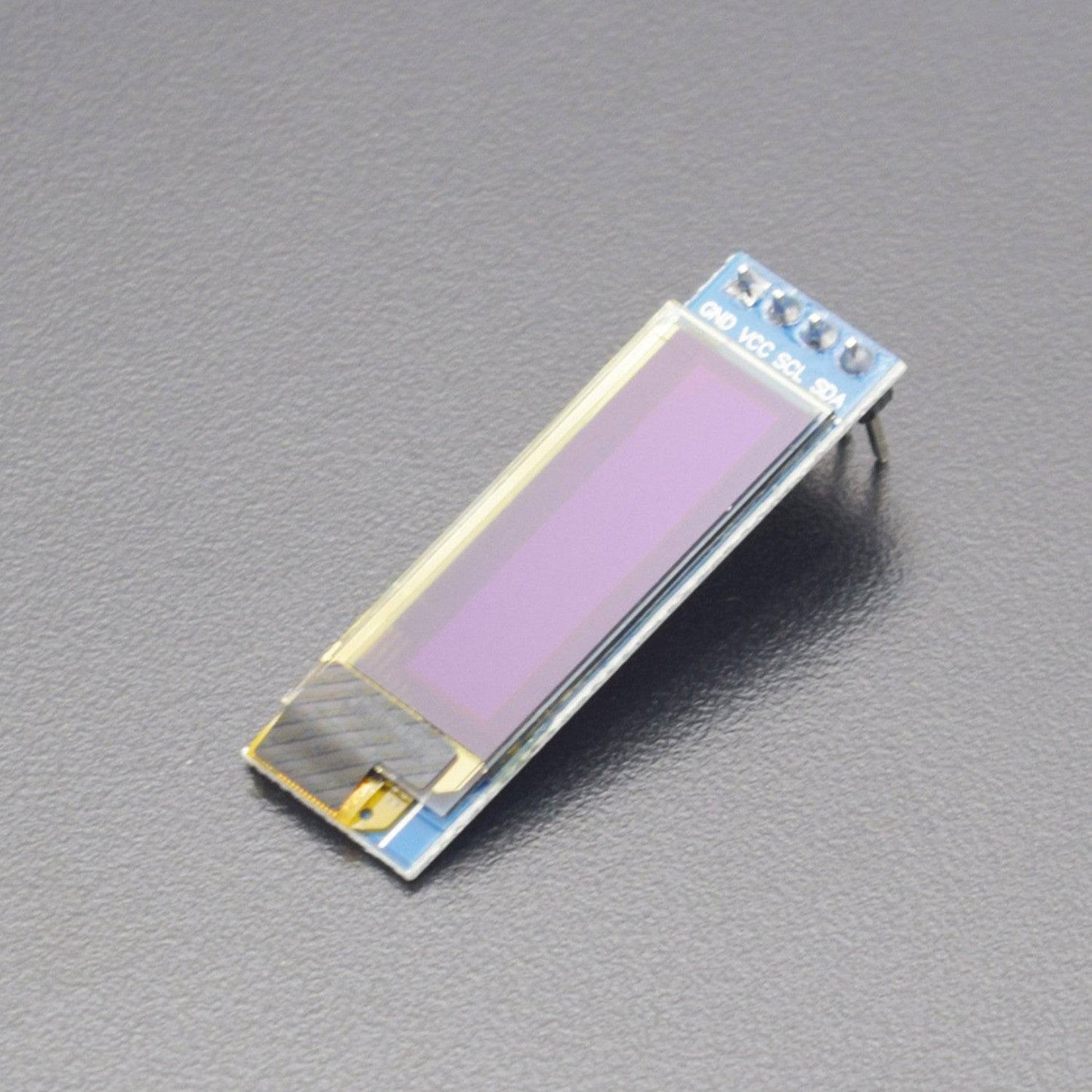

This 0.91 inch 128×32 Blue OLED Display Module offers 128×32 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colours. This OLED Display Module is very compact and will add a great ever-user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called IIC) serial interface. The 0.91 inches 128×32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with a DC 2.8V supply. The OLED Display Modules also offer a very wide viewing angle.
Specifications:
- Driver IC: SSD1306
- Operating Voltage: 3.3-5V
- Size: 0.91 inch OLED
- Resolution: 128 x 32
- Interface Type: IIC interface
- Display Color: Blue
- Working temperature: -30°C ~ 70°C
Features:
- Work perfectly well without the need of back light.
- 128*32 high resolution, ultra wide viewing angle
- The display is self-illuminating
- Power requirement is low
- Fully compatible with multiple controlling chips including Arduino and more.
- Better performance characteristics than traditional LCD and LED displays.

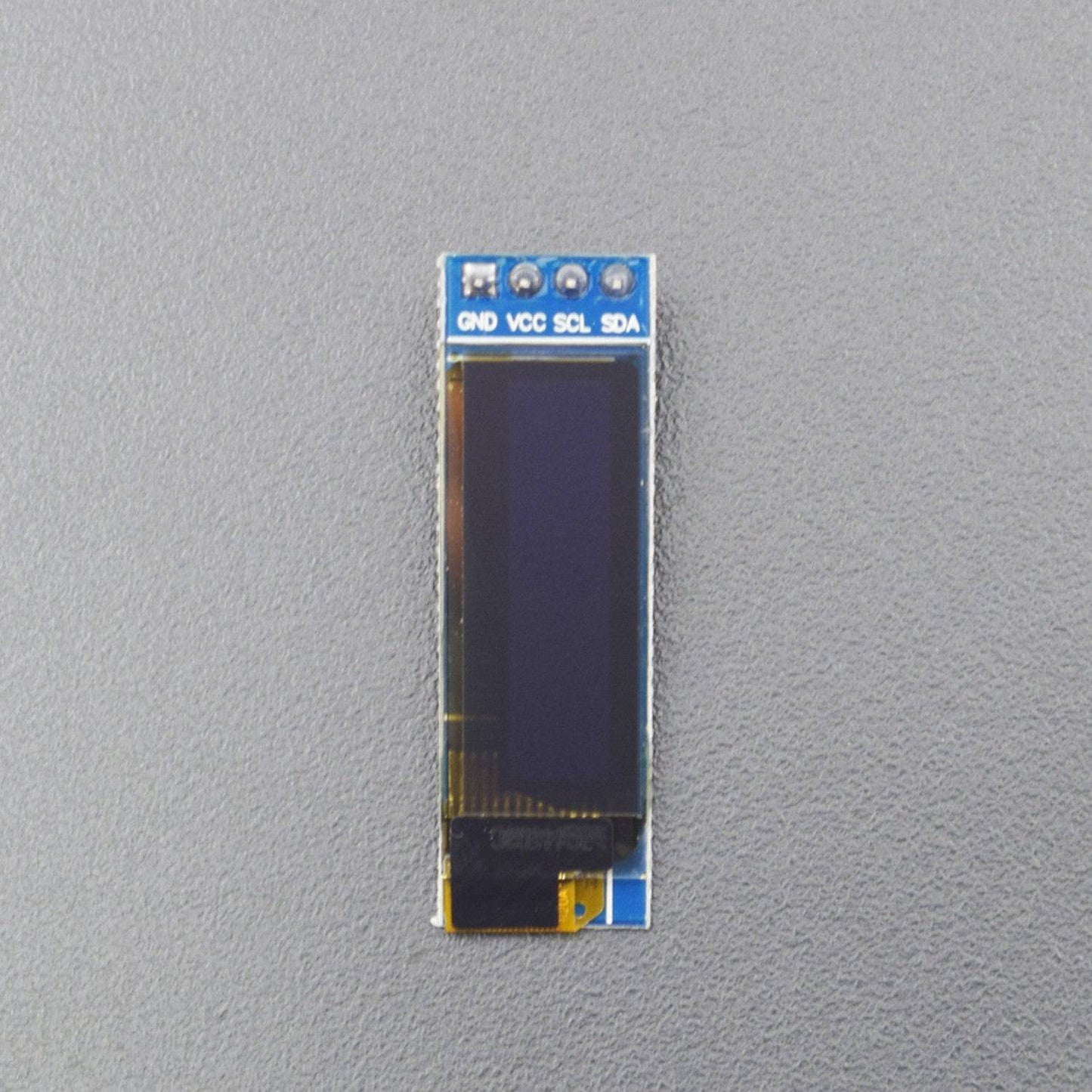

Pin Description:
- GND: Power Ground
- VCC: Power + (DC 3.3 ~5v)
- SCL: Clock Line
- SDA: Data Line
