Description:
This is an I2C Module that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too.

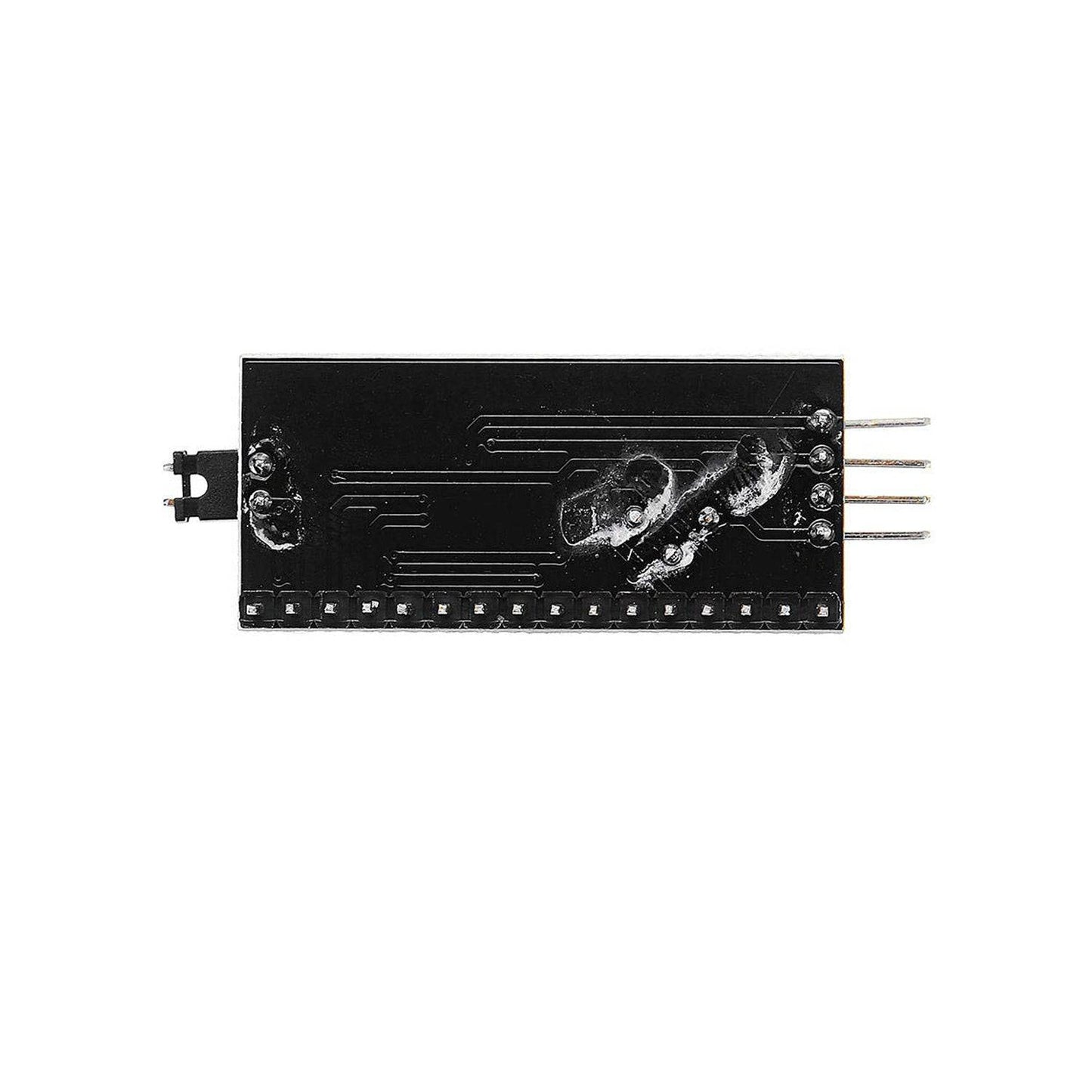

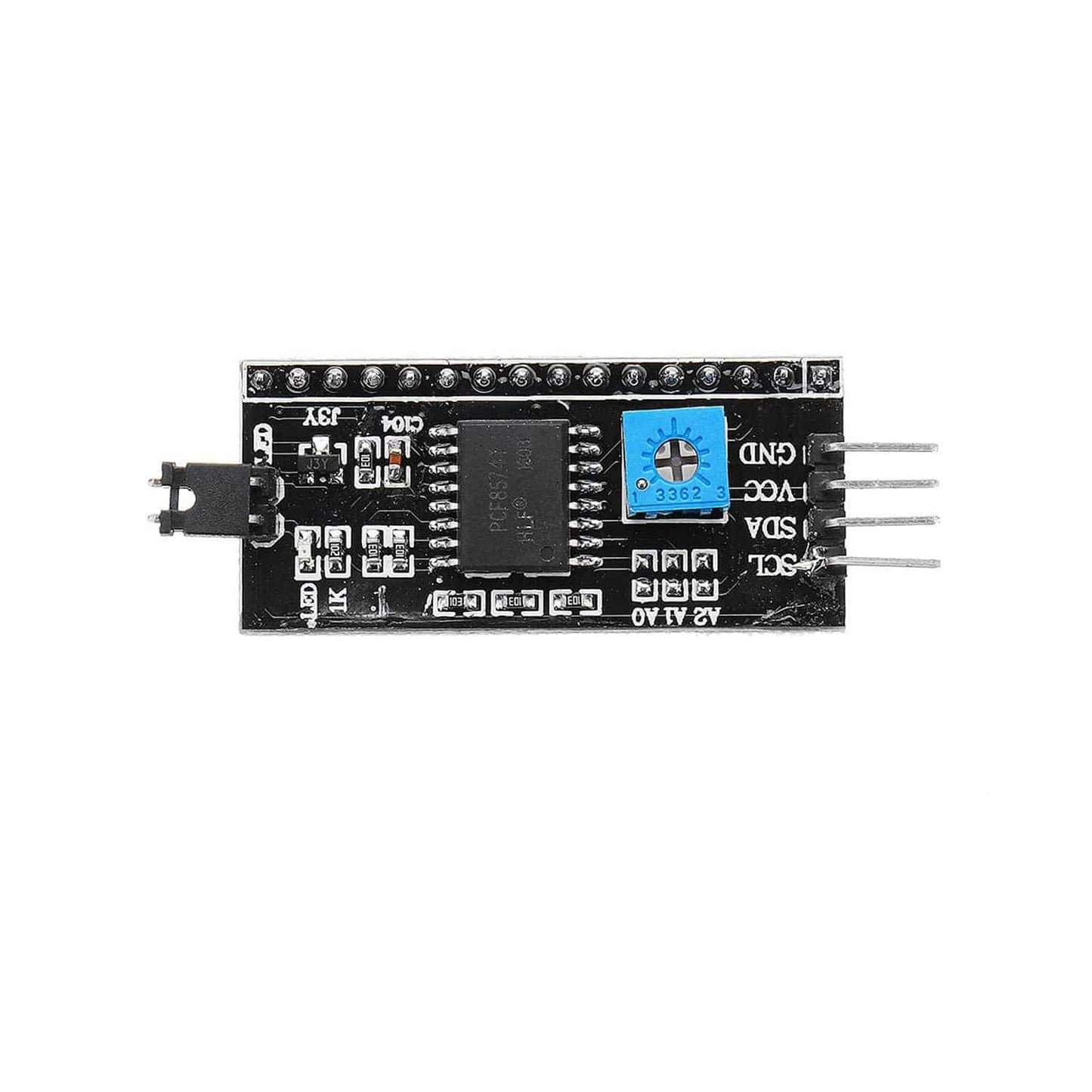

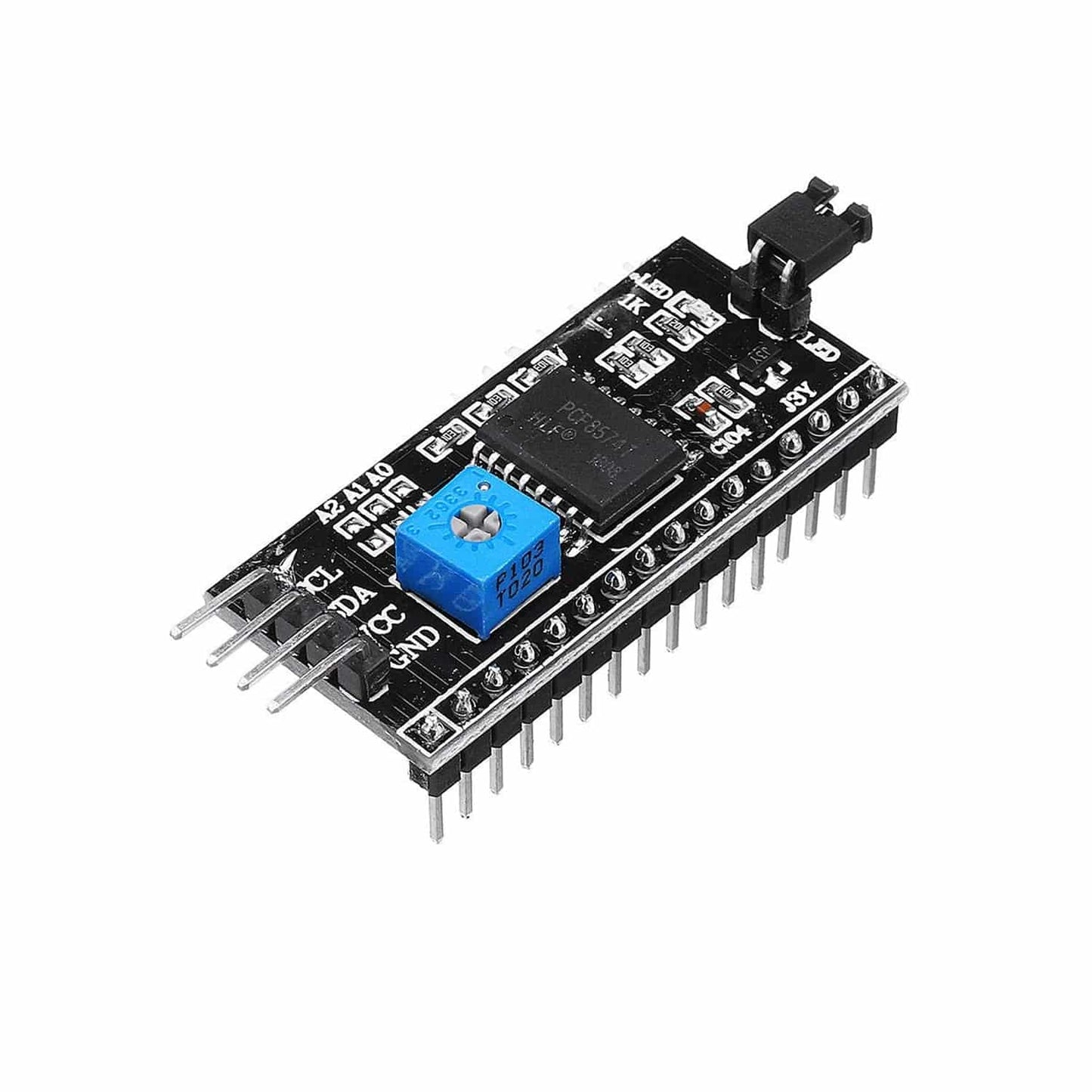

The I2C Module has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD. There are many examples on the internet for using this board with Arduino. Search “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. I2C Module allows up to 3 LCDs to be controlled via a single I2C bus (giving each one its address).
Specifications:
- IC Chip: PCF8574
- Power Supply: 5V
Features:
- 16 x 2 Character LCD is controlled via just two wires
- Up to 8 LCDs with adapters can be connected and controlled by the same two-wire I2C bus
- Easy to control using an Arduino board
- Compatible with 16 x 2 character LCDs
- I2C Module includes a 16-PIN male header connector for soldering to LCD
- Contrast is adjusted via the onboard potentiometer
- The backlight may be turned on/off via a jumper
Package Included:
1 x I2C Module IIC I2C TWI SPI Serial Interface Board Module Port for Arduino LCD1602 Display
