Description:

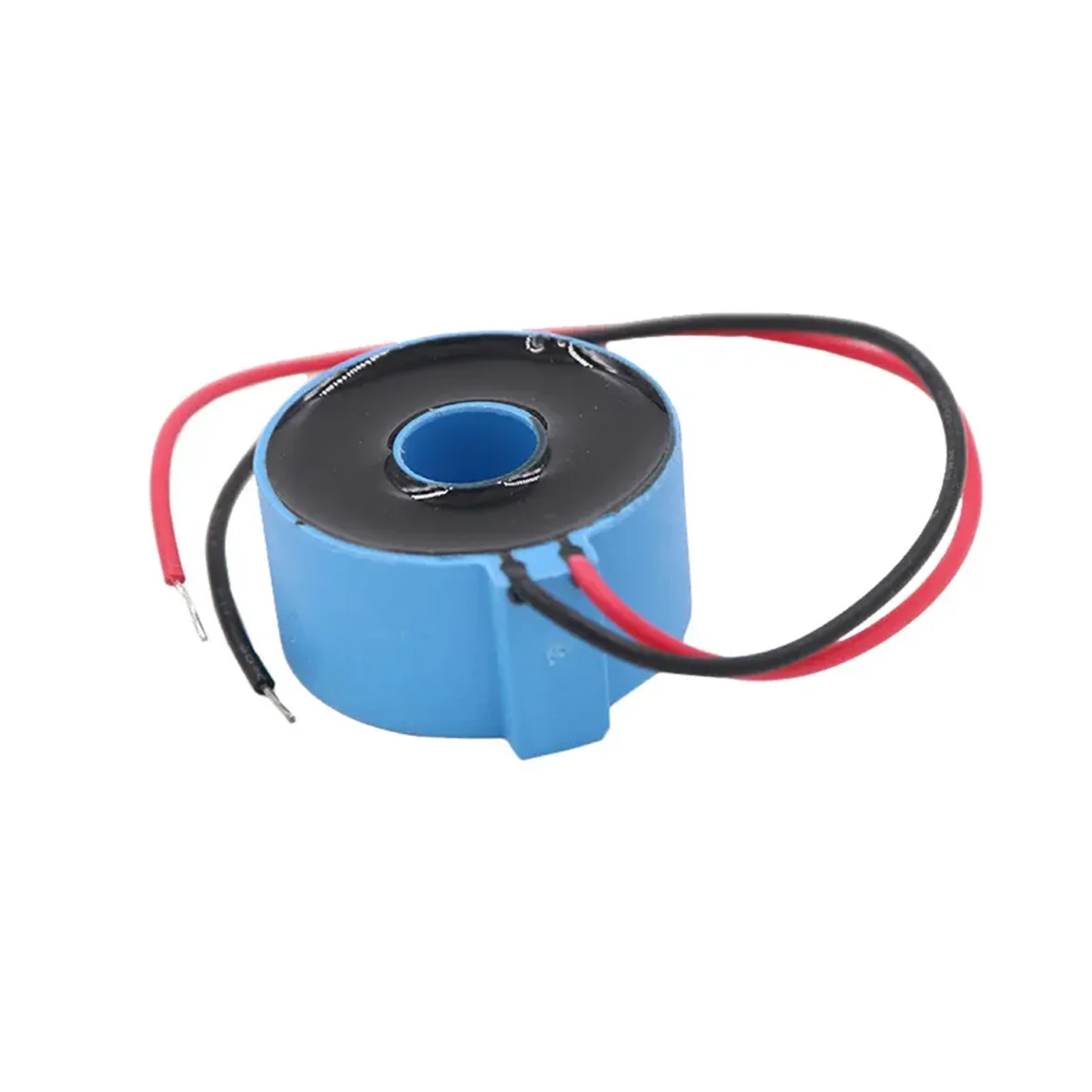

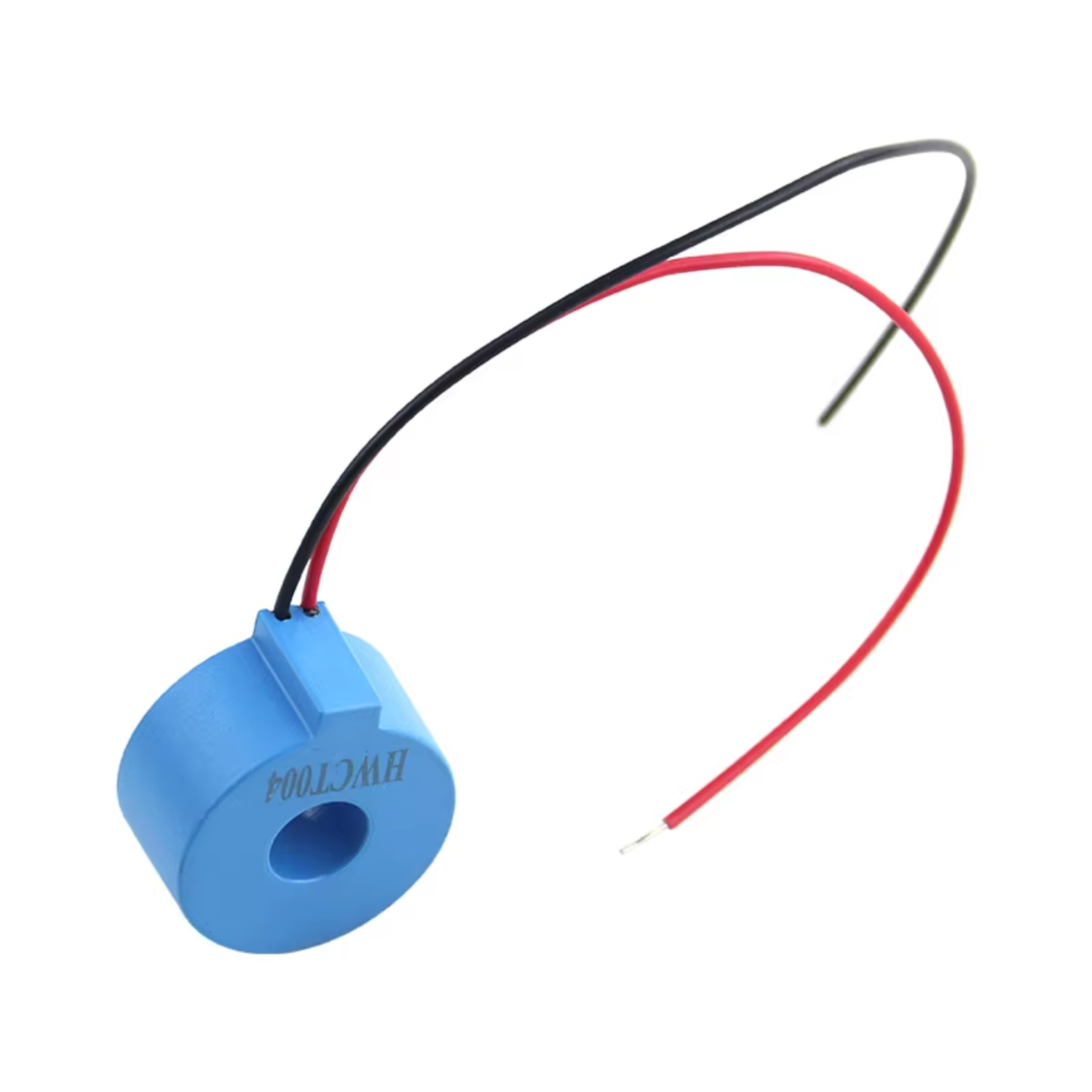

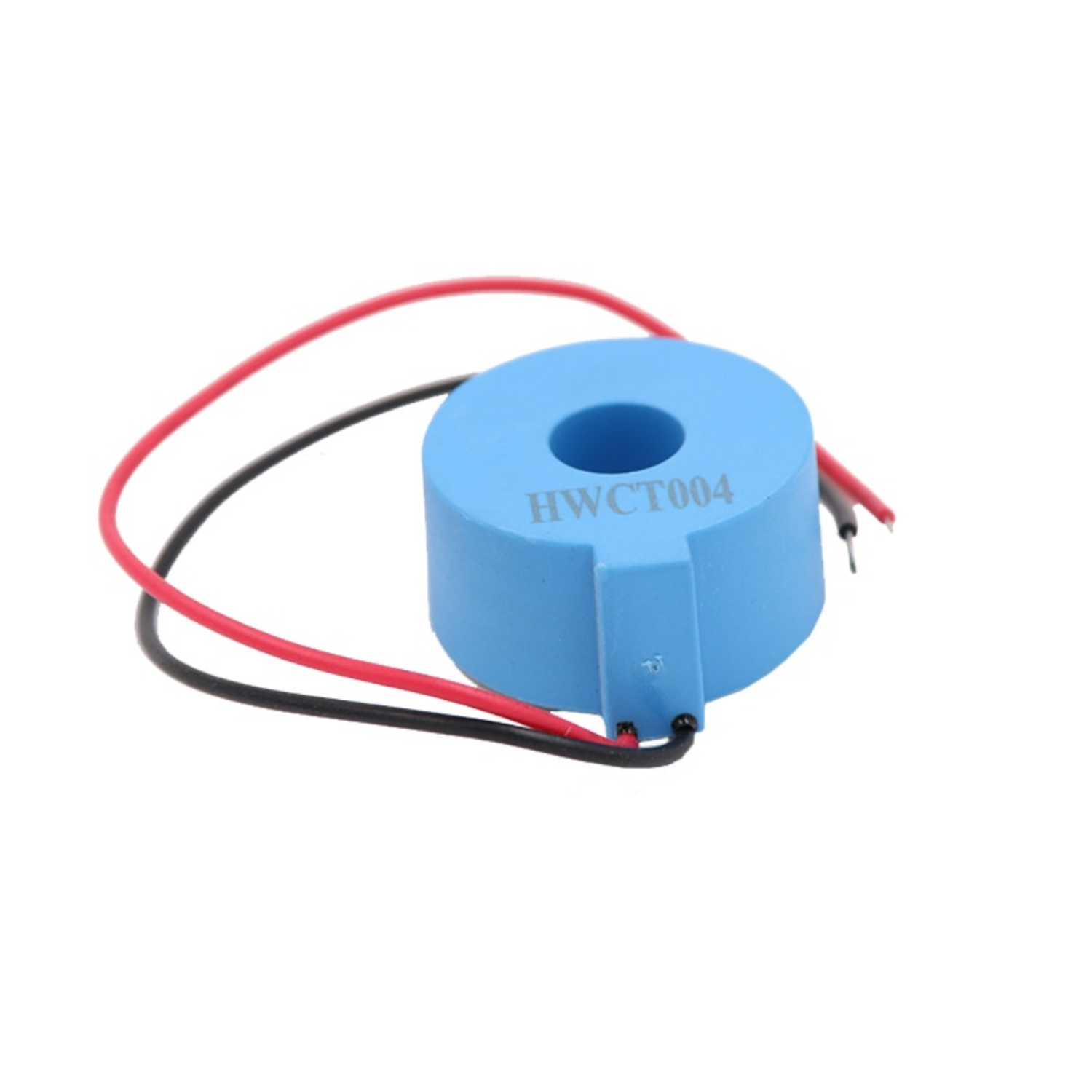

The HWCT004 itself is a compact transformer designed to measure alternating current (AC). It operates on the principle of electromagnetic induction, where the current flowing through a conductor generates a magnetic field, which is then sensed by the transformer.
The "micro" designation indicates its suitability for measuring relatively small currents with high accuracy. This precision is crucial in applications where even minor variations in current can be significant.
Specifications:
- Input: 50A
- Output: 50MA
- Load: 100 Ω
- ratio error: 0.1%
- Phase difference: 20 ‘
Package Included:
1 x HWCT004 Micro Precision Current Transformer 50A / 50MA DIY Sensor SR006
