HTU21D Temperature and Humidity Sensor Module - RS3167

HTU21D Temperature and Humidity Sensor Module - RS3167

SKU:RS3167

100 in stock

Regular price Rs. 180.00
Regular price Sale price Rs. 180.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Power supply (V) : 1.5 ~ 3.6
  • Humidity measure range : 0 to 100%RH
  • Humidity precision(10%RH to 95%RH) : HTU21DA 2%RH
  • Max. power consumption (W) : 2.7
  • Communication : I2C
  • Measure time : 50 msec
  • Year drift : -0.5%RH/year
  • Response time : 5 sec

Description :

The HTU21D Temperature and Humidity Sensor Module is a low-cost, easy to use, highly accurate, digital humidity and temperature sensor. This sensor is ideal for environmental sensing and data logging and perfect for weather stations or humidor control systems. All you need is two lines for I2C communication, and you'll have relative humidity readings and very accurate temperature readings as a bonus!

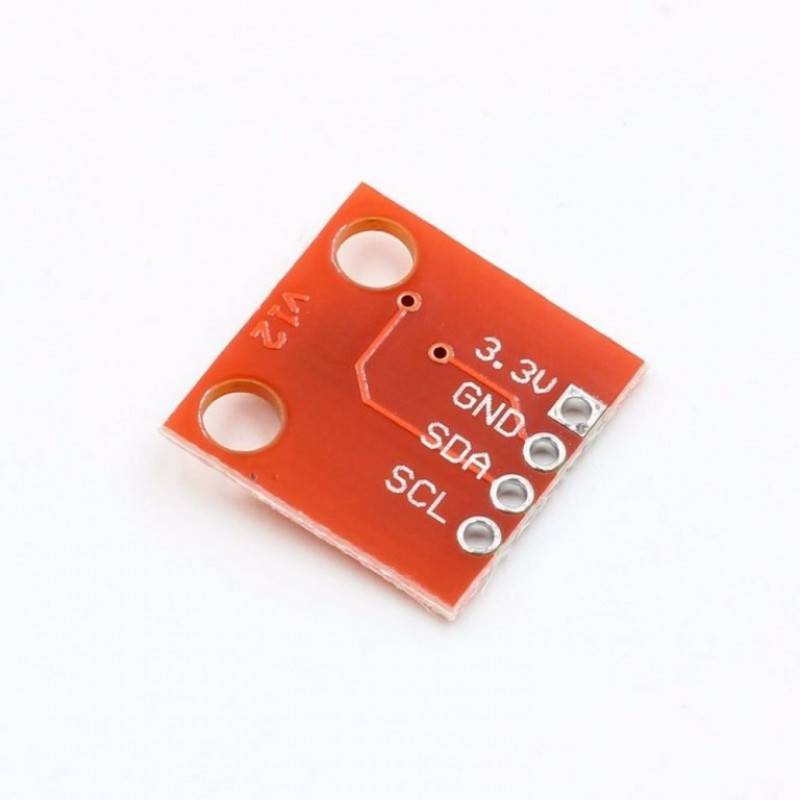

There are only four pins that need to be hooked up in order to start using this sensor in a project. One for VCC, one for GND, and two data lines for I2C communication. This breakout board has built-in 4.7k pull-up resistors for I2C communications. If you're hooking up multiple I2C devices on the same bus, you may want to disable these resistors.

Note:Full drops of water can damage the sensor. We recommend wrapping the board in Teflon/irrigation tape for extreme conditions where water droplets may find their way into the sensor.

Specifications :

  • Power supply (V) : 1.5 ~ 3.6
  • Humidity measure range : 0 to 100%RH
  • Humidity precision(10%RH to 95%RH) : HTU21DA 2%RH
  • Max. power consumption (W) : 2.7
  • Communication : I2C
  • Measure time : 50 msec
  • Year drift : -0.5%RH/year
  • Response time : 5 sec

Package Included:

1 xHTU21D Temperature and Humidity Sensor Module.

1 x Set of Header. (Un-soldered)
