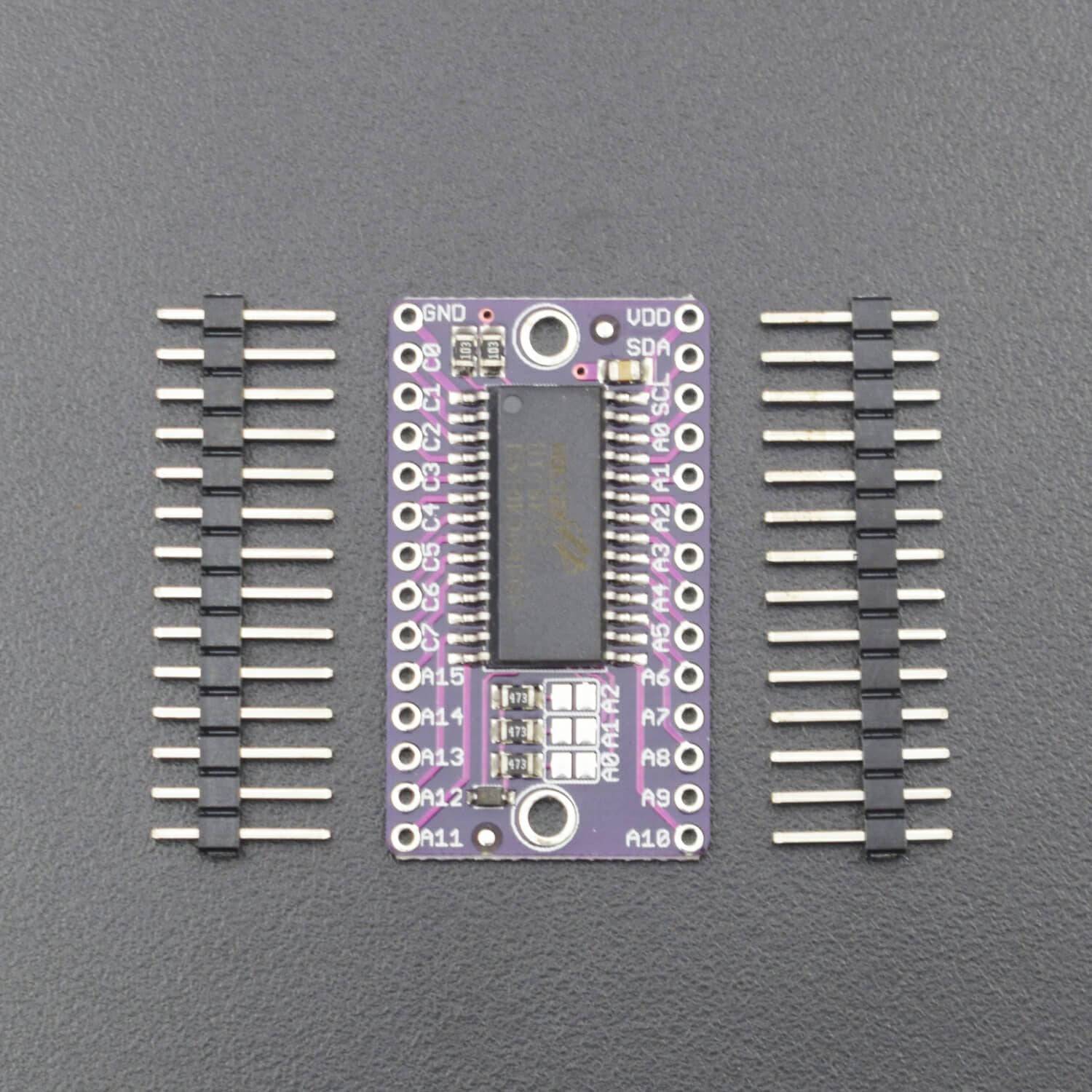

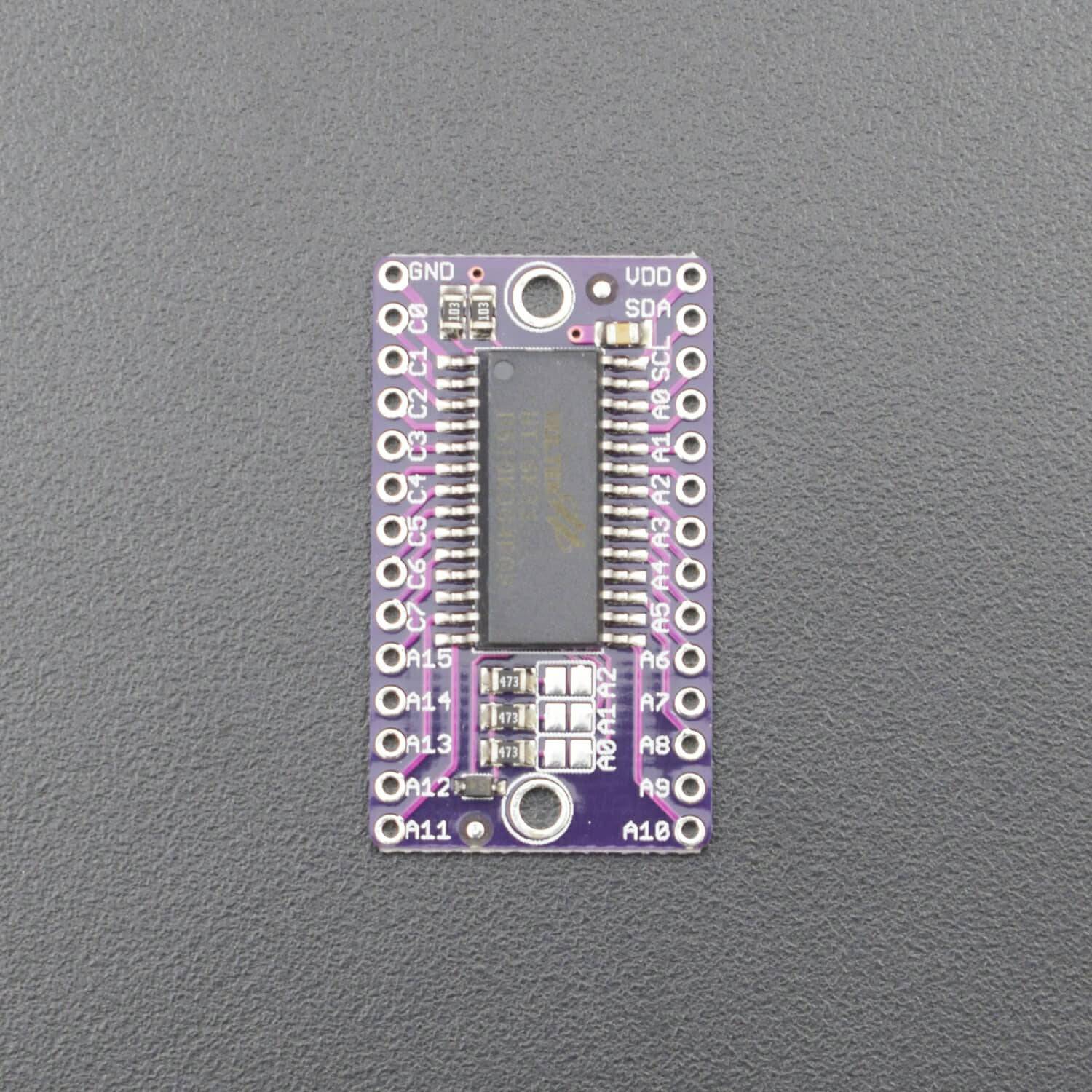

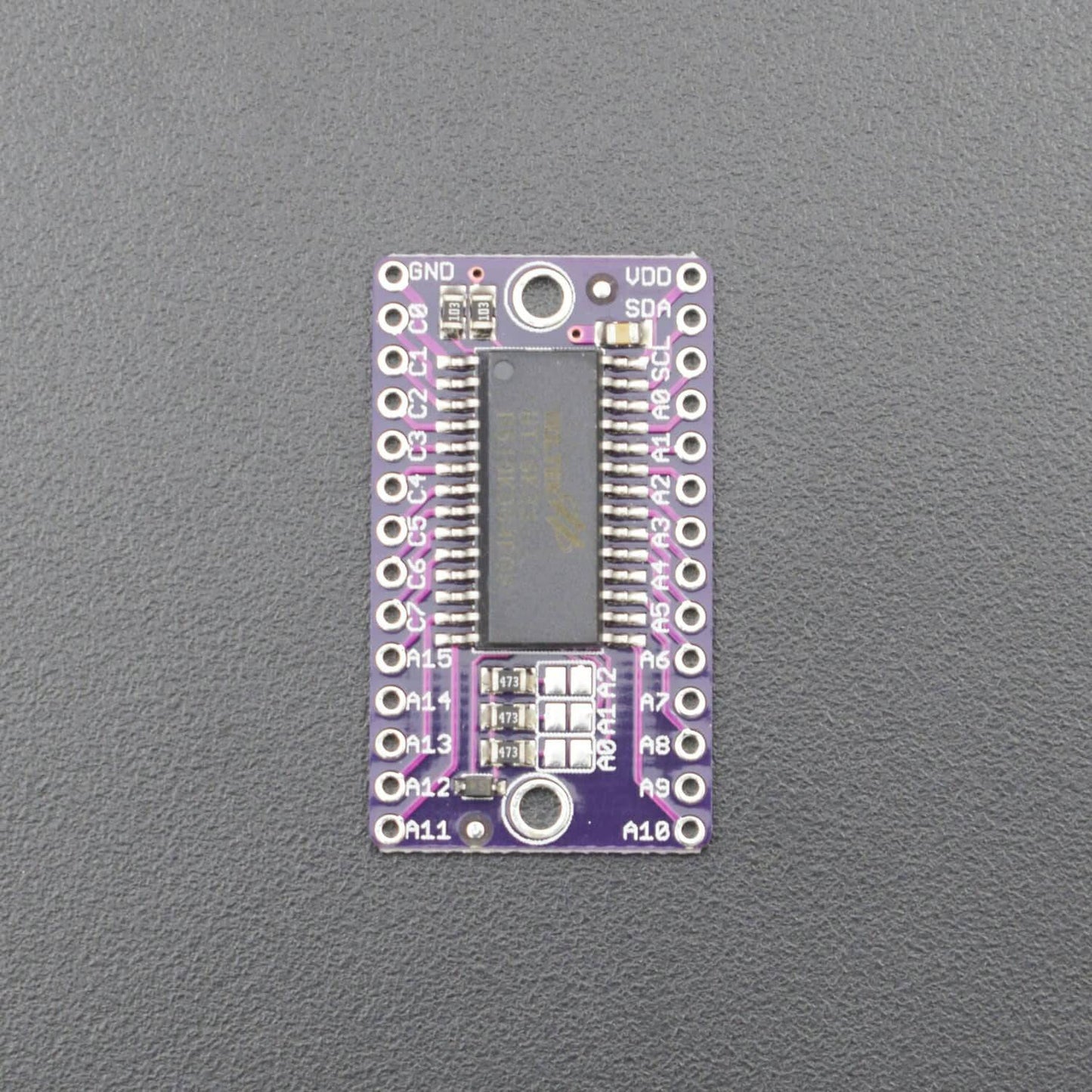

HT16K33 LED Dot Matrix Drive Control Module Digital Tube Driver Development Board For Arduino - RS1920

HT16K33 LED Dot Matrix Drive Control Module Digital Tube Driver Development Board For Arduino - RS1920

SKU:RS1920

In stock

Regular price Rs. 440.00
Regular price Sale price Rs. 440.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 4.5V~5.5V
  • Integrated RC oscillator
  • I2C-bus interface
  • 16 x 8 bits RAM for display data storage

Description:

The HT16K33 is a memory mapping and multi-function LED controller driver. The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scan circuit. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.

Specification:

  • Operating Voltage: 4.5V~5.5V
  • Integrated RC oscillator
  • I2C-bus interface
  • 16 x 8 bits RAM for display data storage
  • Max. 16 x 8 patterns, 16 segments and 8 commons
  • R/W address auto increment
  • Max. 13 x 3 matrix key scanning
  • 16-step dimming circuit
  • Selection of 20/24/28-pin SOP package types

Application:

  • Industrial control indicators
  • Digital clocks, thermometers, counters, multimeters
  • Combo sets
  • VCR sets
  • Instrumentation readouts
  • Other consumer applications
  • LED Displays

Package Included:

1 x HT16K33 LED Dot Matrix Drive Control Module Digital Tube Driver Development Board For Arduino
