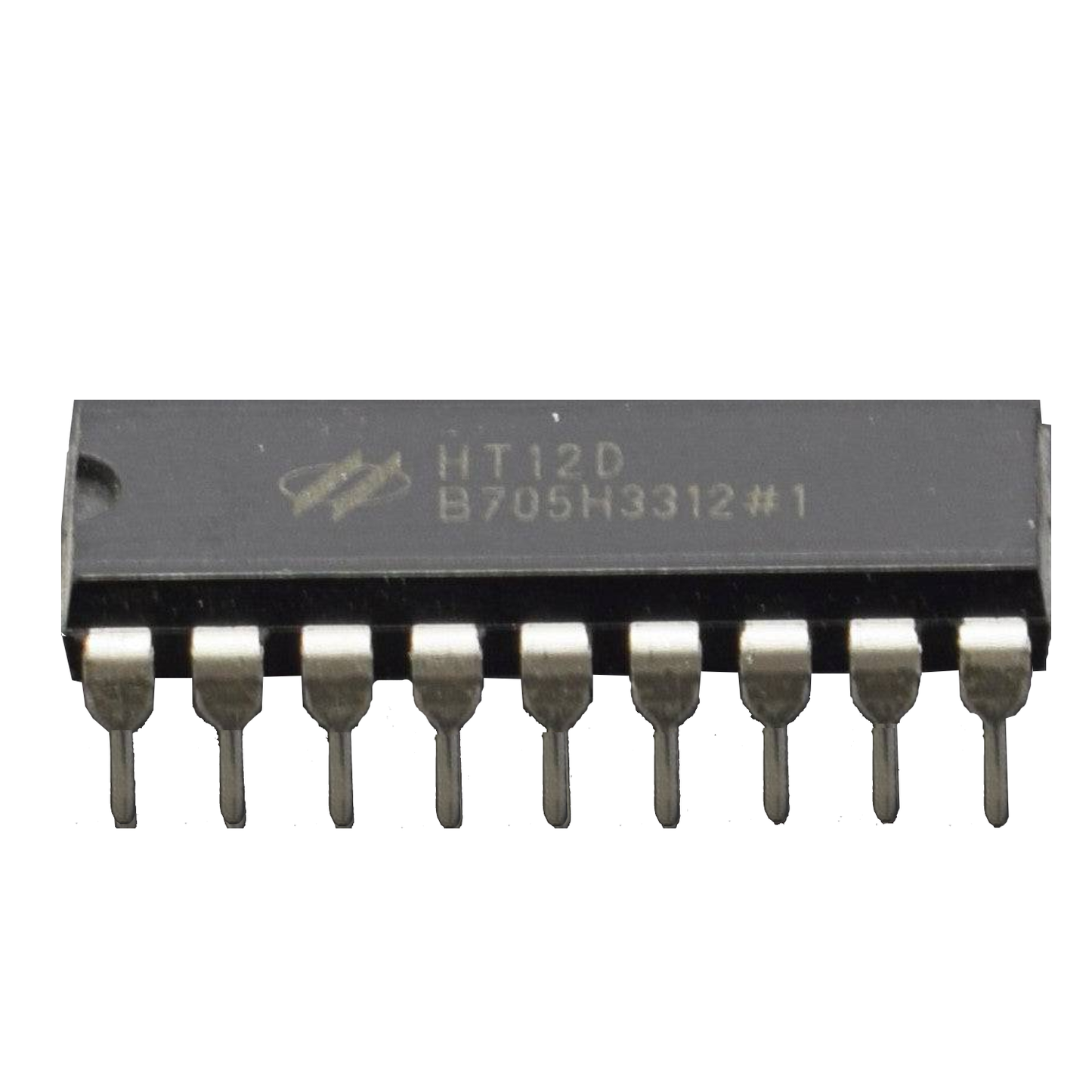

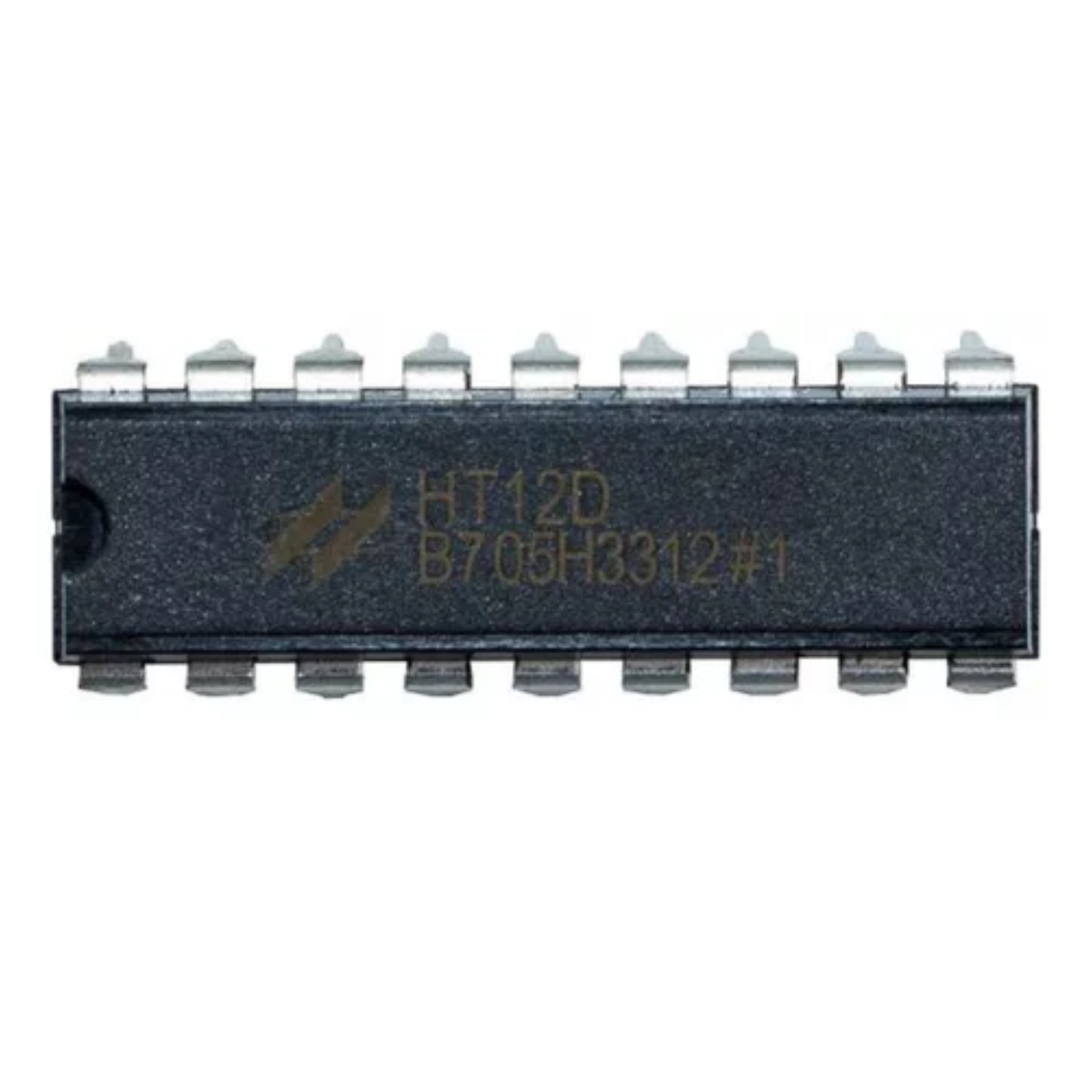

HT12D Decoder IC: Unlock Seamless Remote Control Solutions For Home Automation, Industrial Applications, And More - RS137

HT12D Decoder IC: Unlock Seamless Remote Control Solutions For Home Automation, Industrial Applications, And More - RS137

RS137

86 in stock

Rs. 54.00
Rs. 54.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

This is a decoder IC. It works well with its encoder IC pair HT12E. These two IC's together form an encoder and decoder pair. Its primary function is to decode the 12-bit data that is received by the input pin. Since the IC comes with an in-built Oscillator, it is very easy to make this IC work. This IC should be powered by 5V. If you use this IC, then it is very important that your decoder should have the same address as that of the encoder. This IC is highly useful in wireless communication projects involving RF or IR.

Specifications:

  • 18-pin DIP
  • Operating Voltage: 2.4V ~ 12.0V
  • Low Power and High Noise Immunity CMOS Technology
  • Built-in Oscillator needs only a 5% Resistor
  • Minimal External Components
  • Low Power and High Noise Immunity, CMOS Technology
  • Low Stand by Current: 0.1uA (typ.) at VDD=5V

Features:

  • Low noise immunity
  • Can decode up to 12-bit data without using any third device.
  • RF and IR wireless modules can interface directly

Pin Description:

Pin No
Function
Name
1
8-bit Address pins for input
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
Ground (0V)
Ground
10
4-bit Data/Address pins for output
D0
11
D1
12
D2
13
D3
14
Serial data input
Input
15
Oscillator output
Osc2
16
Oscillator input
Osc1
17
Valid transmission; active high
VT
18
Supply voltage; 5V (2.4V-12V)
Vcc

Pin Diagram:

Useful links:

HT12D Decoder IC

Package Included:

1 x HT12D Decoder IC
