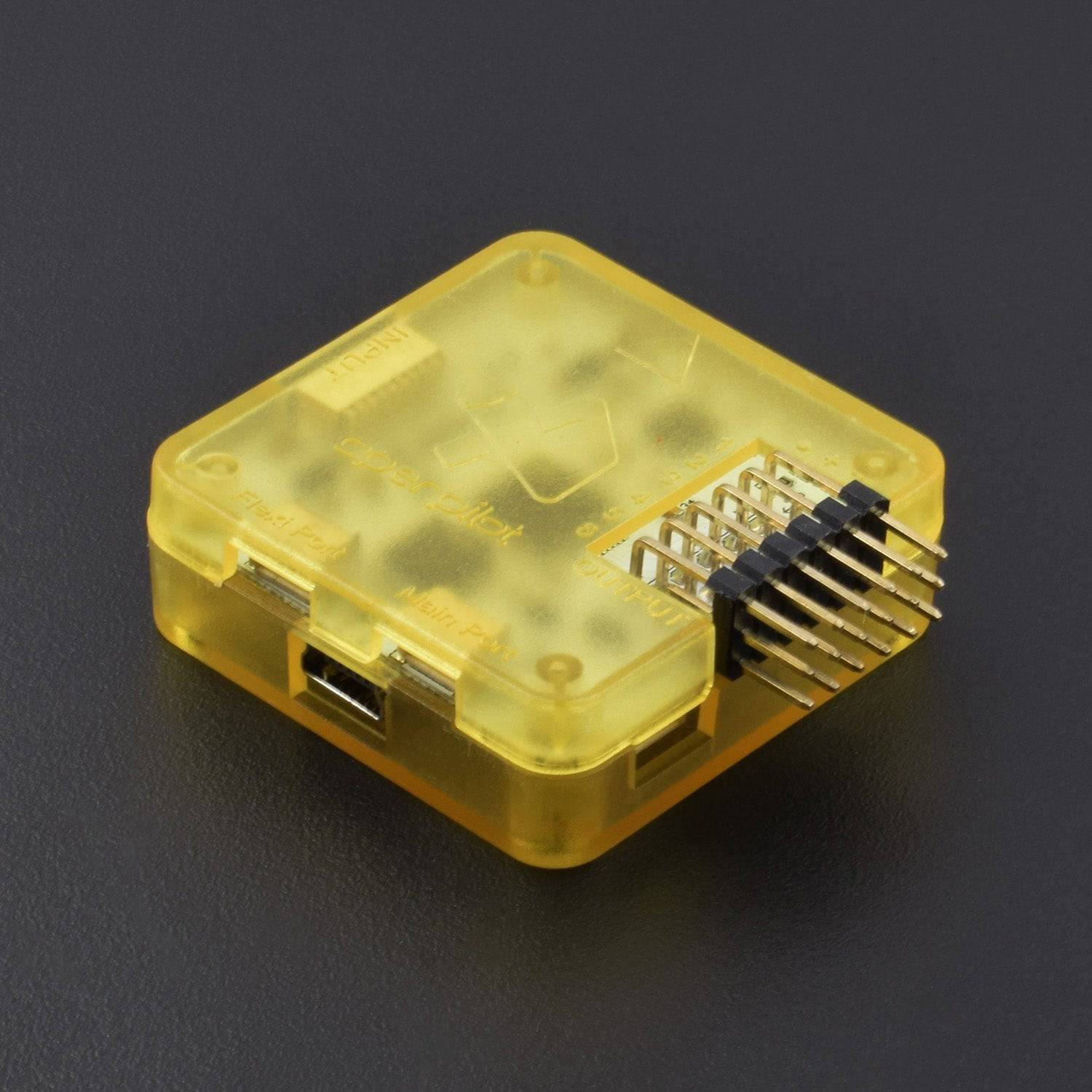

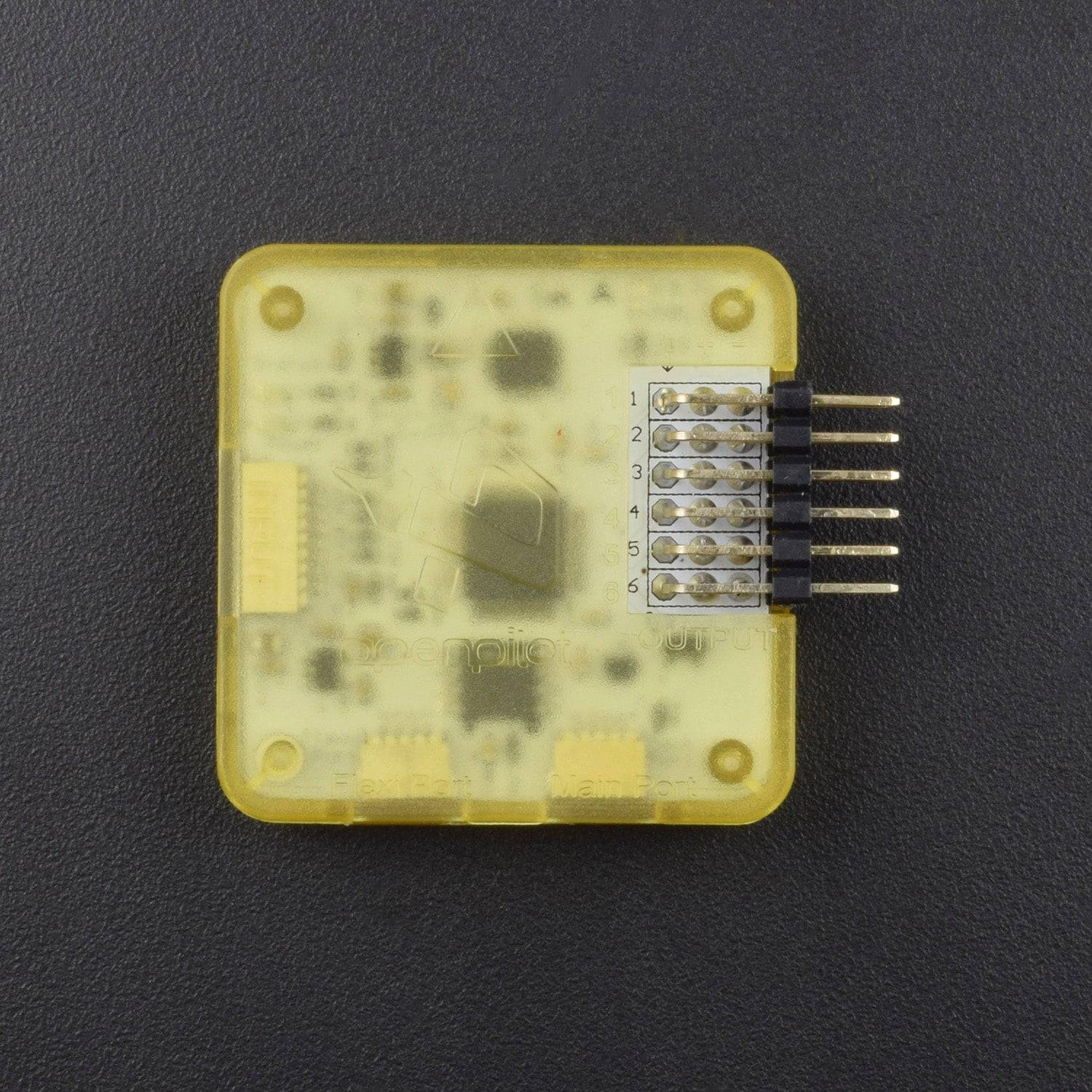

HORIZONTAL Bent Pin CC3D Open Source Flight Controller 32 Bits Processor for QAV250 FPV250 with Protect Yellow Box -QR005

HORIZONTAL Bent Pin CC3D Open Source Flight Controller 32 Bits Processor for QAV250 FPV250 with Protect Yellow Box -QR005

SKU:QR005

In stock

Regular price Rs. 3,000.00
Regular price Sale price Rs. 3,000.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 3-axis Gyroscope array and 3-axis Accelerometer: MPU-6000
  • Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2, DSMJ, DSMX satellites, and Futaba S.Bus receivers.
  • Simultaneous support for multiple receivers.

Description:

The CC3D board is an all-in-one stabilization hardware flight controller, which runs the OpenPilot firmware. It can fly any airframe from fixed-wing to an octocopter and is configured and monitored using the powerful and user-friendly OpenPilot software. The CC3D is an update to the original Copter Control board, now using the powerful single-chip IMU. The board shares a lot with the Revolution platform, including the powerful OpenPilot architecture and the cross-platform Ground Control Station (GCS). The CopterControl platform has been designed from the ground up to perform a host of functions from auto-level, multi-copter, Fixed-wing UAV’s and even Flybarless Helicopter support. The new included Flexiport provides either I2C connectivity or a second serial port.

Features:

  • CC3D EVO Hardware Features:

    • WIth a function of being directly plugged into the satellite receiver(It needn’t conversion cable)
    • Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
    • 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
    • Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
    • Software support for Windows, Mac, and Linux.
    • Direct high-speed USB support with no drivers required, a true plug and play device.
    • Spektrum satellite receiver support.
    • Futaba S-BUS hardware support.
    • Innovative Flexi-port technology for superior port flexibility.
    • 4Mbits on-board EEPROM for configuration storage.
  • Flexiport:

    • Copter Control also offers the innovative Flexi-port which provides either I2C connectivity or a second serial port. Flexi-port gives CopterControl the flexibility to use either I2C and a single serial port or dual serial ports, according to your connectivity needs.
  • Superior User Experience:

    • Open Pilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally, for a high-end product, the hardware is complete; there is nothing to solder. The included RC harness allows you to connect any standard PWM receiver. All Copter Control boards are tested before shipping and come with a bootloader already flashed.
    • A standard mini USB cable (not included) is used to load the latest firmware and configure everything for your unique airframe. The OpenPilot project, whilst still young, is trying to make Open Source much more user-friendly.
    • OpenPilot software is designed to be used by everybody! All major operating systems are supported and install packages are provided.
    • The software is all Free software under the GPLv3 license and not only are you welcome to hack it, but we encourage it.
  • Sensors And Components:

    • 3-axis Gyroscope array and 3-axis Accelerometer: MPU-6000
    • Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2, DSMJ, DSMX satellites, and Futaba S.Bus receivers.
    • Simultaneous support for multiple receivers.
    • ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
    • MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
    • FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under development)
    • 10 PWM outputs to servos or ESC’s, or for camera stabilization
    • Camera stabilization: supports up to 3-axis camera mounts with stabilization and manual control from any of configured receivers.
    • Onboard USB connectivity for easy configuration.
    • USB and serial telemetry and configuration
    • Supported by powerful OpenPilot GCS
    • 4 Mbit onboard memory
    • 3C Quaternion based complementary filter running at 500Hz

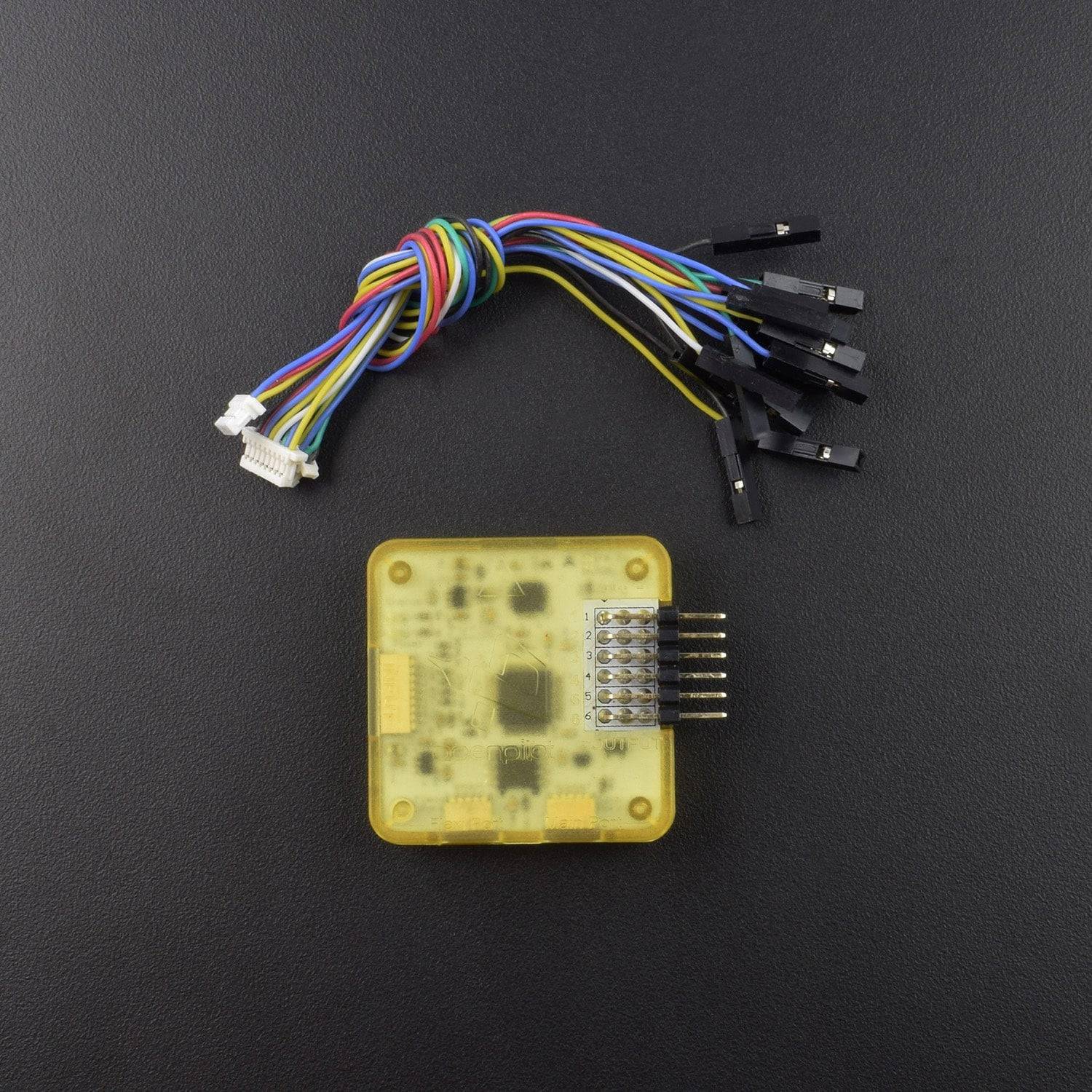

Package Included:

  • 1 x CC3D Flight Controller
  • 1 x 8p wire rod
  • 2 x 4p expansion path
  • 1 x flight controller case
