Description:

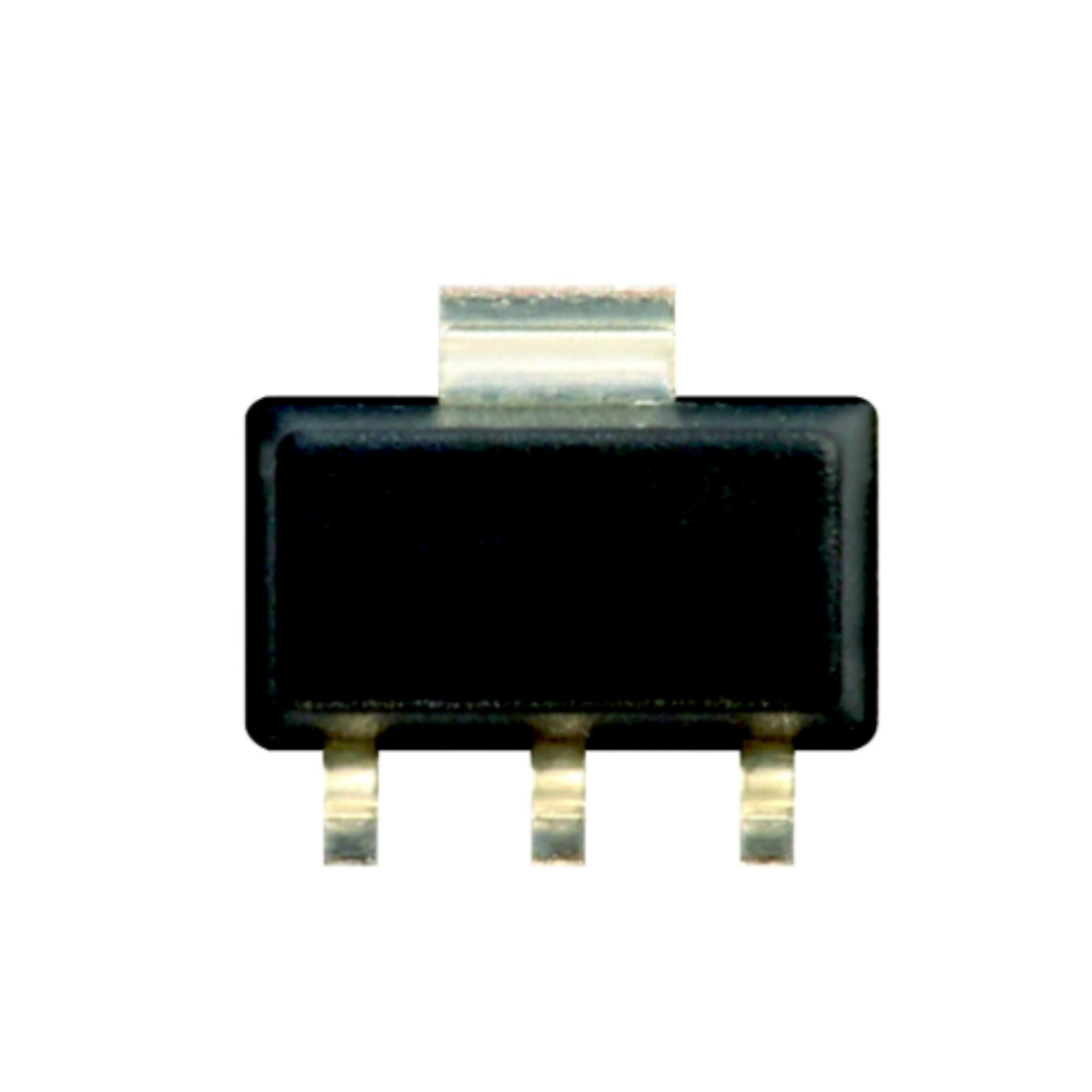

The Honeywell SS59ET Board Mount Hall Effect Sensor provides accurate and reliable magnetic position sensing for a variety of applications. This sensor operates efficiently with a supply voltage range of 2.7 Vdc to 6.5 Vdc and a low operating current of 10 mA. Its wide operating point range (-1000 G to 1000 G) allows for precise measurement of magnetic fields, making it ideal for applications requiring high accuracy.
The surface-mount (SMD/SMT) package facilitates easy and efficient mounting onto printed circuit boards. Furthermore, the sensor's robust design and wide operating temperature range (-40°C to 100°C) ensure reliable performance in challenging environments, including those with temperature extremes.
Specifications:
- Model Type: Magnetic Sensor
- Model No.: SS59ET
- Types: Position Sensor
- Operating Voltage: 6V
- Operating supply current: 10 mA
- Maximum output current: 10 mA
- Supply voltage range: 2.7 Vdc to 6.5 Vdc
- Temperature range: -40°C to 100°C
Features:
- Position sensor with precise magnetic detection
- Operating supply current of 10 mA for reliable performance
- The maximum output current of 10 mA
- Wide operating point range: -1000 G to 1000 G
- Supply voltage range from 2.7 Vdc to 6.5 Vdc
- Temperature range of -40°C to 100°C for versatile applications
Application:
- Magnetic position sensing in industrial equipment
- Precision Positioning in Automotive Systems
- Position feedback in consumer electronics
- Proximity sensing in various electronic devices
- Magnetic field detection in medical equipment
Package Included:
1 x Honeywell SS59ET Linear Hall Effect Sensor
