Description:
These board-mount Hall Effect sensor ICs offer precise digital magnetic field detection in a small, versatile package. Activated by the magnetic field from either a permanent magnet or an electromagnet, these sensors are suitable for a wide range of applications. Their compact size makes them well-suited for smaller, more densely populated assemblies.
The 3 Vdc compatibility enables integration into low-voltage systems, promoting energy efficiency. Designed for board mounting, these ICs are easily integrated onto printed circuit boards. They provide a digital output signal, indicating the presence or absence of a sufficient magnetic field.
Specifications:
- Model Type: Magnetic Sensor
- MPN: SS466A
- Type: Bipolar
- Operating Supply Current: 10 mA
- Maximum Output Current: 20 mA
- Operating Point Min/Max: 100 G to 180 G
Features:
- Allows for a compact design with automated component placement, helping to reduce manufacturing costs.
- Make this product suitable for a variety of potential motion control, lid closure detection, and displacement sensing applications.
- Helps reduce power consumption. Provides for stable operation over a wide temperature range of -40 °C to 150 °C.
Package Included:

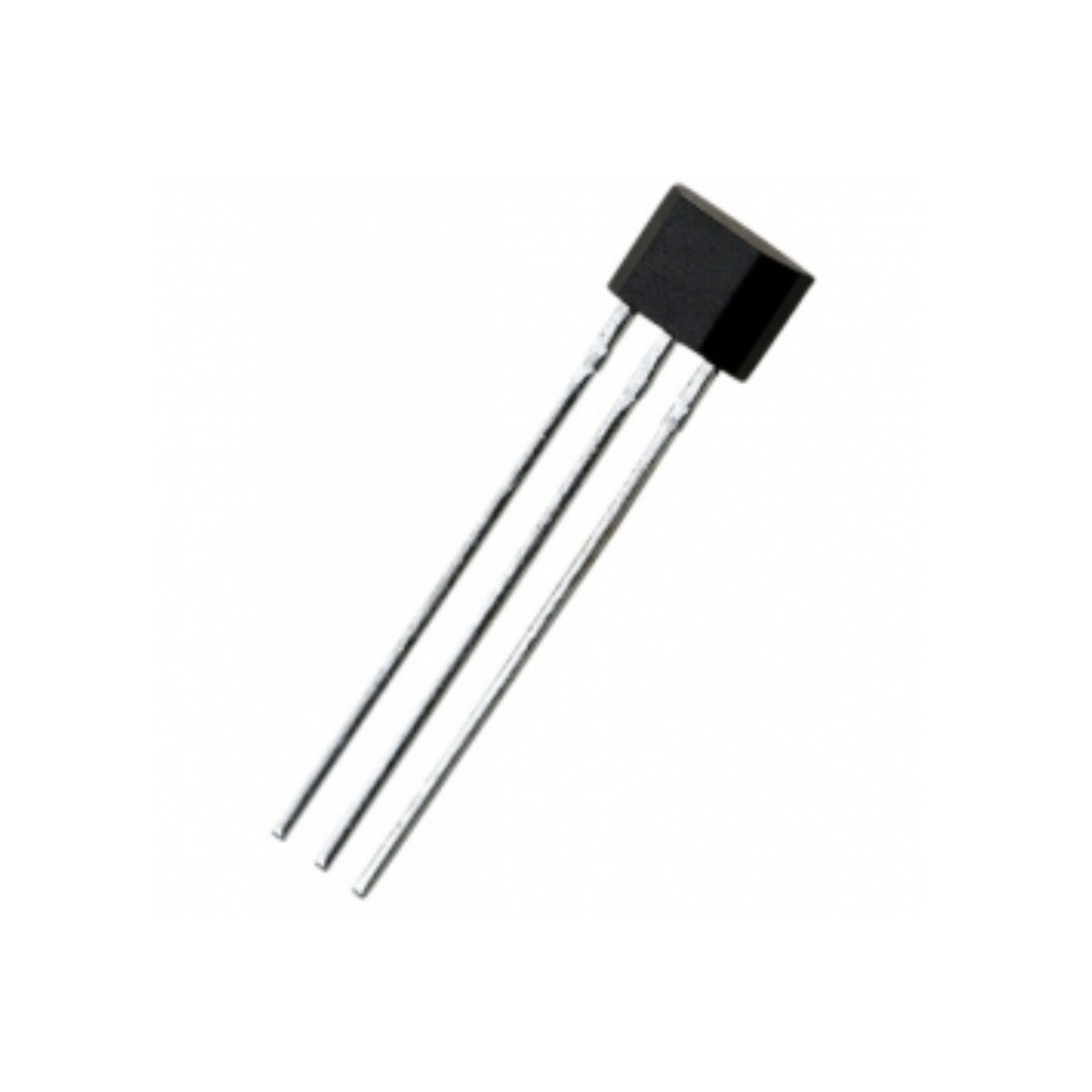

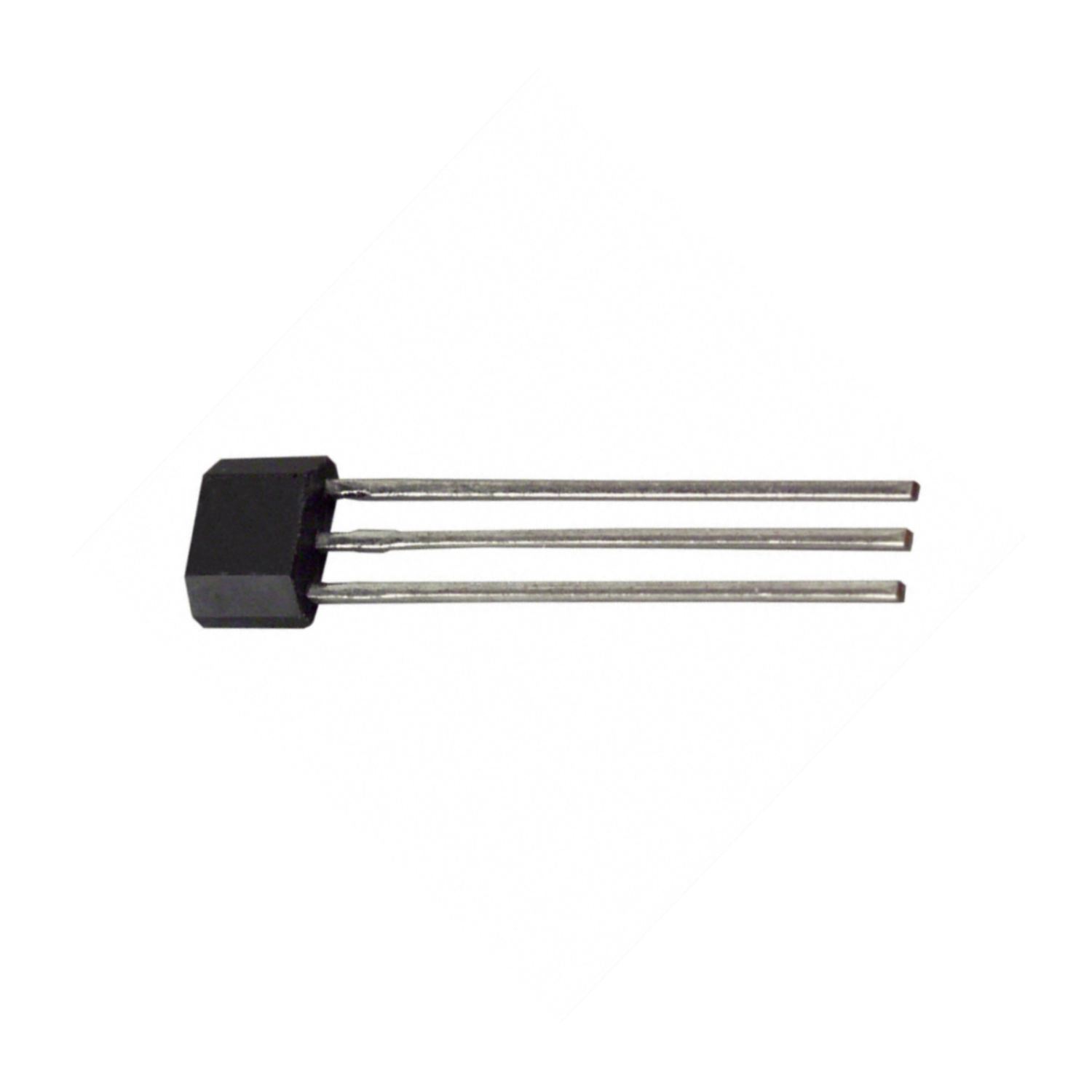

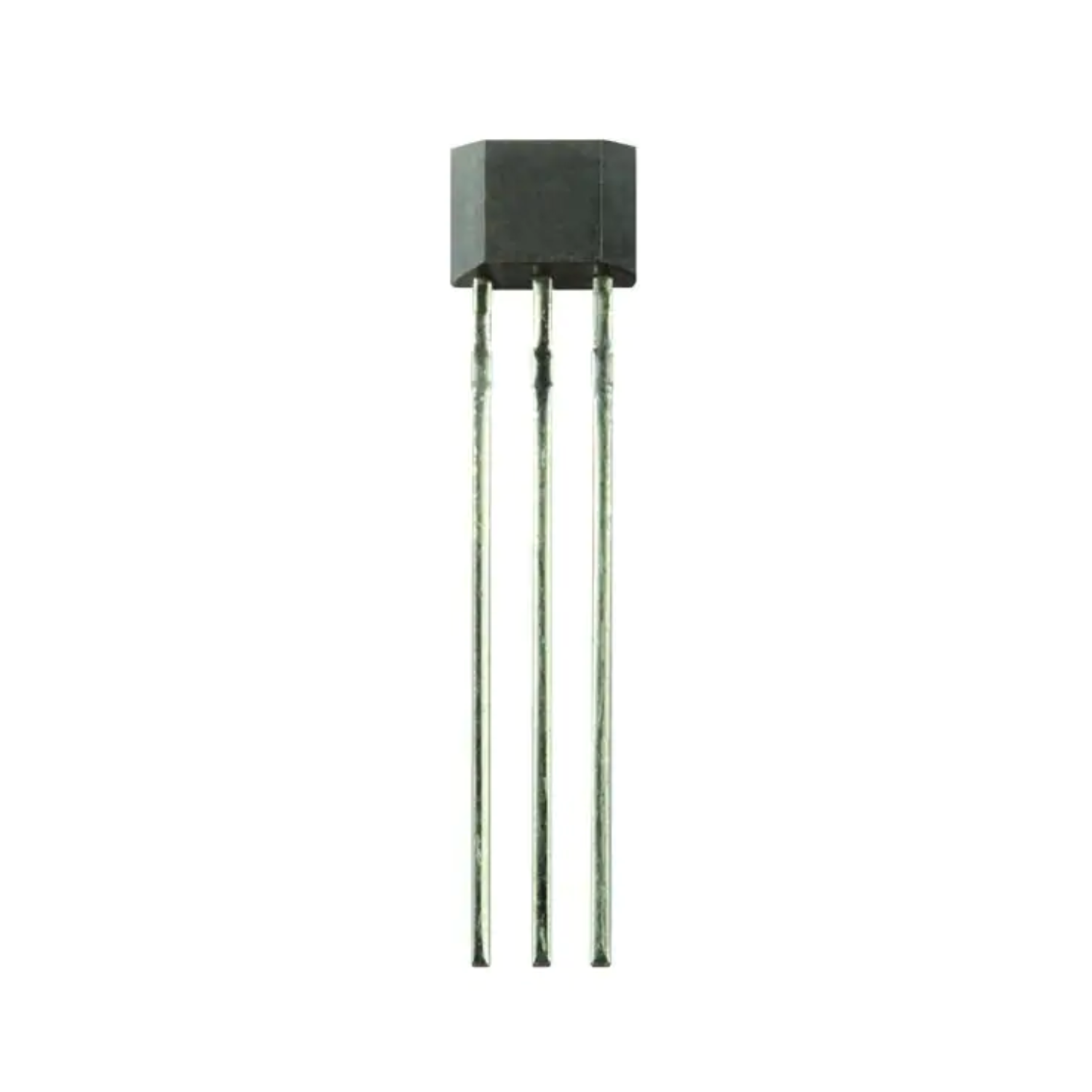

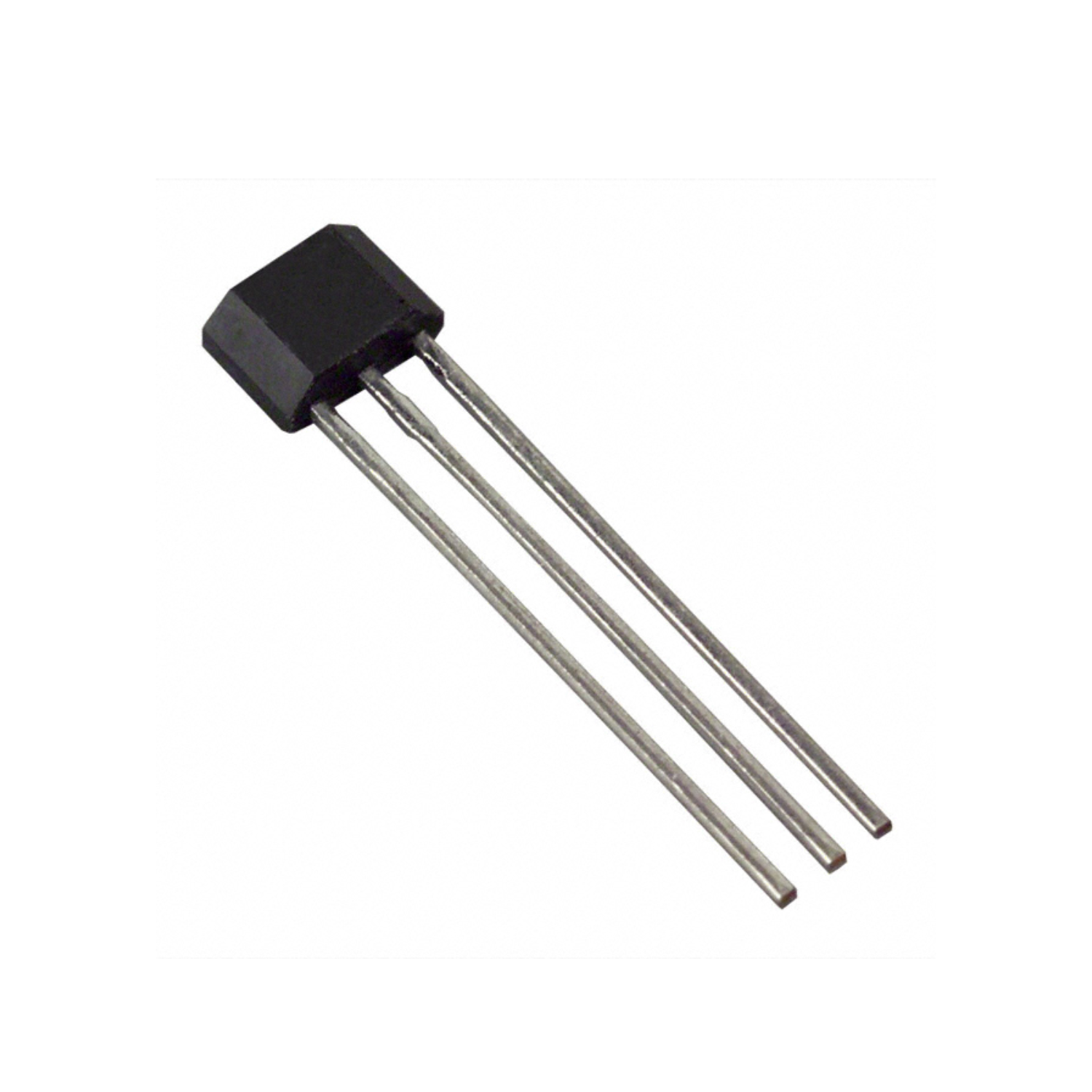

1 x Honeywell SS466A Bipolar Hall Effect Magnetic Sensor
