Description:

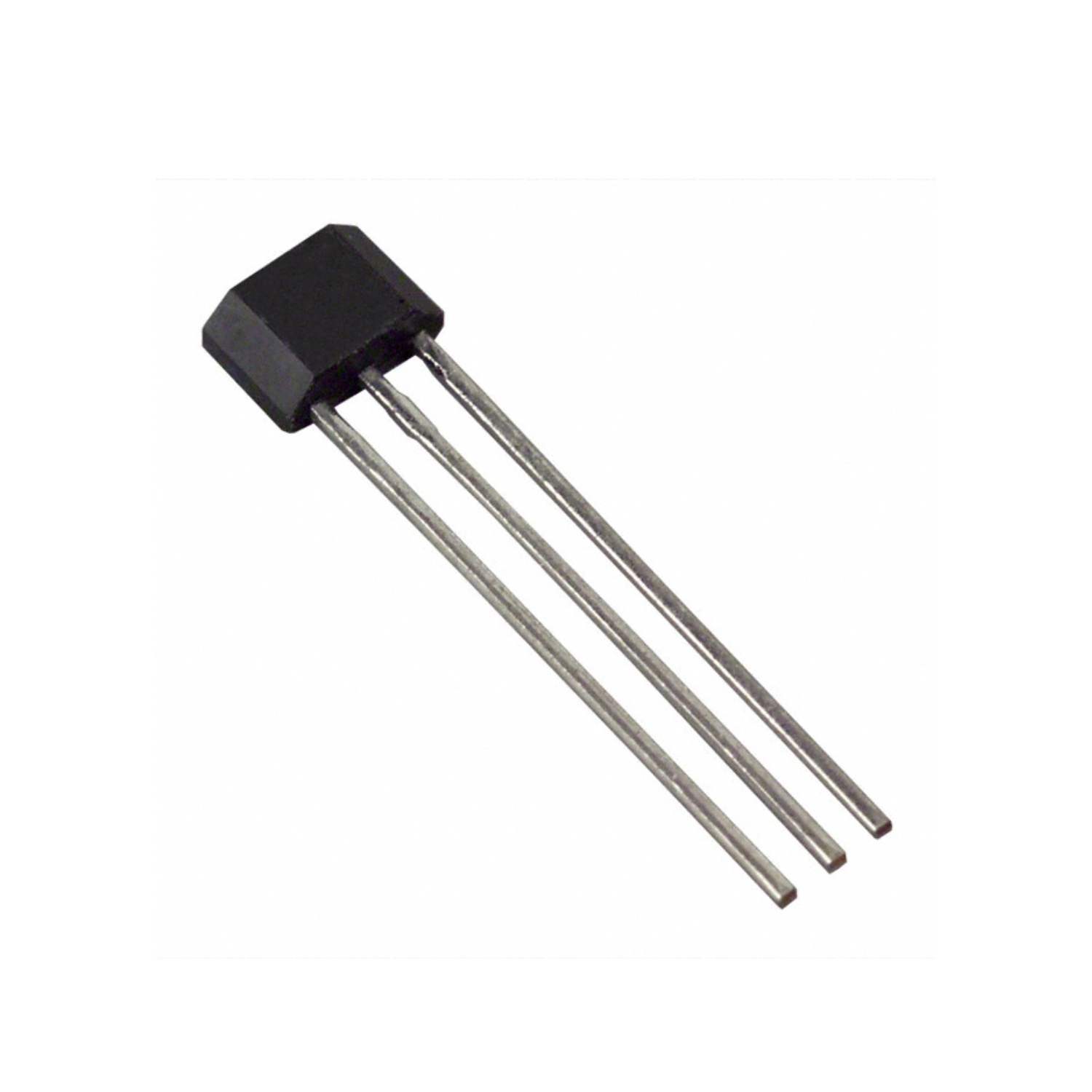

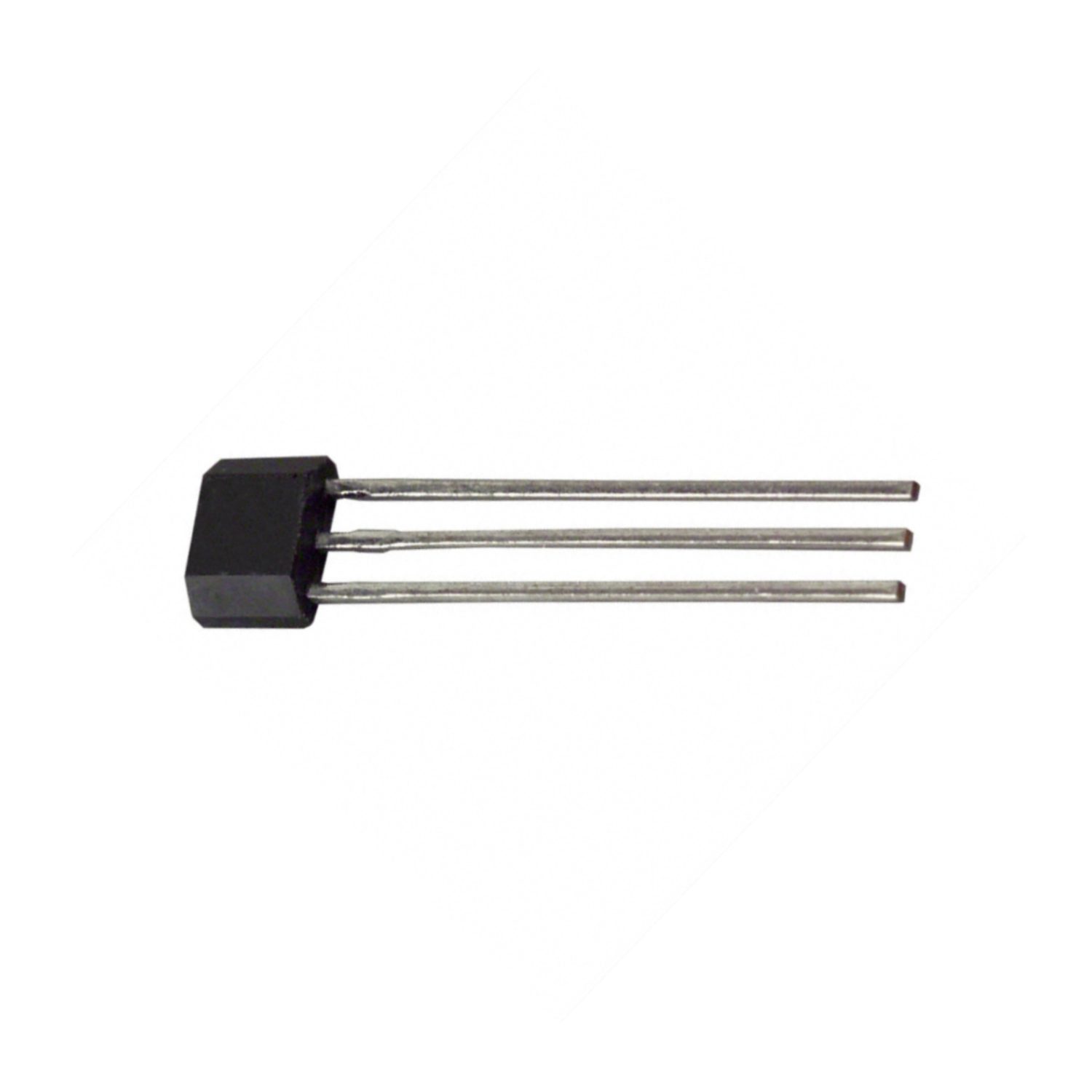

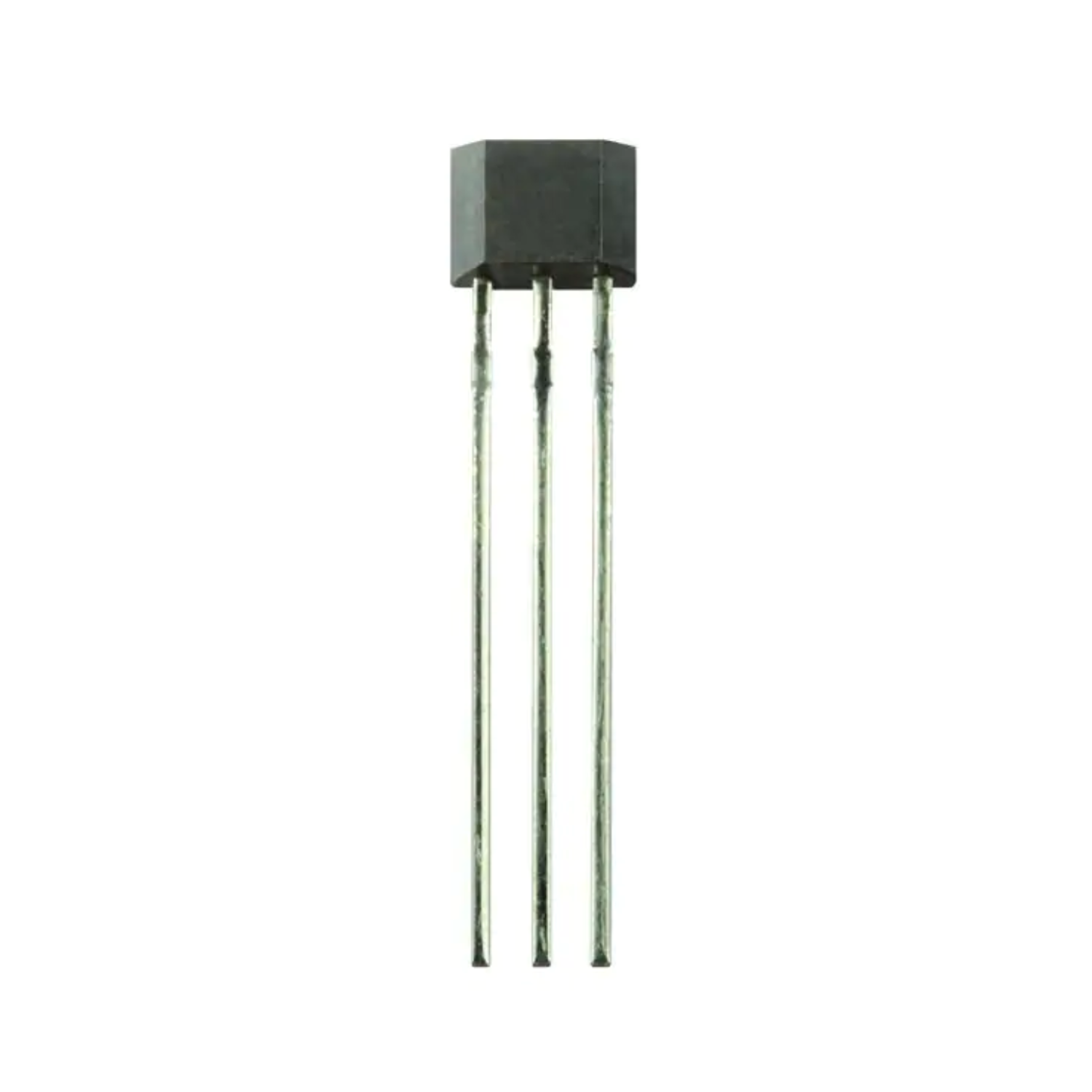

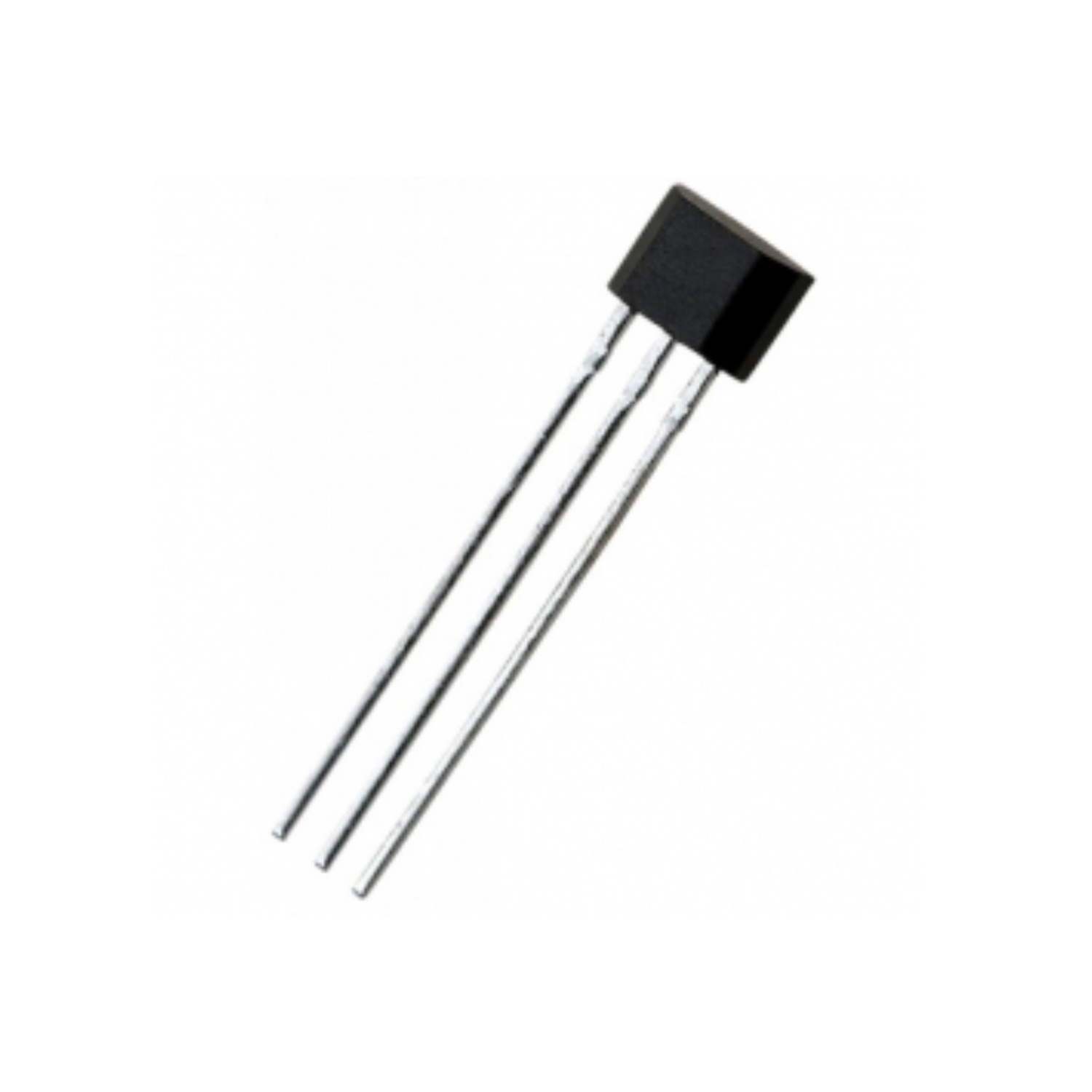

Honeywell's SS441R Unipolar Board Mount Hall Effect-Magnetic Sensors are compact and versatile integrated circuits that utilize the Hall Effect principle for precise magnetic field sensing. These sensors are activated by the magnetic field generated from a permanent magnet or an electromagnet, enabling a wide range of applications.
Designed for ease of integration, these sensors are particularly well-suited for smaller assemblies due to their miniature size. Operating at a low 3 Vdc supply voltage, they promote energy efficiency and are ideal for battery-powered or low-power applications.
Specification:
- Model Type: Magnetic Sensor
- Model No.: SS441R
- Type: Unipolar
- Mounting Type: Through Hole
- Operating Temperature: -40 to +150°C
- Output Voltage: 24 V
- Operating Supply Current: 3.5 mA
- Maximum Output Current: 8 mA
- Operating Point Min/Max: 35 G to 135 G
Features:
- Compact and automated component placement.
- Suitable for motion control, lid closure, and displacement.
- Reduces energy consumption.
- Stable operation from -40°C to 150°C.
Package Included:
1 x Honeywell SS441R Unipolar Hall Effect Magnetic Sensor
