Description:

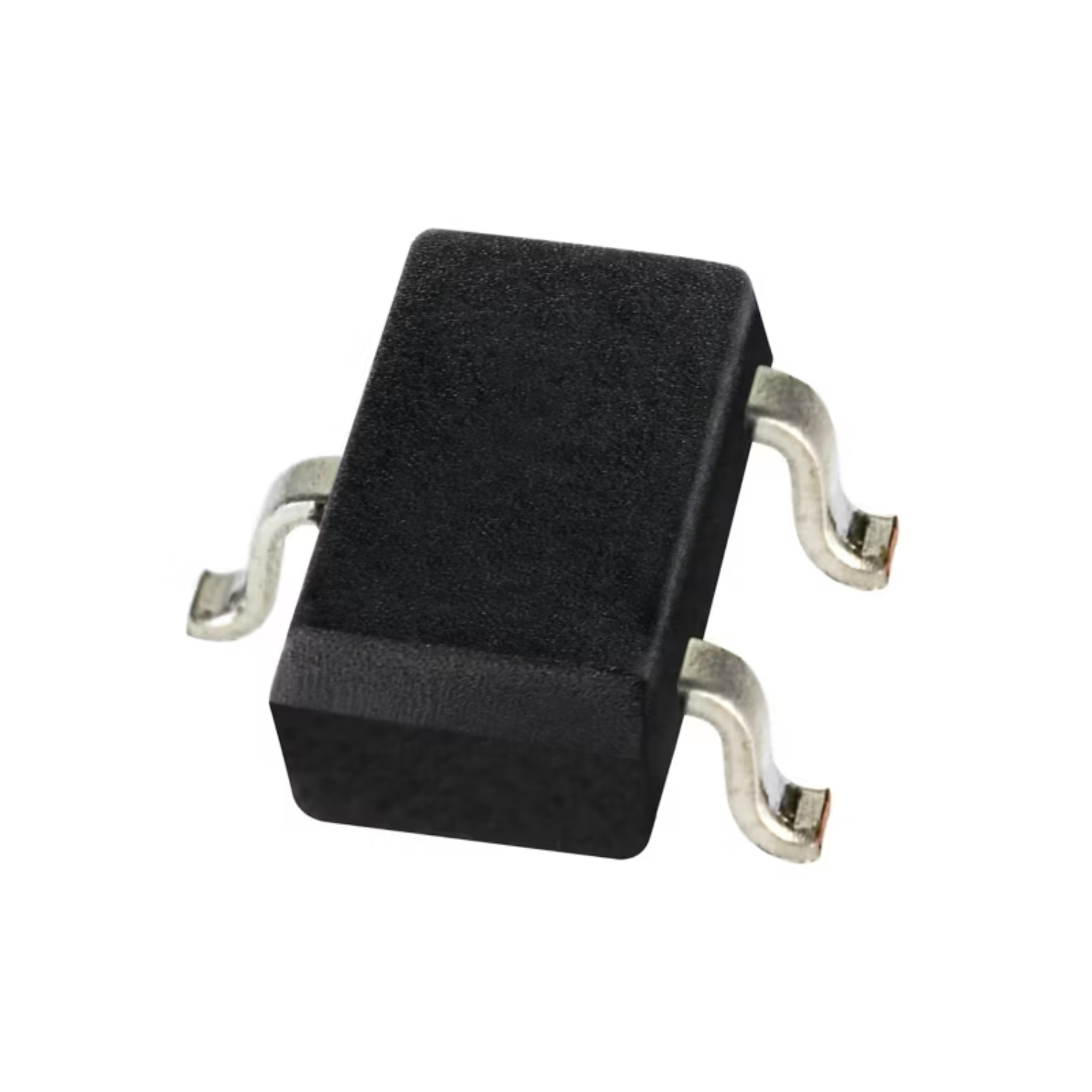

The Honeywell SS39ET Board Mount Hall Effect/Magnetic Sensor is engineered for compact designs and delivers reliable magnetic sensing in a small footprint. Its key features include a low power consumption of only 6 mA at 5 Vdc, a flexible 2.7 Vdc to 6.5 Vdc supply voltage, and a stable, low-noise output thanks to thin film resistors. With an extended operating temperature range of -40°C to 100°C, this sensor is well-suited for diverse industrial and medical uses, such as motor load monitoring and precise position sensing in infusion pumps.
Specifications:
- Model Type: Magnetic Sensor
- Model No.: SS39ET
- Mounting Type: SMD/SMT
- Types: Ratiometric Linear
- Max Output Current: 1.5mA
- Operating Temperature: -40 to +100°C
- Input Supply Voltage -500 mV to 8V
Features:
- Miniature and subminiature construction for compact designs
- Easy PC board interface with single current-sourcing output
- Low noise output, eliminating the need for filtering
- Stable output due to thin film resistors
Package Included:
1 x Honeywell SS39ET Ratiometric Hall Effect Magnetic Sensor
