Description:
The Honeywell SS360ST Board Mount Hall Effect/Magnetic Sensor offers high-sensitivity, latching digital magnetic field detection for a broad range of applications. This sensor operates over a wide voltage range (3 Vdc to 24 Vdc) and boasts high magnetic sensitivity (30 G typical, 55 G max), enabling it to detect even weak magnetic fields.
Its rapid response time ensures quick and accurate switching. Designed for South Pole activation, the SS360ST provides reliable switching points without the need for chopper stabilization, resulting in clean and noise-free output signals. This sensor is commonly used in industrial, commercial, and medical equipment for tasks such as position sensing, speed detection, and current sensing.
Specifications:
- Model Type: Magnetic Sensor
- Model No.: SS360ST
- Operating Voltage: 3 to 24V
- Types: Bipolar
- Max. supply current: 3.5mA
Features:
- High sensitivity for detecting low magnetic fields
- Latching magnetics for reliable switching
- Wide operating voltage range for versatile applications
- No-chopper stabilization for clean output signals
- Built-in reverse voltage protection
- Durable design compliant with RoHS Directive 2002/95
Application:
- Industrial/Commercial:
Brushless DC Motor Commutation: Enhances motor efficiency.
Speed and RPM Sensing: Monitors electric motors and fans.
Tachometer and Counter Pickup: Accurate speed measurements.
Robotics Control: Precise position and speed control.
Flow-Rate Sensing: For appliances requiring fluid measurement. - Transportation:
Electronic Window Lift: Ensures smooth operation in anti-pinch power window systems.
Convertible Roof Position: Accurate position sensing for vehicle roofs. - Medical:
Medical Equipment: Optimizes performance in devices using electric motors.
Package Included:

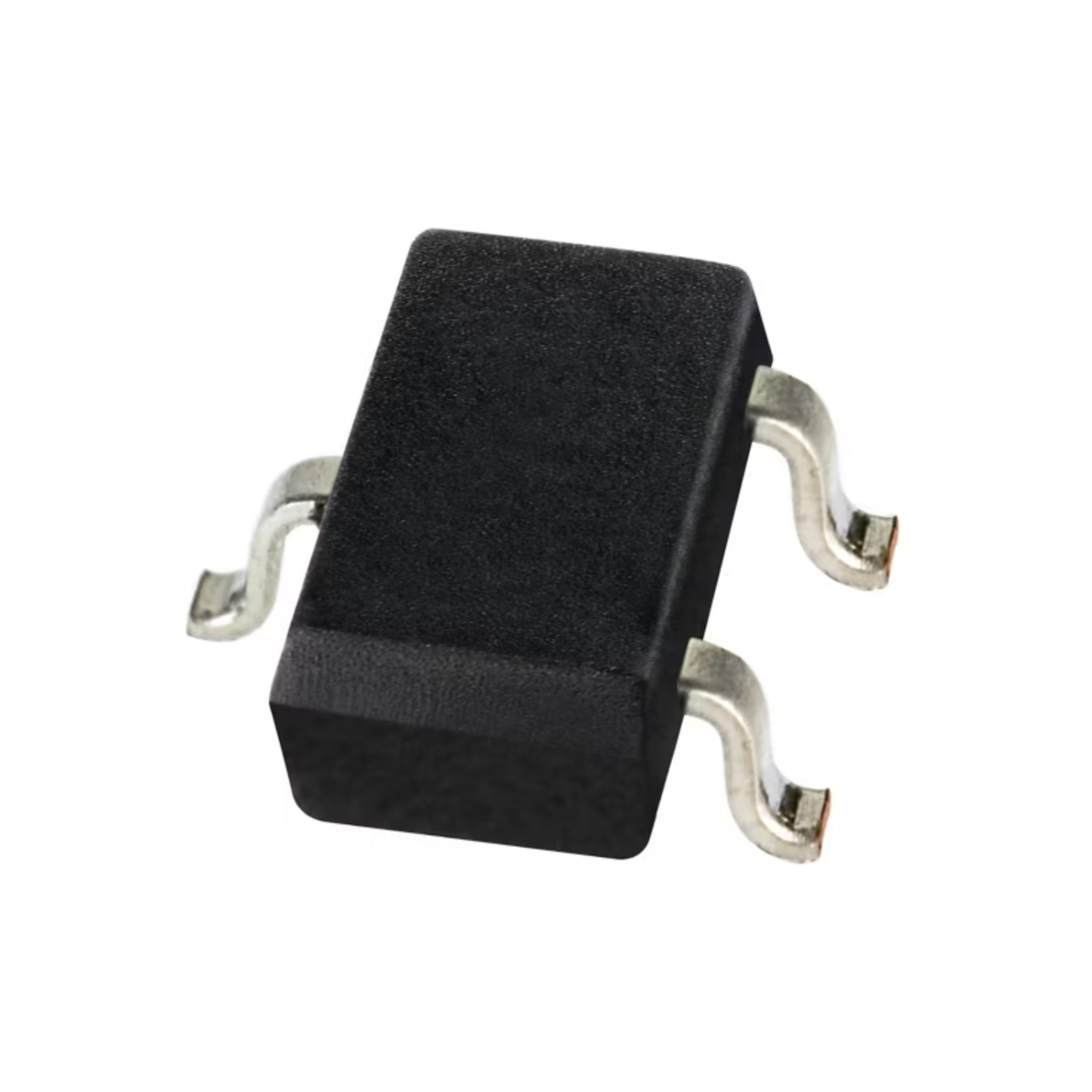

1 x Honeywell SS360ST SOT-23 Bipolar Latch Hall Effect
