Description:
The Honeywell SM353LT Nanopower Magnetoresistive Sensor IC offers a versatile and energy-efficient approach to magnetic field sensing. Designed for high sensitivity, it excels in applications with significant air gaps and subtle magnetic fields. Its flexible supply voltage range of 1.65 Vdc to 5.5 Vdc, coupled with omnipolar sensing, provides adaptability in various designs.

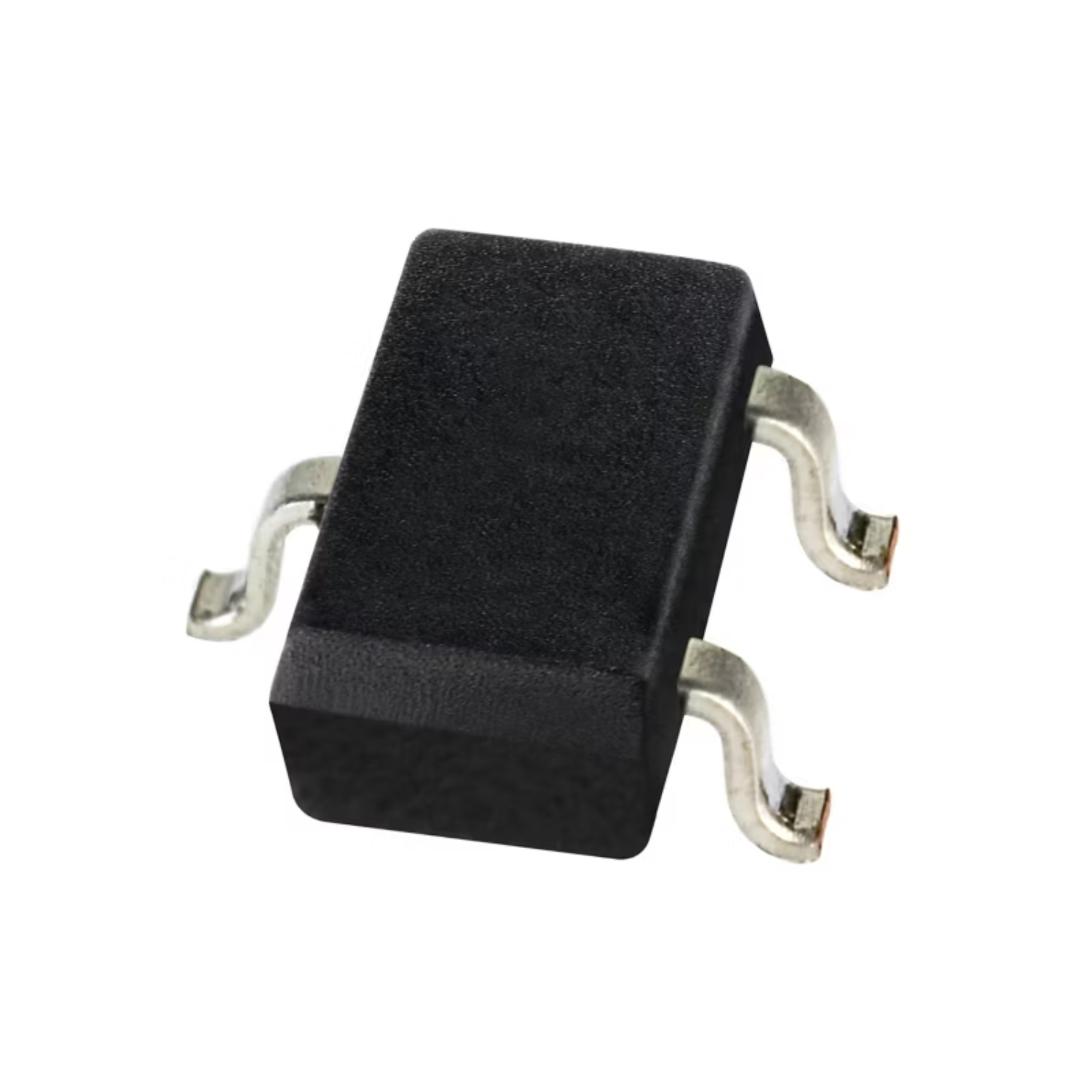

The integrated push-pull output streamlines implementation by removing the requirement for an external pull-up resistor. Encased in a compact SOT-23 package, this sensor IC ensures ease of installation and contributes to energy conservation in a wide array of industrial, medical, and consumer electronics.
Specifications:
- Model Type: Magnetic Sensor
- Model No.: SM353LT
- Mounting Type: SMD/SMT
- High sensitivity: 14 G typical, 20 G max.
- Nanopower: 310 nA average current
- Supply voltage range: 1.65 Vdc to 5.5 Vdc
- Max Output Current (mA): 5
- Omnipolar sensing: Activates with either pole from a magnet
- Temperature range: -40°C to 85°C
- Push-pull output: No external pull-up resistor is needed
- Types: unipolar Magnetoresistive Sensor IC
Features:
- High magnetic sensitivity and low current draw
- Wide supply voltage range for versatile design
- Omnipolar sensing for simplified installation
- Push-pull output for reduced component count
- RoHS-compliant materials for environmental safety
- Compact SOT-23 package for automated installation
Application:
- Medical.
- Consumer electronics applications.
Package Included:
1 x Honeywell SM353LT AMR Hall Effect Magnetic Sensor
