Description:

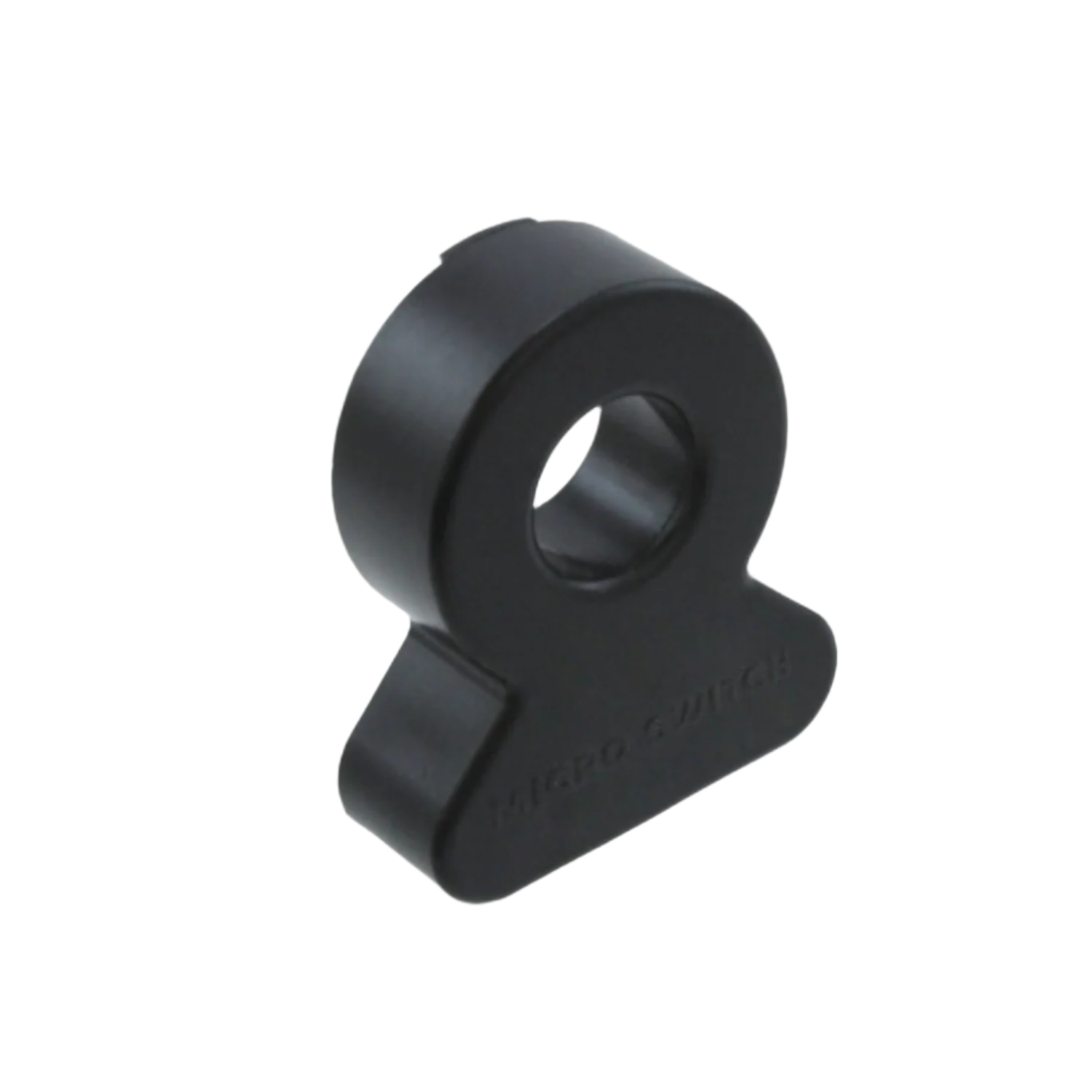

The MICRO SWITCH CS series linear current sensors deliver precise and reliable current measurement by integrating our high-performance 91SS12-2 and SS94A1 linear output Hall effect transducer (LOHET™).
Engineered for convenient integration, the sensing element is securely housed in a printed circuit board mountable package, available in four distinct mounting configurations (refer to mounting dimension figures 1, 1a, 2, and 2a). Installation is straight forward, typically utilizing a 0.375-inch long 4-40 screw and square nut (not included) inserted into the housing, or a 6-20 self-tapping screw.
This thoughtfully designed holder assembly combines the sensor, a flux collector for enhanced accuracy, and a robust housing. Furthermore, these sensors offer ratiometric output, ensuring consistent performance across varying supply voltages.
Specifications:
- Sensor Type: Hall Effect, Open Loop
- Output: Ratiometric, Voltage
- Current-Sensing: 100
- Sensitivity: 29.7mV/N
- Sensor Output: Voltage
- Supply Voltage DC Min: 6V
- Supply Voltage DC Max: 12V
- Current Measuring Range DC: -125A to 125A
- Current Measuring Range AC: -125A to 125A
- Response Time: 3µsProduct
Features:
- Provides a current measurement directly proportional to the sensed current.
- Measures both alternating and direct current types.
- Enables secure and stable mounting on printed circuit boards.
- Offers rapid detection and tracking of current changes.
- The output voltage is electrically separated from the input current path.
- Minimizes power loss during operation.
- Maximum current handling is primarily limited by the conductor itself.
- Adjustable settings and built-in temperature compensation ensure consistent operation.
- Delivers precise current measurement at an economical price point.
- Operates reliably in environments from -25 to 85°C.
- Constructed with robust PET polyester material.
Applications:
Motor Drive & Control, Safety, Sensing & Instrumentation, Robotics, Power Management, Communications & Networking, Automotive, Metering
Package Included:
1 x Honeywell Hall Current Sensor
