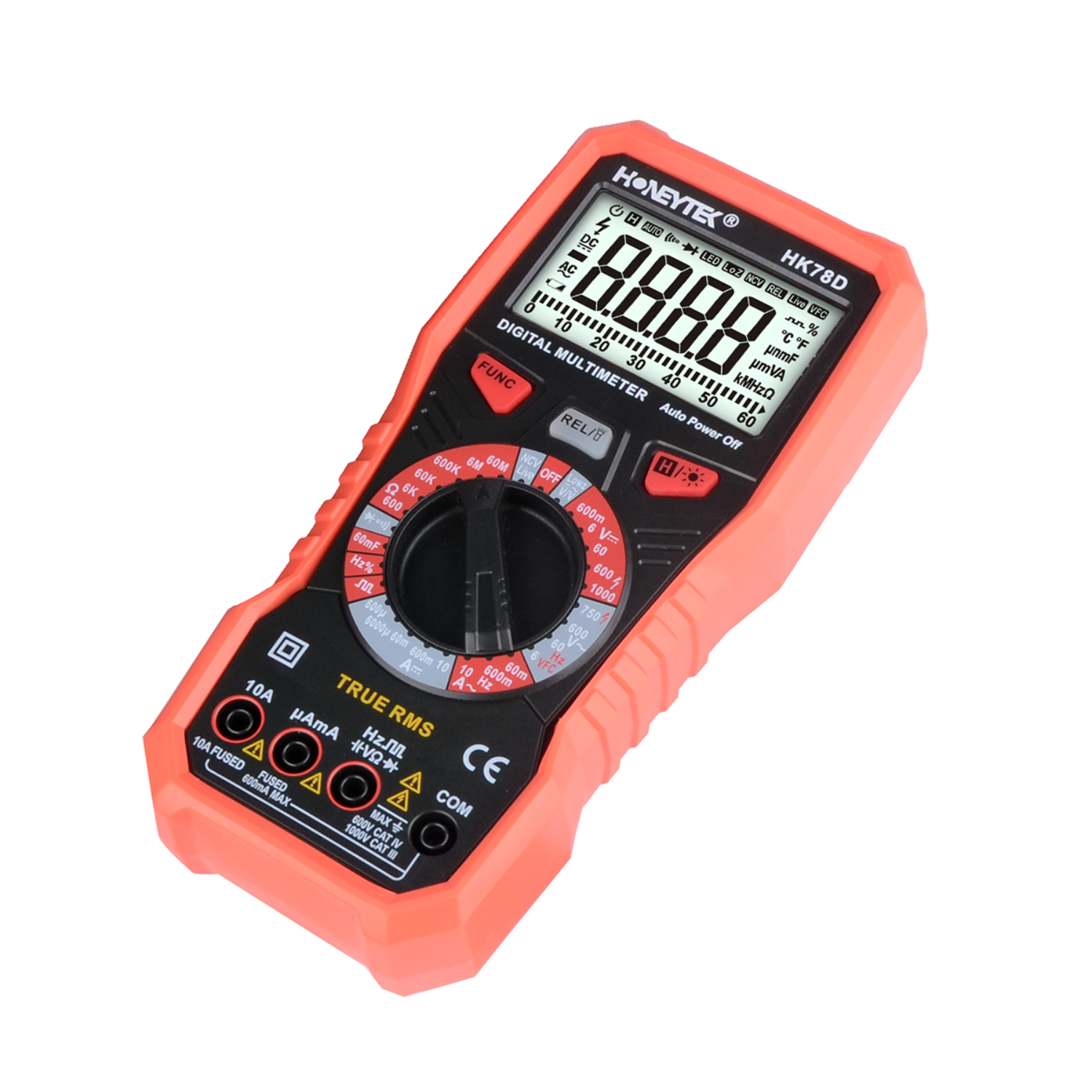

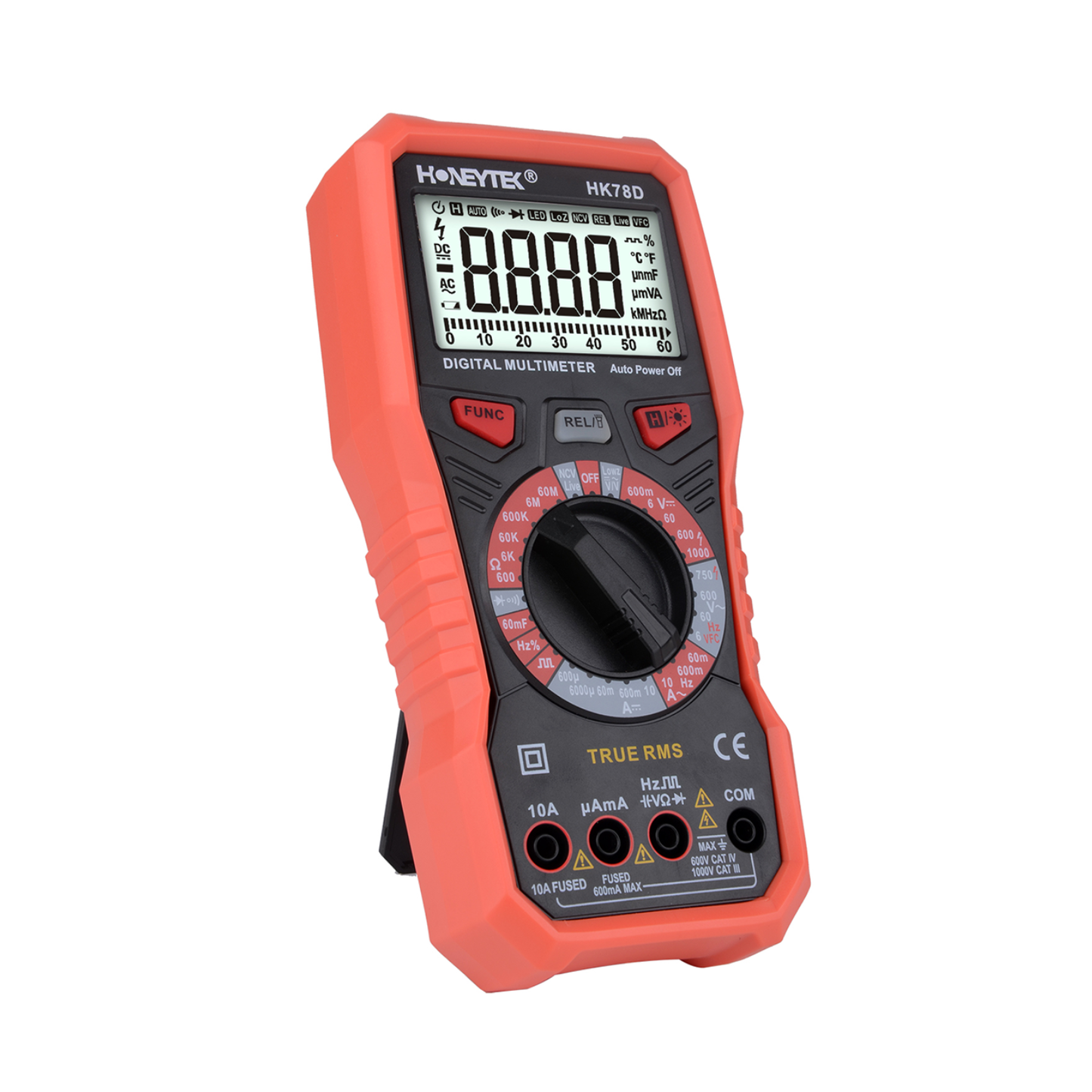

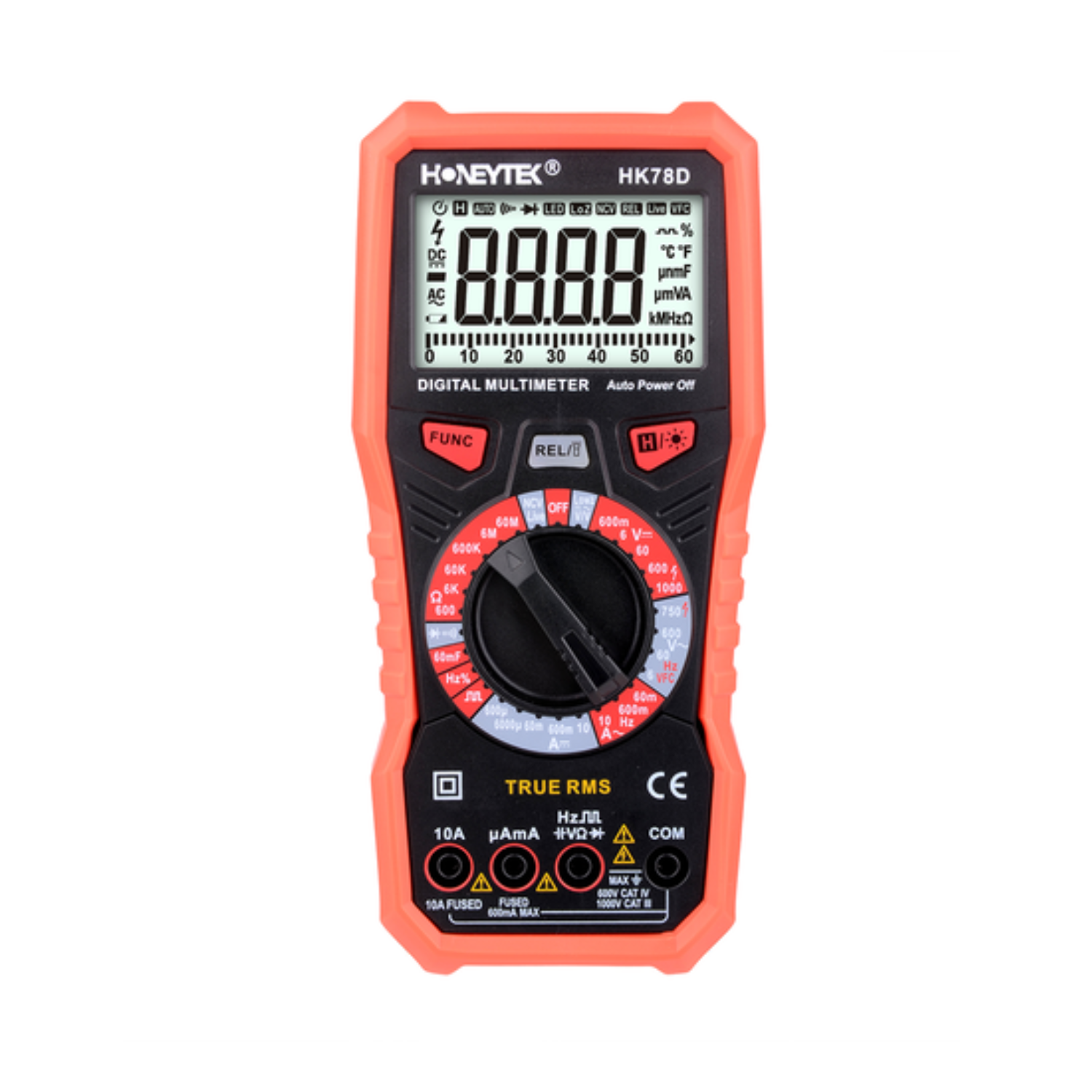

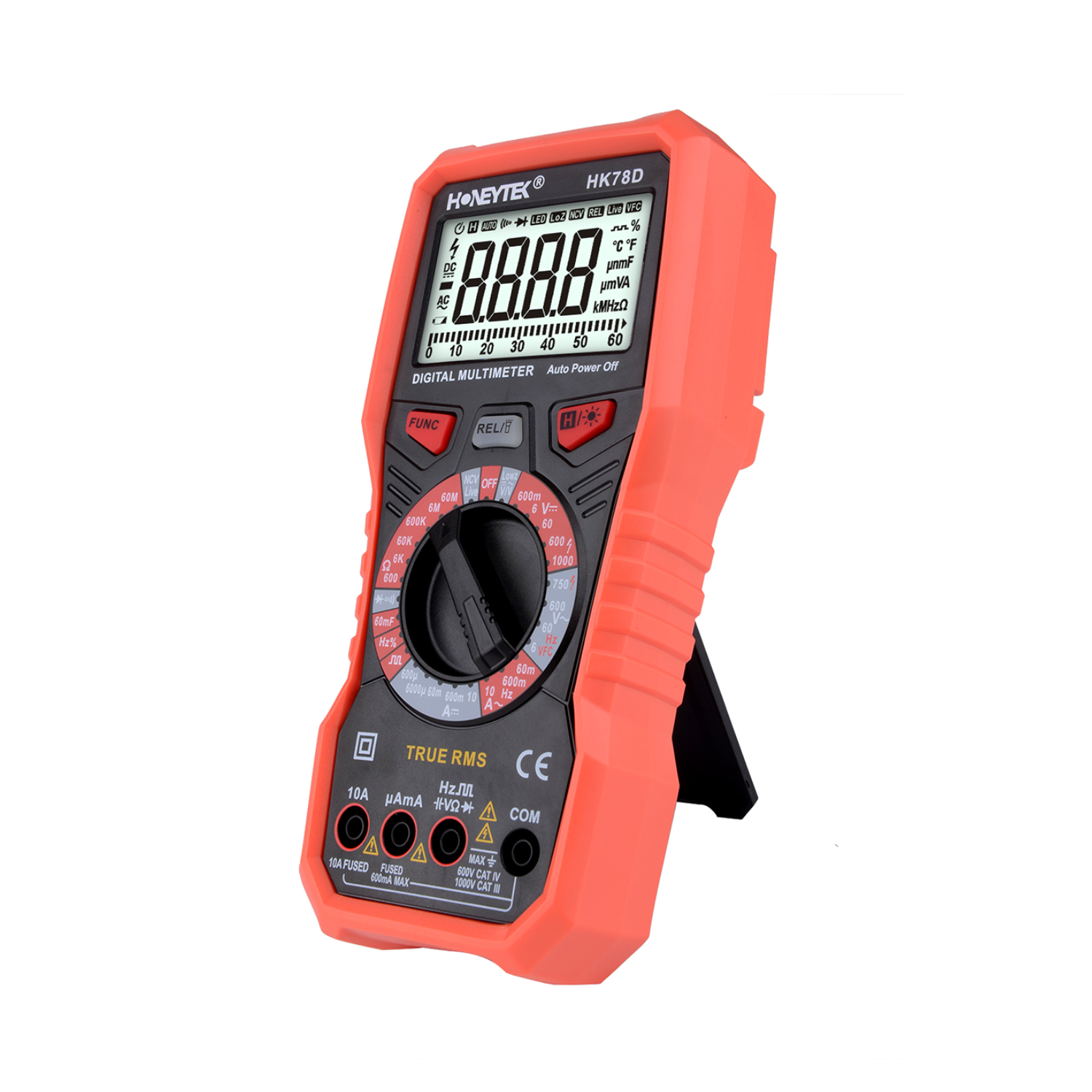

Honeytek HK78D True-RMS Digital Multimeter High-Accuracy Auto-Ranging Meter For Professional AC/DC Electrical Testing & Troubleshooting
Honeytek HK78D True-RMS Digital Multimeter High-Accuracy Auto-Ranging Meter For Professional AC/DC Electrical Testing & Troubleshooting
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
These range multimeters have been designed according to IEC-61010-2-032 concerning electronic measuring instruments with CAT III 1000V & CAT IV 600V and pollution 2.
78 series multimeter have been designed as a higher stable, higher reliable, and with excellent accurate A/D converter as the core for large scale integrated circuit to ensure measure AC/DC Voltage, AC/DC current, Resistance, Capacitance, Frequency, Diode, Transistor, Continuity, Temperature, and conductivity test.
All these features made 78 series multimeters to be an ideal tool on Bield working, laboratory, factory, hobbyist, as well as household applications. To fully utilize this range of multimeters, please keep this manual
Specifications:
| Display count | 6000 |
| DC Voltage | 0.1mV～1000V/±(0.5%+3) |
| AC Voltage | 0.001V～750V/±(1.0%+5) |
| DC Current | 0.01uA～10A/±(1.0%+5) |
| AC Current | 0.01mA～10A/±(1.5%+5) |
| Resistance(Ω) | 0.1Ω～60MΩ/±(0.8%+5) |
| Capacitance | 10pF～60mF/±(4.0%+15) |
| Frequency | 10Hz ～10MHz/±(0.1%+2) |
| Range Select | Manual |
| Input impedance | ≧10MΩ |
| Battery Type | 1.5V(AA)×2 |
Features:
- True RMS
- Duty Cycle
- Continuity Buzzer
- Diode Test
- Square Wave Output
- Auto Identify ACV/DCV
- LCD Backlight
- Flashlight
- LED Light
- NCV
- Line Test
- Analog Bar Display
- LoZ
- V.F.C
- Data Hold
- Relative mode
- Auto Power Off
- Low Battery Indicator
- Icon Display
- FUSED 200mA/10A
- Full Range Overload Protection
Product Interface:
Useful Links:
Honeytek HK78D True-RMS Digital Multimeter

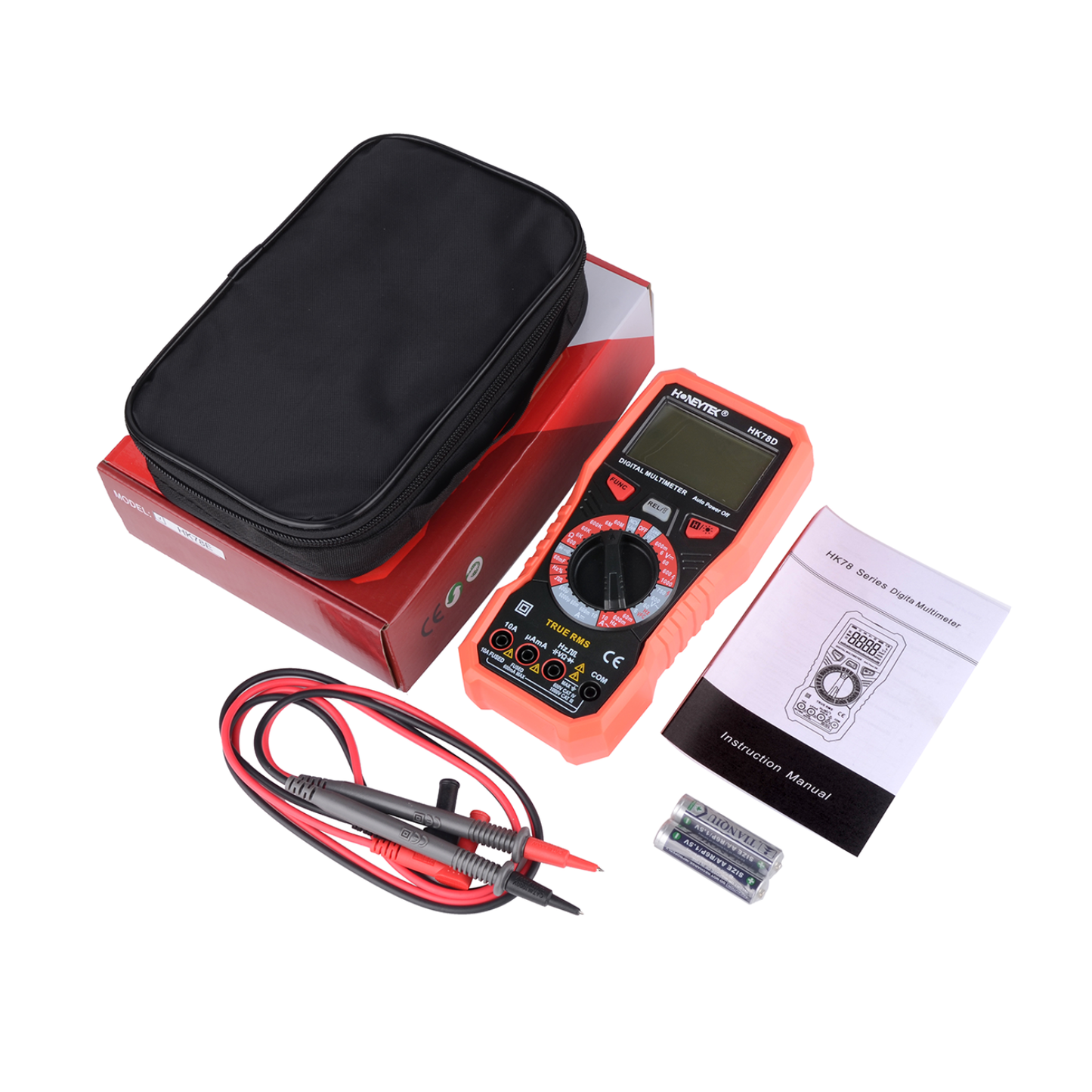

Package Included:
- 1 x Honeytek HK78B-Pro Digital Multimeter
- 1 x Testing cable
- 1 x Case
- 1 x Manual
- 2 x AA Battery
