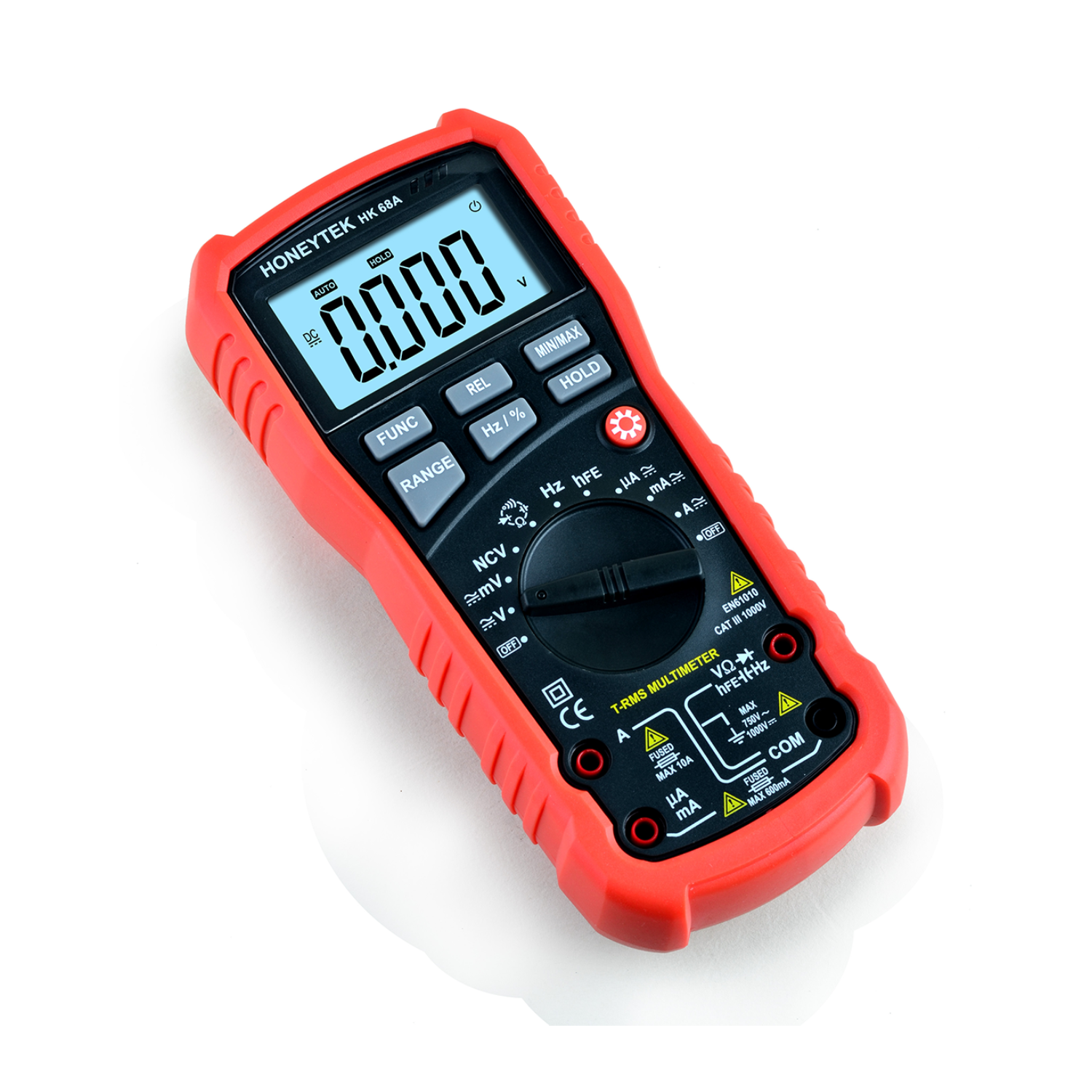

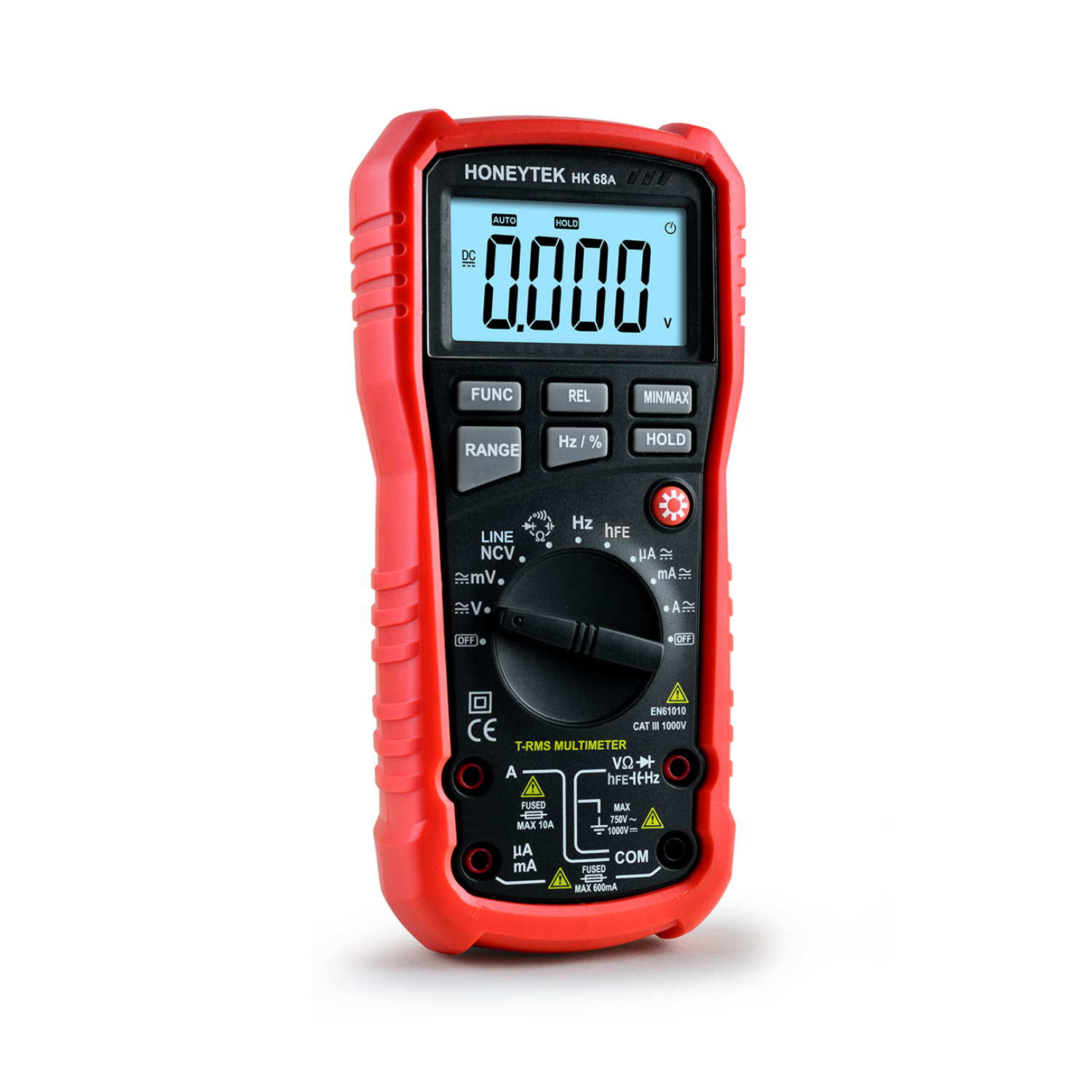

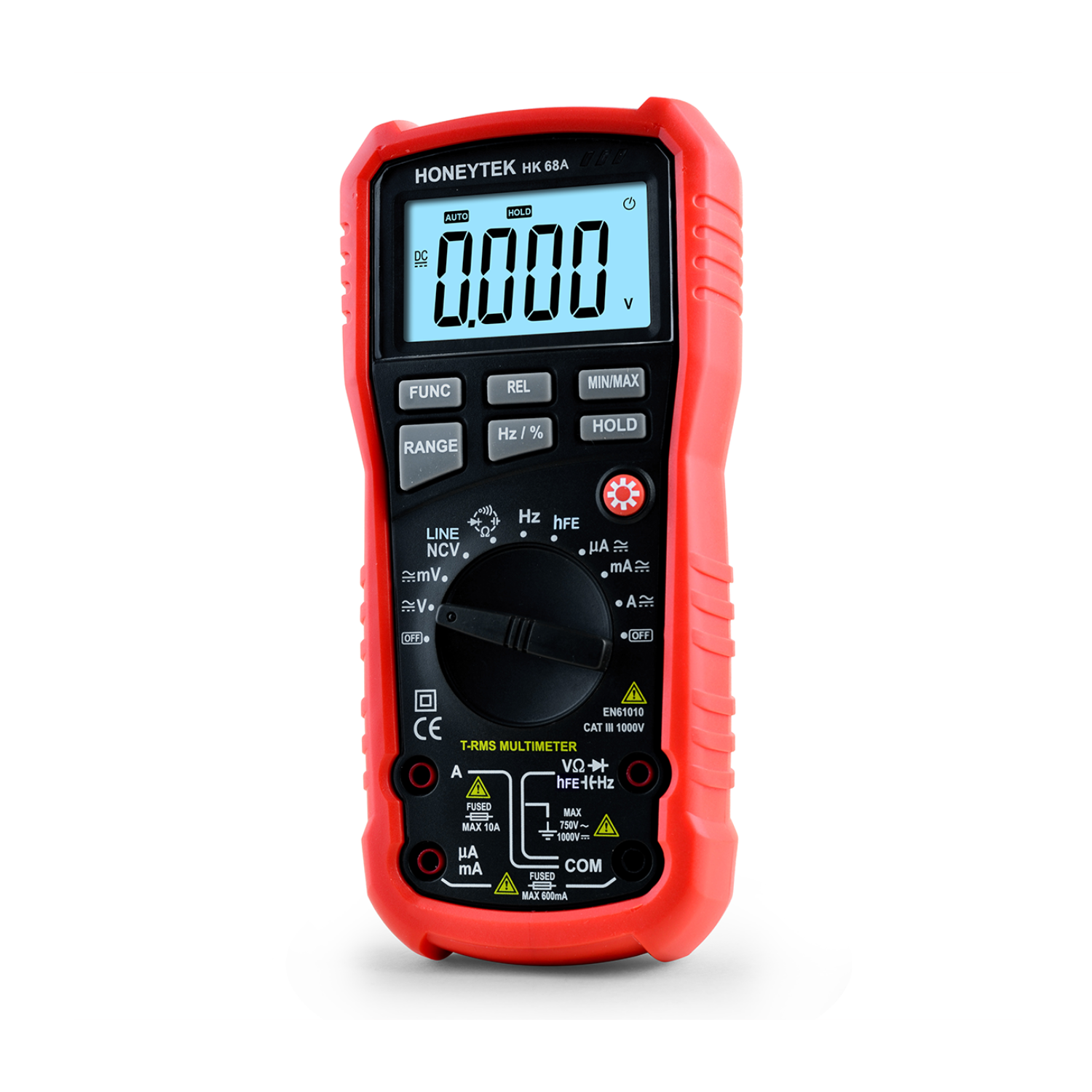

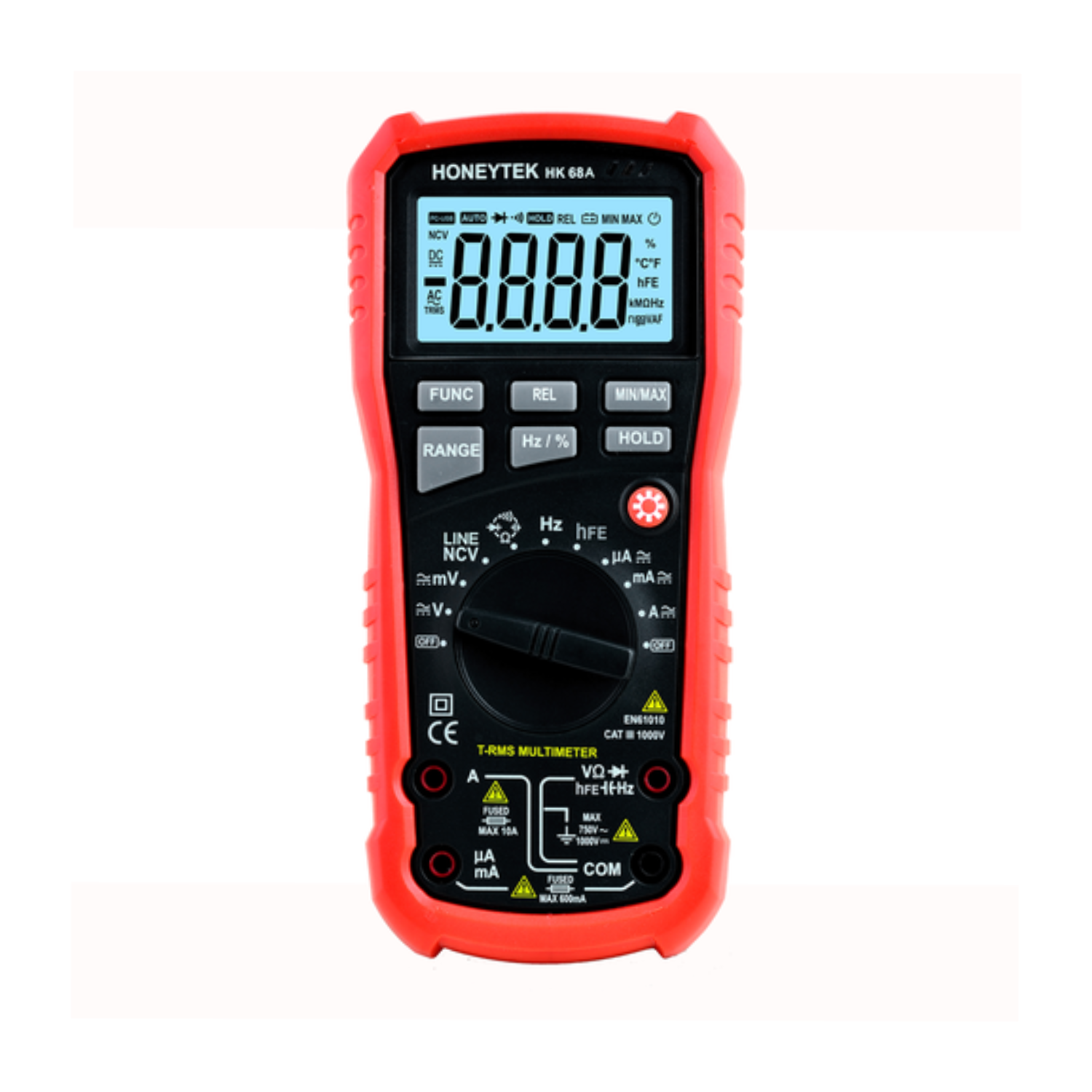

Description:
The HK68A digital multimeter is an auto-ranging multimeter. The enclosure structure is designed to provide sufficient insulation. The meter can measure AC/DC voltage and current, resistance, diode, continuity buzzer, capacitance, frequency, temperature (C or F), and hFE function.
Specifications:
Display count | 4000 |
DC Voltage | 0.01mV - 1000V/±(0.8%+3) |
AC Voltage | 0.01mV - 750V/±(0.8%+5) |
DC Current | 0.1uA - 10A/±(0.8%+5) |
AC Current | 0.1uA - 10A/±(1.5%+5) |
Resistance(Ω) | 0.1Ω - 40MΩ/±(0.8%+5) |
Capacitance | 10pF - 100mF/±(4.0%+15) |
Frequency | 10Hz - 10MHz/±(0.5%+2) |
Range Select | AUTO |
Input Impedance | ≧10MΩ |
Battery Type | 9v |
Features:
- All models have True RMS measurement
- Duty cycle up to 1%-99%, Auto range, and auto power off
- Data hold and MAX/MIX measurement
- LCD backlight display (except UT61E)
-
Continuity Buzzer alarming

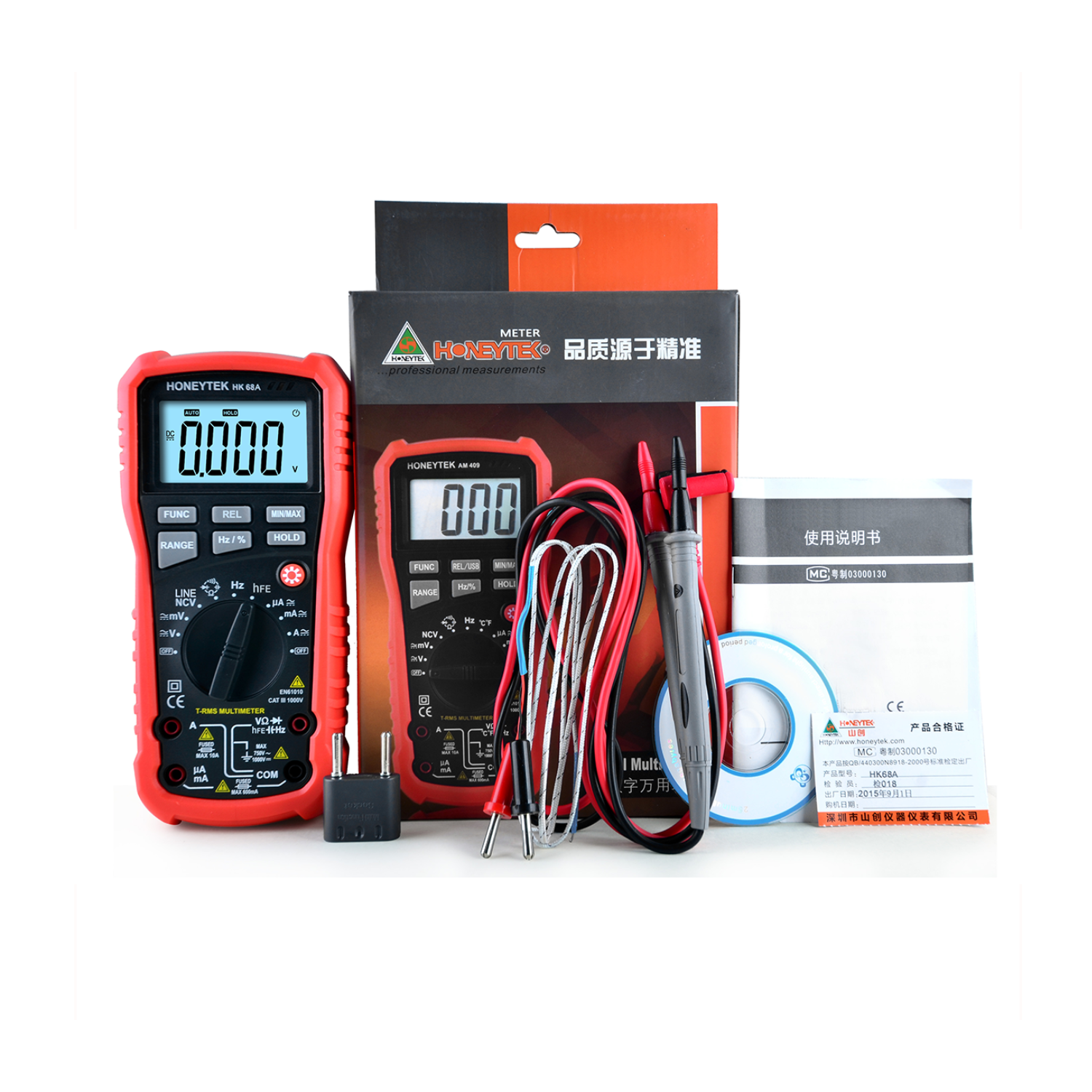

Package Included:
- 1 x Honeytek HK68A True-RMS Digital Multimeter
- 1 x Test Leads
- 1 x Software CD
- 1 x USB Cable
- 1 x Temperature Probe
-
1 x User Manual
