Description:

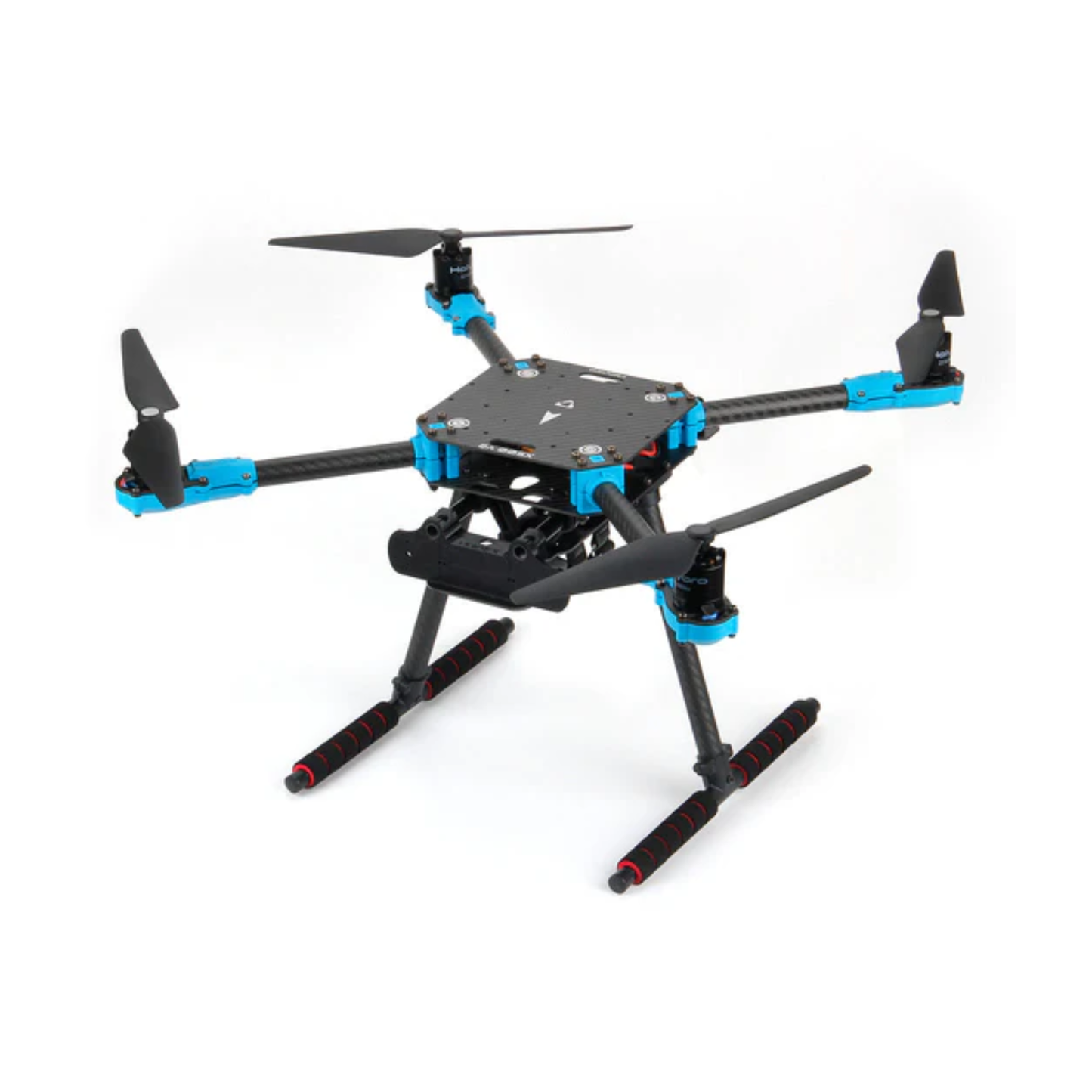

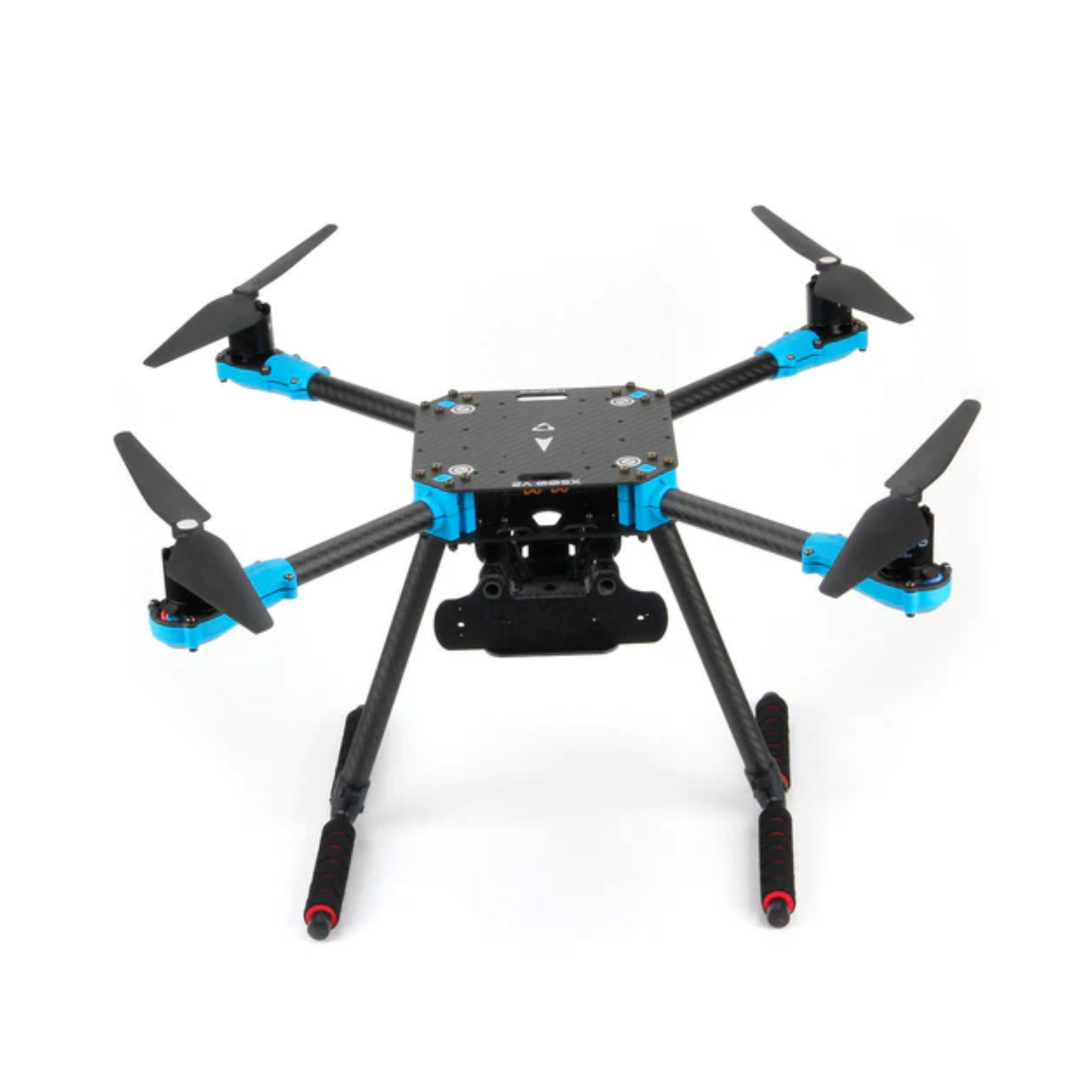

The Holybro X500 V2 FPV Drone Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards, and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared to the previous model.

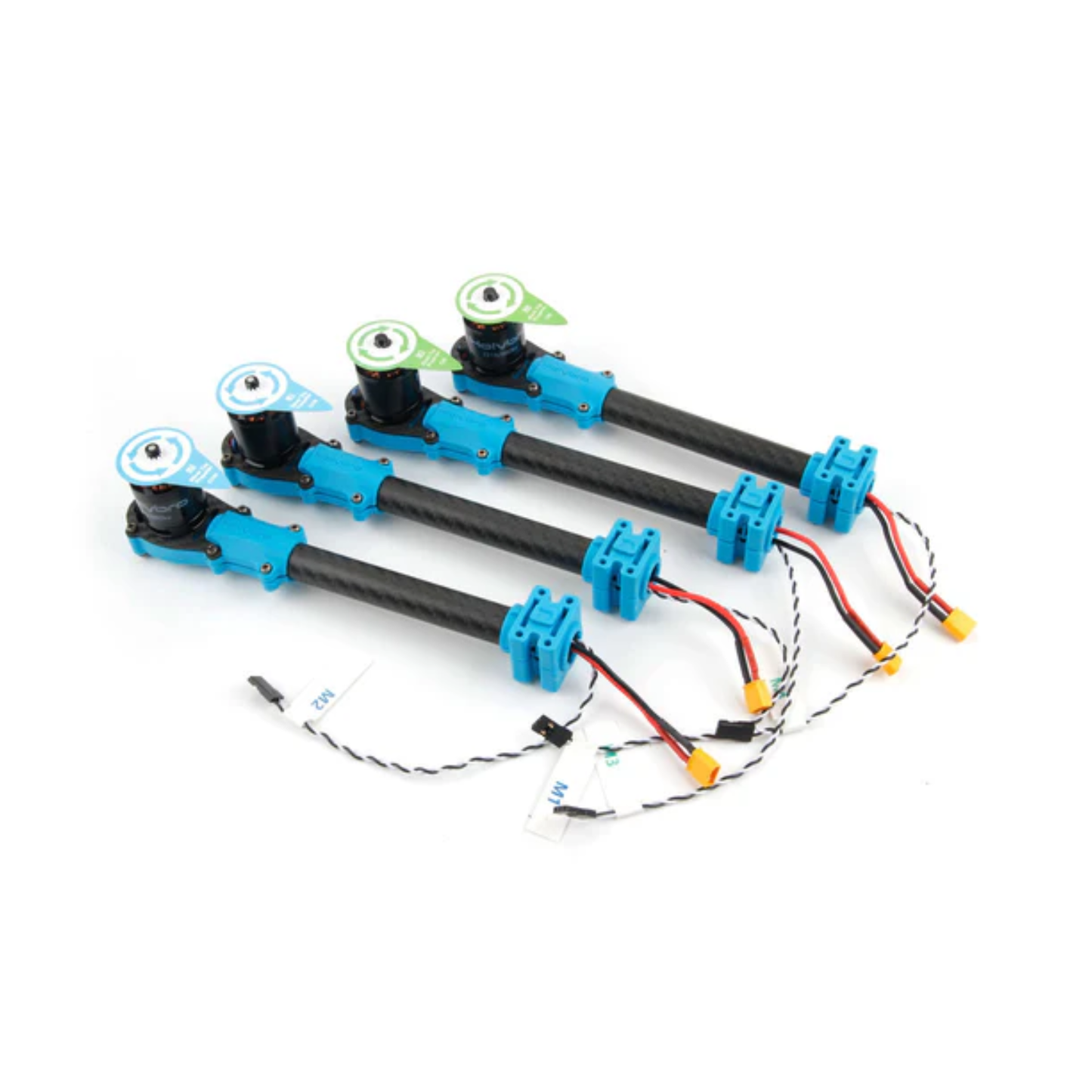

This X500 V2 ARF (Almost Ready-to-Fly) Kit is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber-reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier more straightforward installation. The landing gear consists of 16mm 10mm diameter carbon fiber tubes with connectors that have been thickened and strengthened.

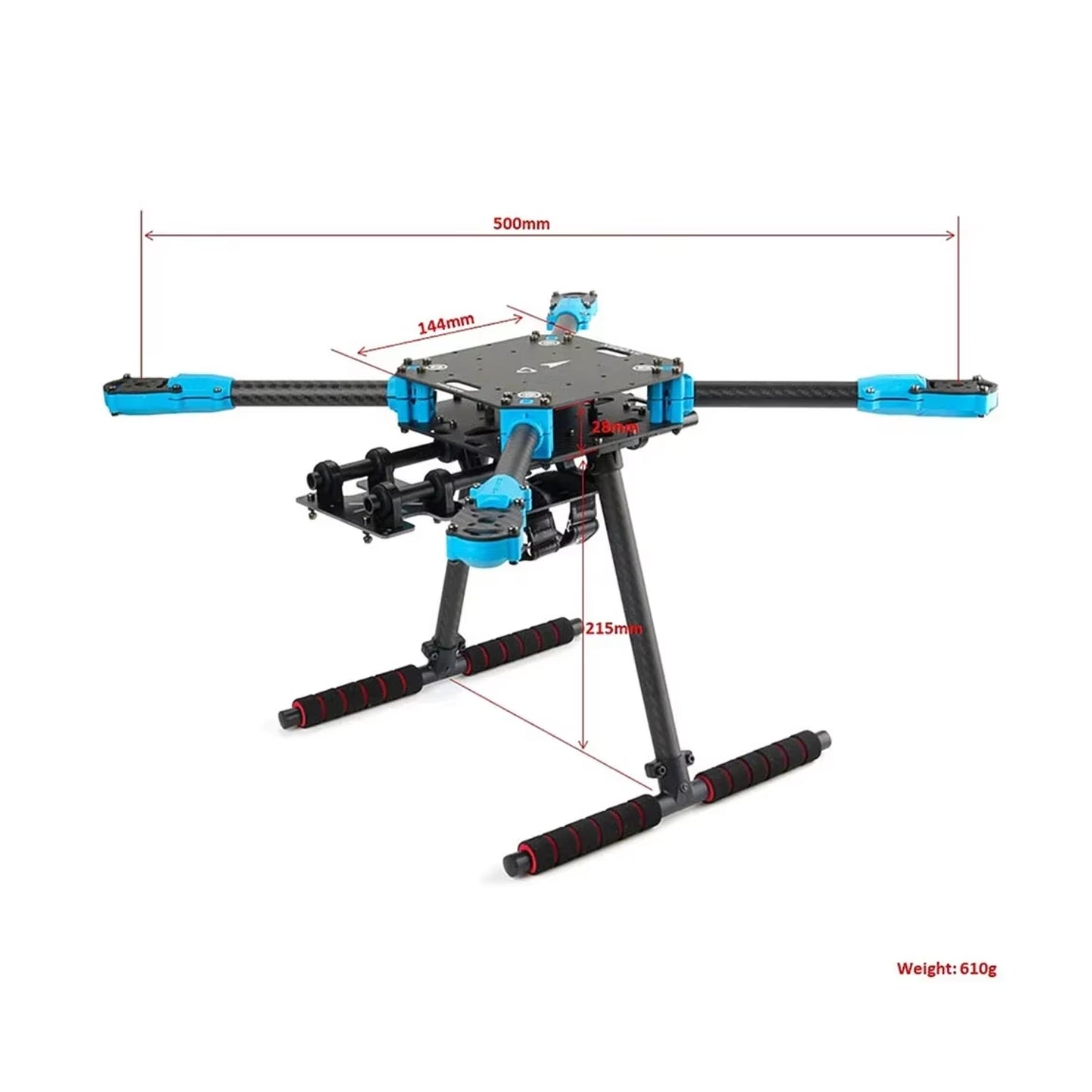

Specifications:
- Wheelbase: 500mm
- Landing gear height: 215mm
- Motor mount pattern: 16x16mm
- Frame Body: 144x144mm, 2mm thick
- Space between top and bottom plates: 28mm
Features:
- New design and minimal assembly time (~15 minutes)

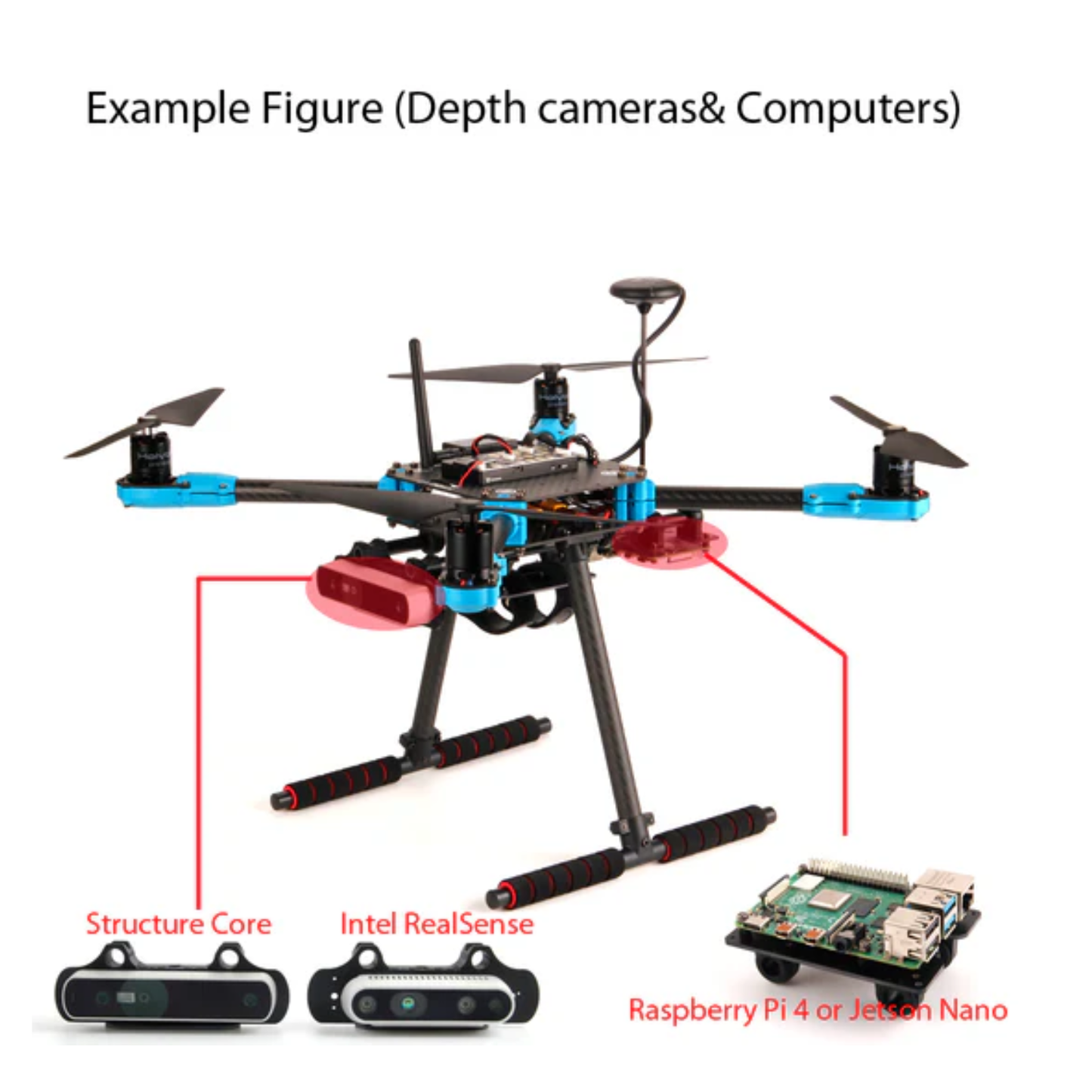

- Optional depth camera mount for Intel RealSense Structure Core.
- Pre-installed motors ESCs with simple XT30 power plugs for PDB.
- A Power distribution board (PDB) with XT60 XT30 plugs - no soldering needed.
- Mount for companion computers such as Raspberry Pi Nvidia Jetson Nano
- Carbon Fiber frame with fiber-reinforced nylon connectors providing easy straightforward installation

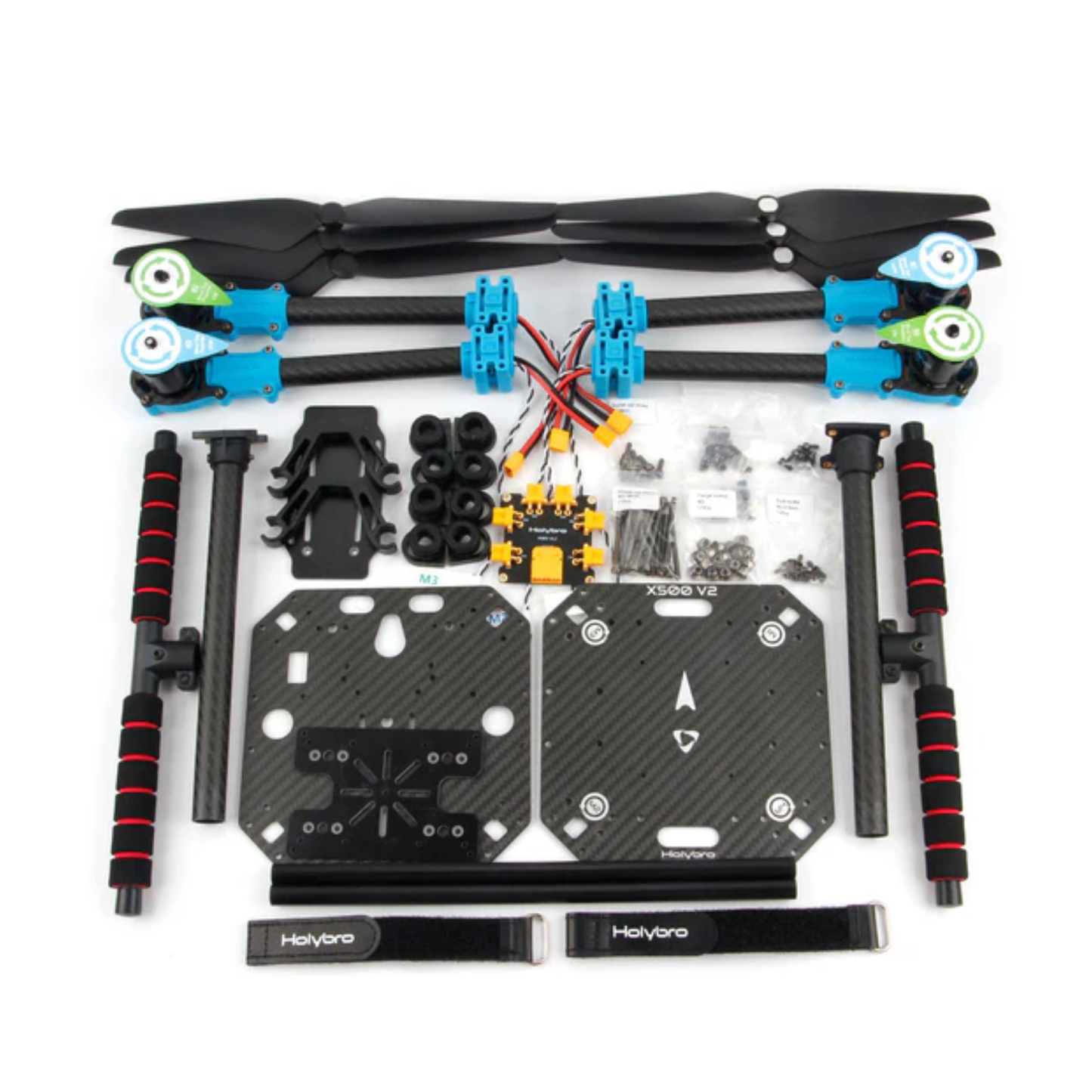

Package Included:
1 x Holybro X500 V2 FPV Drone Kit
