Description:

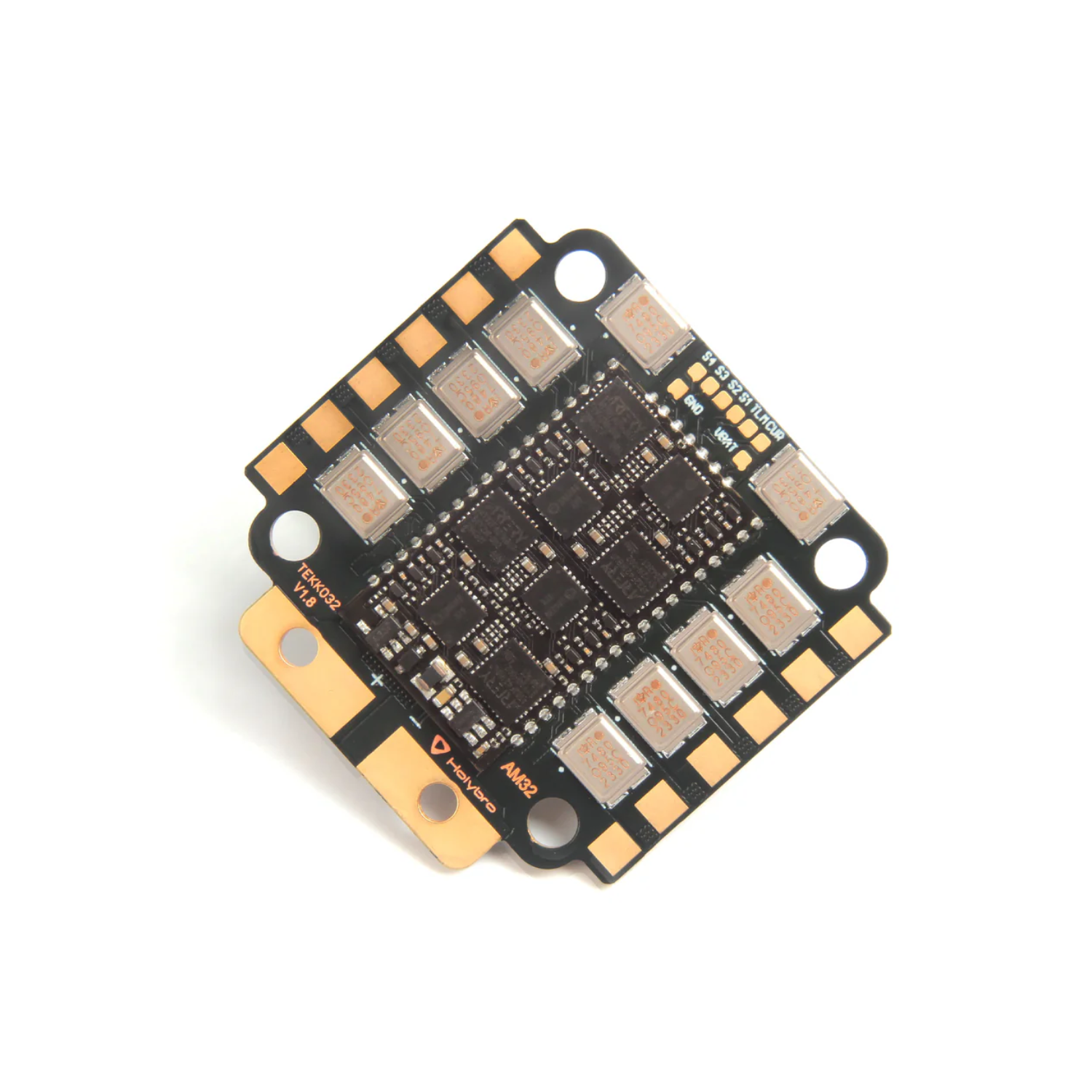

Tekko32 Metal The ultimate 4-in-1 ESC. First to integrate an F4 MCU (150MHz), it boasts metal-cased MOSFETs for superior reliability, ultra-smooth control, and 96K PWM output. 4-6S compatible with AM32 firmware.
Specifications:
- Continuous Current: 65A x4
- Burst Current: 75A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- AM32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 180
- Dimensions: 43 x 44mm / Weight: 15.8g
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)
Features:

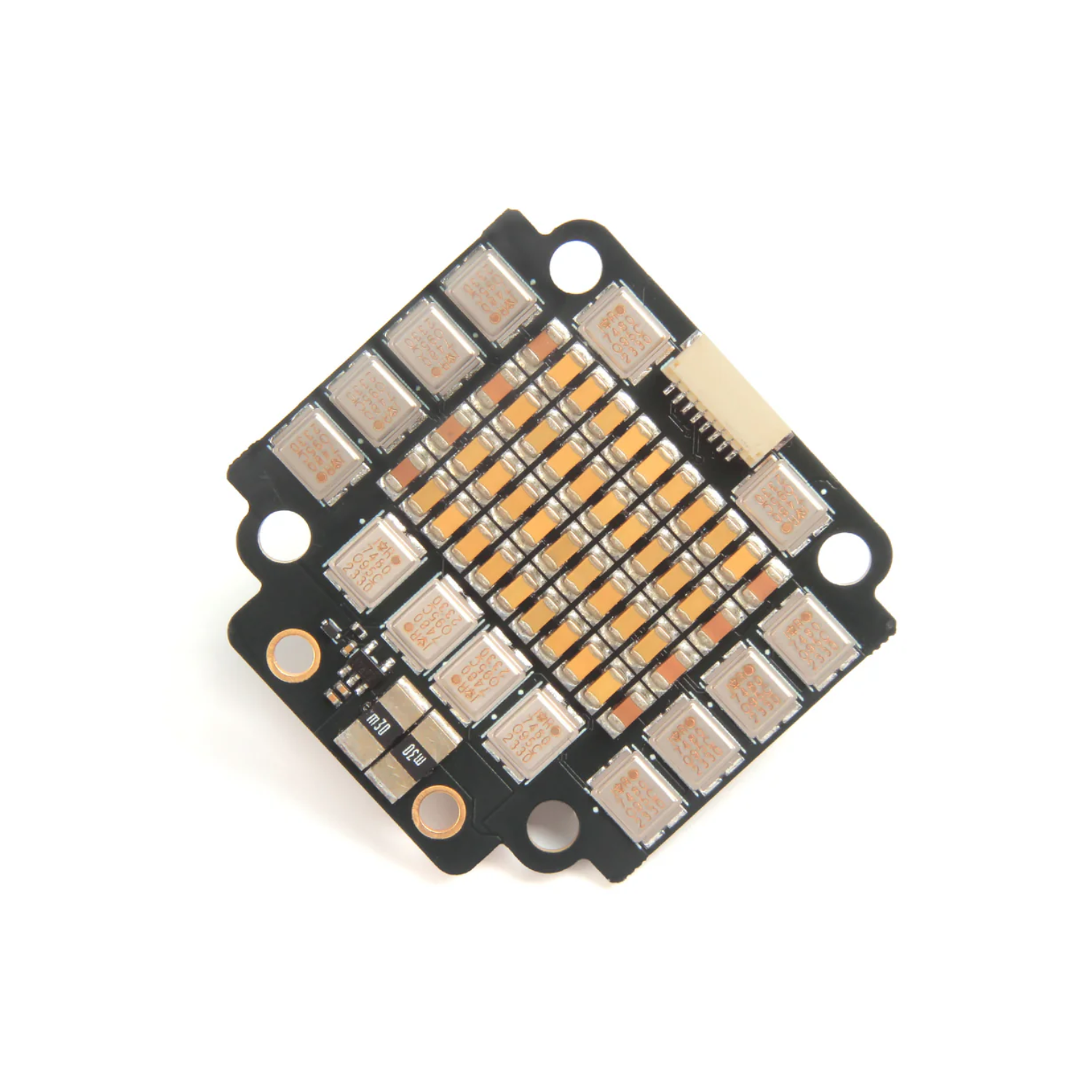

- Massive on-board capacitance for noise filtering at 2068uf
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- Separate drive & control circuit, this broadens the current capability of the drive
- PWM output up to 96K (default 48K)
- Circuit while reducing the electrical interference to the control circuit.
- Metal-cased MOSFET for excellent heat dissipation
- 3 oz copper PCB design to allow bigger current and better heat dissipation
Pin Description:
Useful Link:

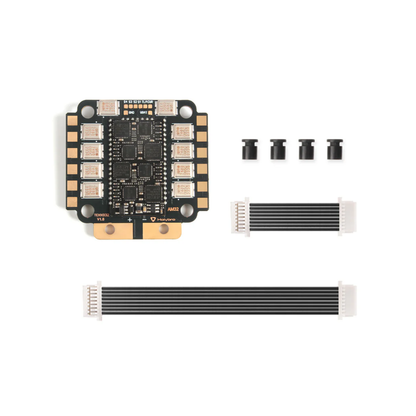

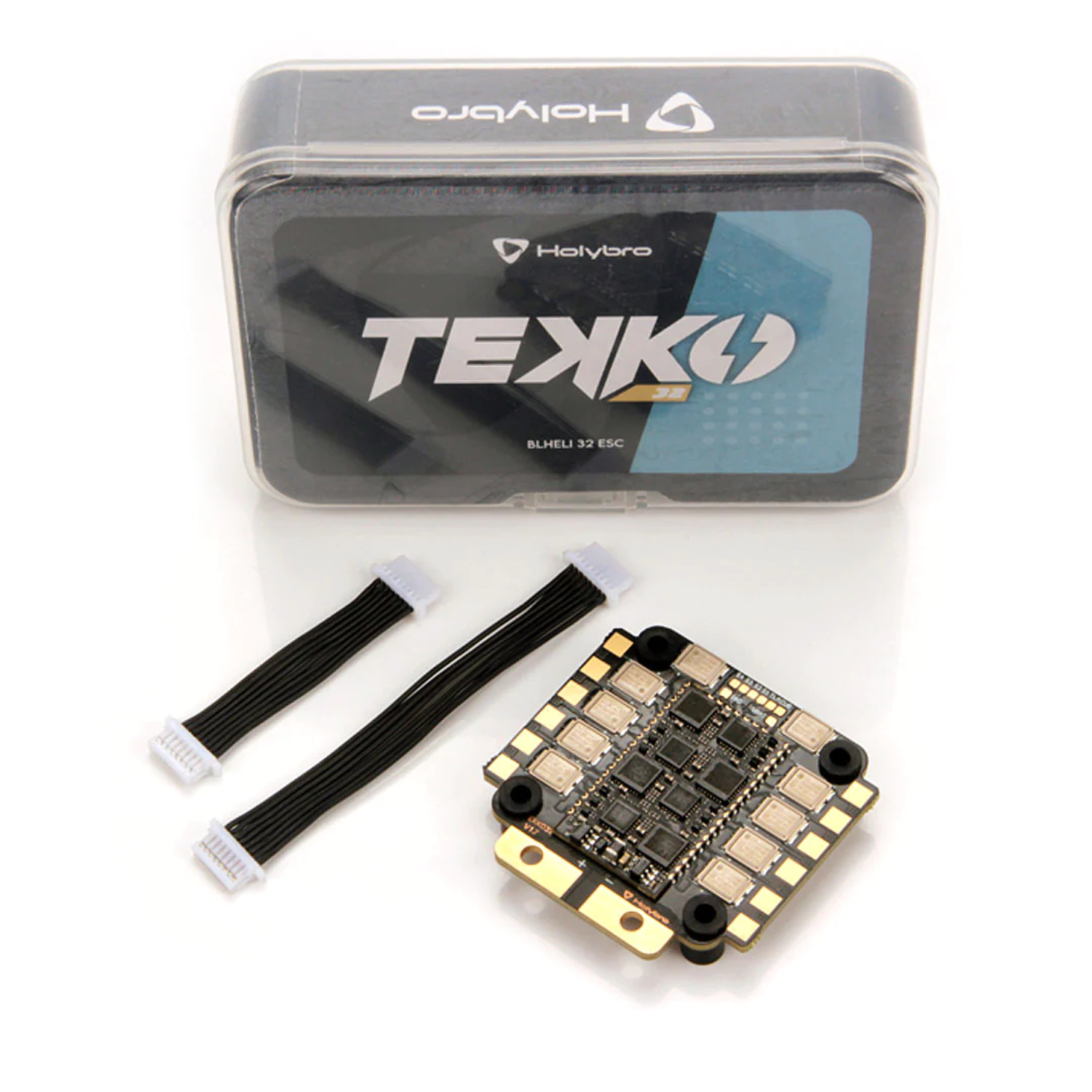

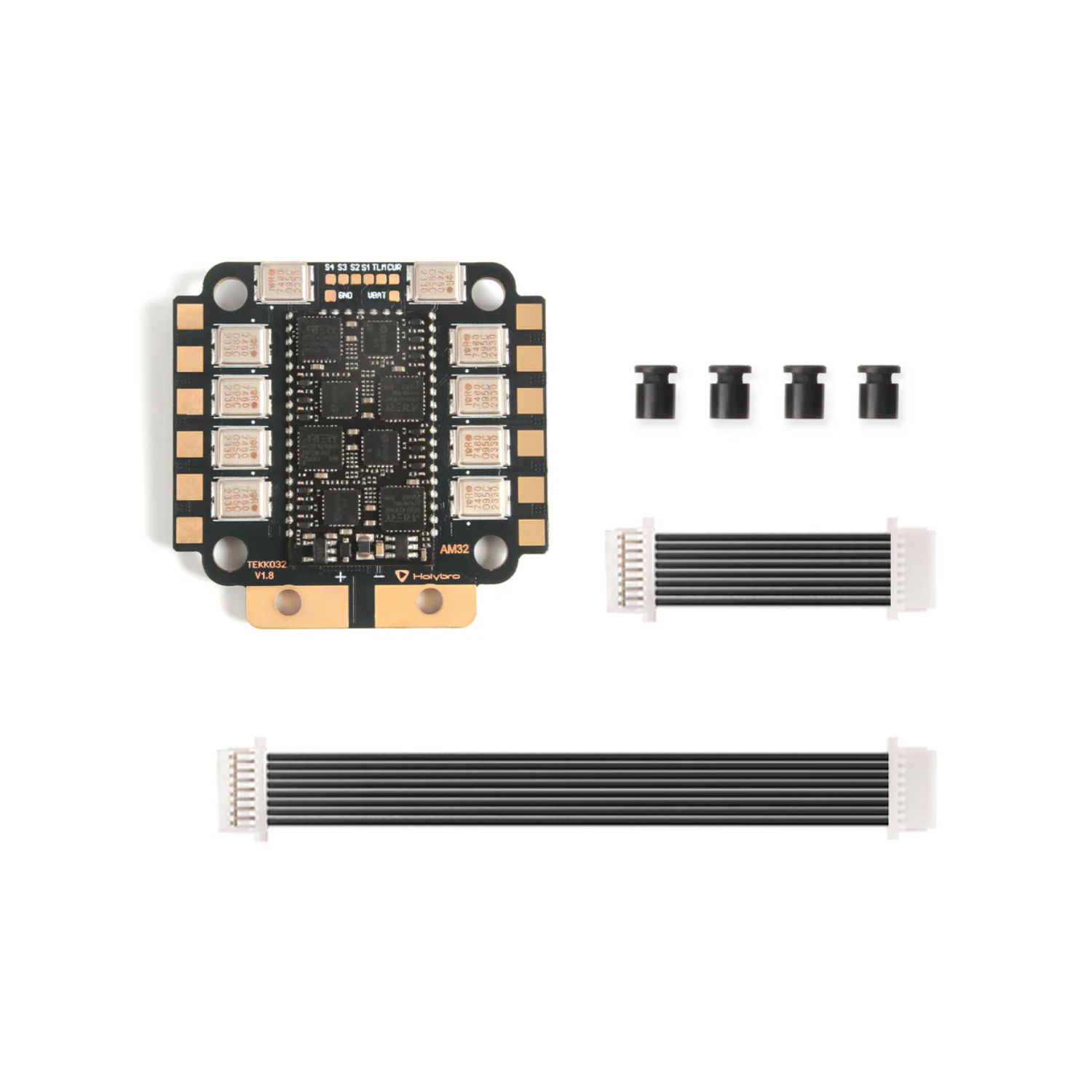

Package Included:
- 1 x Holybro Tekko32 F4 Metal 4in1 65A ESC
- 4 x M3 Anti-Vibration Silicone Grommet Insert
- 1 x Electrolytic capacitor: 1000uF 35v
- 1 x 8pin to 8pin 1mm pitch 65mm cable
- 1 x 8pin to 8pin 1mm pitch 25mm cable
