Description:
The Holybro ST VL53L1X Lidar Sensor Module is a revolutionary, high-performance sensor that utilizes advanced Time-of-Flight (ToF) technology to deliver precise and rapid distance measurements. As a key enhancement to the ST FlightSense™ product family, it stands out as the fastest miniature ToF sensor available, offering accurate measurements up to 4 meters and a remarkable ranging frequency of up to 50 Hz. Its cutting-edge capabilities make it an ideal choice for a wide range of applications where speed, precision, and reliability are essential.
Specifications:
- Model Type: LiDAR Sensor
- Operating Voltage (V): 3.3 to 5 V
- Communication Mode: 12C
Features:
- Typical full field-of-view (FoV): 27.
- Pin-to-pin is compatible with the VL53L0X FlightSense™ ranging sensor.
- Fast and accurate long-distance ranging – Up to 400 cm distance measurement – Up to 50 Hz ranging frequency.
- Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced.
- Programmable ROI position on the receiving array, providing multizone operation control from the host.

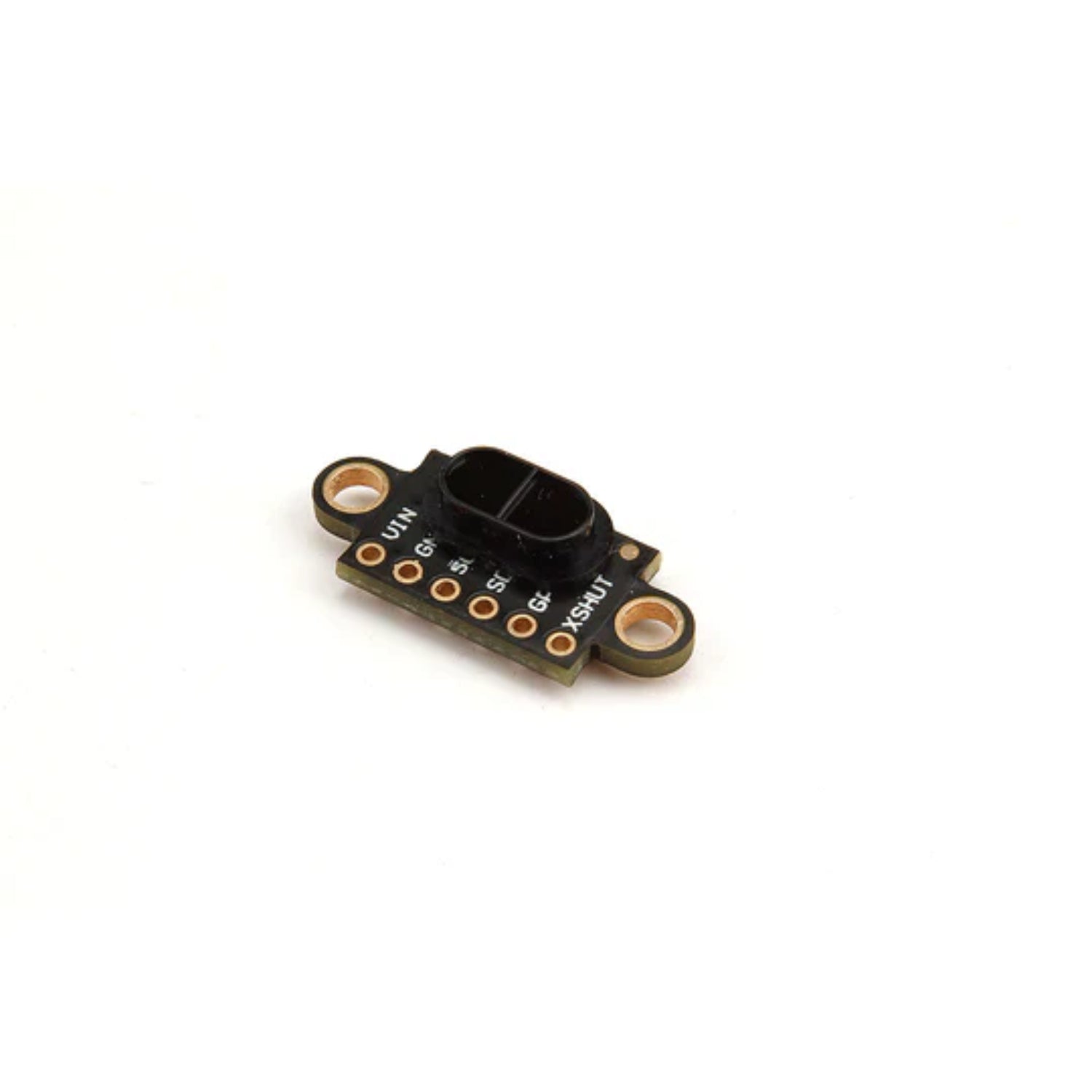

Pin Descriptions:

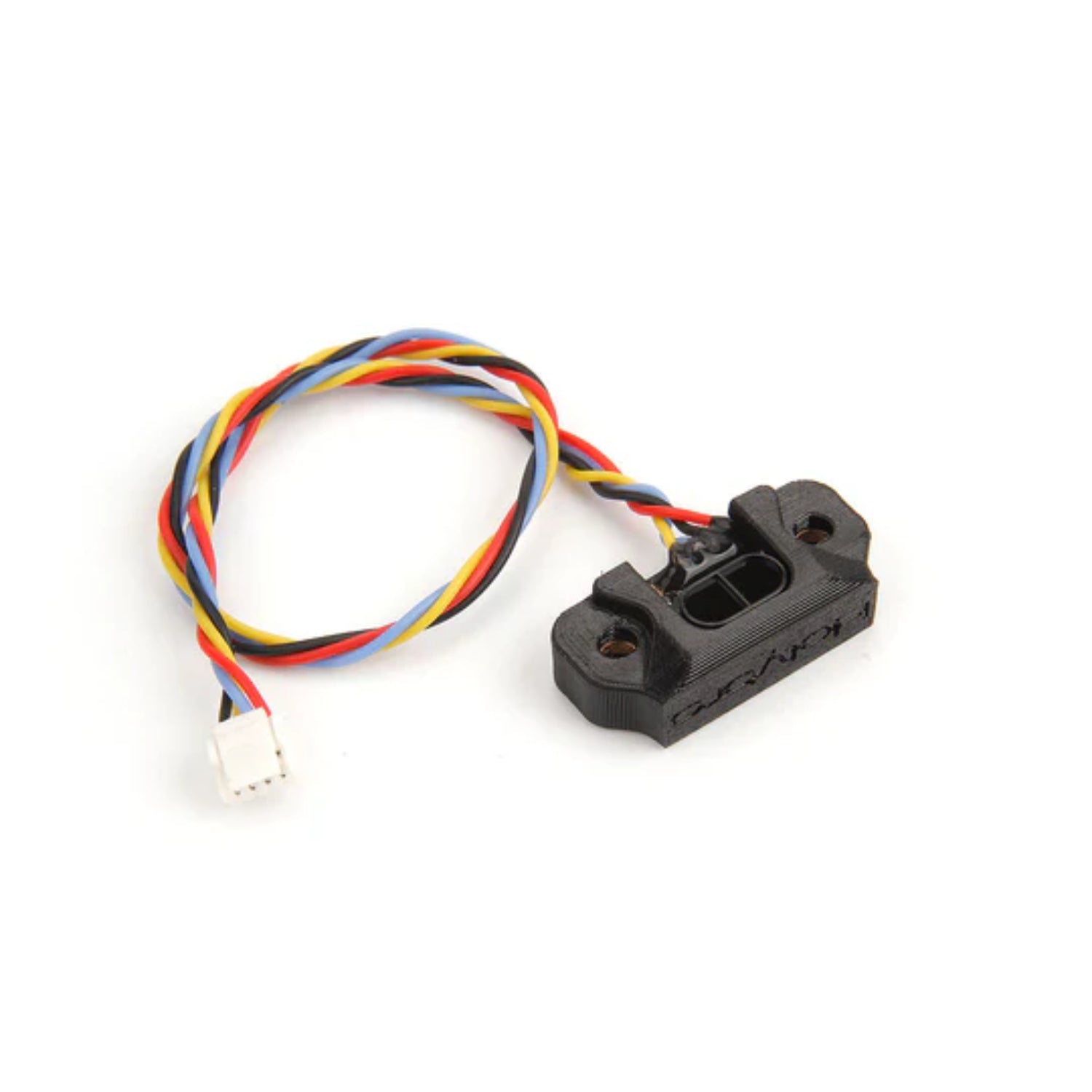

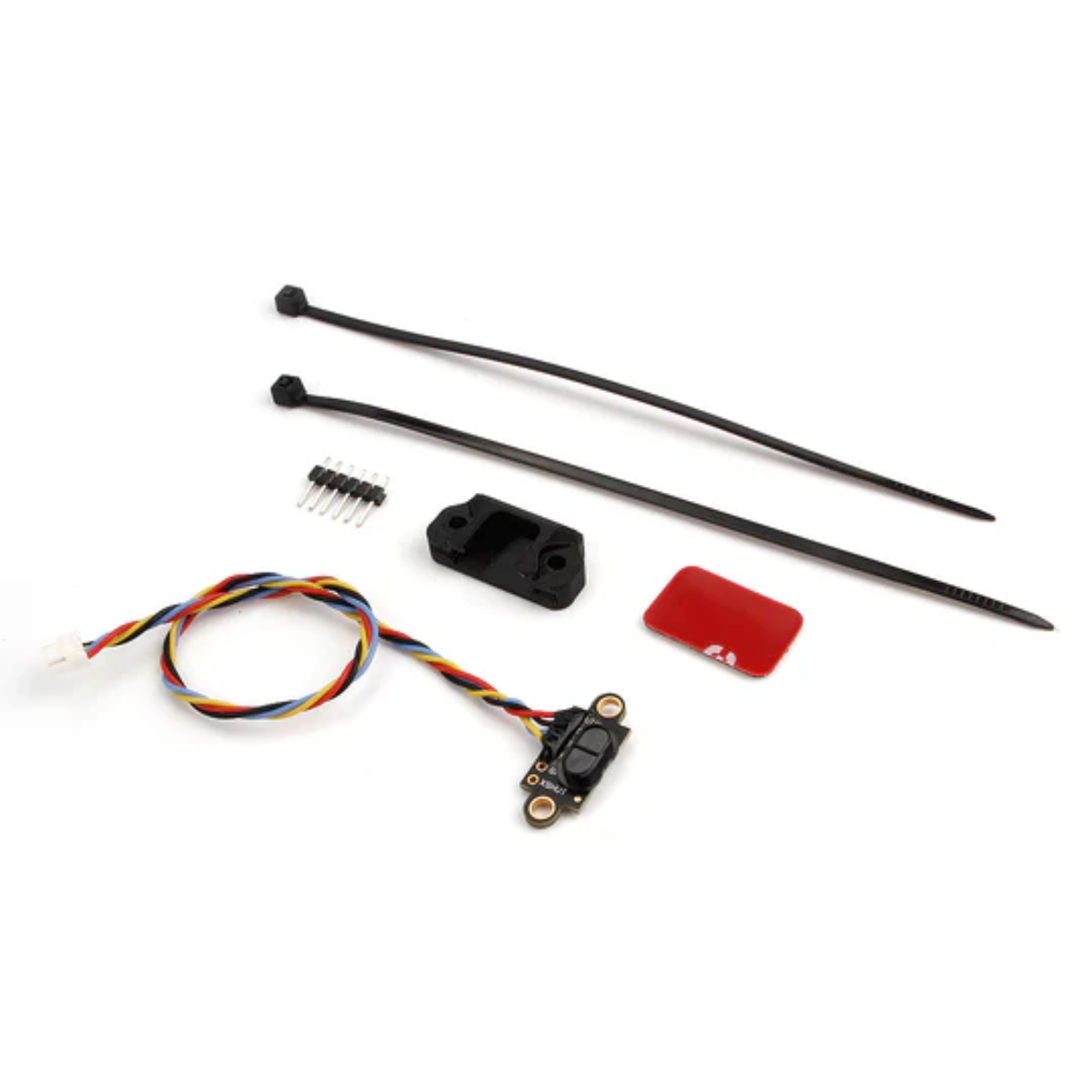

Package Included:
- 1x VL53L1X
- 1x GH4P 200mm Cable(installed)
- 1x TPU Protective Case Shell
