Description:

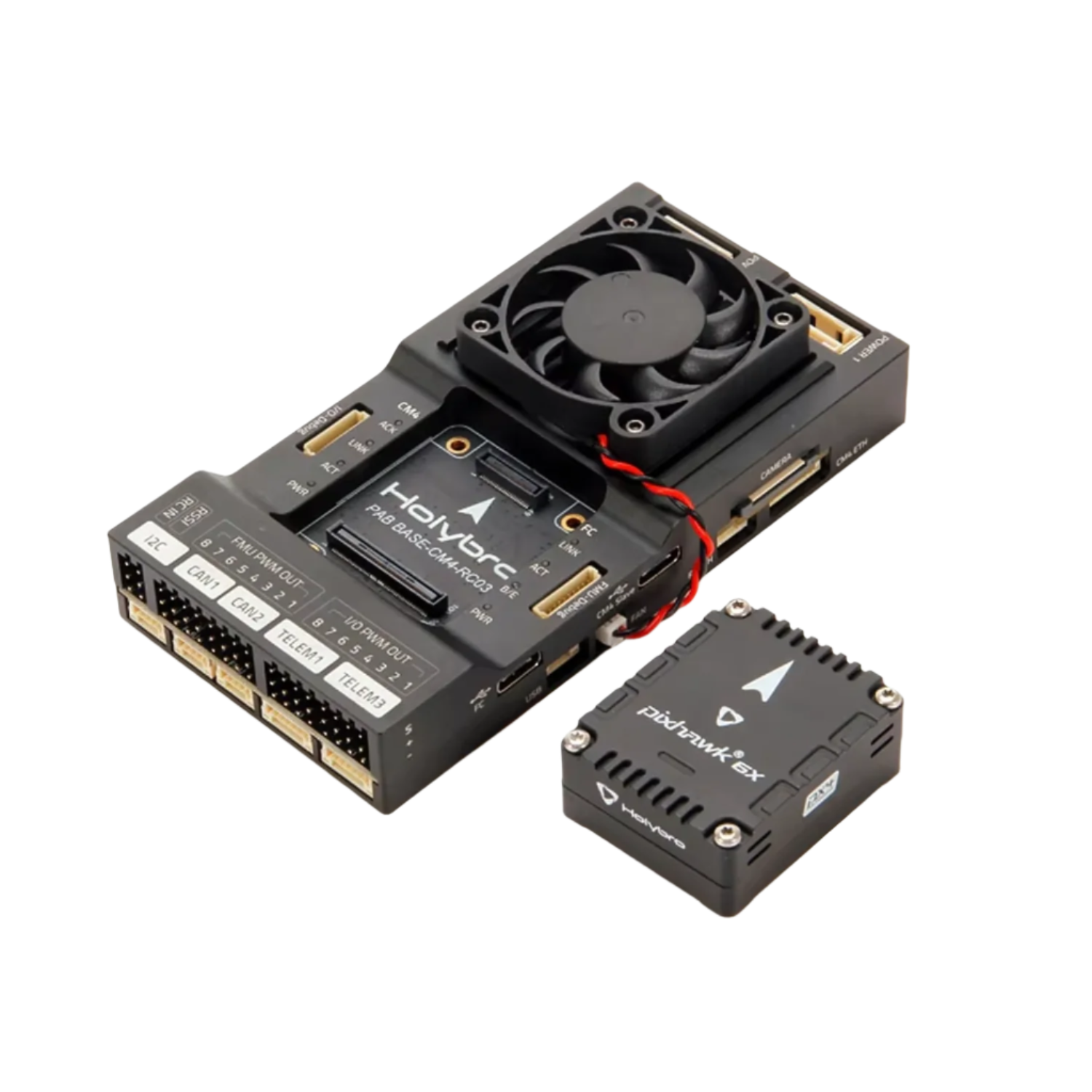

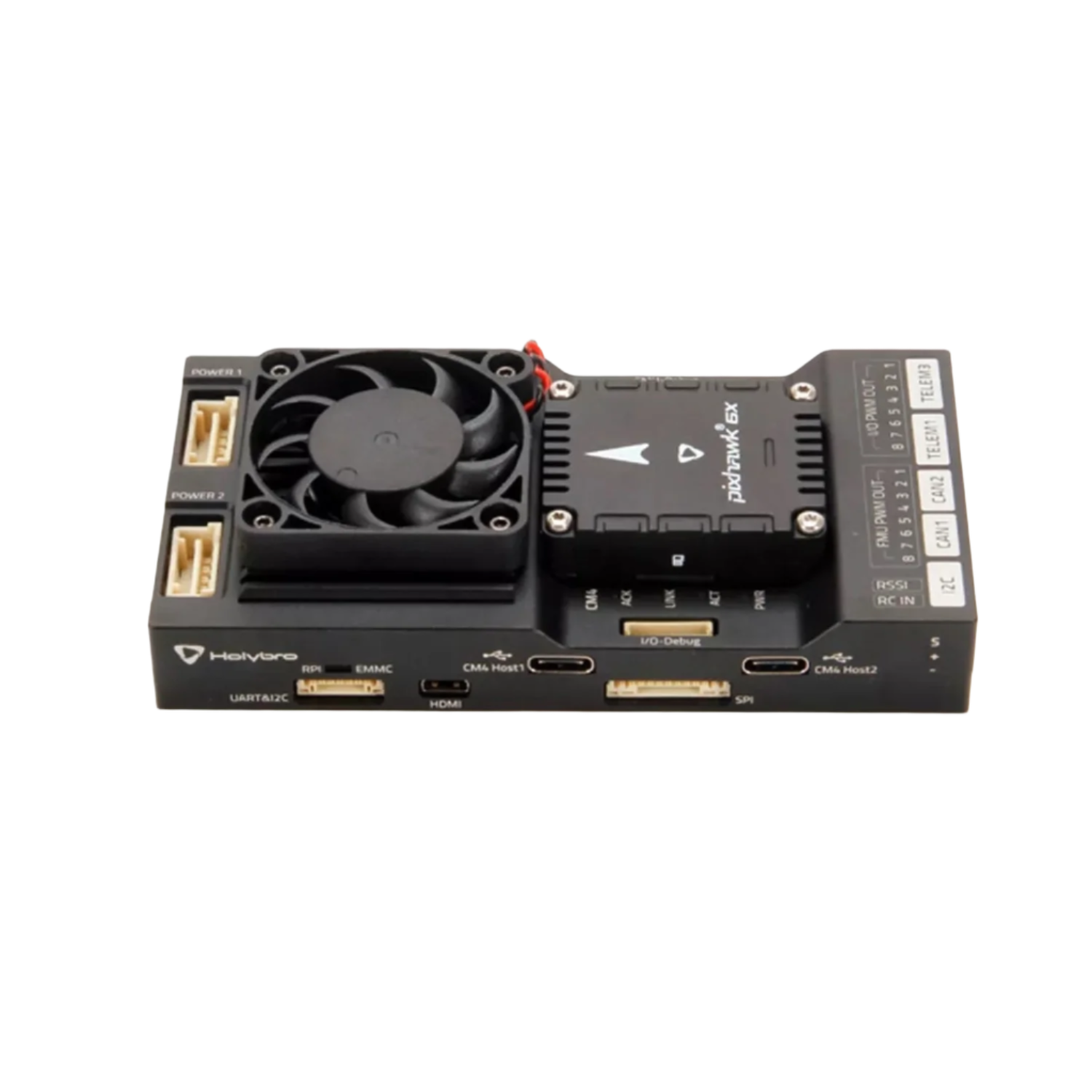

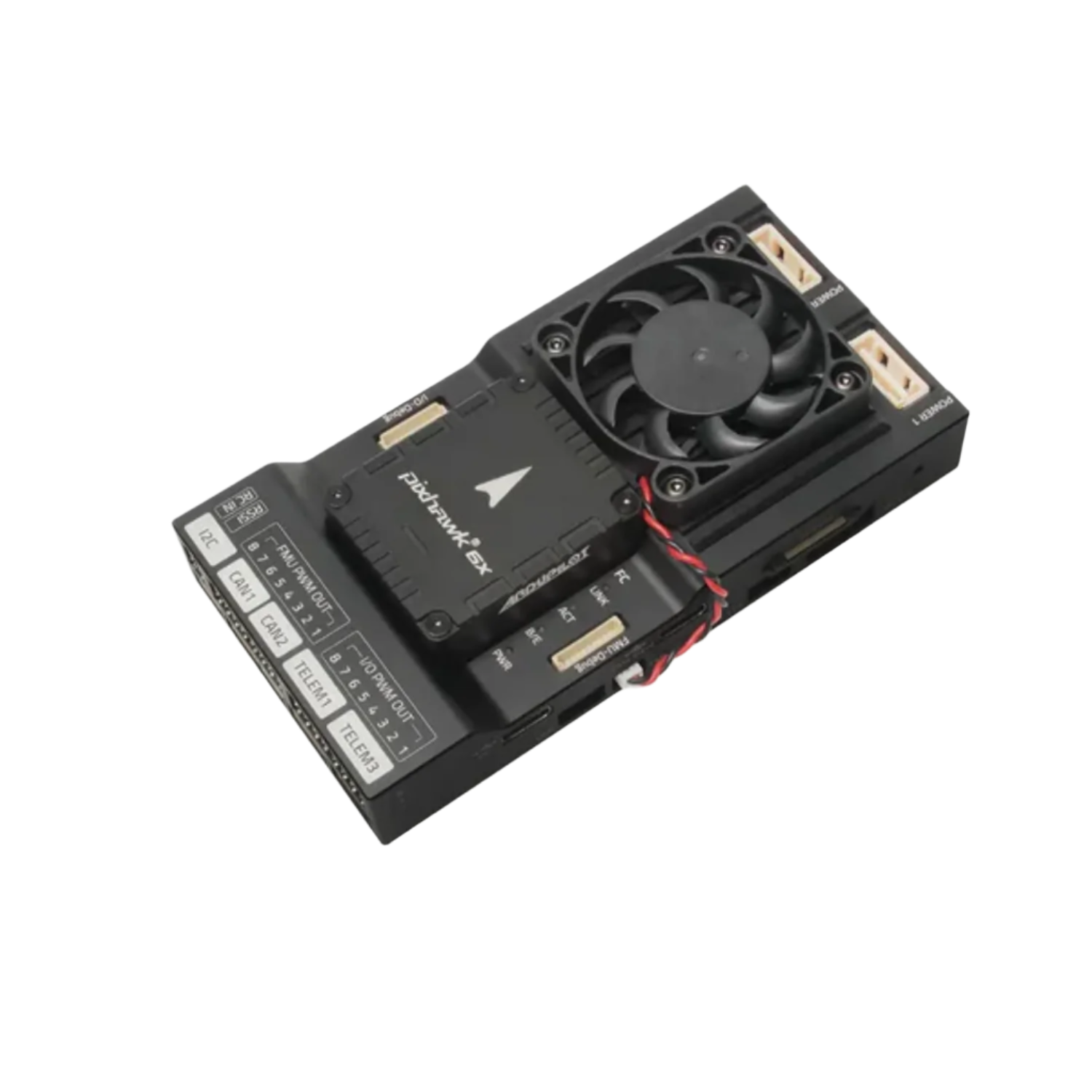

The Holybro Pixhawk RPi CM4 Baseboard offers a streamlined and powerful solution for advanced drone development by integrating a Pixhawk Flight Controller (FC) module with a Raspberry Pi CM4 companion computer into a single, compact unit.This integration simplifies setup and reduces the overall footprint of your drone's electronics. The baseboard provides all the essential connections needed for sophisticated development projects.
the Pixhawk Connector and Autopilot Bus Standard, this baseboard allows for effortless interchangeability of compatible FC modules. This standardized design ensures future flexibility and upgrade options. Communication between the FC module and the Raspberry Pi CM4 is achieved internally via the TELEM2 port, providing a robust and efficient data link.
Specifications:
- Internal Connection: TELEM2
- External Connection: Ethernet (cable provided)
- Compatibility: Pixhawk 5X & 6X flight controller modules
- Form Factor: Compact and development-ready design
Features:
- Combines the Pixhawk Flight Controller module with the Raspberry Pi CM4 companion computer in a single, compact form factor.
- Internal connection through TELEM2 and optional Ethernet connection with provided external cable.
- Equipped with all necessary connections for advanced development and integration.
- Works seamlessly with Pixhawk 5X and 6X flight controller modules.
- Follows the Pixhawk Connector and Autopilot Bus Standard for easy swapping of compatible FC modules.
Package Included:
1 x Pixhawk 6X Flight Controller Module
1 x PM03D Power Module

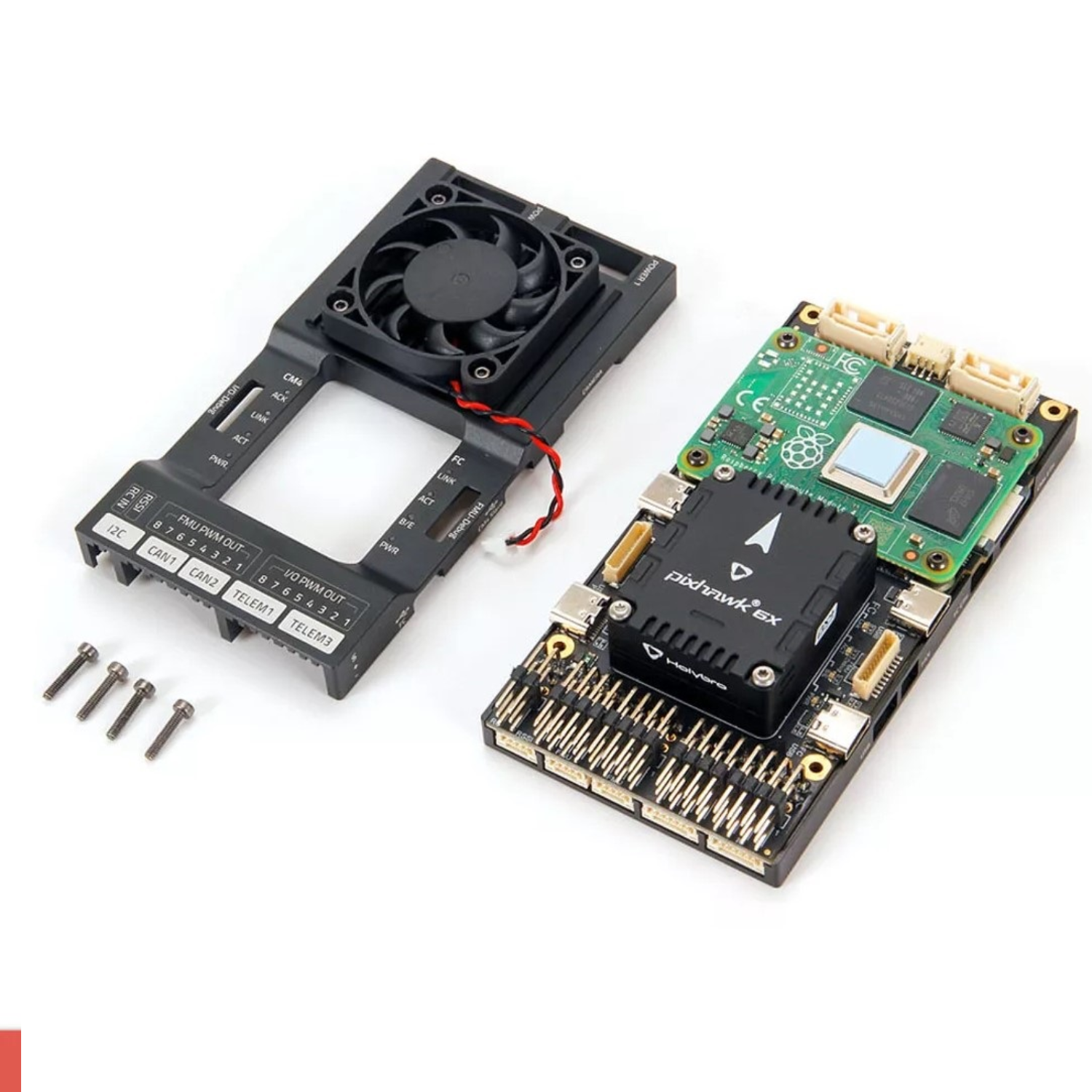

1 x Pixhawk RPi CM4 Baseboard
1 x Pixhawk RPi CM4 Baseboard Cable Set
