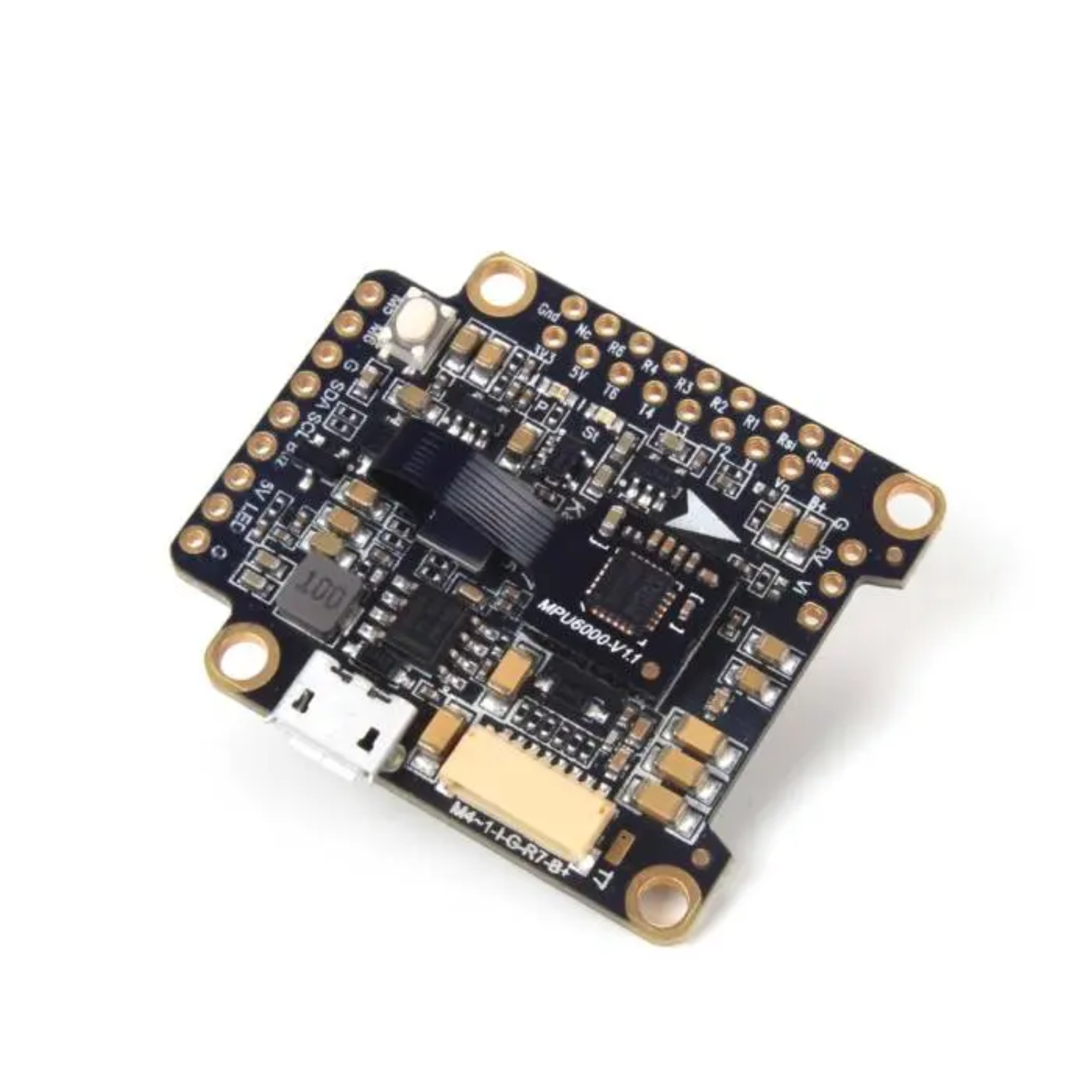

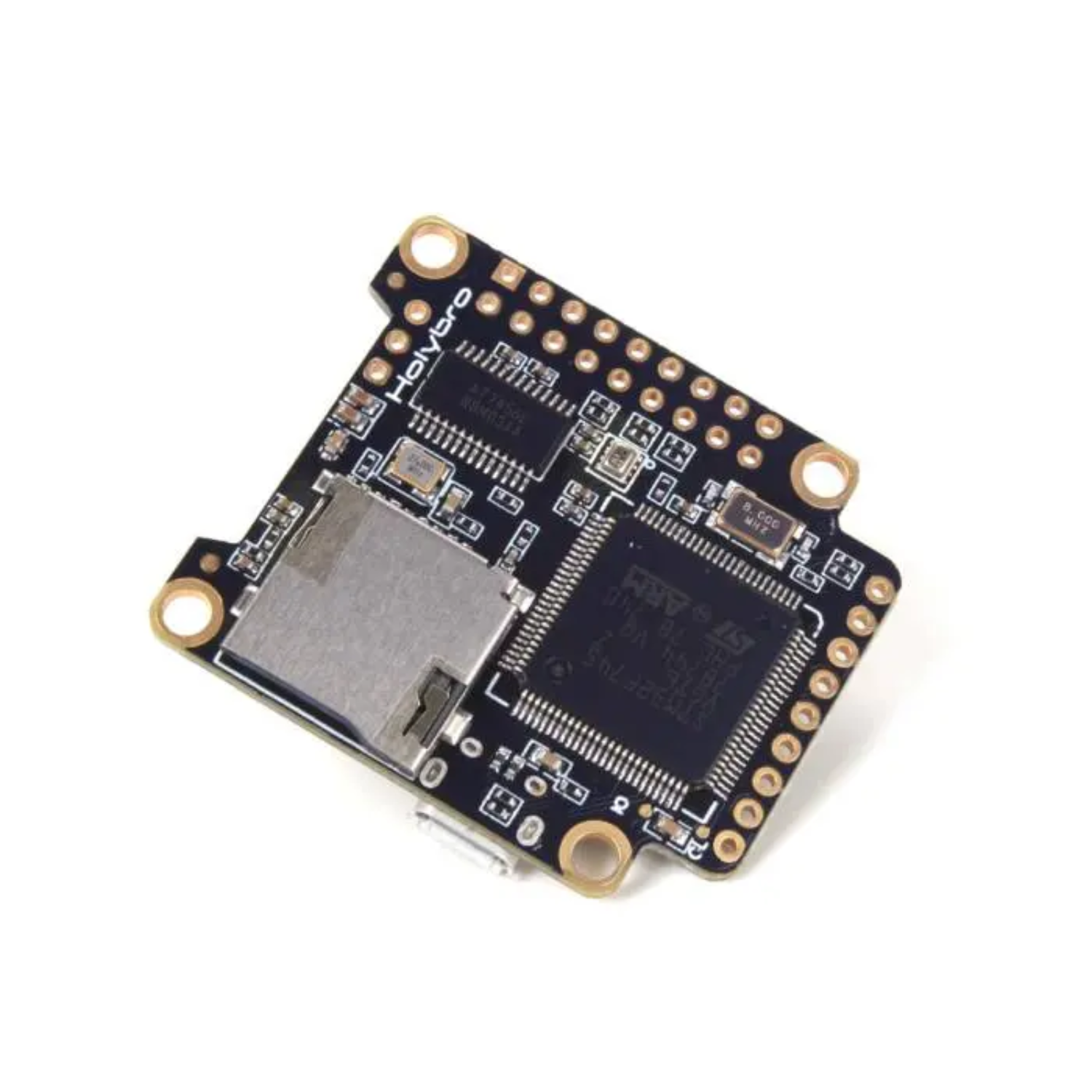

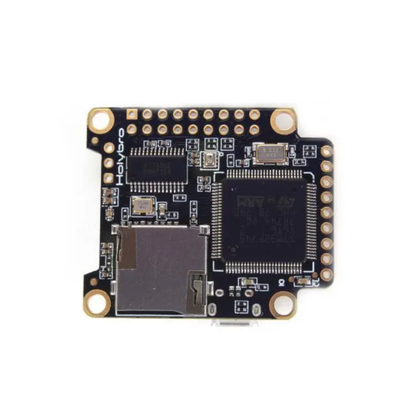

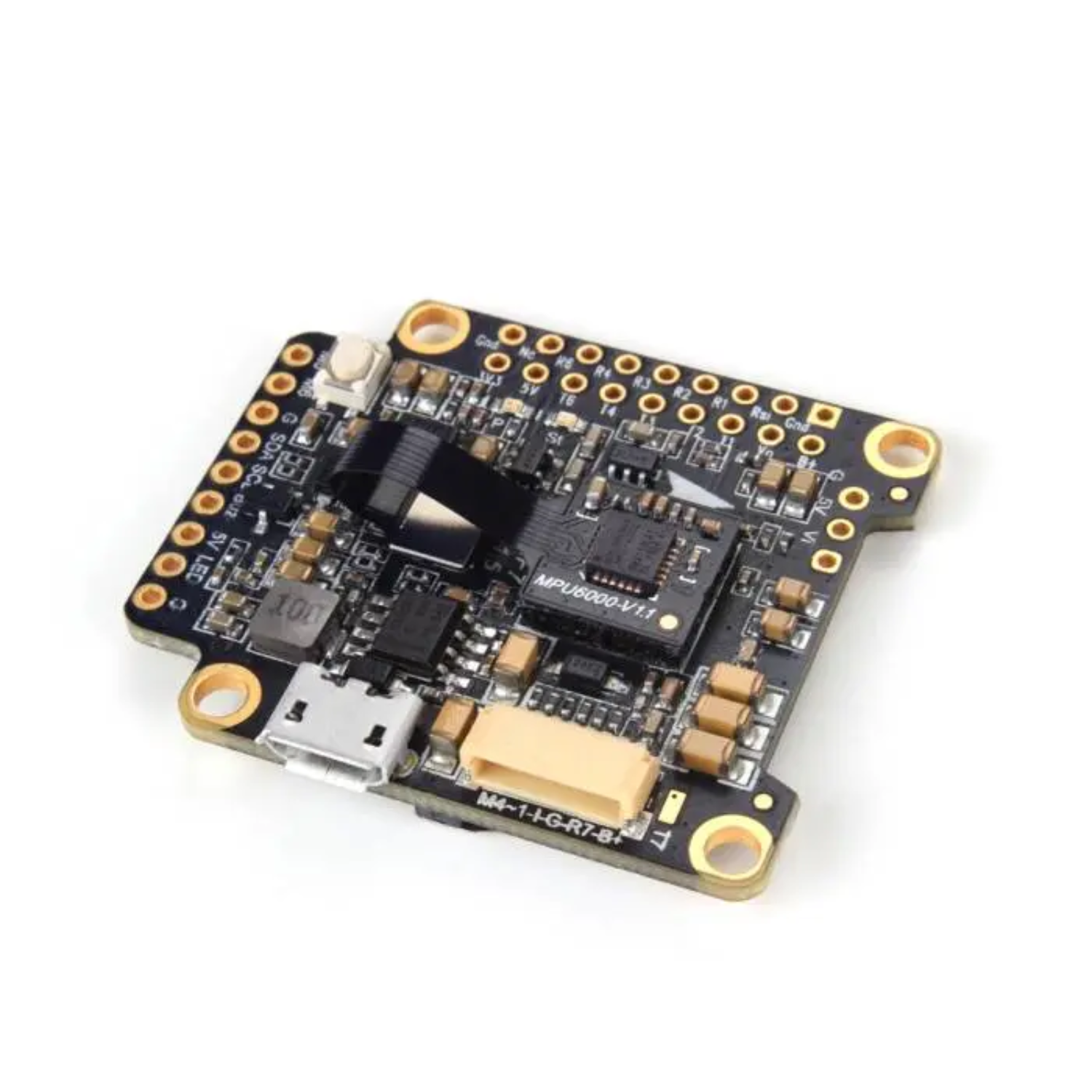

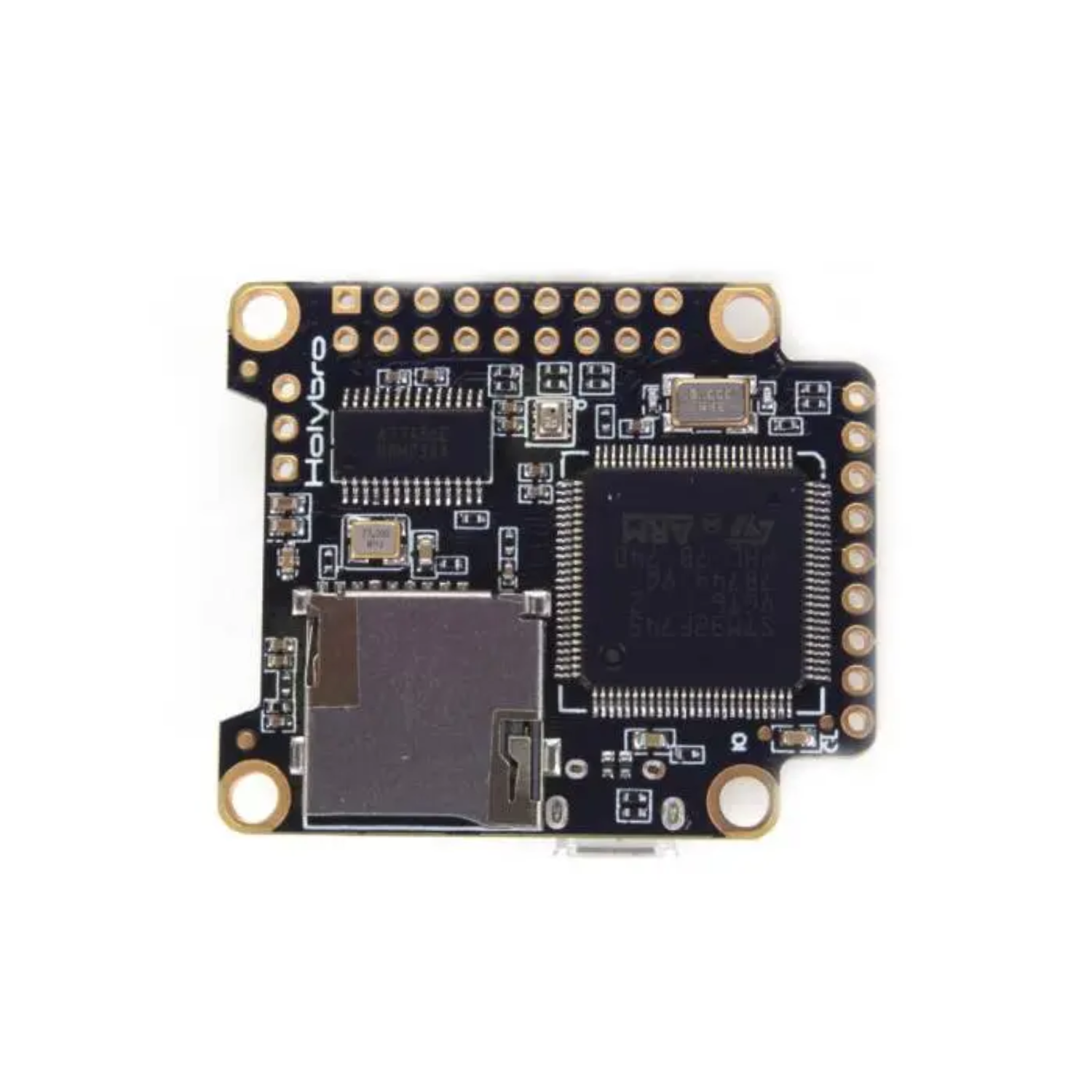

Holybro Kakute F7 V1.5 Flight Controller Advanced STM32F745 MCU Flight Controller with Integrated OSD For High-Performance FPV Drones - RS8510

Description:

The Holybro Kakute F7 flight controller makes it easy to build your multirotor. It integrates a flight controller (FC) and an on-screen display (OSD) in one. The Kakute F7’s layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.

Specifications:

• MCU: STM32F745 32-bit processor
• IMU: ICM20689 (SPI)

• Barometer: BMP280

• Current Sensor: Approximately 130 amps maximum measurable value

• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)

• 6 hardware UARTS (UART1,2,3,4,6,7)

• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without an “uninvert hack”.

• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.

• TF card for Blackbox logging

• Mounting Holes: Standard 30.5mm square to center of holes

Features:

• Supports Betaflight, Butterflight, and Cleanflight.

• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.

• Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.

• High-performance / low-noise / high-sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz sampling rate.

• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.

• 2 oz. copper PCB allows up to 120A maximum continuous current.

• Dedicated bootloader button for easy firmware flashing.

• Low-profile design fits into even very compact frames.

• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only).

• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 monitors voltage directly from the power supply.

• Filtered voltage output for clean, noise-free video. On-board regulators output 5V at up to 2 amps and 3.3V at up to 200mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.

• Supports BLHeli pass-through for easy ESC upgrade and configuration.

Pin Description:

Useful Link:

Holybro Kakute F7 V1.5 Flight Controller

Package Included:

• 1 x Holybro Kakute F7 V1.5 Flight Controller

• 1 x JST SH 8pin 150mm Cable
