Description :
This CCW/CW motor is a powerhouse designed for high-performance applications. It delivers a maximum thrust of 15 kg per axis at 46V and sea level, making it capable of lifting heavy payloads. The recommended 12S LiPo battery provides the necessary power for optimal performance. This motor is ideal for multirotor drones with a recommended takeoff weight between 5 and 7 kg per axis, ensuring efficient and reliable flight.
Specifications:
| Motor Type | CCW/CW |
| Recommended LiPo Battery | 12S LiPo |
| Max. Thrust | 15kg/Axis (46V, Sea Level ) |
| Operating Temperature | -20℃~65℃ |
| KV Rating | 100KV |
| Waterproof Rating | IPX6 |
Features:
- FOC-based PMSM Algorithm Perfect Propulsion System: The FOC (Filed Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system features high stability, and reliability and efficiency.

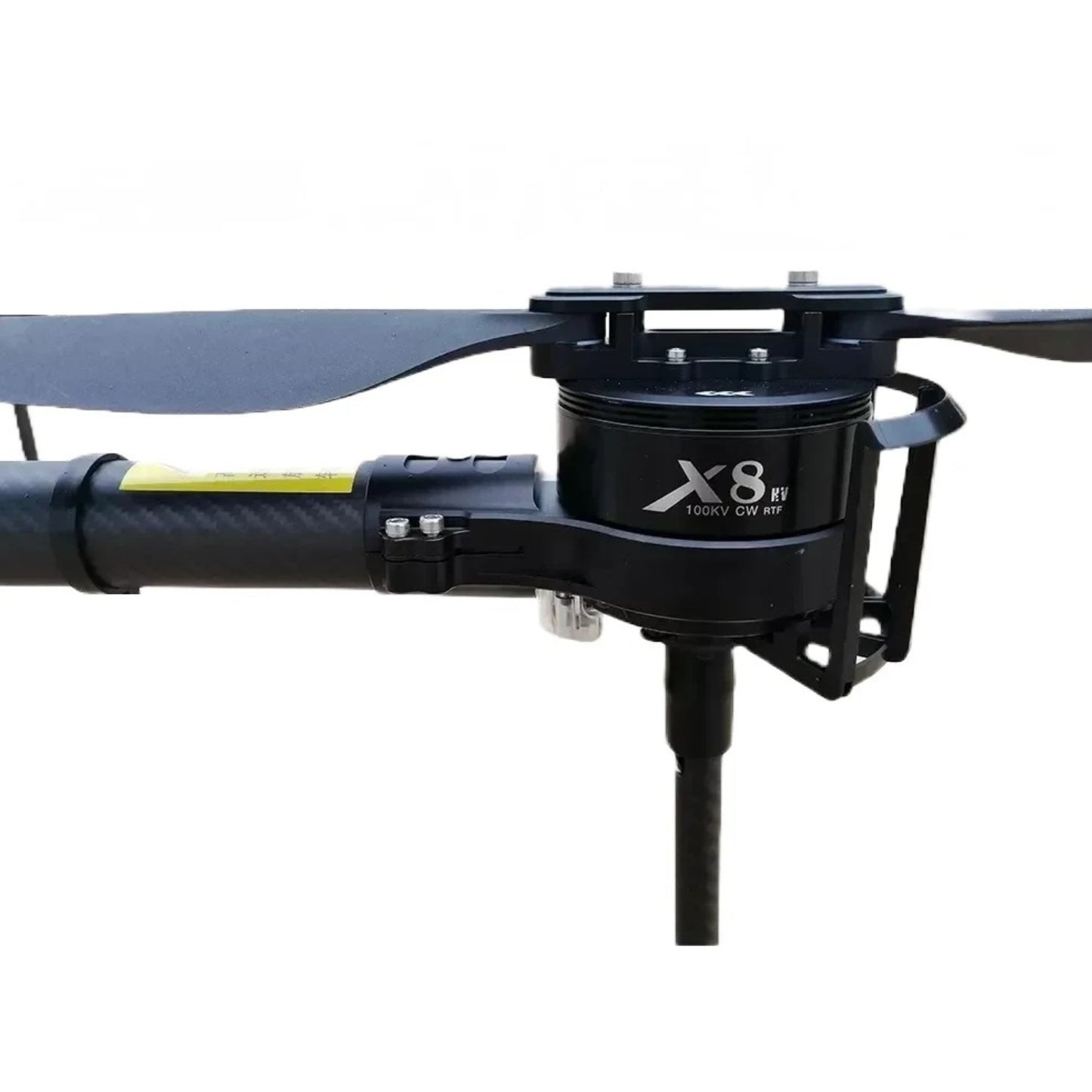

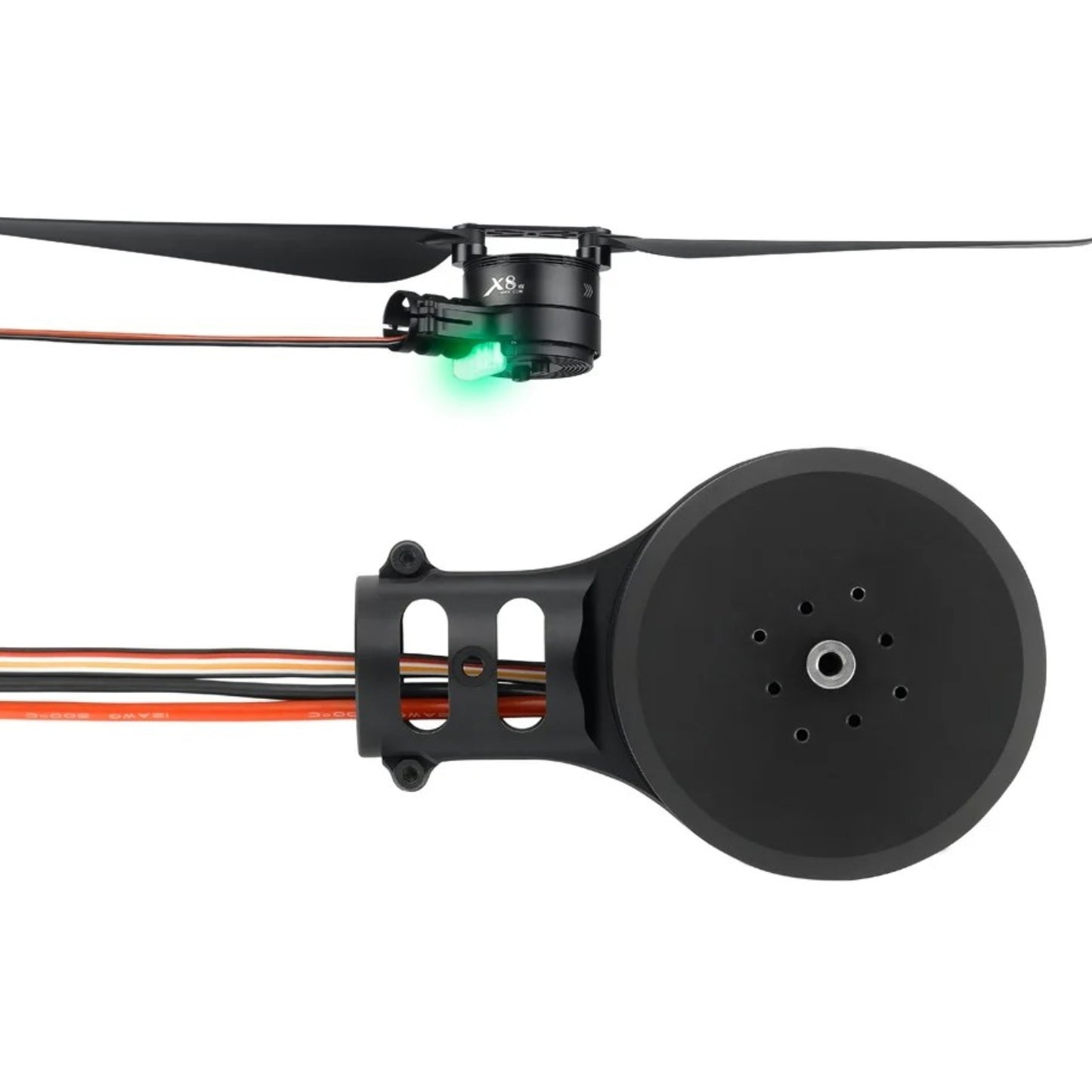

- Integrated & Ready-to-use Propulsion System: The X8 propulsion system, which integrates the motor, ESC, propeller, and motor mount (with the stock/standard tube adapter, it’s compatible with 30mm&35mm diameter carbon fiber arm tubes) together, is easy to mount and use.
- Compared with the BLDC motors, the PMSM has a lot of advantages such as low noise, small size, high power density, low pulsating torque, and high control precision.
- Waterproof: The XRotor X8 propulsion system is waterproof to IPX7 standards. It’s applicable to almost all harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand, and dust. Combined with the outlets at the bottom of the motor mount (note: patented design), you can directly rinse the system with fresh water after use.
Package Included:

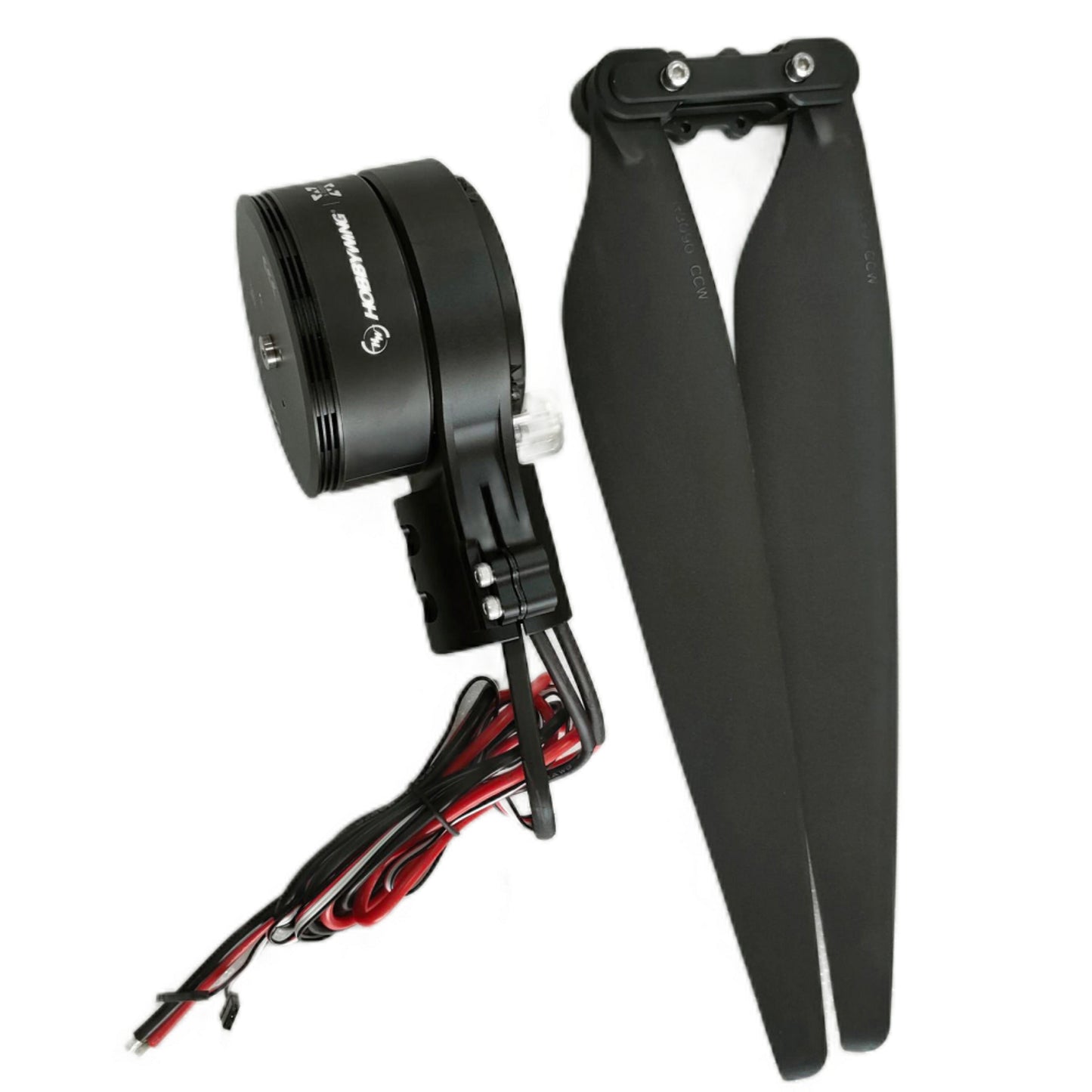

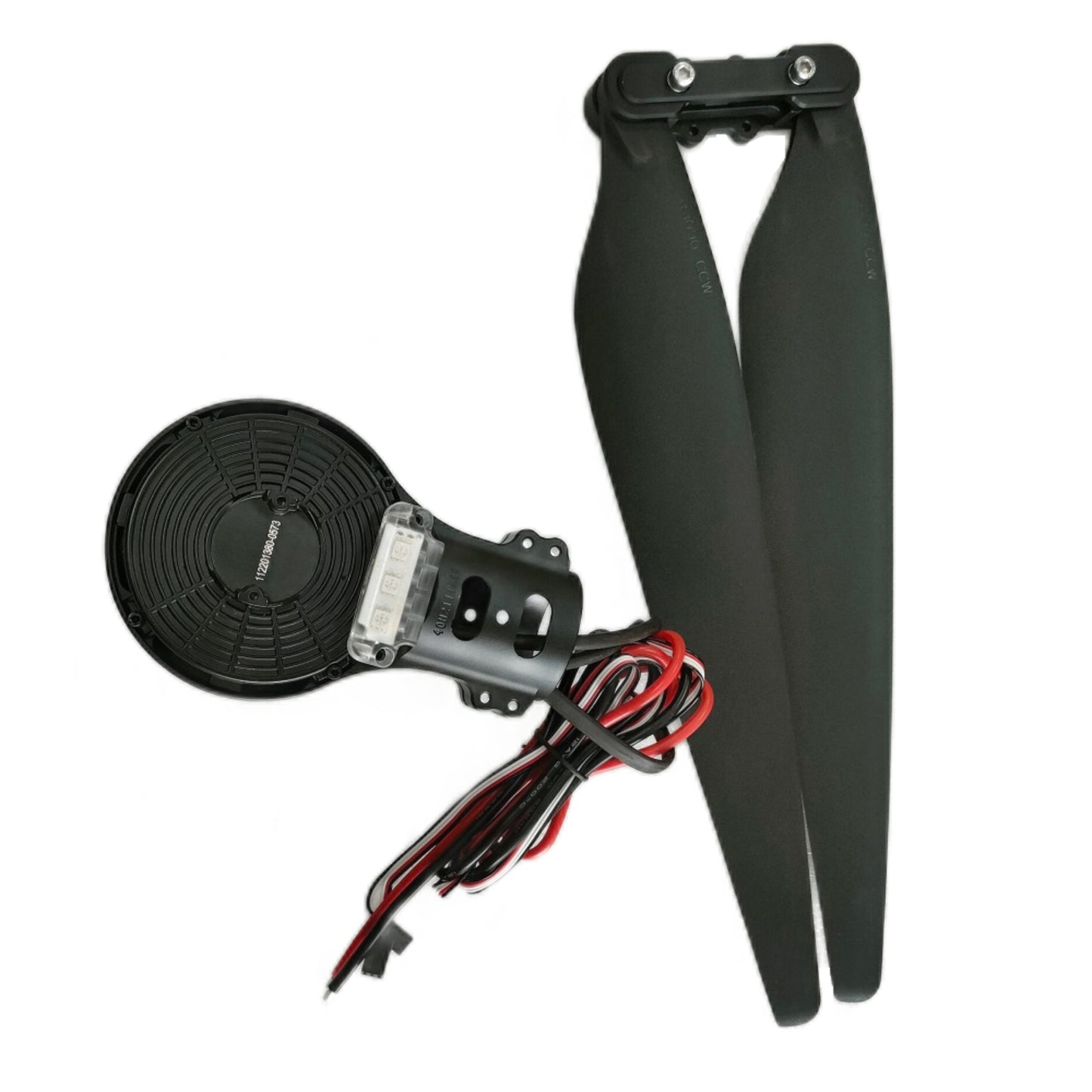

- 1 x Hobbywing XRotor X8 Motor – CCW/CW
- 1 x HOBBYWING X8 3090 or 3011 Folding Propeller – CCW/CW
- 1 x Foam pad for propeller folding.
