Description:

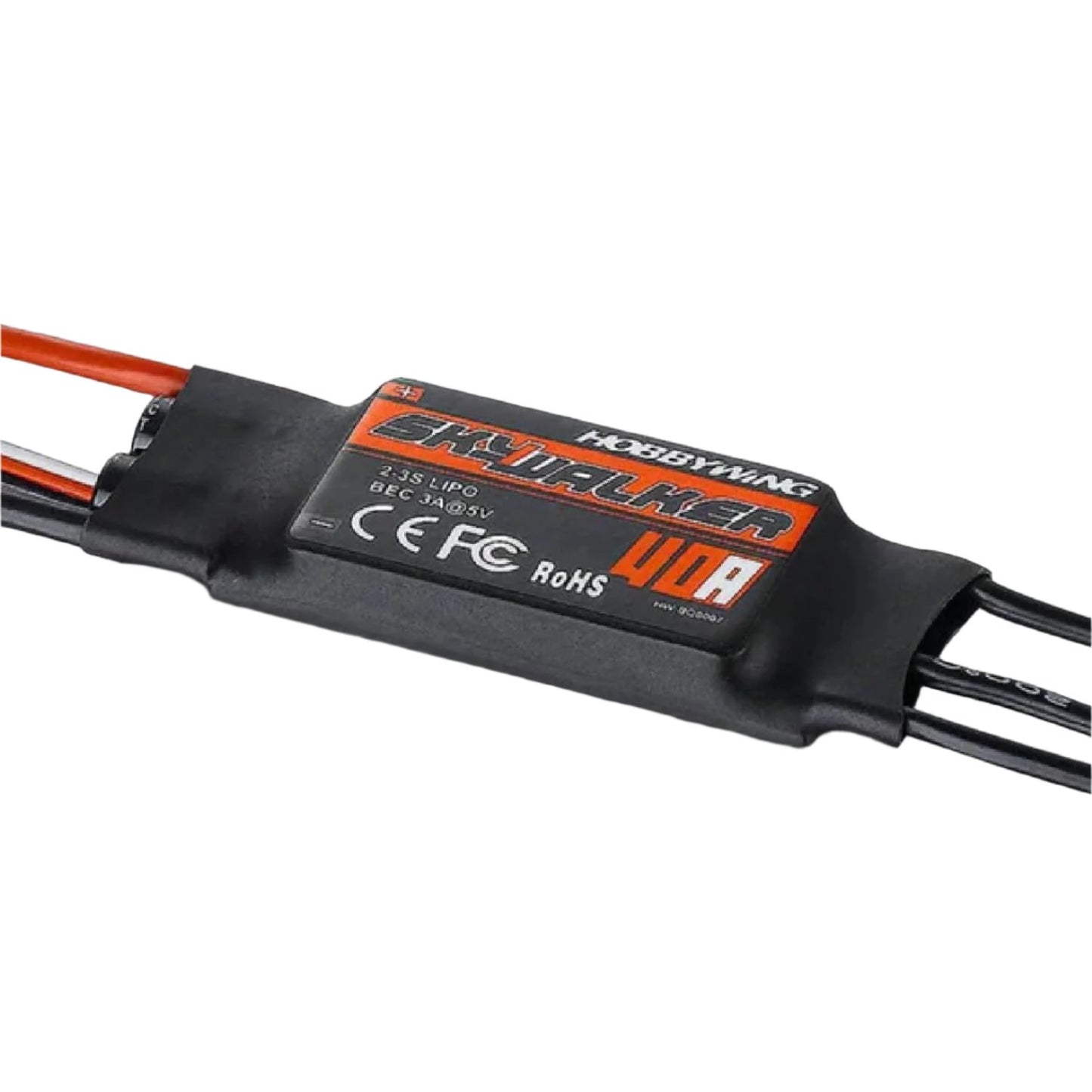

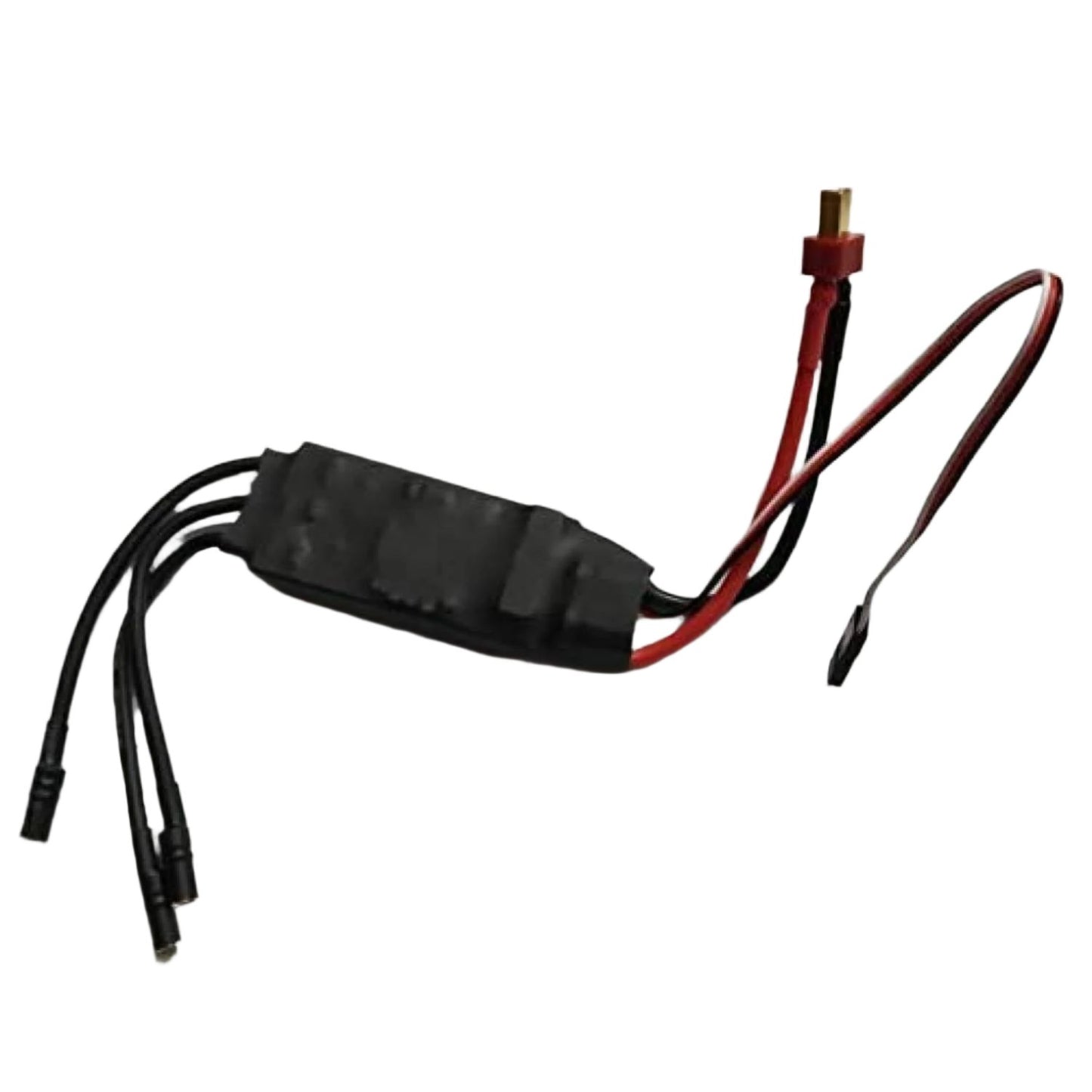

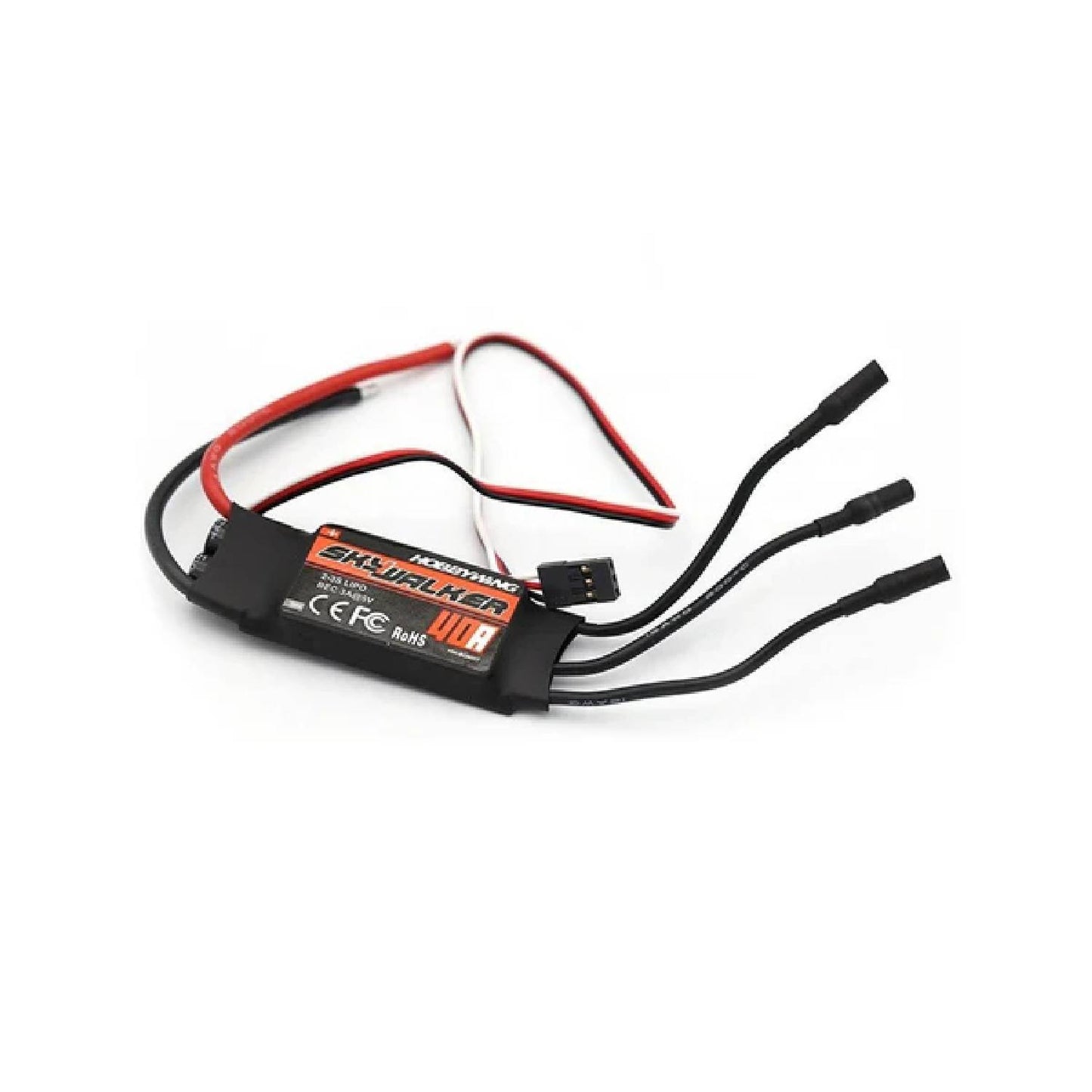

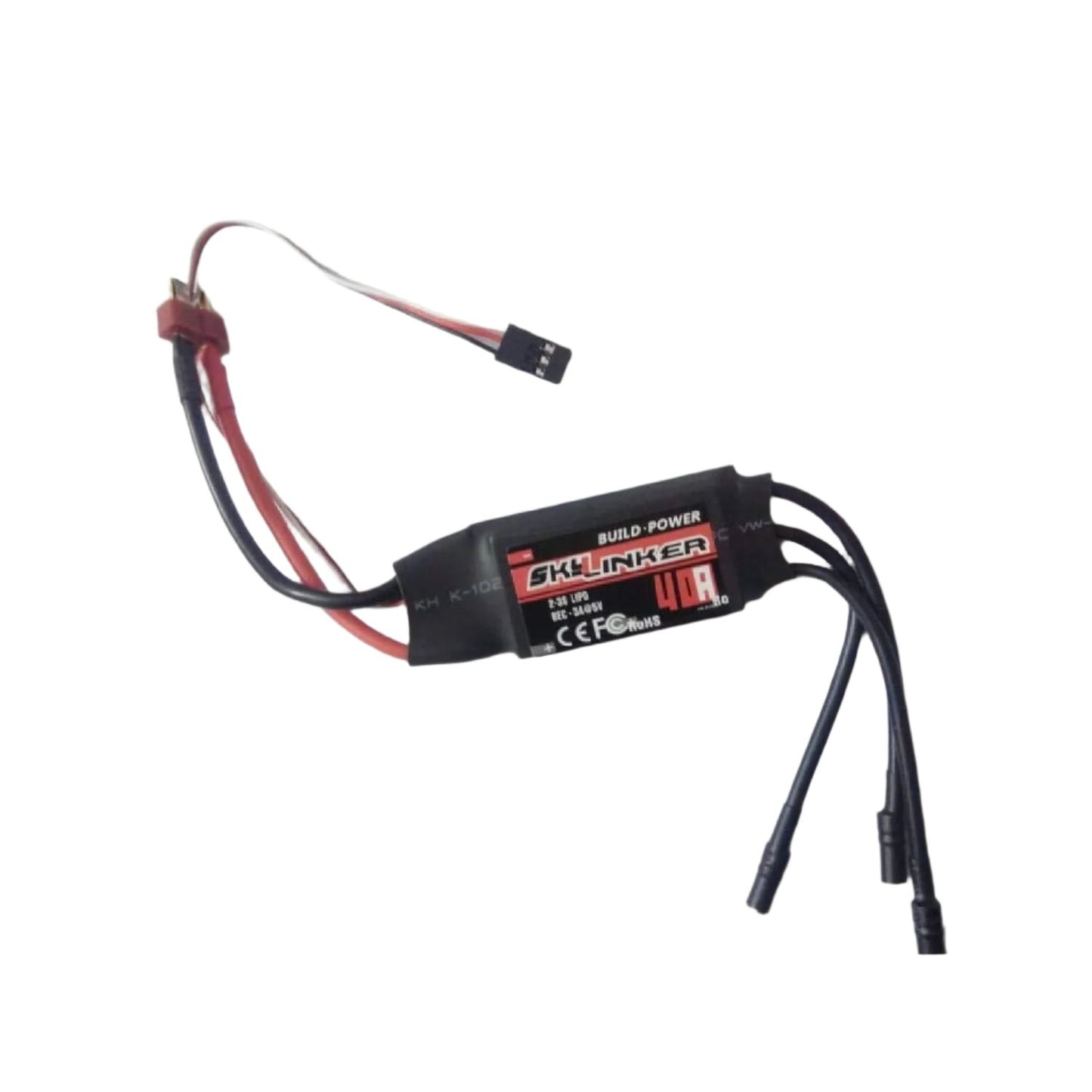

HobbyWing SkyWalker 40A ESC is a Brushless motor driver with a current of up to 40A. The optimal power supply is 2S - 3S li-pol packs (7.4 V to 11.1 V). It has a UBEC 5 V / 3 A regulator. The Hobbywing Skywalk 40A ESC is an electronic speed controller (ESC) designed for remote-controlled hobby aircraft and drones. SkyWalker 40A ESC is capable of handling up to 40 amps of current and features a built-in UBEC (Universal Battery Elimination Circuit) that regulates voltage to power the receiver and servos.
The Hobbywing SkyWalker 40A ESC also has a smooth and linear throttle response, making it ideal for precision flying. Additionally, the SkyWalker 40A ESC is programmable via a computer or programming card, allowing users to customize throttle response, braking, and other parameters to their liking. The compact and lightweight design of the Hobbywing SkyWalker 40A ESC makes it easy to install and ideal for use in small to medium-sized aircraft and drones.
Specifications:
- Continuous Current: 40A
- Burst Current (>10s): 55A
- BEC Output: 5V 3A
- BEC Mode: Linear
- BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
- Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
- Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor).
- Usage: Apply for 400/450 helicopter 3D and 32-level fixed-wing sports
- Supported Programming Functions: Brake setting, Battery type, Low voltage cutoff, Timing set, Soft start, Governor mode
- Supported Throttle Range: 640us-2000us (for 2-4S LiPo or 4-12 cells NiMH/NiCd)
- Protection Features: Low voltage cutoff protection, Overheat protection, Throttle signal loss protection, Motor stall protection
- Supported motor types: sensorless brushless motors
- Programming method: via programming card or transmitter
- Supported throttle signals: PWM, Oneshot125, Oneshot42, Multishot, and DShot
Features:
- Throttle Range Setting
- Programmable using Hobbywing Program Card or by using Throttle Stick
- Setup Braking
- Setup Low Voltage Cutoff Soft / Hard
- Setup Start mode Normal / Slow / Slow
- Setup Timing Low / Mid / High
- High Voltage Protection
- SkyWalker 40A ESC has Overheat Protection
- No Signal Shut-off Protection
- Safety Function: If the throttle stick is not at the bottom while connecting the battery, the motor will not start
Package Included:
1 x HobbyWing SkyWalker 40A ESC 40A 2-3S LiPo ESC Brushless Speed Controller UBEC for RC Airplane
